Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC1G08GF/S505125IC GATE AND |
1,866 | 0.38 |
|
Datasheet |
74LVC | 6-XFDFN | Bulk | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1x1) |
|
74AUP1G04GX/S500125IC INVERTER 1CH 1-INP 5X2SON |
1,242 | 0.07 |
|
Datasheet |
74AUP | 4-XFDFN Exposed Pad | Bulk | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|

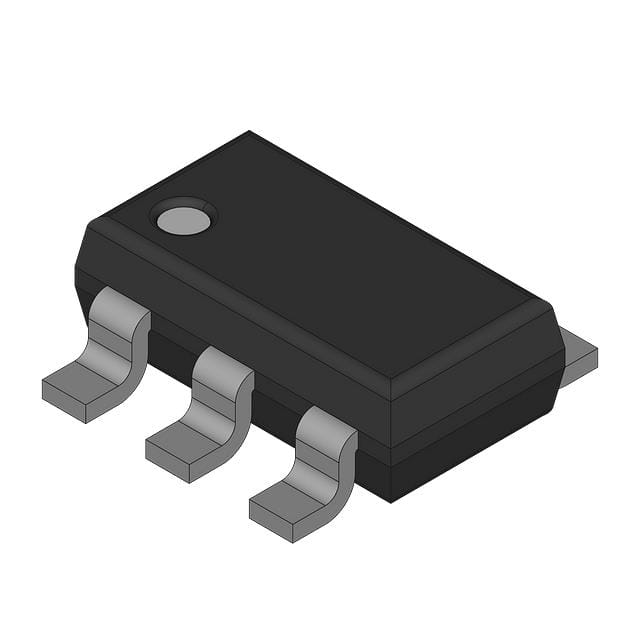

74LVC1G11GV132IC GATE AND |
3,613 | 0.04 |
|
Datasheet |
74LVC | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
74AUP1G06GW-Q100125IC INVERTER 1CH 1-INP 5TSSOP |
1,341 | 0.07 |
|
Datasheet |
74AUP | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Inverter | 1 | 1 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 10.5ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
74AUP1G08GM/S711115IC GATE AND 1CH 2-INP 6XSON |
2,866 | 0.07 |
|
Datasheet |
74AUP | 6-XFDFN | Bulk | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
74LVC1G14GV-Q100125IC INVERT SCHMITT 1CH 1INP SC74A |
1,307 | 0.04 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Bulk | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.46V ~ 1.58V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-74A |
|
74HCT14D/C4118IC INVERT SCHMITT 6CH 1-INP 14SO |
4,938 | 0.07 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 34ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74AUP1G08GX/S500125IC GATE AND 1CH 2-INP 5X2SON |
3,770 | 0.06 |
|
Datasheet |
74AUP | 4-XFDFN Exposed Pad | Bulk | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|
7420PCIC GATE NAND 2CH 4-INP 14DIP |
3,035 | 0.27 |
|
Datasheet |
- | 14-DIP | Bulk | Active | NAND Gate | 2 | 4 | - | 4.75V ~ 5.25V | 11 mA | - | - | - | - | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
74AUP2G04GM125IC INVERTER 2CH 2-INP 6XSON |
2,868 | 0.07 |
|
Datasheet |
74AUP | 6-XFDFN | Bulk | Active | Inverter | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
|
74HCT1G08GW/S400125IC GATE AND 1CH 2-INP 5TSSOP |
4,233 | 0.04 |
|
Datasheet |
74HCT | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | AND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 20 µA | 2mA, 2mA | 0.8V | 2V | 27ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
|
74LVC1G86GV-Q100125IC GATE XOR |
3,561 | 0.06 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Bulk | Active | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
74HC10D/S400118IC GATE NAND 3CH 3-INP 14SO |
4,107 | 0.08 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
54LS26DMIC GATE NAND 4CH 2-INP 14CDIP |
4,855 | 0.53 |
|
Datasheet |
54LS | 14-CDIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 4 | 2 | Open Collector | 4.5V ~ 5.5V | 4.4 mA | 1mA, - | - | - | - | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
CD4078BNSIC GATE OR/NOR 8-INP |
2,953 | 0.10 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74HC1GU04GV-Q100125IC INVERTER 1CH 1-INP 5TSOP |
3,199 | 0.05 |
|
Datasheet |
74HC | SC-74A, SOT-753 | Bulk | Active | Inverter | 1 | 1 | - | 2V ~ 6V | 20 µA | 2.6mA, 2.6mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 18ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
74HC1GU04GW/C125IC INVERTER 1CH 1-INP 5TSSOP |
2,137 | 0.04 |
|
Datasheet |
74HC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Inverter | 1 | 1 | - | 2V ~ 6V | 20 µA | 2.6mA, 2.6mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 18ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
74LVC32APW/DG118IC GATE OR 4CH 2-INP 14TSSOP |
4,090 | 0.08 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | OR Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HC2G04GV-Q100125IC INVERT SCHMITT 2CH 2INP 6TSOP |
1,039 | 0.11 |
|
Datasheet |
74HC | SC-74, SOT-457 | Bulk | Active | Inverter | 2 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
|
74HC30PW/S400118IC GATE NAND 1CH 8-INP 14TSSOP |
3,923 | 0.09 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
