Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MITI-3V1-6-15SWITCH REED SPST-NO 250MA |
1,246 | 0.00 |
|
Datasheet |
MITI-3V1 | Box | Obsolete | Glass Body Reed | SPST-NO | 6 ~ 15AT | - | 250mA (DC) | - | 170 V | 10W | 0.45 ms | 0.2 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
MK23-35-C-4SWITCH REED SPST-NO 1A 200V |
2,868 | 0.64 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.776" (19.70mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | 0.077" (1.95mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
|
MK23-35-D-4SWITCH REED SPST-NO 1A 200V |
1,603 | 0.64 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.776" (19.70mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | 0.077" (1.95mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
MDCG-4-12-28SWITCH REED SPST-NO 350MA 140V |
2,412 | 0.85 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDCG-4-17-38SWITCH REED SPST-NO 350MA 140V |
2,252 | 0.85 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDCG-4-22-33SWITCH REED SPST-NO 350MA 140V |
3,022 | 0.85 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDCG-4-27-38SWITCH REED SPST-NO 350MA 140V |
3,356 | 0.85 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|

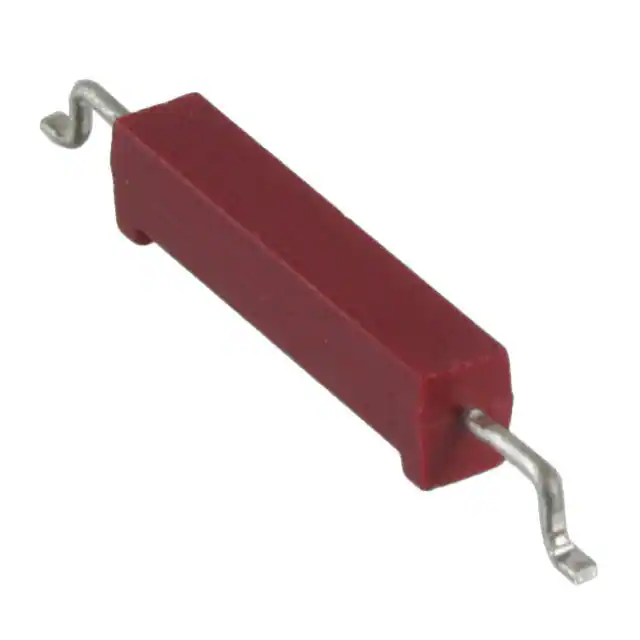

CT10-1540-G2SWITCH REED SPST-NO 500MA 140V |
2,714 | 0.00 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 15 ~ 40AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|

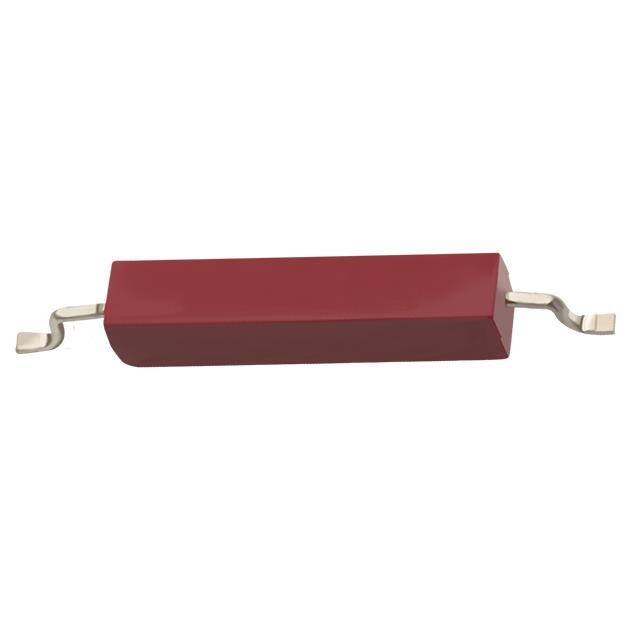

CT10-2040-G2SWITCH REED SPST-NO 500MA 140V |
2,502 | 0.00 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 20 ~ 40AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
MK15-501-D-2SWITCH REED SPST-NO 500MA 200V |
3,370 | 0.00 |
|
Datasheet |
MK15-501 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.768" (19.50mm) | 0.630" L x 0.110" W x 0.110" H (16.00mm x 2.80mm x 2.80mm) | 0.110" (2.80mm) | -40°C ~ 125°C | 0.3 pF | 1A (AC/DC) |
|
MDSM-4R-32-38SWITCH REED SPST-NO 350MA 140V |
4,343 | 1.09 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MITI-3V1-13-19SWITCH REED SPST-NO 250MA |
2,608 | 0.00 |
|
- |
MITI-3V1 | Bag | Obsolete | Glass Body Reed | SPST-NO | 13 ~ 19AT | - | 250mA (DC) | - | 170 V | 10W | 0.45 ms | 0.2 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MK15-B-1SWITCH REED SPST-NO 500MA 180V |
3,010 | 0.69 |
|
Datasheet |
MK15 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.05 ms | Surface Mount | Axial, Flat | 0.768" (19.50mm) | 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm) | - | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
MK15-C-1SWITCH REED SPST-NO 500MA 180V |
2,226 | 0.69 |
|
Datasheet |
MK15 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.05 ms | Surface Mount | Axial, Flat | 0.768" (19.50mm) | 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm) | - | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
MDSR-7-15-25SWITCH REED SPST-NO 350MA 140V |
1,100 | 0.97 |
|
Datasheet |
MDSR-7 | Box | Active | Glass Body Reed | SPST-NO | 15 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MLRR-3-22-33SWITCH REED SPST-NO 700MA 140V |
1,824 | 0.97 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
|
MLRR-3-27-38SWITCH REED SPST-NO 700MA 140V |
4,819 | 0.94 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 38AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
MACD-14-15-20SWITCH REED SPST-NO 350MA 140V |
1,624 | 1.45 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
MACD-14-10-30SWITCH REED SPST-NO 350MA 140V |
4,662 | 0.89 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
MACD-14-20-30SWITCH REED SPST-NO 350MA 140V |
1,438 | 0.89 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
