Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

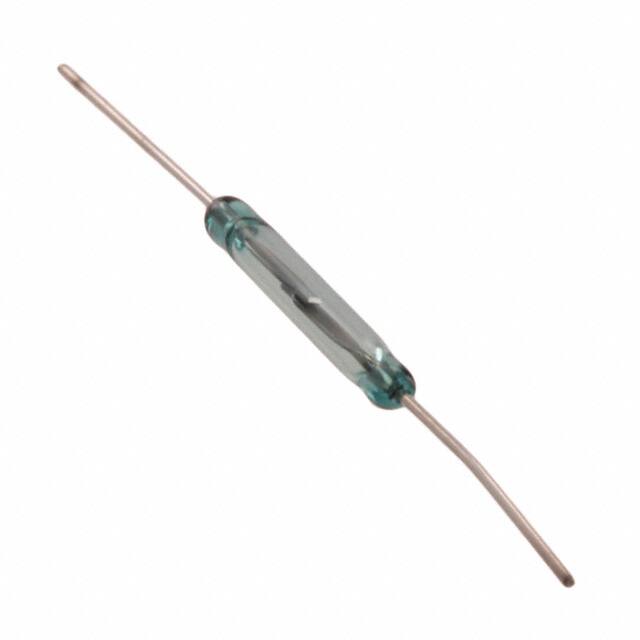

MDSR-4-32-38SWITCH REED SPST-NO 500MA |
1,373 | 0.85 |
|
Datasheet |
MDSR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MDSR-4-12-28SWITCH REED SPST-NO 500MA |
2,081 | 0.85 |
|
Datasheet |
MDSR-4 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 28AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSR-4-17-28SWITCH REED SPST-NO 500MA |
1,287 | 0.85 |
|
Datasheet |
MDSR-4 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSR-4-27-38SWITCH REED SPST-NO 500MA |
3,193 | 0.85 |
|
Datasheet |
MDSR-4 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 38AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
KSK-1A46-1040SWITCH REED SPST-NO 500MA 200V |
3,103 | 0.87 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 40AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.1 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.079" Dia x 0.472" L (2.00mm x 12.00mm) | - | -40°C ~ 130°C | 0.2 pF | 1A (AC/DC) |
|

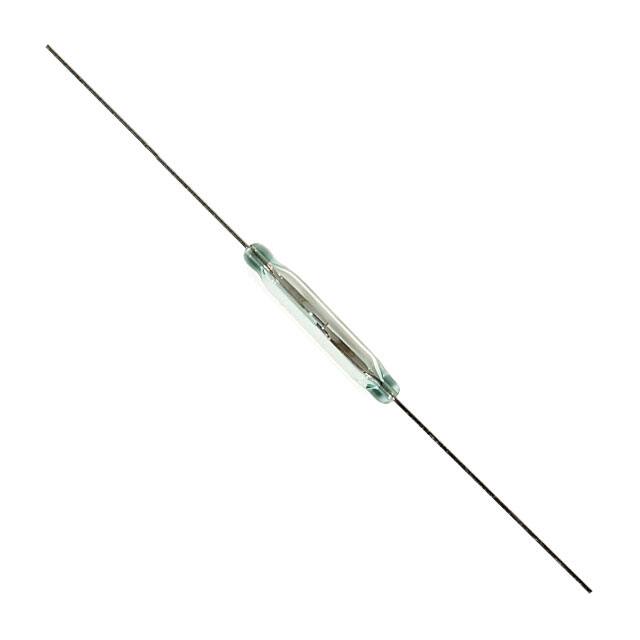

ORD 312/10-15 ATSWITCH REED SPST-NO 500MA 100V |
4,939 | 0.92 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 100 V | 200 V | 30W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.079" Dia x 0.472" L (2.00mm x 12.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|
59166-1-T-00-ASWITCH REED SPST-NO 350MA 140V |
2,385 | 0.00 |
|
Datasheet |
59166 | Box | Obsolete | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
FR2249-SURFACEMOUNTSWITCH REED SPST-NO 500MA 200V |
4,110 | 0.00 |
|
Datasheet |
FR2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 25AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | 0.080" (2.03mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
SW NL126/25-30 ATSWITCH REED SPST-NO 1.5A 200V |
4,397 | 0.85 |
|
- |
NL126 | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | 16 ~ 23AT | 1.5A (AC/DC) | 200 V | 200 V | 50VA | 0.8 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.098" Dia x 0.799" L (2.50mm x 20.30mm) | - | -40°C ~ 130°C | 0.3 pF | 2.5A (AC/DC) |
|
|
SW NL126/30-35 ATSWITCH REED SPST-NO 1.5A 200V |
4,652 | 0.85 |
|
- |
NL126 | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 16 ~ 23AT | 1.5A (AC/DC) | 200 V | 200 V | 50VA | 0.8 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.098" Dia x 0.799" L (2.50mm x 20.30mm) | - | -40°C ~ 130°C | 0.3 pF | 2.5A (AC/DC) |
|
FRB2026SWITCH REED SPST-NO 500MA 200V |
1,072 | 0.00 |
|
Datasheet |
FRB | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.549" L x 0.100" W x 0.090" H (13.94mm x 2.54mm x 2.29mm) | 0.114" (2.90mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|

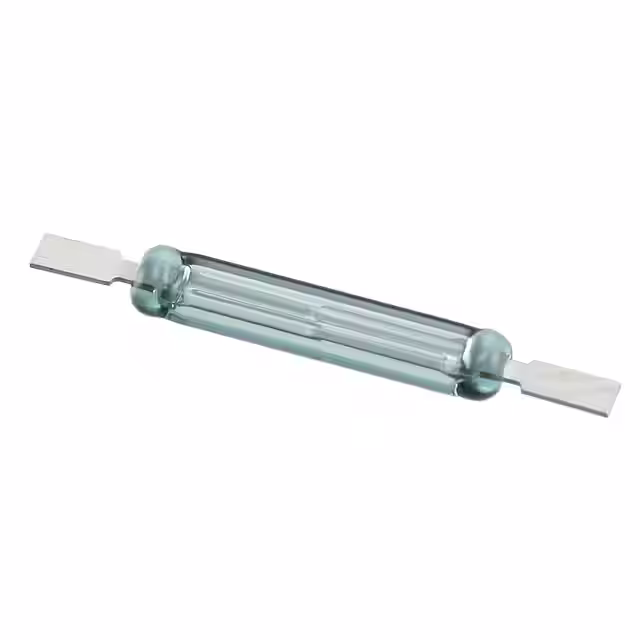

MK23-35-A-1SWITCH REED SPST-NO 1A 200V |
2,406 | 0.64 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 5 ~ 10AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Axial, Flat | 0.614" (15.60mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | - | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|

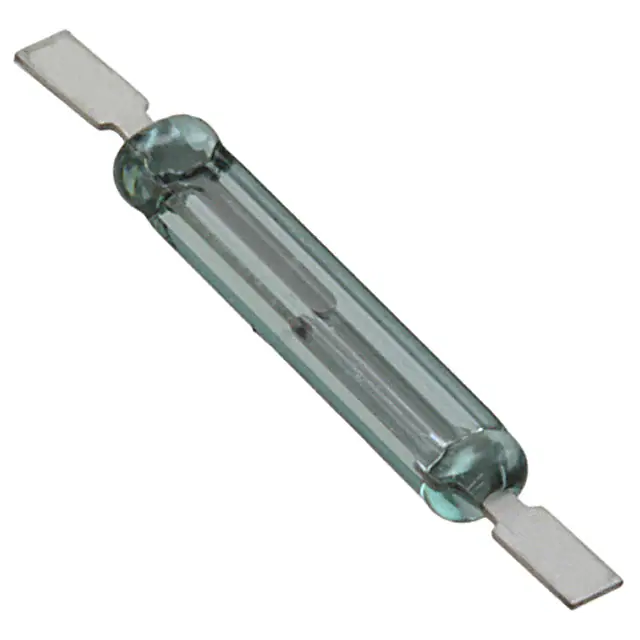

MK23-35-B-1SWITCH REED SPST-NO 1A 200V |
3,811 | 0.64 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Axial, Flat | 0.614" (15.60mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | - | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|

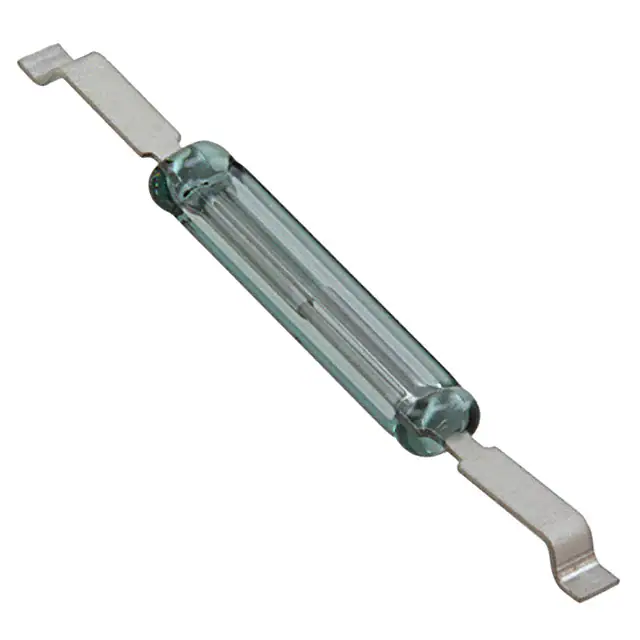

MK23-35-B-4SWITCH REED SPST-NO 1A 200V |
2,838 | 0.64 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.776" (19.70mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | 0.077" (1.95mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
59165-1-U-00-CSWITCH REED SPST-NO 350MA 140V |
1,760 | 1.79 |
|
Datasheet |
59165 | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Surface Mount | Gull Wing | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
|
MITI-7-8-12.5SWITCH REED SPST-NO 180MA 120V |
3,286 | 1.46 |
|
- |
MITI-7 | Bulk | Active | Glass Body Reed | SPST-NO | 8 ~ 12AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | - | 0.5 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MITI-7-6-8SWITCH REED SPST-NO 180MA 120V |
2,148 | 1.46 |
|
- |
MITI-7 | Bulk | Active | Glass Body Reed | SPST-NO | 6 ~ 8AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | - | 0.5 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MITI-7-6-12.5SWITCH REED SPST-NO 180MA 120V |
3,883 | 1.46 |
|
- |
MITI-7 | Bulk | Active | Glass Body Reed | SPST-NO | 6 ~ 12AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | - | 0.5 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
FR2259-SURFACEMOUNTSWITCH REED SPST-NO 500MA 200V |
3,974 | 0.00 |
|
Datasheet |
FR2 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) | 0.080" (2.03mm) | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
|
MISM-7B5-6-10SWITCH REED SPST-NO 180MA 120V |
3,221 | 1.48 |
|
- |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 0.45 ms | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
