Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MISM-7R-10-15SWITCH REED SPST-NO 180MA 120V |
315 | 2.89 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
KSK-1A52-2530SWITCH REED SPST-NO 500MA 350V |
1,060 | 2.65 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC/DC) | 350 V | 350 V | 50W | 1.1 ms | 0.1 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | -40°C ~ 130°C | 0.5 pF | 2.5A (AC/DC) |
|

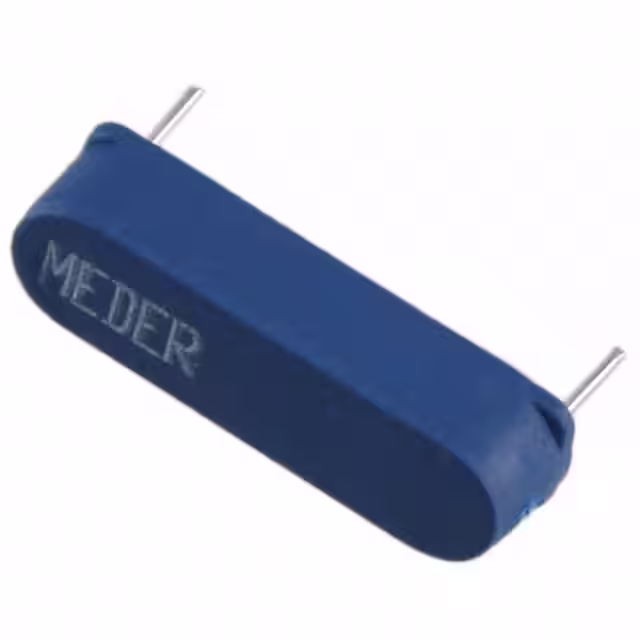

MK06-4-CSWITCH REED SPST-NO 500MA 200V |
433 | 3.65 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 0.475" (12.06mm) | 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm) | 0.130" (3.30mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
|

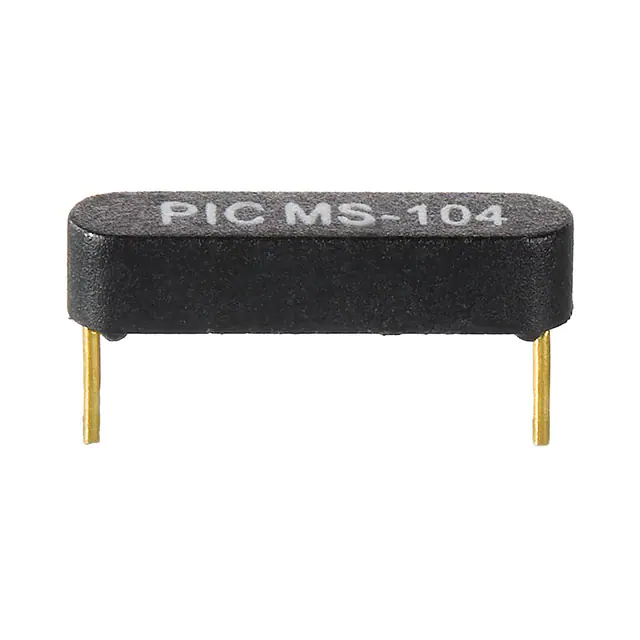

MS-104-3-2SWITCH REED SPST-NO 500MA 120V |
124 | 2.62 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Through Hole | PC Pin | 0.449" (11.40mm) | 0.449" L x 0.106" W x 0.110" H (11.40mm x 2.70mm x 2.80mm) | 0.110" (2.80mm) | -20°C ~ 85°C | - | 700mA (AC/DC) |
|
59045-1-T-00-0SWITCH REED SPST-NO 350MA 140V |
891 | 2.86 |
|
Datasheet |
59045 | Box | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.700" (17.78mm) | 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm) | 0.170" (4.33mm) | -40°C ~ 105°C | 0.3 pF | 1.2A (DC) |
|
KSK-1C90U-1015SWITCH REED SPDT 500MA 175V |
8,512 | 3.98 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | Axial | 2.209" (56.10mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | -40°C ~ 130°C | 1 pF | 1A (AC/DC) |
|

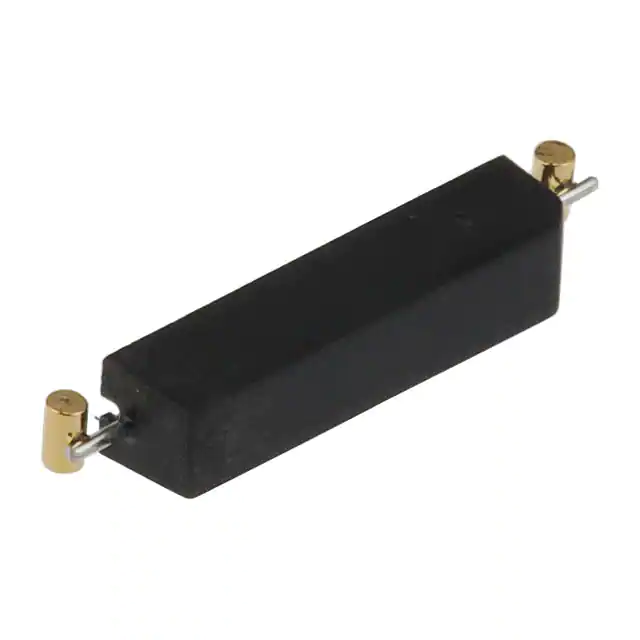

PMC-1424THXSWITCH REED LATCHING 500MA 100V |
1,081 | 3.09 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO, Latching | - | - | 500mA (AC/DC) | 100 V | 140 V | 5W | 0.4 ms | 0.1 ms | Surface Mount | Axial | 0.772" (19.60mm) | 0.591" L x 0.134" W x 0.161" H (15.00mm x 3.40mm x 4.10mm) | - | -20°C ~ 125°C | - | 1A (AC/DC) |
|
GC1513 - 7580SWITCH REED SPST-NO 3A 1500V |
2,548 | 4.66 |
|
Datasheet |
GC1513 | Bulk | Active | Glass Body Reed | SPST-NO | 75 ~ 80AT | 30AT | 3A (AC/DC) | 1500 V | 1500 V | 120W | 4 ms | 0.2 ms | Surface Mount | Axial, Flat | 3.110" (79.00mm) | 0.213" Dia x 2.047" L (5.40mm x 52.00mm) | - | -40°C ~ 125°C | 0.8 pF | 5A (AC/DC) |
|

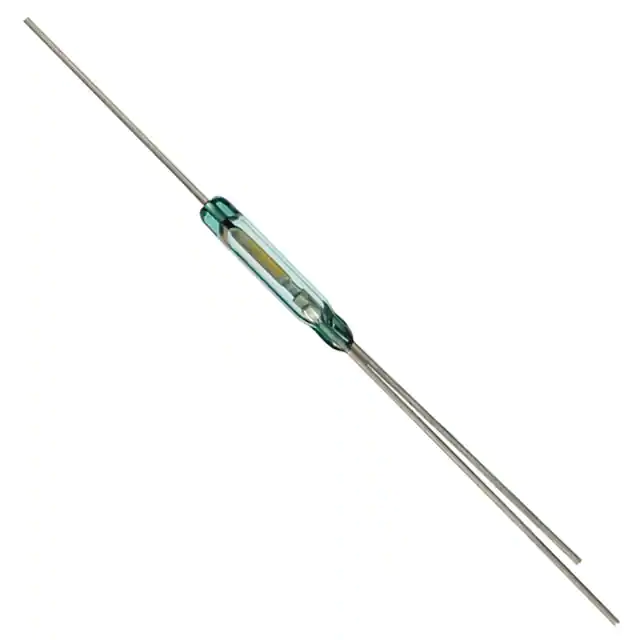

ORT 551/10-15 ATSWITCH REED SPDT 200MA 30V |
9,575 | 3.39 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 200mA (AC/DC) | 30 V | 30 V | 3VA | 1 ms | 0.5 ms | Through Hole | Axial | 2.209" (56.10mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | - | 1.5 pF | 500mA (AC/DC) |
|

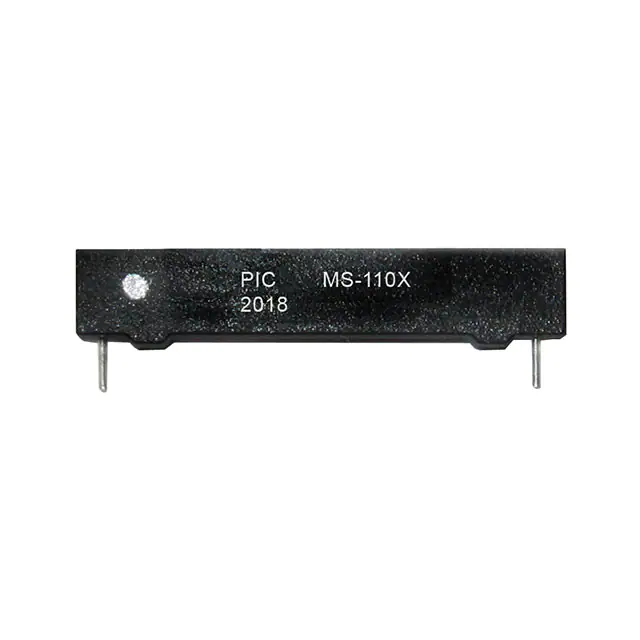

MS-110XSWITCH REED LATCHING 500MA 100V |
208 | 3.06 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO, Latching | - | - | 500mA (AC/DC) | 100 V | 140 V | 5W | 1 ms | 0.4 ms | Through Hole | PC Pin | 1.125" (28.58mm) | 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm) | 0.225" (5.72mm) | -20°C ~ 85°C | - | 700mA (AC/DC) |
|

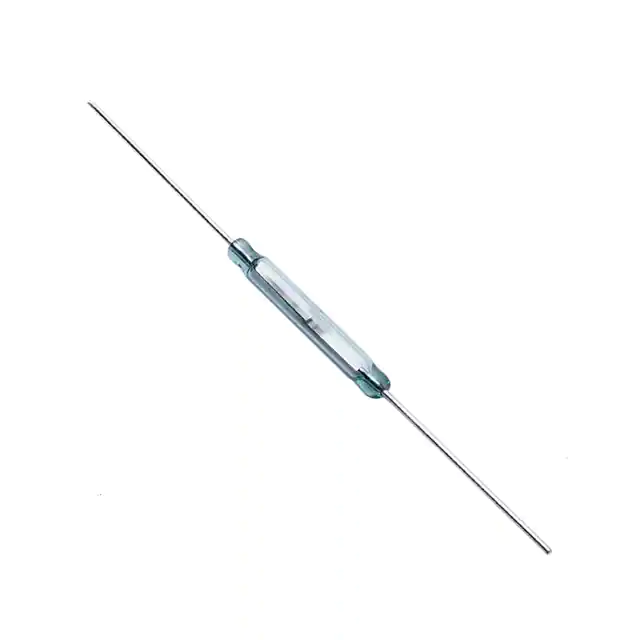

MVSR-20-17-23SWITCH REED SPST-NO 350MA 265V |
1,571 | 4.30 |
|
Datasheet |
MVSR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
GC1513 - 6570SWITCH REED SPST-NO 3A 1500V |
4,980 | 4.66 |
|
Datasheet |
GC1513 | Bulk | Active | Glass Body Reed | SPST-NO | 65 ~ 70AT | 30AT | 3A (AC/DC) | 1500 V | 1500 V | 120W | 4 ms | 0.2 ms | Surface Mount | Axial, Flat | 3.110" (79.00mm) | 0.213" Dia x 2.047" L (5.40mm x 52.00mm) | - | -40°C ~ 125°C | 0.8 pF | 5A (AC/DC) |
|
|
GC1513 - 7075SWITCH REED SPST-NO 3A 1500V |
2,850 | 4.66 |
|
Datasheet |
GC1513 | Bulk | Active | Glass Body Reed | SPST-NO | 70 ~ 75AT | 30AT | 3A (AC/DC) | 1500 V | 1500 V | 120W | 4 ms | 0.2 ms | Surface Mount | Axial, Flat | 3.110" (79.00mm) | 0.213" Dia x 2.047" L (5.40mm x 52.00mm) | - | -40°C ~ 125°C | 0.8 pF | 5A (AC/DC) |
|
MDSM-DTB-10-15SWITCH REED SPDT 180MA 120V |
985 | 5.10 |
|
Datasheet |
MDSM-DT | Box | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|

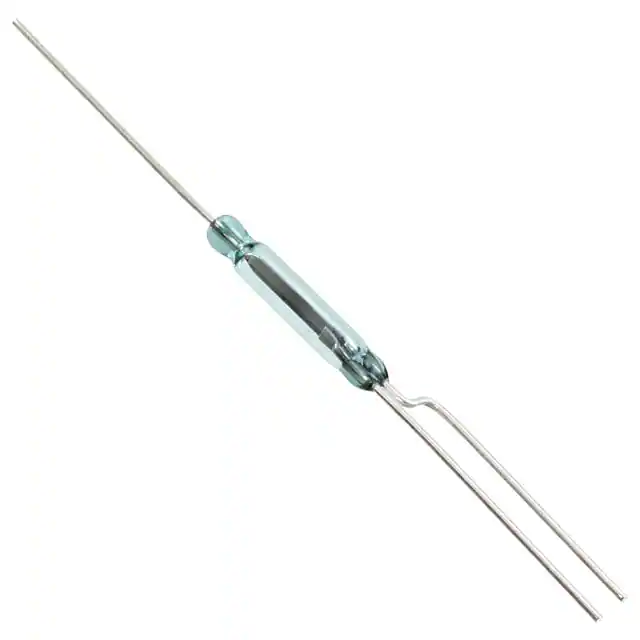

MDRR-DT-25-30-FSWITCH REED SPDT 180MA 120V |
1,187 | 5.17 |
|
Datasheet |
MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 25 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|

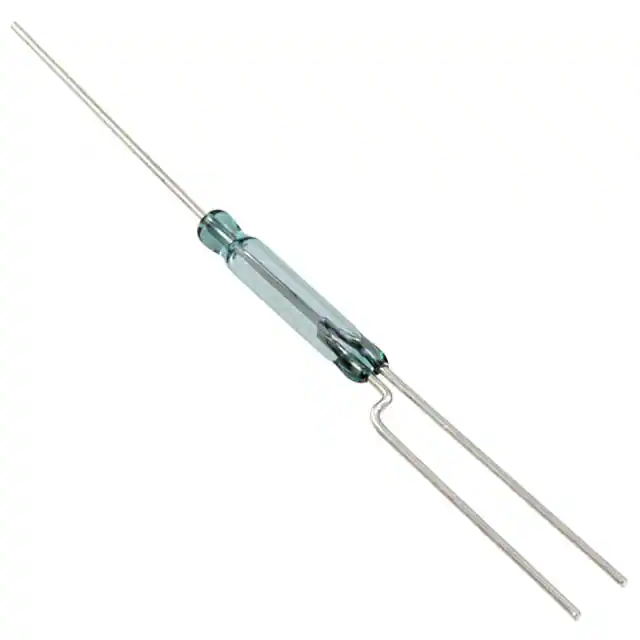

MDRR-DT-10-15-FSWITCH REED SPDT 180MA 120V |
653 | 5.17 |
|
Datasheet |
MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MK24-E-3SWITCH REED SPST-NO 300MA 30V |
6,607 | 5.07 |
|
Datasheet |
MK24 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 50 ~ 112AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | J Lead | 0.217" (5.51mm) | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) | 0.071" (1.80mm) | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|

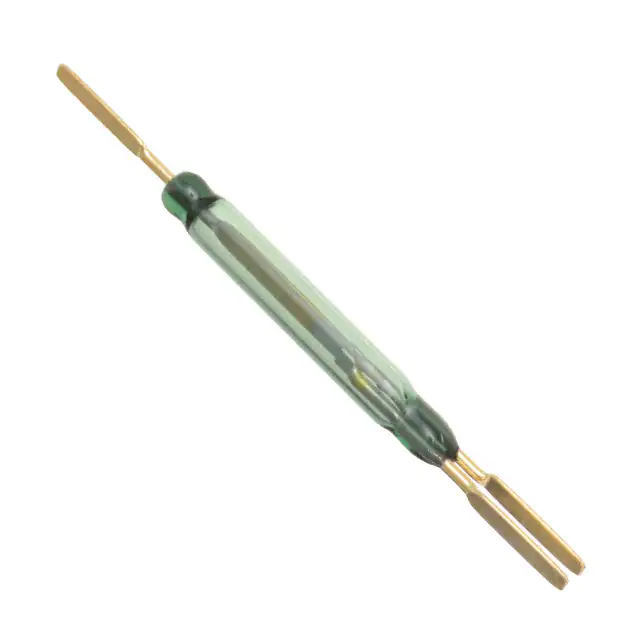

GC1917 - 6570SWITCH REED SPDT 1A 400V |
1,242 | 5.92 |
|
Datasheet |
GC1917 | Bulk | Active | Glass Body Reed | SPDT | 65 ~ 70AT | 20AT | 1A (AC/DC) | 400 V | 400 V | 60W | 2 ms | 1.5 ms | Surface Mount | Axial, Flat | 2.750" (69.85mm) | 0.220" Dia x 1.420" L (5.59mm x 36.07mm) | - | -40°C ~ 125°C | 1 pF | 2A (AC/DC) |
|
|
GC1917 - 7580SWITCH REED SPDT 1A 400V |
590 | 5.92 |
|
Datasheet |
GC1917 | Bulk | Active | Glass Body Reed | SPDT | 75 ~ 80AT | 20AT | 1A (AC/DC) | 400 V | 400 V | 60W | 2 ms | 1.5 ms | Surface Mount | Axial, Flat | 2.750" (69.85mm) | 0.220" Dia x 1.420" L (5.59mm x 36.07mm) | - | -40°C ~ 125°C | 1 pF | 2A (AC/DC) |
|
|
GC1917 - 7075SWITCH REED SPDT 1A 400V |
243 | 5.92 |
|
Datasheet |
GC1917 | Bulk | Active | Glass Body Reed | SPDT | 70 ~ 75AT | 20AT | 1A (AC/DC) | 400 V | 400 V | 60W | 2 ms | 1.5 ms | Surface Mount | Axial, Flat | 2.750" (69.85mm) | 0.220" Dia x 1.420" L (5.59mm x 36.07mm) | - | -40°C ~ 125°C | 1 pF | 2A (AC/DC) |
