Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMF3030IC HALF BRIDGE DRIVER 50A 40PQFN |
2,837 | 1.61 |
|
Datasheet |
PowerTrench®, SyncFET™ | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 900mOhm LS, 800mOhm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
IRSM515-035DAIC HALF BRIDGE DRIVER 2.1A 23DIP |
3,415 | 4.44 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
IRSM836-015MAIC HALF BRIDGE DRIVER 1A 36QFN |
4,477 | 4.45 |
|
Datasheet |
µIPM™ | 36-PowerVQFN | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 4.8Ohm | 1A | 7A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 36-PQFN (12x12) |
|
FDMF5820TDCIC HALF BRIDGE DRIVER 60A 31PQFN |
3,139 | 1.97 |
|
Datasheet |
PowerTrench® | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | DC-DC Converters, Synchronous Buck Converter | PWM | Inductive | Power MOSFET | - | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
|
IRSM505-084DA-IRIC HALF BRIDGE DRIVER 4.6A 23DIP |
4,215 | 4.49 |
|
Datasheet |
- | 23-DIP Module (0.573", 14.55mm) | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | MOSFET (Metal Oxide) | 340mOhm LS, 340mOhm HS | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
FDMF6820AIC HALF BRIDGE DRIVER 60A 40PQFN |
2,268 | 4.02 |
|
Datasheet |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 60A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
FDMF6707BIC HALF BRIDGE DRIVER 50A 40PQFN |
1,268 | 568.00 |
|
Datasheet |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
|
FDMF6823CIC HALF BRIDGE DRIVER 50A 40PQFN |
14,944 | 4.11 |
|
Datasheet |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
IRSM505-035DAIC HALF BRIDGE DRIVER 2.1A 23DIP |
3,922 | 4.67 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
FDMF6823BIC HALF BRIDGE DRIVER 55A 40PQFN |
2,998 | 387.00 |
|
- |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | DrMOS, Power MOSFET | 1Ohm LS, 1Ohm HS | 55A | 55A | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit, Diode Emulation | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
LB1843V-TLM-EIC MOTOR DRIVER PAR 20SSOP |
356 | 3.98 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

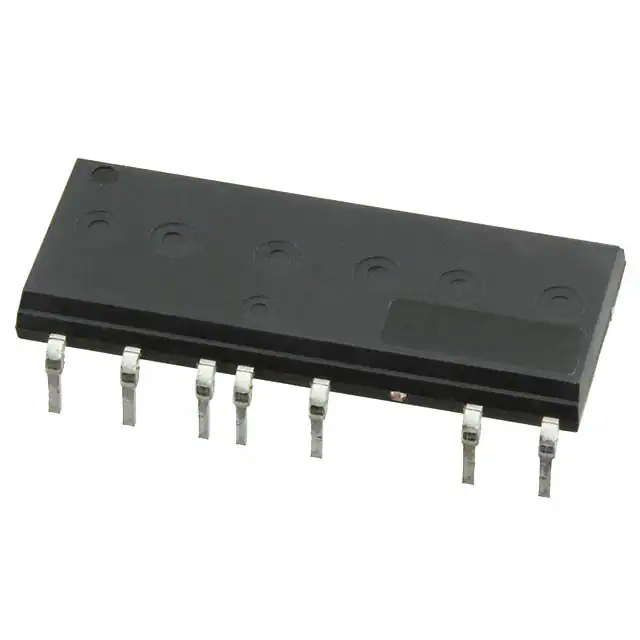

IRSM515-055DAIC HALF BRIDGE DRIVER 2.4A 23DIP |
2,809 | 4.97 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
IRSM515-055PAIC HALF BRIDGE DRIVER 2.4A 23SOP |
1,276 | 4.97 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
BA5814FM-E2IC BRIDGE DRIVER PAR 28HSOP |
1,492 | 5.81 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Not For New Designs | - | DC Motors, General Purpose | - | - | - | - | - | - | 4.3V ~ 13.2V | - | -40°C ~ 85°C | - | - | - | - | Surface Mount | 28-HSOP-M |
|
|
UPD16879GS-BGG-AMOTION CONTROL ELECTRONIC PDSO38 |
639 | 5.16 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R2J20602NP#G3IC MOSFET DRVR 12V 40A 56-QFN |
3,690 | 5.56 |
|
- |
- | 56-VFQFN Exposed Pad | Cut Tape (CT) | Obsolete | Half Bridge | Buck Converters | PWM | Inductive | DrMOS | - | - | 40A | 7V ~ 7.8V | 7V ~ 7.8V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 56-HVQFN (8x8) |
|
|
IRSM515-065PAIC HALF BRIDGE DRIVER 2.6A 23SOP |
4,955 | 5.42 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-065DAIC HALF BRIDGE DRIVER 2.6A 23DIP |
3,949 | 5.42 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
FDMF5820DCIC HALF BRIDGE DRIVER 60A 31PQFN |
6,341 | 5.27 |
|
Datasheet |
PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 470mOhm LS, 680mOhm HS | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
|
FDMF6821AIC HALF BRIDGE DRIVER 60A 40PQFN |
1,500 | 5.48 |
|
Datasheet |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 60A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
