Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMF6823AIC HALF BRIDGE DRIVER 60A 40PQFN |
2,998 | 5.73 |
|
Datasheet |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 60A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
MP86992GMJ-P16V, 50A, INTELLI-PHASETM SOLUTI |
500 | 0.00 |
|
Datasheet |
Intelli-Phase™ | 41-PowerVFLGA | Tape & Reel (TR) | Active | Half Bridge | Buck Converters | Analog, PWM | Inductive, Capacitive | Power MOSFET | - | 50A | 110A | 3V ~ 16V | 3V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 41-LGA (5x6) |
|
STK5C4U332J-EIC HALF BRIDGE DRIVER 3A 38SDIP |
3,878 | 10.29 |
|
Datasheet |
- | 38-SDIP Module, 24 Leads, Formed | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 3A | 6A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, UVLO | Through Hole | 38-SDIP Hybrid Module |
|
|
LM18298TIC HALF BRIDGE DRVR 2A TO220-15 |
418 | 6.51 |
|
Datasheet |
LM18298 | TO-220-15 Formed Leads | Bulk | Active | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | - | - | Bipolar | - | 2A | 3A | 46V | 46V (Max) | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature | Through Hole | TO-220-15 |
|
UPD168102K9-5B4-AMOTION CONTROL ELECTRONIC PQCC48 |
847 | 6.82 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HIP4081AIBTIC HALF/FULL BRIDGE DRVR 20SOIC |
895 | 7.17 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | Half Bridge, Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 2.6A | 9.5V ~ 15V | 8V ~ 15V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit | - | Surface Mount | 20-SOIC |
|
|
HIP4081AIBT-HCIC HALF/FULL BRIDGE DRVR 20SOIC |
176 | 7.17 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Bulk | Active | Half Bridge, Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 2.6A | 9.5V ~ 15V | 8V ~ 15V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit | - | Surface Mount | 20-SOIC |
|
MC33186VW2R2IC HALF BRIDGE DRIVER 5A 20HSOP |
348 | 7.75 |
|
Datasheet |
- | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Bulk | Active | Half Bridge (2) | DC Motors, General Purpose, Solenoids | Logic | Inductive | Bi-CMOS | 150mOhm | 5A | - | 5V ~ 28V | 5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Surface Mount | 20-HSOP |
|
IRSM515-025DAIC HALF BRIDGE DRIVER 1.5A 23DIP |
2,544 | 4.06 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
STK681-050-EIC HALF BRIDGE DRIVER 5A 16SIP |
4,089 | 8.00 |
|
- |
- | 16-SIP Formed Leads | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 5A | - | 4.75V ~ 7V | 18V ~ 42V | 150°C (TJ) | - | - | - | - | Through Hole | 16-SIP |
|
IRSM505-084PA-IRIC HALF BRIDGE DRIVER 4.6A 23SOP |
240 | 4.35 |
|
Datasheet |
- | 23-PowerSMD Module | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | MOSFET (Metal Oxide) | 340mOhm LS, 340mOhm HS | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
STK5Q4U362J-EIC HALF BRIDGE DRIVER 10A |
3,810 | 11.55 |
|
Datasheet |
- | 38-DIP Module, 24 Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 400V (Max) | 150°C (TJ) | - | - | Status Flag | Current Limiting, UVLO | Through Hole | - |
|
|
IRSM505-065DAIC HALF BRIDGE DRIVER 2.6A 23DIP |
195 | 11.19 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1Ohm | 2.6A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IGI60F5050A1LAUMA1IC HALF BRIDGE DRIVER 28TIQFN |
2,978 | 0.00 |
|
Datasheet |
CoolGaN™ | 28-PowerTQFN | Tape & Reel (TR) | Last Time Buy | Half Bridge | General Purpose | - | - | - | 500mOhm | - | - | - | - | - | - | - | - | - | Surface Mount | PG-TIQFN-28-1 |
.jpg)
|

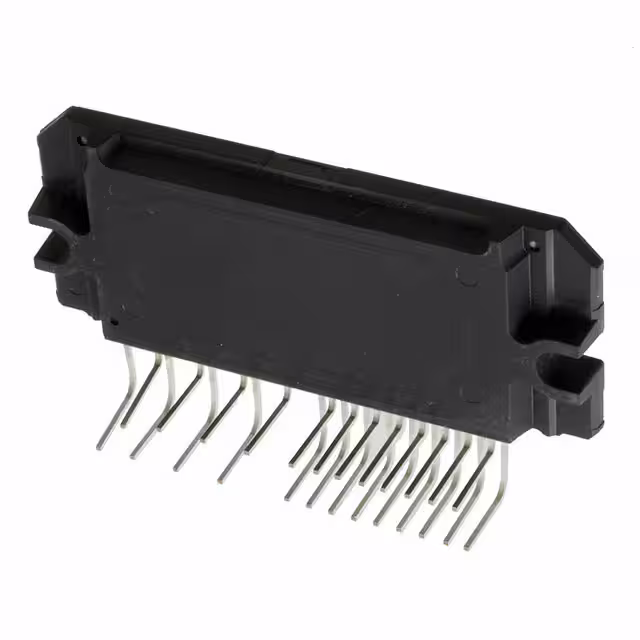

STK57FU394AG-EIC HALF BRIDGE DRIVER 15A 35SIP |
1,785 | 1.00 |
|
Datasheet |
- | 35-SSIP, 25 Leads | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors, DC Motors, General Purpose | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 400V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, UVLO | Through Hole | 35-SIP/SIP2A-3 |
|
DRV8332DKDRIC HALF BRIDGE DRIVER 8A 36HSSOP |
102 | 11.48 |
|
Datasheet |
- | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | Tape & Reel (TR) | Last Time Buy | Half Bridge (3) | DC Motors, General Purpose | PWM | Inductive | Power MOSFET | 80mOhm LS, 80mOhm HS | 8A | 13A | 10.8V ~ 13.2V | 0V ~ 52.5V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 36-HSSOP |
|
HIP4086ABTIC HALF BRIDGE DRIVER 24SOIC |
700 | 1.00 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 500mA | 7V ~ 15V | 7V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 24-SOIC |
|
|
IGI60F2727A1LAUMA1IC HALF BRIDGE DRVR 4.5A 28TIQFN |
2,710 | 0.00 |
|
Datasheet |
CoolGaN™ | 28-PowerTQFN | Tape & Reel (TR) | Last Time Buy | Half Bridge (3) | DC Motors, DC-DC Converters | - | Inductive, Capacitive, Resistive | NMOS, PMOS | 1.2Ohm LS, 1.3Ohm HS | 4.5A | 12.2A | 3V ~ 3.5V | 5.5V ~ 12V | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | PG-TIQFN-28-1 |
|
BM6205FS-E2IC HALF BRIDGE DRVR 2.5A 54SSOP |
1,000 | 11.67 |
|
Datasheet |
- | 54-SOP (0.449", 11.40mm Width), 36 Leads | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | Power MOSFET | 1.7Ohm | 2.5A | 4A | 13.5V ~ 16.5V | 400V (Max) | -20°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | SSOP-A54_36 |
|
|
IGI60F2020A1LAUMA1IC HALF BRIDGE DRIVER 5A 28TIQFN |
2,960 | 0.00 |
|
Datasheet |
CoolGaN™ | 28-PowerTQFN | Tape & Reel (TR) | Last Time Buy | Half Bridge (3) | DC Motors, DC-DC Converters | - | Inductive, Capacitive, Resistive | NMOS, PMOS | 200mOhm LS, 200mOhm HS | 5A | 14.1A | 3V ~ 3.5V | 5.5V ~ 12V | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | PG-TIQFN-28-1 |
