Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRSM515-084DA2IC HALF BRIDGE DRIVER 4.6A 23DIP |
180 | 3.67 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM505-024DAIC HALF BRIDGE DRIVER 1.6A 23DIP |
2,812 | 3.67 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-024DA2IC HALF BRIDGE DRIVER 1.6A 23DIP |
3,931 | 3.67 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-044DA-INFIC HALF BRIDGE DRIVER 3A 23DIP |
120 | 3.68 |
|
Datasheet |
- | 23-DIP Module (0.573", 14.55mm) | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | MOSFET (Metal Oxide) | 800mOhm LS, 800mOhm HS | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
CSD96497Q5MCIC BRIDGE DRIVER 30A 12VSON |
495 | 3.48 |
|
Datasheet |
NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | - | DC-DC Converters, Synchronous Buck Converter | PWM | Inductive, Capacitive, Resistive | Power MOSFET | - | 30A | 65A | 3.3V ~ 5V | 3.3V ~ 5V | -55°C ~ 150°C (TA) | - | - | Bootstrap Circuit, Diode Emulation | Over Current, Over Temperature, Shoot-Through, Short Circuit | Surface Mount | 12-VSON-CLIP (5x6) |
|

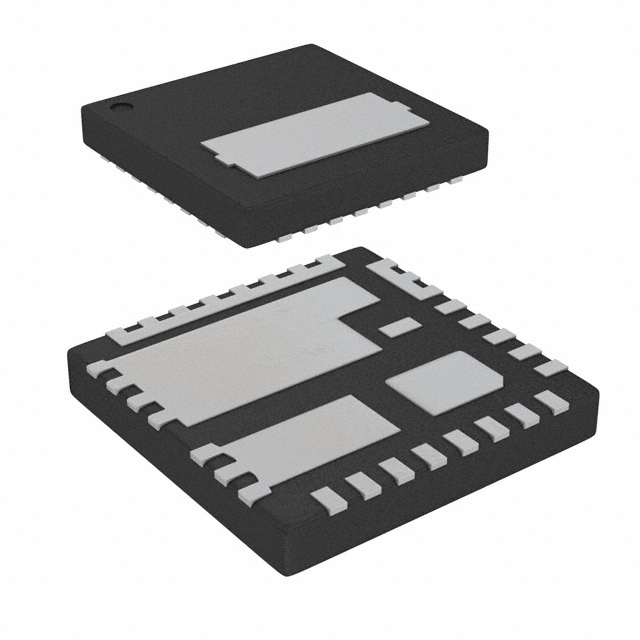

FDMF5823DCIC HALF BRIDGE DRIVER 55A 31PQFN |
2,995 | 3.90 |
|
Datasheet |
PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 470mOhm LS, 680mOhm HS | 55A | - | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
FDMF6824CIC HALF BRIDGE DRIVER 50A 40PQFN |
2,861 | 1.55 |
|
- |
- | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
FDMF8700IC HALF BRIDGE DRVR 30A PWR88-56 |
93,373 | 3.73 |
|
Datasheet |
- | 56-PowerWFQFN Module | Bulk | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 30A | 65A | 6.4V ~ 13.5V | 6.4V ~ 14V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 56-Power88™ |
|
FDMF6704IC HALF BRIDGE DRIVER 35A 40MLP |
3,000 | 0.00 |
|
- |
XS™ DrMOS | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 35A | 80A | 4.5V ~ 5.5V | 3V ~ 14V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 40-MLP (6x6) |
|
|
IRSM515-084PAIC HALF BRIDGE DRIVER 4.6A 23SOP |
360 | 3.79 |
|
Datasheet |
µIPM™-DIP | 32-PowerSMD Module, 23 Leads | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
FDMF6706CIC HALF BRIDGE DRIVER 40A 40PQFN |
3,508 | 0.00 |
|
- |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 40A | - | 4.5V ~ 5.5V | 3V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
HIP4081AIPIC HALF/FULL BRIDGE DRIVER 20DIP |
4,751 | 0.00 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Bulk | Active | Half Bridge, Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 2.6A | 9.5V ~ 15V | 8V ~ 15V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit | - | Through Hole | 20-PDIP |
|
IRSM515-015DA2IC HALF BRIDGE DRIVER 1.2A 23DIP |
2,220 | 3.89 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 5Ohm | 1.2A | 9A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM515-084DAIC HALF BRIDGE DRIVER 4.6A 23DIP |
2,305 | 3.92 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
FDMF8705IC HALF BRIDGE DRVR 18A PWR88-56 |
354,000 | 4.02 |
|
Datasheet |
- | 56-PowerWFQFN Module | Bulk | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 18A | 65A | 6.4V ~ 13.5V | 6.4V ~ 14V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 56-Power88™ |
|
FDMF3037IC HALF BRIDGE DRIVER 35A 31PQFN |
2,378 | 1.73 |
|
Datasheet |
PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 1Ohm LS, 1Ohm HS | 35A | - | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 31-PQFN (5x5) |
|
|
FDMF6705IC HALF BRIDGE DRIVER 38A 40PQFN |
2,935 | 0.00 |
|
Datasheet |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 38A | - | 4.5V ~ 5.5V | 3V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
|
FDMF6824AIC HALF BRIDGE DRIVER 60A 40PQFN |
3,000 | 3.62 |
|
- |
- | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 60A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
|
IRSM505-084DA2IC HALF BRIDGE DRIVER 4.6A 23DIP |
3,866 | 4.20 |
|
Datasheet |
µIPM™-DIP | 23-DIP Module | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
FDMF5833-F085IC HALF BRIDGE DRIVER 50A 31PQFN |
8,394 | 3.65 |
|
Datasheet |
PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 470mOhm LS, 680mOhm HS | 50A | 7A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
