Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STK534U363C-EIC HALF BRIDGE DRIVER 10A 29SIP |
4,495 | 10.50 |
|
Datasheet |
- | 29-SSIP Module, 21 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 29-SIP |
|

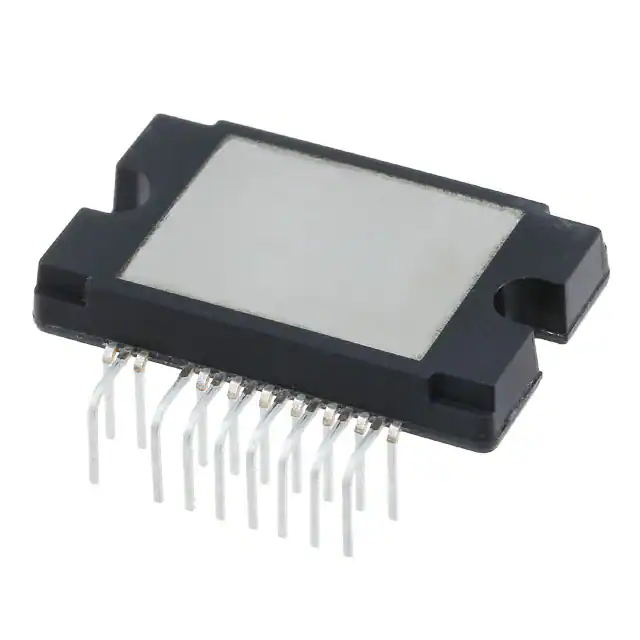

STK5Q4U352J-EIC HALF BRIDGE DRIVER 8A MODULE |
1,622 | 11.27 |
|
- |
- | Module | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 8A | 16A | 12.5V ~ 17.5V | 400V (Max) | 150°C (TJ) | - | - | Status Flag | Current Limiting, UVLO | Through Hole | Module |
.jpg)
|

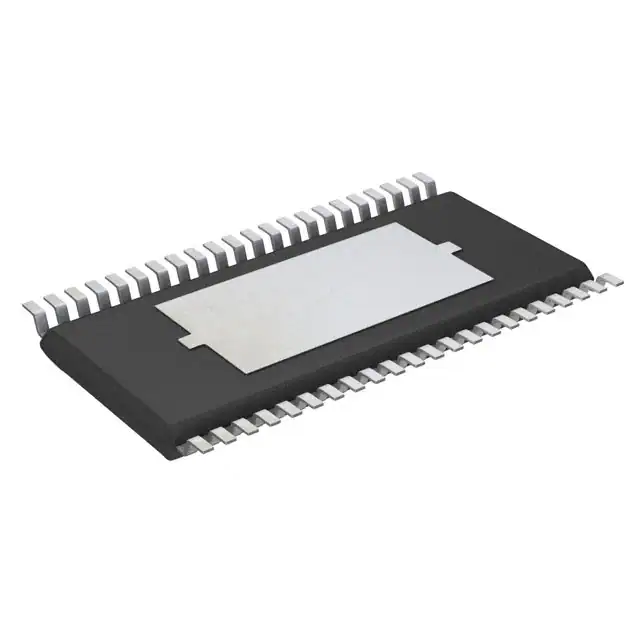

DRV8412DDWIC HALF BRIDGE DRVR 3A 44HTSSOP |
5,030 | 1.00 |
|
Datasheet |
- | 44-PowerTSSOP (0.244", 6.20mm Width) | Tube | Last Time Buy | Half Bridge (4) | DC Motors, Stepper Motors | PWM | Inductive | Power MOSFET | 110mOhm LS, 110mOhm HS | 3A | 6A | 10.8V ~ 13.2V | 0V ~ 52.5V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 44-HTSSOP |
|
|
STK551U362A-EIC HALF BRIDGE DRIVER 10A 29SIP |
4,122 | 0.00 |
|
Datasheet |
- | 29-SSIP Module, 21 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Shoot-Through, UVLO | Through Hole | 29-SIP |
|
STK544UC61K-EIC HALF BRIDGE DRIVER 10A |
2,124 | 11.73 |
|
- |
- | - | Tube | Obsolete | Half Bridge (3) | - | Logic | - | - | - | 10A | - | 12.5V ~ 17.5V | - | -40°C ~ 100°C (TA) | - | - | - | - | - | - |
|
|
IGI60F1414A1LAUMA1IC HALF BRIDGE DRIVER 28TIQFN |
2,753 | 6.15 |
|
Datasheet |
CoolGaN™ | 28-PowerTQFN | Tape & Reel (TR) | Last Time Buy | Half Bridge (2) | General Purpose | Logic, PWM | Inductive, Resistive | - | 140mOhm LS, 140mOhm HS | - | - | - | - | - | - | - | - | - | Surface Mount | PG-TIQFN-28-1 |
|
|
STK531U36AA-EMODULE IPM INVERTER 3PH 29SIP |
1,256 | 12.32 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT80C525-VC-BPICO POWER PRODUCT, PCI TO PCI B |
228 | 14.09 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IRSM505-055PAIC HALF BRIDGE DRIVER 2.4A 23SOP |
104 | 10.59 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
STK621-015B1-EIC HALF BRIDGE DRIVER 10A |
2,910 | 15.87 |
|
- |
- | - | Tube | Obsolete | Half Bridge (3) | - | Logic | - | - | - | 10A | - | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 100°C (TA) | - | - | - | - | - | - |
|
|
STK621-728-EIC HALF BRIDGE DRIVER 10A 21SIP |
1,779 | 0.00 |
|
- |
- | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Auto Restart, Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 21-SIP |
|
STK57FU391A-EIC HALF BRIDGE DRIVER 15A 35SIP |
3,168 | 17.34 |
|
Datasheet |
- | 35-SSIP, 25 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 35-SIP |
|
|
STK554U362C-EIC HALF BRIDGE DRIVER 10A 29SIP |
1,501 | 0.00 |
|
Datasheet |
- | 29-SSIP Module, 21 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Shoot-Through, UVLO | Through Hole | 29-SIP |
|
|
STK629-720-E3PHASE INVERTER HIC |
5,178 | 18.94 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STK621-043A-EIC HALF BRIDGE DRIVER 20A 23SIP |
1,001 | 19.47 |
|
- |
- | 23-SIP, 19 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 20A | 40A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Auto Restart, Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 23-SIP |
|
|
STK621-043A-EIC HALF BRIDGE DRIVER 20A 23SIP |
379 | 19.47 |
|
Datasheet |
- | 23-SIP, 19 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 20A | 40A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Auto Restart, Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 23-SIP |
|
|
MAX15566GTG+INTEGRATED CIRCUIT |
3,505 | 20.40 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STK625-728-EIC HALF BRIDGE DRIVER 10A 21SIP |
1,520 | 21.07 |
|
- |
- | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, UVLO | Through Hole | 21-SIP |
|
|
STK621-041A-EIC HALF BRIDGE DRIVER 20A 22SIP |
4,088 | 25.33 |
|
- |
- | 22-SIP, 18 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 20A | 25A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, UVLO | Through Hole | 22-SIP |
 36 LEADS.JPG)
|
STK5F4U3C2D-EIC HALF BRIDGE DRIVER 30A 44DIP |
2,882 | 32.00 |
|
Datasheet |
- | 44-DIP Module, 37 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 30A | 45A | 12.5V ~ 17.5V | 450V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Shoot-Through, UVLO | Through Hole | 44-DIP |
