PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

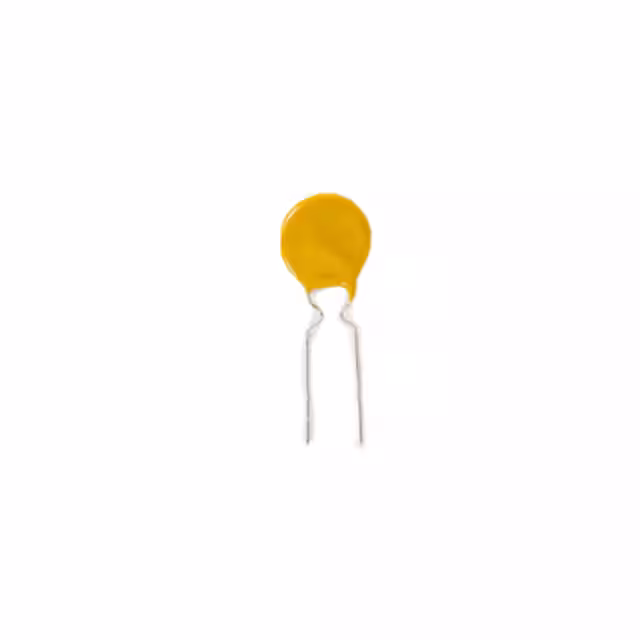

RS90-055PTC RESET FUSE 72V 550MA RADIAL |
484 | 0.37 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 550 mA | 1.2 A | 40 A | 10 s | 400 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
RS90-050PTC RESET FUSE 72V 500MA RADIAL |
472 | 0.37 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|

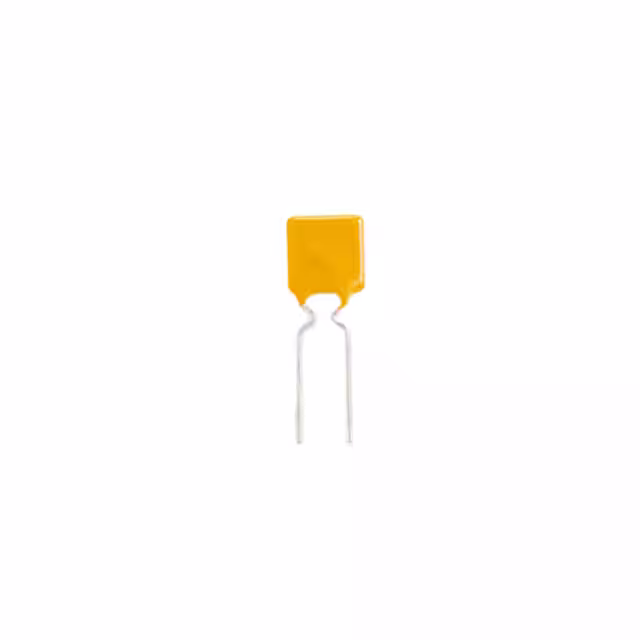

RS30-090PTC RESET FUSE 30V 900MA RADIAL |
386 | 0.37 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 100 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
RGEF500-APPTC RESET FUSE 16V 5A RADIAL |
152 | 0.75 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Cut Tape (CT) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|

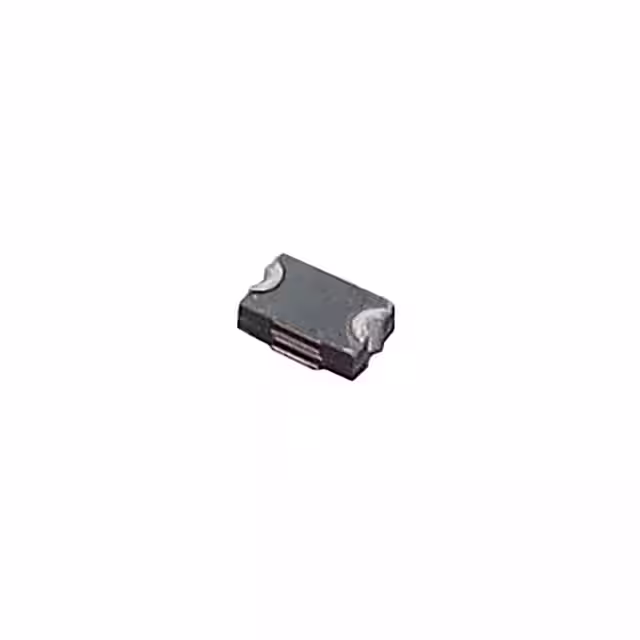

PICOASMDCH035F-2PPTC-MINI-PSW |
744 | 0.82 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 1.1 A | 40 A | 100 ms | 300 mOhms | 1.9 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.047" (1.20mm) | - |
|
RXEF185-APPTC RESET FUSE 72V 1.85A RADIAL |
209 | 0.66 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" Dia x 0.118" T (17.50mm x 3.00mm) | 0.882" (22.40mm) | - | 0.199" (5.05mm) |
|
RXEF185K-APPTC RESET FUSE 72V 1.85A RADIAL |
218 | 0.66 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.118" T (16.76mm x 3.00mm) | 0.906" (23.00mm) | - | 0.199" (5.05mm) |
|
FRV100-240FRESETTABLE FUSE - PPTC RADIAL LE |
240 | 0.76 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 220 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia (18.70mm) | 0.961" (24.40mm) | - | 0.402" (10.20mm) |
|
RS90-065PTC RESET FUSE 72V 650MA RADIAL |
229 | 0.38 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
.jpg)
|
RS90-075PTC RESET FUSE 72V 750MA RADIAL |
249 | 0.40 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|

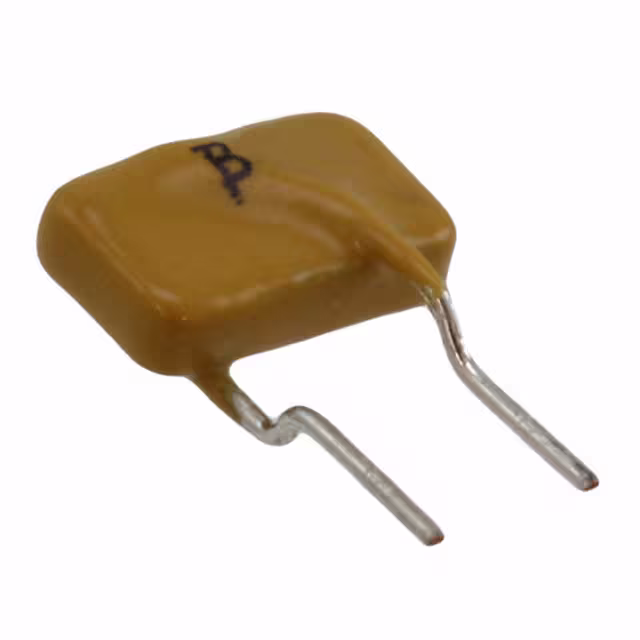

MF-RX018/250-0PTC RESET FUSE 60V 180MA RADIAL |
1,527 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/250 | Bulk | Active | Polymeric | 60V (250V Int) | 180 mA | - | 10 A | - | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.433" L x 0.181" W (11.00mm x 4.60mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
RUEF500K-APPTC RESET FUSE 30V 5A RADIAL |
1,578 | 0.83 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.400" (10.15mm) |
|
|
FRV125-240FRESETTABLE FUSE - PPTC RADIAL LE |
220 | 0.84 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 1.25 A | 2.5 A | 12.5 A | 23 s | 170 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.835" Dia (21.20mm) | 1.079" (27.40mm) | - | 0.402" (10.20mm) |
|
0ZSC0260FF1EPTC RESET FUSE 20V 2.6A STRAP |
710 | 0.79 |
|
Datasheet |
Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 2.6 A | 5.8 A | 100 A | 5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.205" W (22.00mm x 5.20mm) | - | 0.039" (1.00mm) | - |
|
R2920-100-60-RPTC RESET FUSE 60V 1.1A 2920 |
1,000 | 0.64 |
|
Datasheet |
2920 (7351 Metric), Concave | R2920 | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 100 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.067" (1.70mm) | - |
|
RS120-025PTC RESET FUSE 120V 250MA RADIAL |
913 | 0.71 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 250 mA | 500 mA | 3 A | 7.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

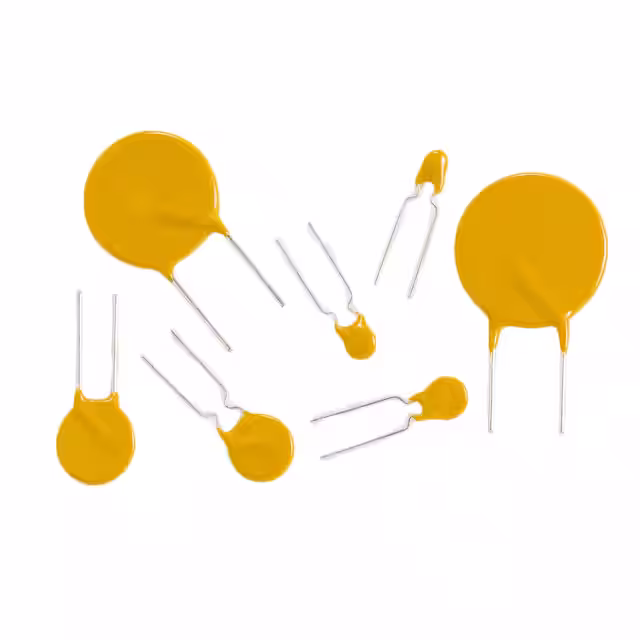

RS90-110PTC RESET FUSE 72V 1.1A RADIAL |
499 | 0.44 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
.jpg)
|

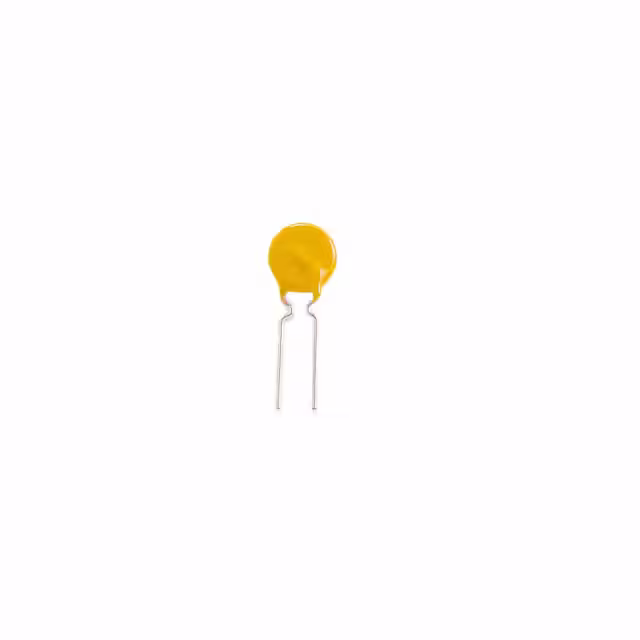

RS120-010PTC RESET FUSE 120V 100MA RADIAL |
1,781 | 0.71 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 100 mA | 200 mA | 2 A | 10 s | 3 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
|
FRV150-240FRESETTABLE FUSE - PPTC RADIAL LE |
250 | 0.90 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 1.5 A | 3 A | 15 A | 23 s | 120 mOhms | 320 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.921" Dia (23.40mm) | 1.217" (30.90mm) | - | 0.402" (10.20mm) |
|
LVR040S-2PTC RESET FUSE 240V 400MA RADIAL |
385 | 0.94 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 400 mA | 900 mA | 5.5 A | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.768" (19.50mm) | - | 0.200" (5.08mm) |
