PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MINISMDC110-2PTC RESET FUSE 8V 1.1A 1812 |
3,499 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
1206L035/15YRPTC RESET FUSE 15V 350MA 1206 |
8,003 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 350 mA | 750 mA | 100 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
PICOSMD035F-2PTC RESET FUSE 6V 350MA 0805 |
3,519 | 0.00 |
|
Datasheet |
0805 (2012 Metric) | PolySwitch®, picoSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 750 mA | 20 A | 100 ms | 420 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.052" W (2.01mm x 1.31mm) | - | 0.032" (0.81mm) | - |
|

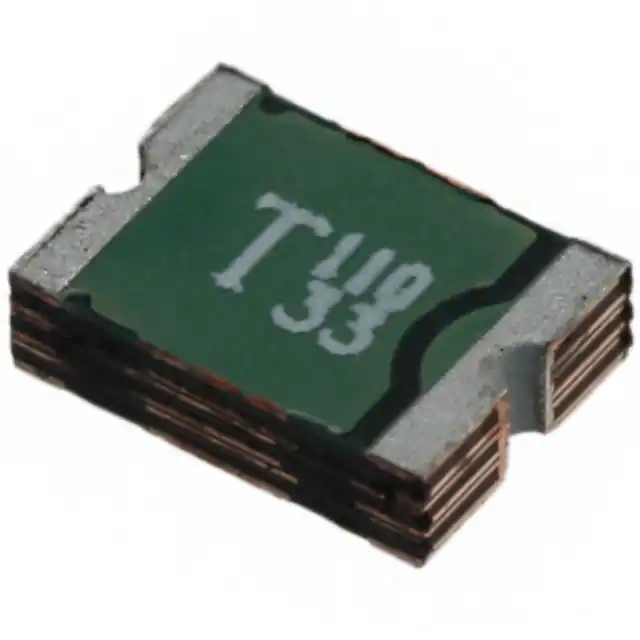

PTS181233V110PTC RESET FUSE 33V 1.1A 1812 |
7,586 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.1 A | 2.2 A | 20 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
SMD2920P300TFAPTC RESET FUSE 6V 3A 2920 |
9,374 | 0.00 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 6 A | 40 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
0ZRN0450FF2BPTC RESET FUSE 16V 4.5A RADIAL |
6,111 | 0.42 |
|
Datasheet |
Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.201" (5.10mm) |
|
|
0ZRE0075FF2CFUSE RESETTABLE TH |
8,433 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PTGL05AR181M7P52A0PTC RESET FUSE 125V 38MA RADIAL |
5,833 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 125V | 38 mA | 64 mA | 300 mA | - | - | - | 180 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.236" Dia x 0.197" T (6.00mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL05AR181M7N52A0PTC RESET FUSE |
9,868 | 0.00 |
|
- |
- | * | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF-R1100-APPTC RESET FUSE 16V 11A RADIAL |
5,839 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 16V | 11 A | 22 A | 100 A | 20 s | 3 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
|
MF-R900-APPTC RESET FUSE 30V 9A RADIAL |
5,591 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
MF-RG800-APPTC RESET FUSE 16V 8A RADIAL |
8,442 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
|
MF-RX375/72-2-14PTC RESET FUSE 72V 3.75A RADIAL |
7,434 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Tape & Box (TB) | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.926" L x 0.122" W (23.51mm x 3.10mm) | 1.162" (29.51mm) | - | 0.402" (10.20mm) |
|
|
MF-RG650-2-14PTC RESETTABLE 6.5A 16V RADIAL L |
9,847 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 6.5 A | 11.1 A | 100 A | 3.5 s | 8.8 mOhms | 24 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RG650-AP-14PTC RESETTABLE 6.5A 16V RADIAL L |
8,935 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 6.5 A | 11.1 A | 100 A | 3.5 s | 8.8 mOhms | 24 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT700-0-14PTC 7.0A 16V RADIAL LEADED HI-TE |
5,131 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 7 A | 13 A | 100 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
|
|
MF-R800-AP-14PTC RESETTABLE 8.0A 30V RADIAL L |
4,853 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
|
MF-RG700-0-14PTC RESETTABLE 7A 16V RADIAL LEA |
6,871 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
|
MF-R800-2-14PTC RESETTABLE 8.0A 30V RADIAL L |
9,796 | 0.45 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
PTR016V0500-BK1PTC RESET FUSE 16V 5A RADIAL |
2,367 | 0.19 |
|
Datasheet |
Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 10 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
