PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRG18BB330MS1RBPTC RESET FUSE 16V 36MA 0603 |
12,807 | 0.89 |
|
Datasheet |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 16V | 36 mA | 91 mA | 600 mA | - | - | - | 33 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
RXEF075-2PTC RESET FUSE 72V 750MA RADIAL |
12,235 | 0.54 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
0ZRA0600FF1EPTC RESET FUSE 16V 6A RADIAL |
4,990 | 0.48 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 5.8 s | 9 mOhms | 33 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
1206L150THWR-APTC RESET FUSE 8V 1.5A 1206 |
1,182 | 0.59 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 8V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
PTSA181216V200PTC RESET FUSE 2A 16V 1812 |
1,118 | 0.44 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 16V | 2 A | 4 A | 40 A | 5 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.079" (2.00mm) | - |
|
ZEPTOSMDC0015FPTC RESET FUSE 15MA 13VDC 0201 |
28,119 | 0.54 |
|
Datasheet |
2-SMD | POLYSWITCH® zeptoSMDC | Tape & Reel (TR) | Active | Polymeric | 13V | 15 mA | 80 mA | 200 mA | 20 ms | 10 Ohms | 150 Ohms | - | -20°C ~ 60°C | - | - | - | Surface Mount | 0.024" L x 0.018" W (0.60mm x 0.45mm) | - | 0.016" (0.40mm) | - |
|
RUEF250U-2PTC RESET FUSE 30V 2.5A RADIAL |
6,000 | 0.56 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 2.5 A | 5 A | 100 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" L x 0.110" W (7.60mm x 2.80mm) | 0.642" (16.30mm) | - | 0.199" (5.05mm) |
|

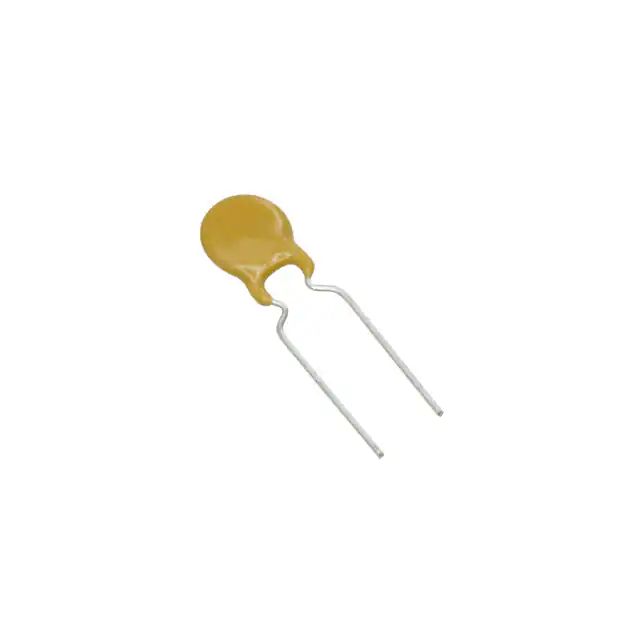

0ZRN0050FF1EPTC RESET FUSE 30V 500MA RADIAL |
2,970 | 0.75 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 30V | 500 mA | 900 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
RUSBF120-2PTC RESET FUSE 6V 1.2A RADIAL |
2,866 | 0.61 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.2 A | 2 A | 40 A | 500 ms | 70 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" L x 0.122" W (6.90mm x 3.10mm) | 0.461" (11.70mm) | - | 0.200" (5.08mm) |
|

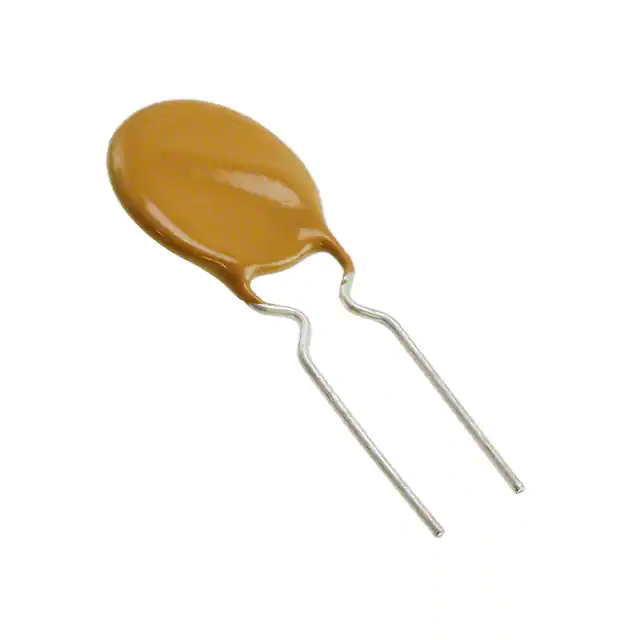

PFRA.110PTC RESET FUSE 30V 1.1A RADIAL |
1,539 | 0.55 |
|
Datasheet |
Radial, Disc | PFRA | Bulk | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 100 mOhms | 270 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
RGEF600K-2PTC RESET FUSE 16V 6A RADIAL |
1,232 | 0.79 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" L x 0.118" W (9.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.199" (5.05mm) |
|
PTSLR12066V650PTC RESET FUSE 6.5A 6V 1206 |
2,368 | 0.74 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | - | 6V | 6.5 A | 13 A | 50 A | 5 s | 1 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.138" L x 0.071" W (3.50mm x 1.80mm) | - | 0.051" (1.30mm) | - |
|
RXEF185-1PTC RESET FUSE 72V 1.85A RADIAL |
29,679 | 0.66 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" Dia x 0.118" T (17.50mm x 3.00mm) | 0.882" (22.40mm) | - | 0.199" (5.05mm) |
|
MF-NSML300/6-2PTC RESET FUSE 6V 3A 1206 |
2,518 | 0.87 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.055" (1.40mm) | - |
|
MF-R250-AP-10PTC RESET FUSE 30V 2.5A RADIAL |
2,442 | 0.51 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|

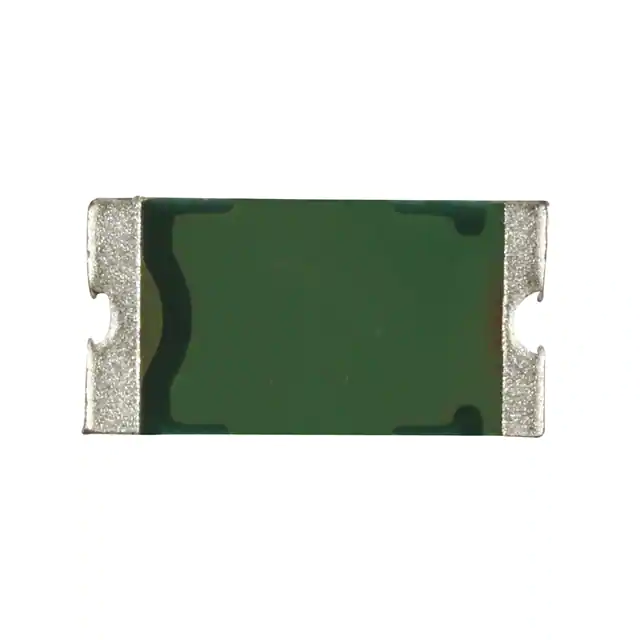

PTSAHT120630V016PTC RESET FUSE 160MA 30V 1206 |
1,589 | 0.48 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSAHT1206 | Tape & Reel (TR) | Active | - | 30V | 160 mA | 800 mA | 20 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.132" L x 0.067" W (3.35mm x 1.70mm) | - | 0.035" (0.89mm) | - |
|

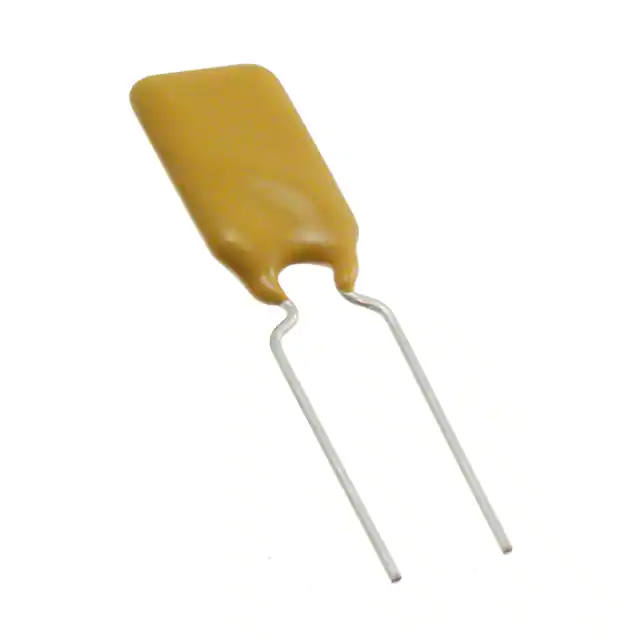

0ZRP0090FF1EPTC RESET FUSE 60V 900MA RADIAL |
1,460 | 0.54 |
|
Datasheet |
Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 2 s | 190 mOhms | 520 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.310" L x 0.142" W (7.87mm x 3.60mm) | 0.550" (13.97mm) | - | 0.201" (5.10mm) |
|
0ZRP0110FF1EPTC RESET FUSE 60V 1.1A RADIAL |
4,796 | 0.54 |
|
Datasheet |
Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 3 s | 170 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" L x 0.142" W (7.60mm x 3.60mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
|
PTSAHT120616V035PTC RESET FUSE 350MA 16V 1206 |
4,007 | 0.48 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSAHT1206 | Tape & Reel (TR) | Active | - | 16V | 350 mA | 950 mA | 50 A | 200 ms | 200 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.132" L x 0.067" W (3.35mm x 1.70mm) | - | 0.057" (1.46mm) | - |
|
NANOASMDC035F-2PTC RESET FUSE 16V 350MA 1206 |
2,375 | 0.57 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 750 mA | 20 A | 100 ms | 450 mOhms | 1.35 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.032" (0.82mm) | - |
