PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF030-APPTC RESET FUSE 72V 300MA RADIAL |
1,500 | 0.48 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
RUEF185-1PTC RESET FUSE 30V 1.85A RADIAL |
1,412 | 0.55 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 1.85 A | 3.7 A | 100 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.199" (5.05mm) |
|

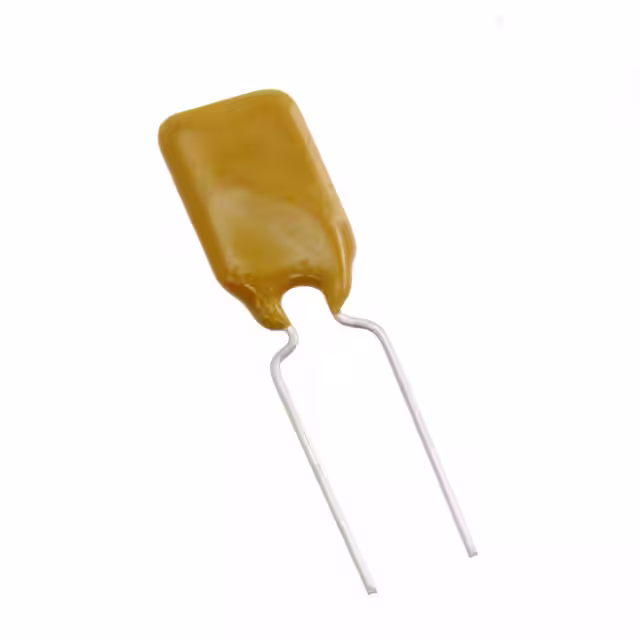

0ZRP0075FF1EPTC RESET FUSE 60V 750MA RADIAL |
1,338 | 0.45 |
|
Datasheet |
Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 1.5 s | 200 mOhms | 640 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.310" L x 0.142" W (7.87mm x 3.60mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
0ZRC0160FF1APTC RESET FUSE 90V 1.6A RADIAL |
1,072 | 0.44 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.641" L x 0.122" W (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|

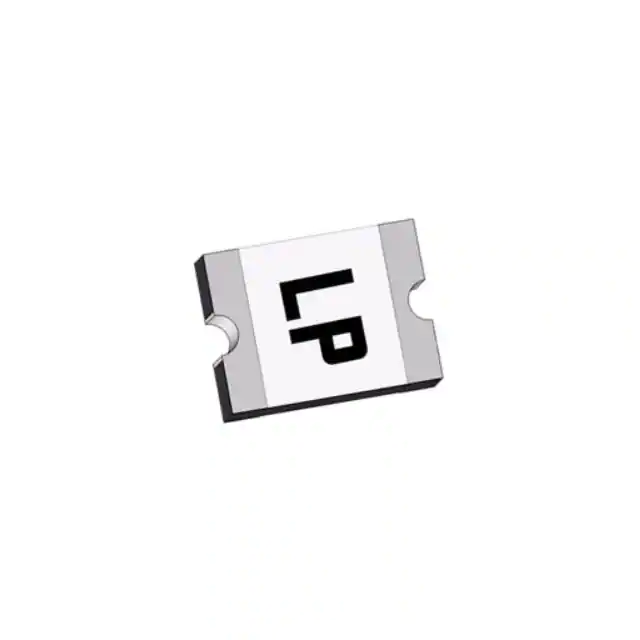

PTSLR12106V175PTC RESET FUSE 6V 1.75A 1210 |
5,620 | 0.42 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 2.5 s | 6 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
1812L160PRPTC RESET FUSE 8V 1.6A 1812 |
5,343 | 0.50 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 8V | 1.6 A | 2.8 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
NANOASMDCH035F-2PTC RESET FUSE 16V 350MA 1206 |
4,320 | 0.67 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 950 mA | 50 A | 200 ms | 200 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.134" L x 0.071" W (3.40mm x 1.80mm) | - | 0.045" (1.14mm) | - |
|
NANOASMDC025F-2PPTC-MINI-PSW |
3,789 | 0.50 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch® ASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 580 mA | 100 A | 10 ms | 400 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.032" (0.82mm) | - |
|

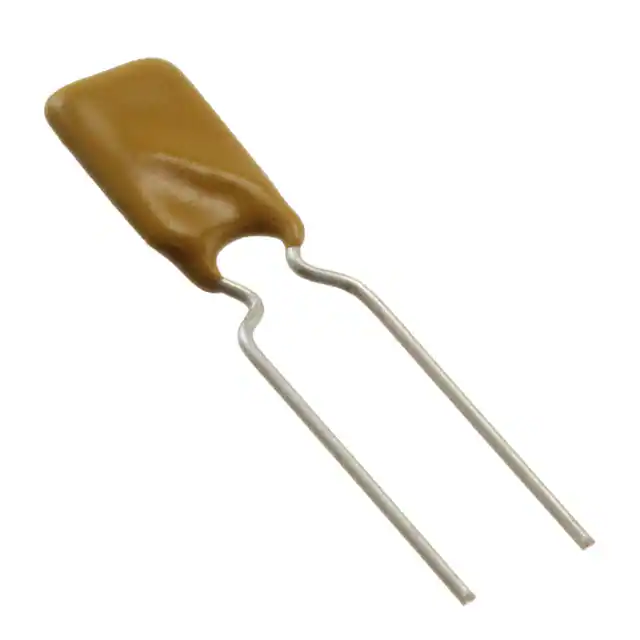

0ZRG0155FF2EPTC RESET FUSE 30V 1.55A RADIAL |
2,363 | 0.45 |
|
Datasheet |
Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.55 A | 2.7 A | 40 A | 2.2 s | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.461" (11.70mm) | - | 0.201" (5.10mm) |
|
PFSM.075.2PTC RESET FUSE 30V 750MA 2SMD |
1,397 | 0.36 |
|
Datasheet |
2-SMD | PFSM | Tape & Reel (TR) | Active | Polymeric | 30V | 750 mA | 1.5 A | 80 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.289" L x 0.214" W (7.36mm x 5.44mm) | - | 0.125" (3.18mm) | - |
|
PTSLR06036V250PTC RESET FUSE 2.5A 6V 0603 |
7,369 | 0.43 |
|
Datasheet |
0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 6V | 2.5 A | 5 A | 50 A | 5 s | 8 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.043" (1.10mm) | - |
|
PTSLR08058V380PTC RESET FUSE 3.8A 8V 0805 |
3,164 | 0.43 |
|
Datasheet |
0805 (2012 Metric), Concave | PTSLR0805 | Tape & Reel (TR) | Active | - | 8V | 3.8 A | 7.6 A | 50 A | 60 s | 2 mOhms | 16 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.098" L x 0.063" W (2.50mm x 1.60mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR06036V125PTC RESET FUSE 1.25A 6V 0603 |
1,726 | 0.43 |
|
Datasheet |
0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 6V | 1.25 A | 2.5 A | 50 A | 3 s | 25 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR08058V400PTC RESET FUSE 4A 8V 0805 |
1,551 | 0.43 |
|
Datasheet |
0805 (2012 Metric), Concave | PTSLR0805 | Tape & Reel (TR) | Active | - | 8V | 4 A | 8 A | 50 A | 60 s | 2 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.098" L x 0.063" W (2.50mm x 1.60mm) | - | 0.055" (1.40mm) | - |
|
|
PTSLR06036V200PTC RESET FUSE 2A 6V 0603 |
5,686 | 0.43 |
|
Datasheet |
0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 6V | 2 A | 4 A | 50 A | 5 s | 8 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.043" (1.10mm) | - |
|
60R017XPRPTC RESET FUSE 60V 170MA RADIAL |
5,011 | 0.45 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
PTSLR06036V175PTC RESET FUSE 1.75A 6V 0603 |
4,882 | 0.43 |
|
Datasheet |
0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 6V | 1.75 A | 3.5 A | 50 A | 5 s | 8 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.039" (1.00mm) | - |
|
|
PTSLR08058V300PTC RESET FUSE 3A 8V 0805 |
3,964 | 0.43 |
|
Datasheet |
0805 (2012 Metric), Concave | PTSLR0805 | Tape & Reel (TR) | Active | - | 8V | 3 A | 6 A | 50 A | 5 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.098" L x 0.063" W (2.50mm x 1.60mm) | - | 0.039" (1.00mm) | - |
|
60R025XPRPTC RESET FUSE 60V 250MA RADIAL |
3,454 | 0.48 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

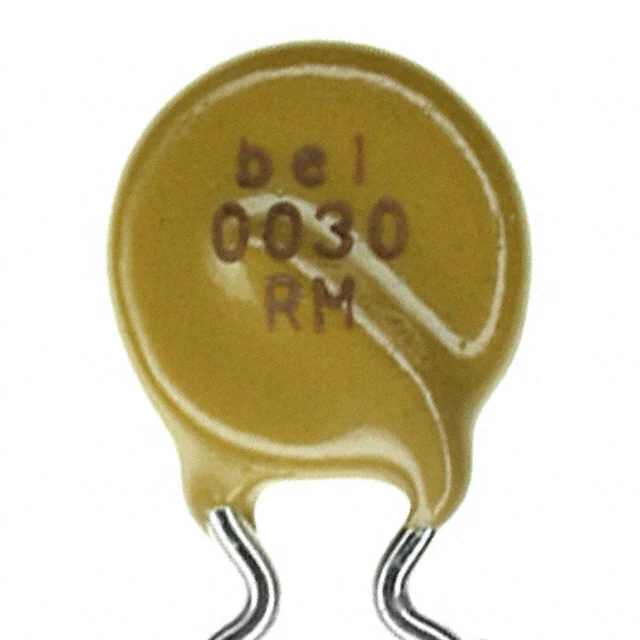

0ZRM0030FF1EPTC RESET FUSE 120V 300MA RADIAL |
18,977 | 0.49 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 300 mA | 600 mA | 3 A | 8.5 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
