PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

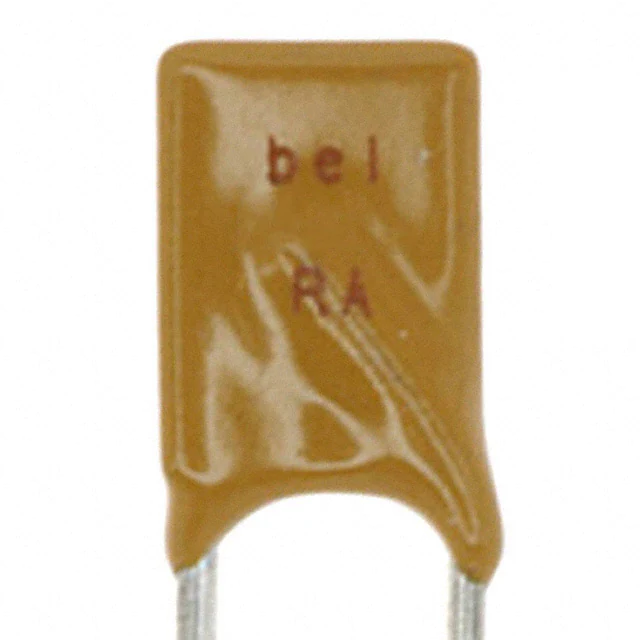

0ZRA0400FF2DPTC RESET FUSE 16V 4A RADIAL |
1,673 | 0.41 |
|
Datasheet |
Radial, Disc | 0ZRA | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|

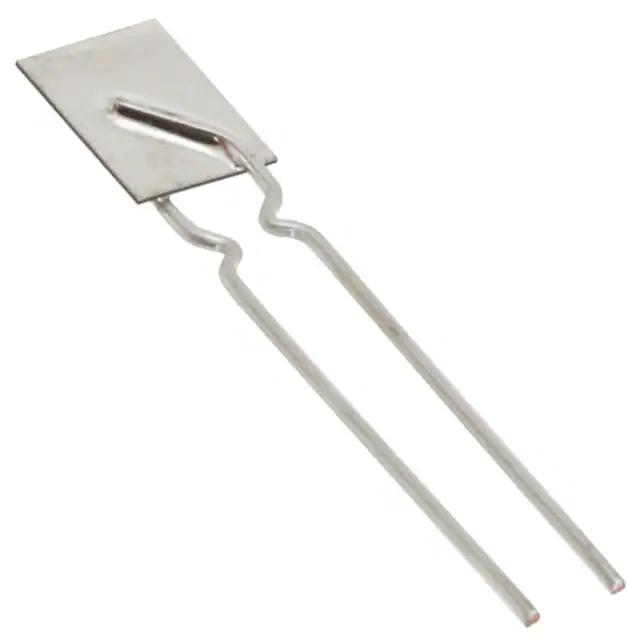

RUEF250UPTC RESET FUSE 30V 2.5A RADIAL |
12,475 | 0.52 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 2.5 A | 5 A | 100 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.199" (5.05mm) |
|
0ZRB0250FF2EPTC RESET FUSE 30V 2.5A RADIAL |
5,773 | 0.43 |
|
Datasheet |
Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
0ZRE0033FF2BPTC RESET FUSE 240V 330MA RADIAL |
3,932 | 0.63 |
|
Datasheet |
Radial, Disc | 0ZRE | Tape & Reel (TR) | Active | Polymeric | 240V | 330 mA | 740 mA | 6 A | 21 s | 830 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.650" (16.50mm) | - | 0.201" (5.10mm) |
|
PRG18BB101MS1RBPTC RESET FUSE 16V 21MA 0603 |
2,531 | 0.91 |
|
Datasheet |
0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 16V | 21 mA | 45 mA | 200 mA | - | - | - | 100 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
SMDC030F-2PTC RESET FUSE 60V 300MA 2920 |
1,506 | 0.67 |
|
Datasheet |
2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 300 mOhms | 3.4 Ohms | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.035" (0.90mm) | - |
|

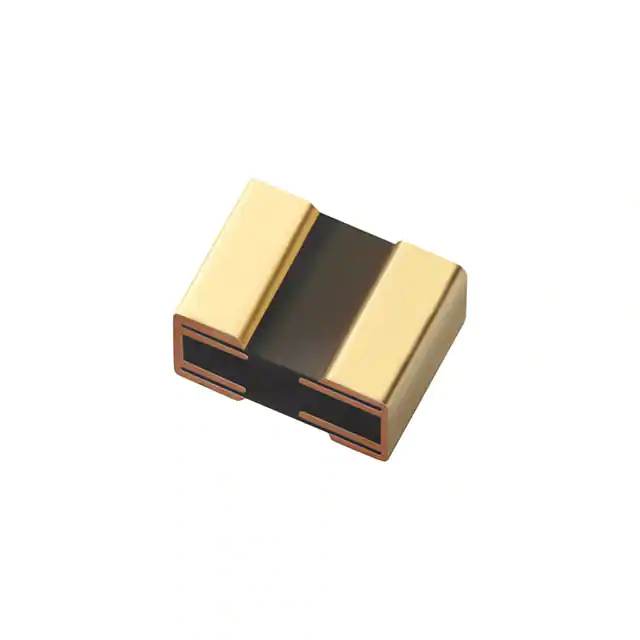

ZEPTOSMDC0011FPTC RESET FUSE 11MA 13VDC 0201 |
12,762 | 0.54 |
|
Datasheet |
2-SMD | POLYSWITCH® zeptoSMDC | Tape & Reel (TR) | Active | Polymeric | 13V | 11 mA | 80 mA | 82 mA | 20 ms | 10 Ohms | 290 Ohms | - | -20°C ~ 60°C | - | - | - | Surface Mount | 0.024" L x 0.018" W (0.60mm x 0.45mm) | - | 0.016" (0.40mm) | - |
|
MF-RX065/72-0PTC RESET FUSE 72V 650MA RADIAL |
8,899 | 0.68 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
1206L175PRPTC RESET FUSE 6V 1.75A 1206 |
5,504 | 0.54 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 100 A | 500 ms | 20 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.071" (1.80mm) | - |
|
|
MINISMDC125F-2PTC RESET FUSE 6V 1.25A 1812 |
4,591 | 0.47 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.019" (0.48mm) | - |
|
RUEF160-APPTC RESET FUSE 30V 1.6A RADIAL |
4,375 | 0.54 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 100 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
MF-RG500-2PTC RESET FUSE 16V 5A RADIAL |
2,246 | 0.97 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
MINIASMDC075F-2PTC RESET FUSE 13.2V 750MA 1812 |
1,491 | 0.48 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Bulk | Active | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
MF-FSML250/6-2PTC RESET FUSE 6V 2.5A 0603 |
10,562 | 1.45 |
|
Datasheet |
0603 (1608 Metric), Concave | Multifuse®, MF-FSML | Tape & Reel (TR) | Active | Polymeric | 6V | 2.5 A | 5 A | 50 A | 5 s | 3.5 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.033" W (1.65mm x 0.85mm) | - | 0.055" (1.40mm) | - |
|
CMF-RL50-0PTC RESET FUSE 220V 65MA RADIAL |
4,819 | 0.74 |
|
Datasheet |
Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 65 mA | 150 mA | 3 A | 150 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.386" L x 0.197" W (9.80mm x 5.00mm) | 0.532" (13.50mm) | - | 0.200" (5.08mm) |
|
MF-R250-0-10PTC RESET FUSE 30V 2.5A RADIAL |
4,649 | 0.78 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|

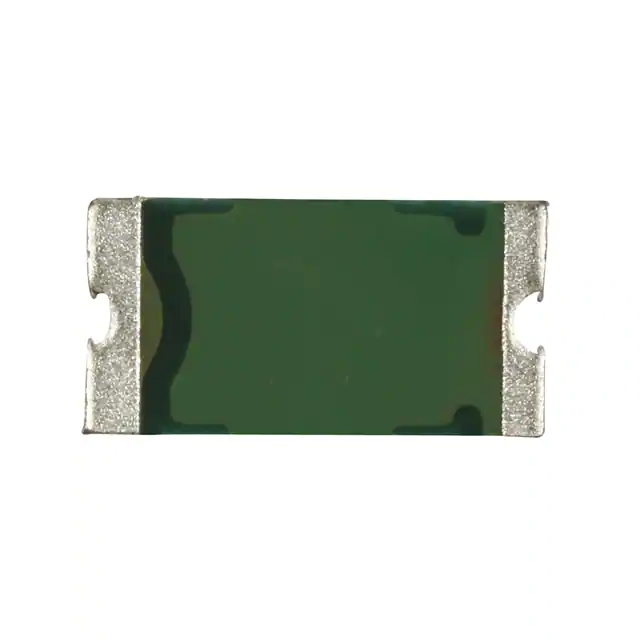

PTSA120616V025PTC RESET FUSE 250MA 16V 1206 |
3,851 | 0.41 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSA1206 | Tape & Reel (TR) | Active | - | 16V | 250 mA | 580 mA | 40 A | 8 s | 200 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.132" L x 0.067" W (3.35mm x 1.70mm) | - | 0.039" (1.00mm) | - |
|
|
PTSA120613V050PTC RESET FUSE 500MA 13V 1206 |
3,644 | 0.41 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSA1206 | Tape & Reel (TR) | Active | - | 13.2V | 500 mA | 1.1 A | 40 A | 100 ms | 80 mOhms | 750 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.132" L x 0.067" W (3.35mm x 1.70mm) | - | 0.039" (1.00mm) | - |
|
|
PTSA120616V035PTC RESET FUSE 350MA 16V 1206 |
2,921 | 0.41 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSA1206 | Tape & Reel (TR) | Active | - | 16V | 350 mA | 750 mA | 40 A | 100 ms | 100 mOhms | 1.35 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.132" L x 0.067" W (3.35mm x 1.70mm) | - | 0.039" (1.00mm) | - |
|

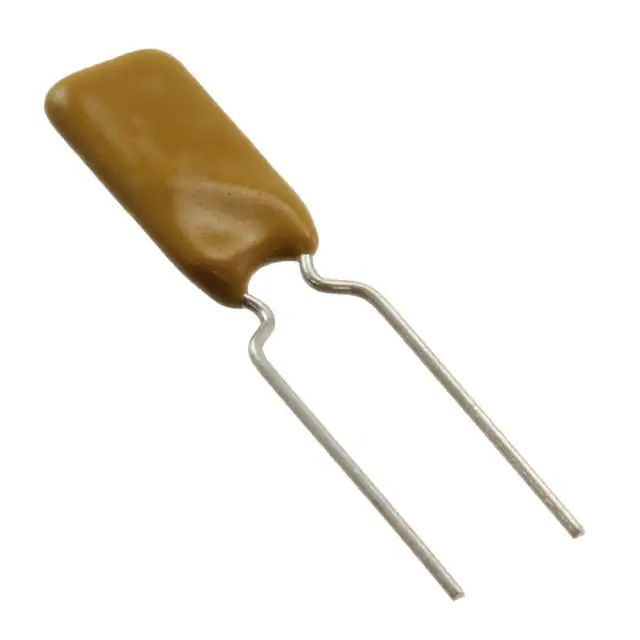

0ZRP0065FF1EPTC RESET FUSE 60V 650MA RADIAL |
1,689 | 0.45 |
|
Datasheet |
Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 1 s | 250 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.142" W (7.10mm x 3.60mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
