PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

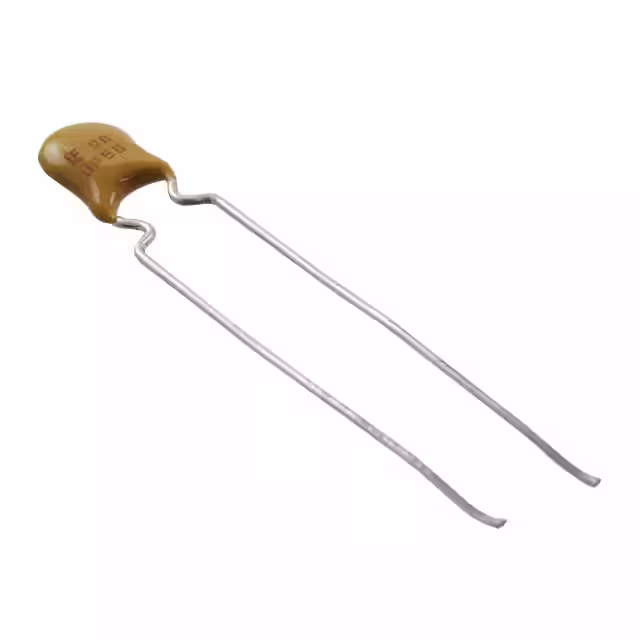

06R155BPRPTC RESET FUSE 6V 1.55A RADIAL |
1,849 | 0.59 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Cut Tape (CT) | Active | Polymeric | 6V | 1.55 A | 2.7 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
72R030XPRPTC RESET FUSE 72V 300MA RADIAL |
1,506 | 0.54 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
72R050XPRPTC RESET FUSE 72V 500MA RADIAL |
7,652 | 0.54 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
MF-RG300-0PTC RESET FUSE 16V 3A RADIAL |
2,558 | 0.90 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|

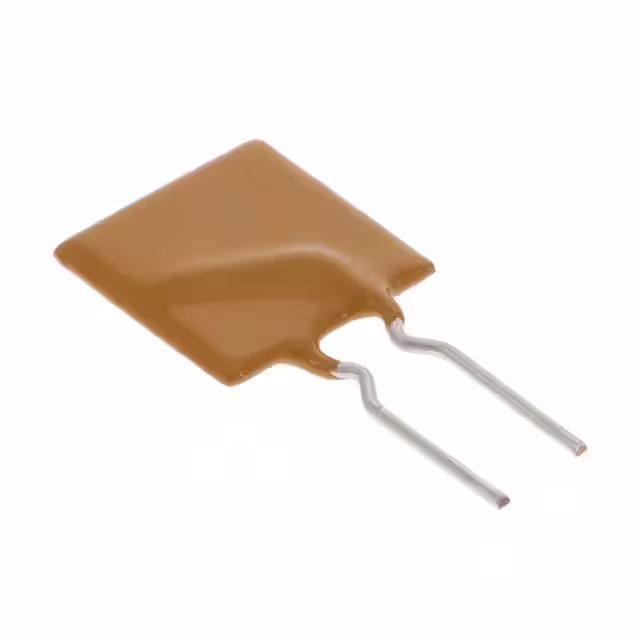

MF-R400-0-14PTC RESETTABLE 4.0A 30V RADIAL L |
1,805 | 0.84 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|
MF-RG900-0PTC RESET FUSE 16V 9A RADIAL |
26,575 | 1.10 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.819" (20.80mm) | - | 0.201" (5.10mm) |
|
RHEF070-2PTC RESET FUSE 30V 700MA RADIAL |
6,563 | 0.67 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.199" (5.05mm) |
|
RXEF110K-2PTC RESET FUSE 72V 1.1A RADIAL |
2,443 | 0.56 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.504" Dia x 0.118" T (12.80mm x 3.00mm) | 0.689" (17.50mm) | - | 0.199" (5.05mm) |
|
|
RXEF110K-APPTC RESET FUSE 72V 1.1A RADIAL |
25,423 | 0.56 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.504" Dia x 0.118" T (12.80mm x 3.00mm) | 0.689" (17.50mm) | - | 0.199" (5.05mm) |
|
RGEF400-2PTC RESET FUSE 16V 4A RADIAL |
7,330 | 0.68 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
;RA.JPG)
|
PRG21BC0R6MM1RAPTC RESET FUSE 6V 420MA 0805 |
6,626 | 0.99 |
|
Datasheet |
0805 (2012 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 6V | 420 mA | 920 mA | 10 A | - | - | - | 600 mOhms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - |
|
TRF250-120T-R2-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
5,716 | 0.87 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 750 ms | 8 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTSLR12106V200PTC RESET FUSE 6V 2A 1210 |
2,385 | 0.52 |
|
Datasheet |
1210 (3225 Metric), Concave | PTSLR1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 3 s | 5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
0ZRE0025FF2BPTC RESET FUSE 240V 250MA RADIAL |
2,273 | 0.57 |
|
Datasheet |
Radial, Disc | 0ZRE | Tape & Reel (TR) | Active | Polymeric | 240V | 250 mA | 560 mA | 6 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
0ZRM0065FF1EPTC RESET FUSE 120V 650MA RADIAL |
1,680 | 0.57 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 650 mA | 1.3 A | 5 A | 5.7 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.150" T (9.70mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
|
|
MICROASMD050F-2PTC RESET FUSE 13.2V 500MA 1210 |
1,640 | 0.62 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microASMD | Bulk | Active | Polymeric | 13.2V | 500 mA | 1 A | 40 A | 50 ms | 250 mOhms | 900 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.62mm) | - |
|

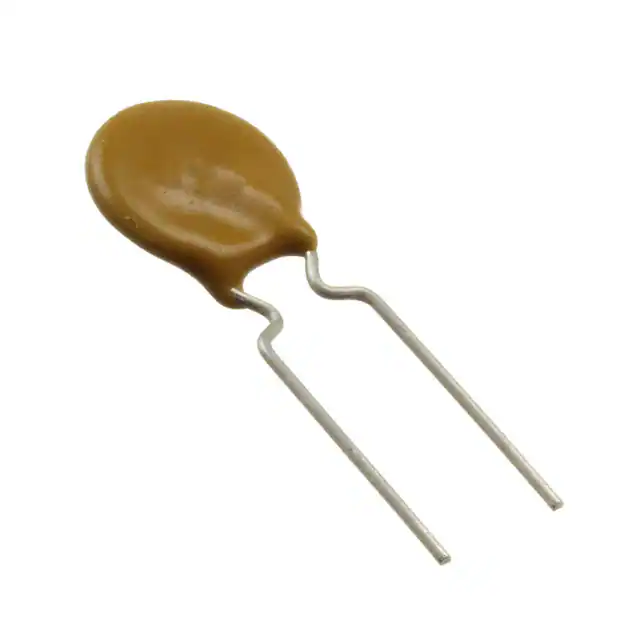

0ZRN0200FF1EPTC RESET FUSE 16V 2A RADIAL |
35,869 | 0.75 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.567" (14.40mm) | - | 0.201" (5.10mm) |
|
RKEF250KPTC RESET FUSE 60V 2.5A RADIAL |
8,783 | 0.72 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.902" (22.90mm) | - | 0.199" (5.05mm) |
|

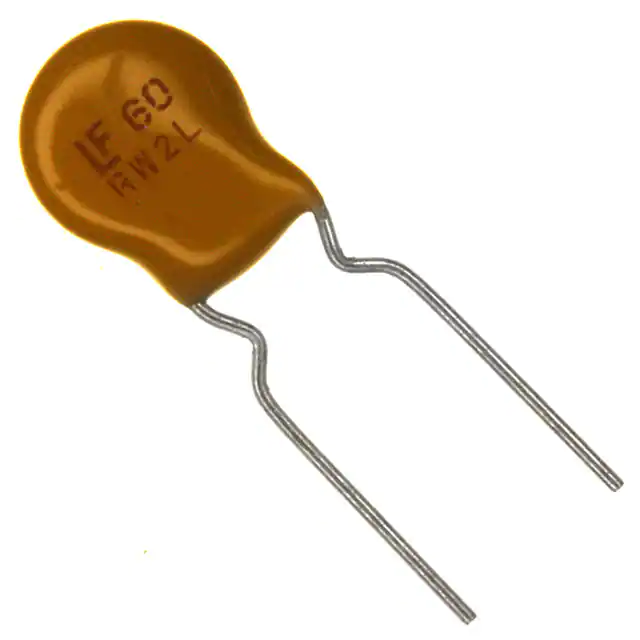

60R040XPRPTC RESET FUSE 60V 400MA RADIAL |
5,103 | 0.53 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
0ZRM0050FF2CPTC RESET FUSE 120V 500MA RADIAL |
2,490 | 0.57 |
|
Datasheet |
Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 500 mA | 1 A | 3 A | 6 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.362" Dia x 0.150" T (9.20mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
