PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF300-APPTC RESET FUSE 72V 3A RADIAL |
2,510 | 0.94 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.941" Dia x 0.118" T (23.90mm x 3.00mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|
MF-R1100PTC RESET FUSE 16V 11A RADIAL |
1,792 | 1.03 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 16V | 11 A | 22 A | 100 A | 20 s | 3 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
CMF-SDP10A-2PTC RESET FUSE 230V 150MA 4SMD |
8,795 | 1.16 |
|
Datasheet |
4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V (250V Int) | 150 mA | 360 mA | 1 A | 3.8 s | - | - | 10 Ohms | -40°C ~ 125°C | - | - | - | Surface Mount | 0.344" L x 0.283" W (8.75mm x 7.20mm) | - | 0.402" (10.20mm) | - |
|
TR600-150F-EX-2PTC RESET FUSE 250V 150MA RADIAL |
2,986 | 1.25 |
|
Datasheet |
Radial, Disc | PolySwitch®, TR600 | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 8 s | 6 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.532" Dia x 0.236" T (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
MF-RG1100-2PTC RESET FUSE 16V 11A RADIAL |
4,743 | 1.86 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|

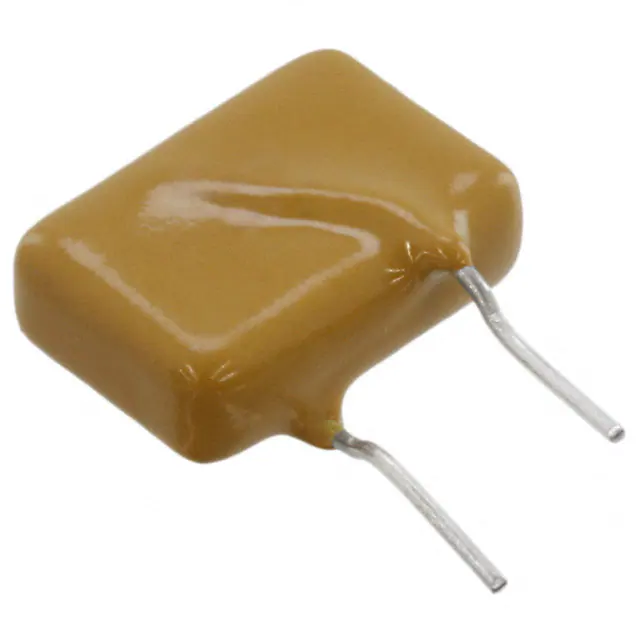

600R150-RAFPTC RESET FUSE 60V 150MA RADIAL |
251 | 1.20 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Bulk | Active | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 4 s | 7 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|

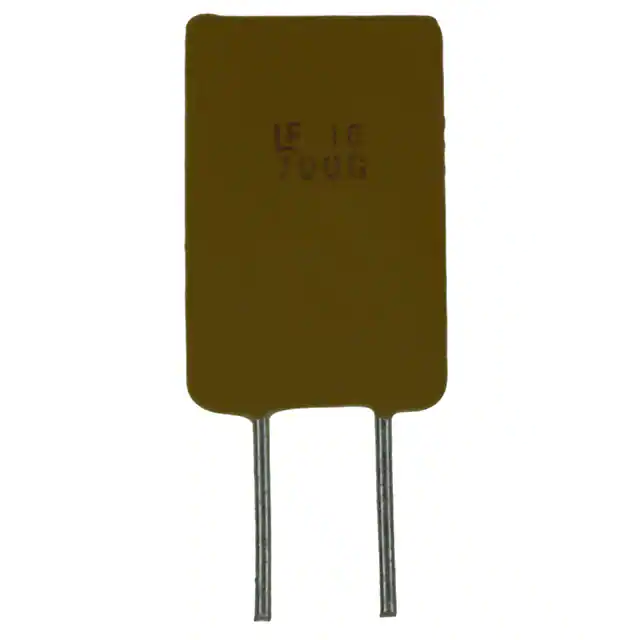

16R700GMRPTC RESET FUSE 16V 7A RADIAL |
242 | 0.80 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Cut Tape (CT) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|

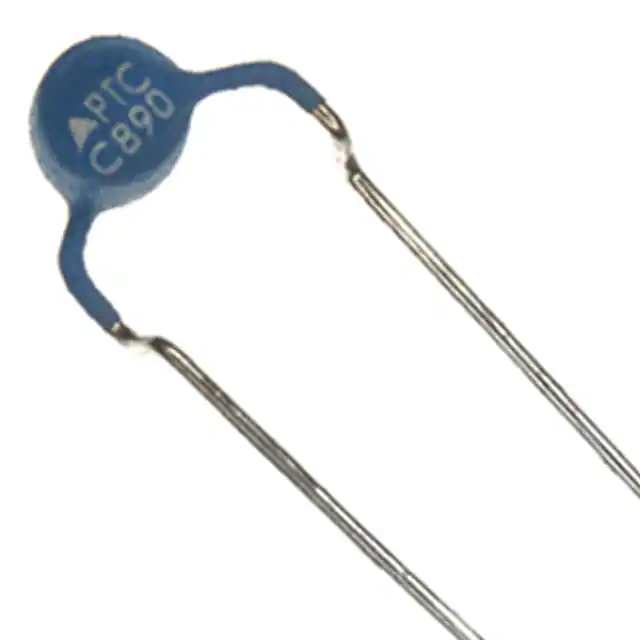

B59890C0120A051PTC RESET FUSE 265V 30MA RADIAL |
32,039 | 1.33 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 30 mA | 60 mA | 200 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.197" T (4.00mm x 5.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|
MINIASMDC200F/16-2PTC RESET FUSE 16V 2A 1812 |
2,082 | 1.16 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 4 A | 40 A | 5 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.048" (1.22mm) | - |
|
|
MF-RG800-2PTC RESET FUSE 16V 8A RADIAL |
985 | 1.06 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
0ZRE0125FF1APTC RESET FUSE 240V 1.25A RADIAL |
500 | 1.07 |
|
Datasheet |
Radial, Disc | 0ZRE | Bulk | Active | Polymeric | 240V | 1.25 A | 2.5 A | 12.5 A | 23 s | 170 mOhms | 440 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | 1.079" (27.40mm) | - | 0.402" (10.20mm) |
.jpg)
|
MF-PSML125/6-2PTC RESET FUSE 6V 1.25A 0805 |
35,020 | 1.13 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 1.25 A | 2.5 A | 50 A | 400 ms | 20 mOhms | 160 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.028" (0.70mm) | - |
|
B59880C0080A070PTC RESET FUSE 265V 30MA RADIAL |
1,345 | 1.23 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 30 mA | 70 mA | 400 mA | - | - | - | 70 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
B59870C0130A070PTC RESET FUSE 265V 100MA RADIAL |
249 | 1.23 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 100 mA | 150 mA | 400 mA | - | - | - | 50 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
RKEF400-2RKEF400-2 |
3,988 | 1.29 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 4 A | 8 A | 40 A | 24 s | 14 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.400" (10.15mm) |
|
B59970C0120A070PTC RESET FUSE 80V 150MA RADIAL |
1,568 | 1.54 |
|
Datasheet |
Radial, Disc | B59970 | Bulk | Active | Ceramic | 80V | 150 mA | 300 mA | 3 A | - | - | - | 9.4 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RGEF1400-2PTC RESET FUSE 16V 14A RADIAL |
1,119 | 1.36 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.114" W (23.50mm x 2.90mm) | 1.098" (27.90mm) | - | 0.400" (10.15mm) |
|
RHEF900PTC RESET FUSE 16V 9A RADIAL |
199 | 1.27 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.199" (5.05mm) |
|

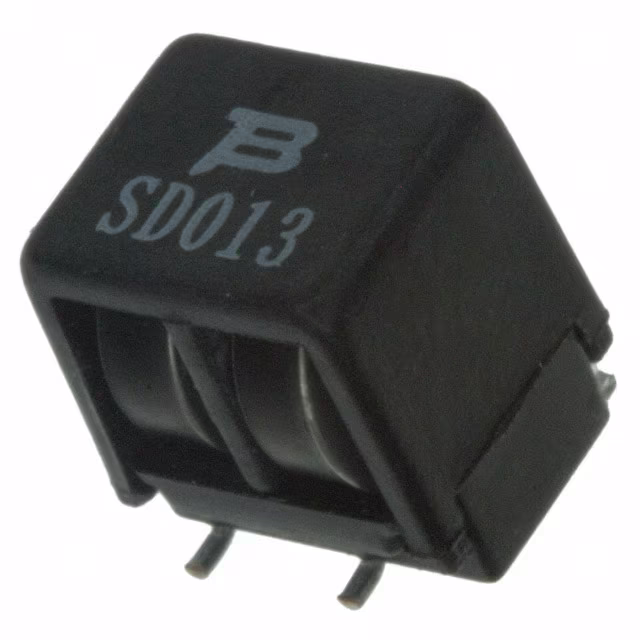

MF-SD013/250-2PTC RESET FUSE 60V 130MA 4SMD |
7,827 | 1.16 |
|
Datasheet |
4-SMD Cube | Multifuse®, MF-SD | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2.5 s | 2 Ohms | 10 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.350" L x 0.283" W (8.90mm x 7.20mm) | - | 0.402" (10.20mm) | - |
|
|
B59883C0120A070PTC RESET FUSE 265V 35MA RADIAL |
1,605 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 35 mA | 70 mA | 400 mA | - | - | - | 120 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
