PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZCF0600FF2CPTC RESET FUSE 6.0A 12V SMD 2920 |
1,904 | 0.00 |
|
Datasheet |
2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 12V | 6 A | 12 A | 100 A | 2 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.067" (1.70mm) | - |
|
TR600-150F-EXPTC RESET FUSE 250V 150MA RADIAL |
165 | 1.22 |
|
Datasheet |
Radial, Disc | PolySwitch®, TR600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 8 s | 6 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.532" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
CMF-SDP50A-2PTC RESET FUSE 230V 90MA 4SMD |
9,503 | 1.16 |
|
Datasheet |
4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V (600V Int) | 90 mA | 190 mA | 2.5 A | 200 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Surface Mount | 0.344" L x 0.283" W (8.75mm x 7.20mm) | - | 0.402" (10.20mm) | - |
|
AHRF1300PTC RESET FUSE 16V 13A RADIAL |
137 | 1.60 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 13 A | 27 A | 100 A | 15 s | 3.4 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
MF-RG900-2PTC RESET FUSE 16V 9A RADIAL |
5,916 | 1.12 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.819" (20.80mm) | - | 0.201" (5.10mm) |
|
AHRF800PTC RESET FUSE 16V 8A RADIAL |
192 | 1.20 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 7.2 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.886" (22.50mm) | - | 0.199" (5.05mm) |
|
AGRF1000-2PTC RESET FUSE 16V 10A RADIAL |
671 | 1.21 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 7 s | 3.4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.199" (5.05mm) |
|
MF-RHT900-0PTC RESET FUSE 16V 9A RADIAL |
924 | 1.20 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
B59850C0120A051PTC RESET FUSE 265V 200MA RADIAL |
844 | 1.64 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 200 mA | 400 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
RHEF1000-2PTC RESET FUSE 16V 10A RADIAL |
1,935 | 1.24 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
LVR075K-240PTC RESET FUSE |
404 | 1.27 |
|
Datasheet |
Radial, Disc | LVR | Bulk | Active | Polymeric | 240V (265V Int) | 750 mA | 1.5 A | 7.5 A | 18 s | 316 mOhms | 839 mOhms | 483 mOhms | -20°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.161" W (11.50mm x 4.10mm) | 1.000" (25.40mm) | - | 0.201" (5.10mm) |
|
TRF600-160-0.130PTC RESET FUSE 250V 160MA RADIAL |
1,978 | 1.29 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 60 A | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.200" (5.08mm) |
|
|
MF-RHT900-2PTC RESET FUSE 16V 9A RADIAL |
2,988 | 1.26 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
|
CMF-SDP25A-2PTC RESET FUSE 230V 130MA 4SMD |
2,031 | 1.16 |
|
Datasheet |
4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V (250V Int) | 130 mA | 260 mA | 2.8 A | 300 ms | - | - | 25 Ohms | -40°C ~ 125°C | - | - | - | Surface Mount | 0.344" L x 0.283" W (8.75mm x 7.20mm) | - | 0.402" (10.20mm) | - |
|
AHRL800PTC RESET FUSE 8A 16V RAD |
310 | 1.32 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 8 A | 16 A | 100 A | 8 s | 6 mOhms | 10.5 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.504" L x 0.142" W (12.80mm x 3.60mm) | 0.803" (20.40mm) | - | 0.199" (5.05mm) |
|
PTSLR18126V370PTC RESET FUSE 6V 3.7A 1812 |
2,124 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSLR1812 | Tape & Reel (TR) | Active | Polymeric | 6V | 3.7 A | 9.1 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
|
PTSLR18126V270PTC RESET FUSE 6V 2.7A 1812 |
1,960 | 1.13 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSLR1812 | Tape & Reel (TR) | Active | Polymeric | 6V | 2.7 A | 6.2 A | 50 A | 2 s | 3 mOhms | 23 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
B59735T1120A062THERMISTOR PTC 35 OHM 15% 4SMD |
968 | 2.03 |
|
Datasheet |
4-SMD | - | Tape & Reel (TR) | Active | Ceramic | 135VAC | 110 mA | 230 mA | 4.6 A | 0.04 s | 35 Ohms | - | - | 0°C ~ 70°C | - | - | - | Surface Mount | 0.413" L x 0.335" W (10.50mm x 8.50mm) | - | 0.413" (10.50mm) | - |
|

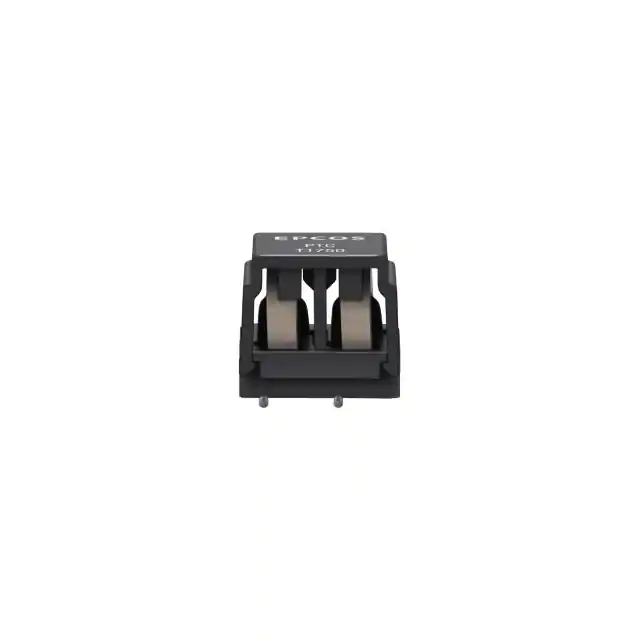

B59750T1120A062THERMISTOR PTC 50 OHM 15% 4SMD |
965 | 2.03 |
|
Datasheet |
4-SMD | B59750 | Tape & Reel (TR) | Active | Ceramic | 135VAC | 90 mA | 190 mA | 2.5 A | 0.1 s | 50 Ohms | - | - | 0°C ~ 70°C | - | - | - | Surface Mount | 0.413" L x 0.335" W (10.50mm x 8.50mm) | - | 0.413" (10.50mm) | - |
|
|
PFRA.110.2PTC RESET FUSE 30V RADIAL DISC |
2,374 | 0.42 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 30V | - | 2.2 A | 40 A | 6.6 s | 100 mOhms | 270 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
