PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MF-PSML400/8-2PTC RESET FUSE 8V 4A 0805 |
1,717 | 1.55 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 8V | 4 A | 8 A | 50 A | 12.5 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
B59770B0120A070PTC RESET FUSE 420V RADIAL DISC |
930 | 2.82 |
|
Datasheet |
Radial, Disc | B59770 | Bulk | Active | Ceramic | 420V | - | 127 mA | 1.4 A | 4 s | - | - | 70 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|
B59860C0080A070PTC RESET FUSE 265V 90MA RADIAL |
990 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 90 mA | 180 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
PTR016V1400-TR1PTC RESET FUSE 16V 14A RADIAL |
742 | 0.64 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.122" W (23.50mm x 3.10mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) |
|
B59850C0080A070PTC RESET FUSE 265V 110MA RADIAL |
943 | 1.64 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 110 mA | 230 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
AHRL1300PTC RESET FUSE 13A 16V RAD |
240 | 1.77 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 13 A | 26 A | 100 A | 14 s | 3.3 mOhms | 5.3 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.142" W (17.40mm x 3.60mm) | 0.976" (24.80mm) | - | 0.400" (10.15mm) |
|
PFRA.400.2PTC RESET FUSE 30V 4A RADIAL |
1,195 | 1.34 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.567" L x 0.118" W (14.40mm x 3.00mm) | 0.976" (24.80mm) | - | 0.201" (5.10mm) |
|

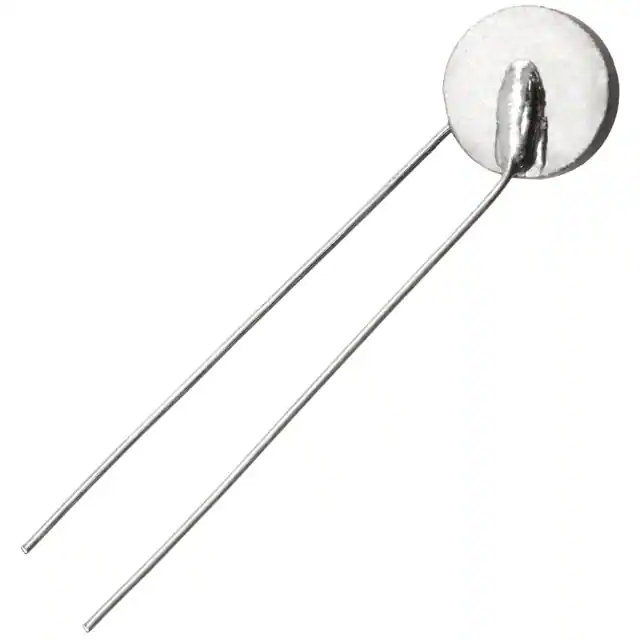

YQS5750PTOPTC RESET FUSE 25V RADIAL DISC |
995 | 1.81 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Active | Ceramic | 25V | - | - | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
|
MF-PSML380/8-2PTC RESET FUSE 8V 3.8A 0805 |
7,260 | 1.55 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 8V | 3.8 A | 7.6 A | 50 A | 5 s | 1 mOhms | 16 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
RHEF1500-2PTC RESET FUSE 16V 15A RADIAL |
770 | 1.79 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 15 A | 28 A | 100 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
MF-RG1000-2PTC RESET FUSE 16V 10A RADIAL |
2,759 | 1.69 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RG1000-0PTC RESET FUSE 16V 10A RADIAL |
2,723 | 1.65 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bag | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
MF-RHT1300-2PTC RESET FUSE 16V 13A RADIAL |
187 | 1.78 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.215" (5.45mm) |
|
|
AHRL1400PTC RESET FUSE 14A 16V RAD |
790 | 2.01 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 14 A | 28 A | 100 A | 16 s | 3.1 mOhms | 4.8 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.142" W (17.40mm x 3.60mm) | 1.039" (26.40mm) | - | 0.400" (10.15mm) |
|

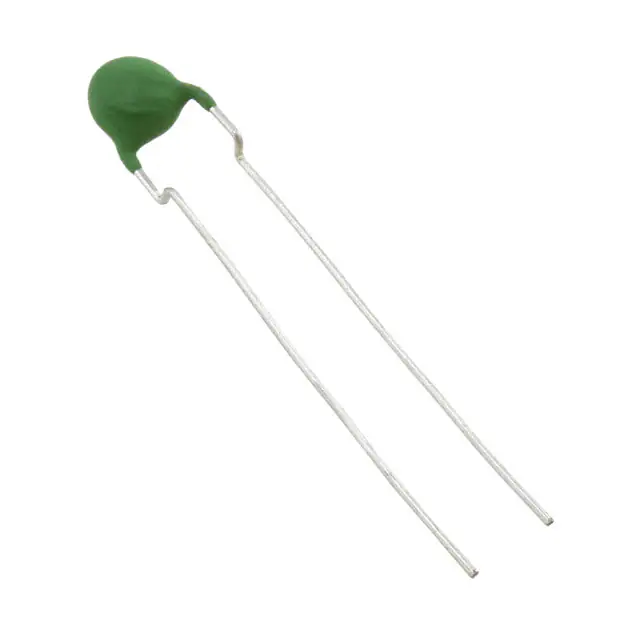

YQS8120PTC RESET FUSE 420V 21MA RADIAL |
730 | 1.71 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 420V | 21 mA | 39 mA | 200 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.472" (12.00mm) | - | 0.236" (6.00mm) |
|
1206L350SLWRPTC RESET FUSE 6V 3.5A 1206 |
1,561 | 2.05 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
1812L300SLPRPTC RESET FUSE 6V 3A 1812 |
1,311 | 2.05 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 7 A | 50 A | 5 s | 3 mOhms | 21 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|

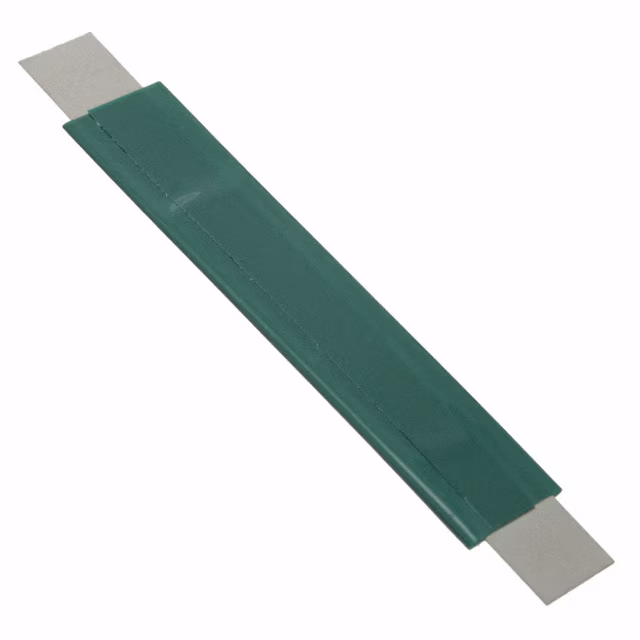

MF-LR900/20-0PTC RESET FUSE 20V 9A STRAP |
578 | 2.04 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 20V | 9 A | 16.7 A | 100 A | 5 s | 6 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.831" L x 0.323" W (46.50mm x 8.20mm) | - | 0.051" (1.30mm) | - |
|

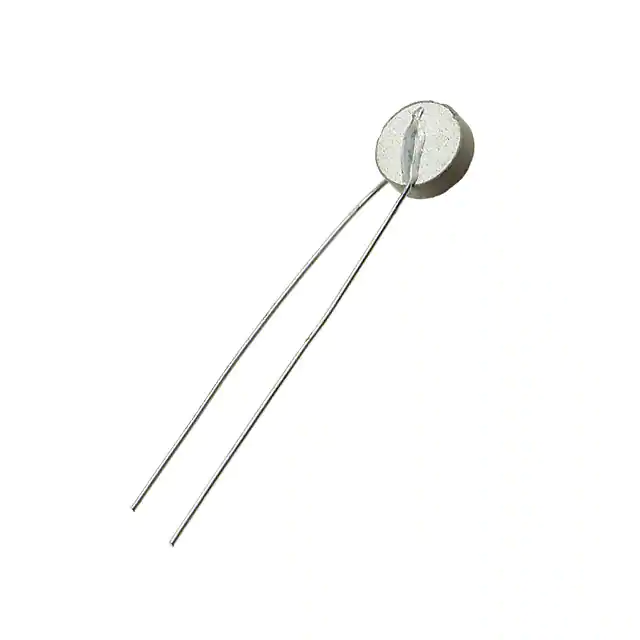

YS5869PTFPTC RESET FUSE 120V 60MA RADIAL |
1,476 | 2.11 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 120V | 60 mA | 110 mA | - | - | - | - | 100 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | 0.402" (10.20mm) | - | 0.252" (6.40mm) |
|
0805L350SLYRPTC RESET FUSE 3.5A 6V 0805 |
1,427 | 2.19 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 5 s | 3 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.055" (1.40mm) | - |
