PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805L300SLTHYRPTC RESET FUSE 3.0A 6V 0603 |
1,151 | 2.19 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
0805L005/30YR-APTC RESET FUSE 30V 50MA 0805 |
4,363 | 2.70 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 40 A | 1.5 s | 3.6 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|

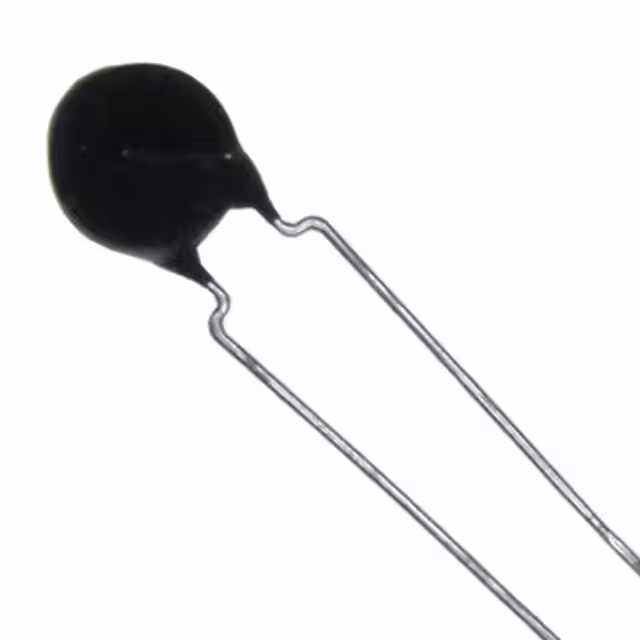

YM120D125N450PTC RESET FUSE 265V 110MA RADIAL |
1,274 | 2.43 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 110 mA | 155 mA | 700 mA | - | - | - | 45 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.276" Dia x 0.177" T (7.00mm x 4.50mm) | 0.374" (9.50mm) | - | 0.200" (5.08mm) |
|
YQS8067PTC RESET FUSE 265V 85MA RADIAL |
999 | 2.43 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 85 mA | 131 mA | 600 mA | - | - | - | 60 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.236" Dia x 0.177" T (6.00mm x 4.50mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|

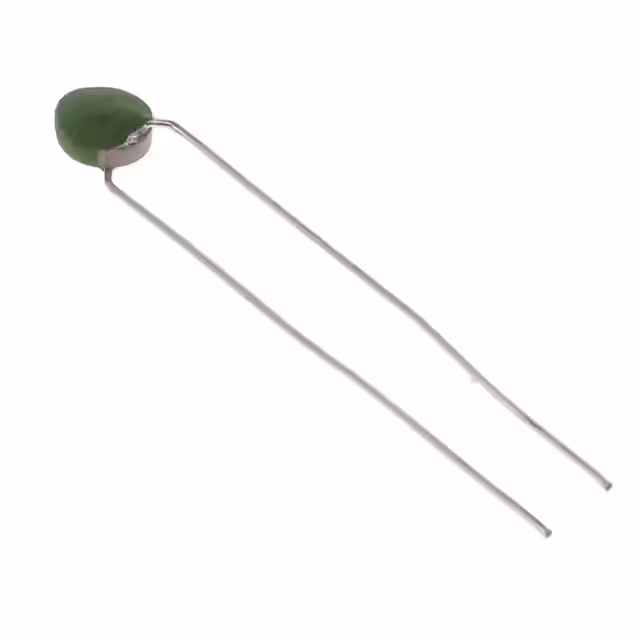

YQS6054PTC RESET FUSE 30V RADIAL DISC |
2,046 | 2.45 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 30V | - | - | - | - | - | - | 100 Ohms | - | - | - | - | Through Hole | 0.240" Dia x 0.170" T (6.09mm x 4.31mm) | 0.470" (12.00mm) | - | 0.197" (5.00mm) |
|
1812L190SLPRPTC RESET FUSE 6V 1.9A 1812 |
3,772 | 3.36 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.9 A | 4.9 A | 50 A | 4.5 s | 3 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
YQD080N0050PTC RESET FUSE 265V 60MA RADIAL |
1,223 | 3.61 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 60 mA | 120 mA | 1 A | - | - | - | 50 Ohms | -0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
|
0805L110WR-APTC RESET FUSE 6V 1.1A 0805 |
2,055 | 2.70 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2 A | 100 A | 100 ms | 50 mOhms | 160 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
YQS8121PTC RESET FUSE 265V 35MA RADIAL |
3,965 | 3.78 |
|
Datasheet |
Radial, Disc | YP | Strip | Active | Ceramic | 265V | 35 mA | 80 mA | 400 mA | - | - | - | 120 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.472" (12.00mm) | - | 0.236" (6.00mm) |
|
2920L400/15MR-APTC 15V POLYFUSE SMD 2920 4.0A |
1,141 | 2.79 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 4 A | 8 A | 40 A | 4 s | 10 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|

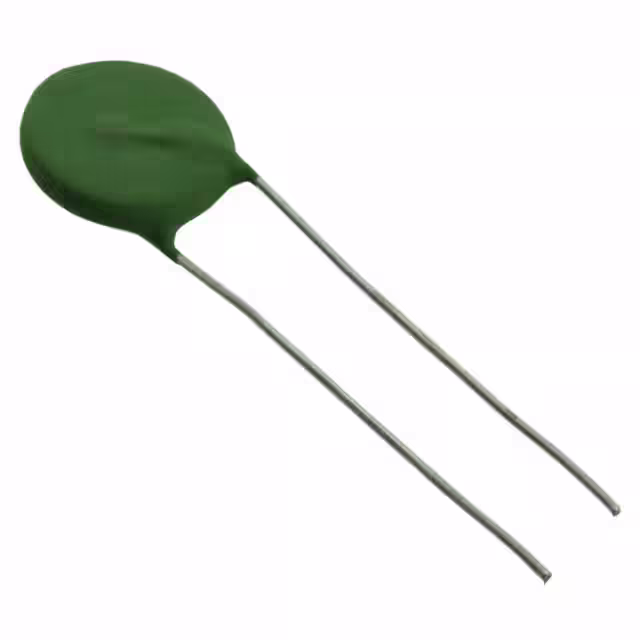

YQS6000PTC RESET FUSE 120V RADIAL DISC |
536 | 4.21 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 120V | - | - | - | - | - | - | 10 Ohms | - | - | - | - | Through Hole | 0.865" Dia x 0.300" T (21.97mm x 7.62mm) | 0.990" (25.15mm) | - | 0.328" (8.33mm) |
|
SMD1206B075TFTPTC RESET FUSE 8V 750MA 1206 |
1,345 | 0.04 |
|
Datasheet |
1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 8V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
|
SMD1210B200TFPTC RESET FUSE 6V 2A 1210 |
3,869 | 0.05 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 15 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.063" (1.60mm) | - |
|
|
SMD1210B110TF/16PTC RESET FUSE 16V 1.1A 1210 |
1,792 | 0.05 |
|
Datasheet |
1210 (3225 Metric), Concave | SMD1210 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 300 ms | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
|
MF-NSMF025X-2PTC RESETTABLE 0.25A 16V SMD 120 |
2,867 | 0.31 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 500 mA | 20 A | 80 ms | 450 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
SMD1812B010TFPTC RESET FUSE 30V 100MA 1812 |
2,661 | 0.15 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 300 mA | 100 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
SMD1812B150TF/8PTC RESET FUSE 8V 1.5A 1812 |
4,000 | 0.08 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
|
SMD1812B200TFTPTC RESET FUSE 8V 2A 1812 |
1,971 | 0.08 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
SMD0603B004TFPTC RESET FUSE 24V 40MA 0603 |
3,400 | 0.08 |
|
Datasheet |
0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 24V | 40 mA | 120 mA | 20 A | 1 s | 4 Ohms | 40 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2016B100TFPTC RESET FUSE 15V 1.1A 2016 |
3,995 | 0.10 |
|
Datasheet |
2016 (5041 Metric), Concave | SMD2016 | Tape & Reel (TR) | Active | Polymeric | 15V | 1.1 A | 2.2 A | 40 A | 500 ms | 60 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.047" (1.20mm) | - |
