PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
RS30-110PTC RESET FUSE 30V 1.1A RADIAL |
2,936 | 0.39 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 1.1 A | 2.2 A | 100 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
PICOASMDCH016F-2PPTC-MINI-PSW |
6,539 | 0.82 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 160 mA | 680 mA | 40 A | 100 ms | 800 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.031" (0.80mm) | - |
|
TRF250-120UST-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,626 | 0.83 |
|
- |
Radial, Disc | PolySwitch®, TRF250 | Bag | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MF-USML300-2PTC RESET FUSE 6V 3A 1210 |
4,716 | 0.40 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 6 A | 50 A | 4 s | 4 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
|
MF-USML700-2PTC RESET FUSE 6V 7A 1210 |
7,914 | 0.39 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 7 A | 14 A | 50 A | 2 s | 1 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|

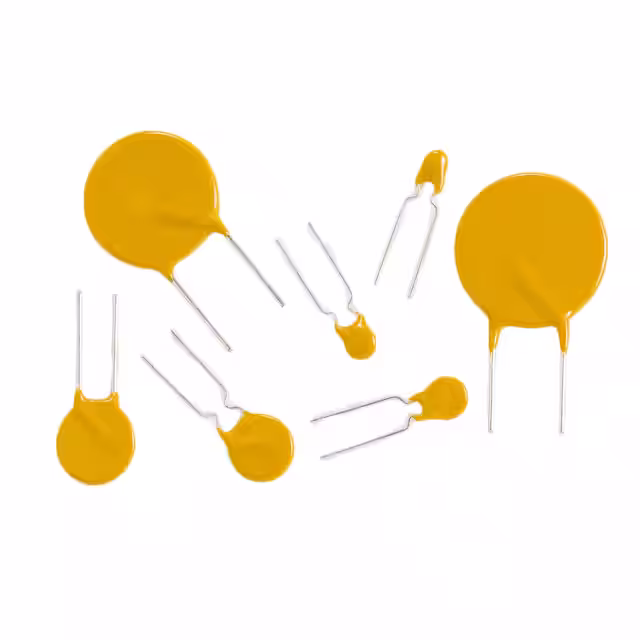

RS90-090PTC RESET FUSE 72V 900MA RADIAL |
6,200 | 0.40 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
|
MF-USML650-2PTC RESET FUSE 6V 6.5A 1210 |
7,423 | 0.39 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 6.5 A | 13 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
MICROSMD190LR-2PTC RESET FUSE 6V 1.9A 1210 |
3,000 | 0.24 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.9 A | 4.9 A | 50 A | 4 s | 6 mOhms | - | - | - | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|

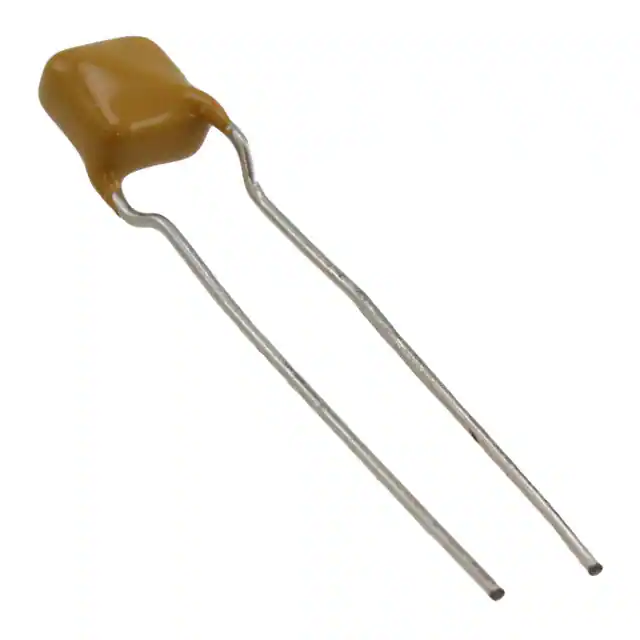

TRF250-145-2PTC RESET FUSE 60V 145MA RADIAL |
1,700 | 0.84 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.200" (5.08mm) |
|
PICOASMDCH050F-2PPTC-MINI-PSW |
3,844 | 0.82 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 1.7 A | 40 A | 100 ms | 250 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.047" (1.20mm) | - |
|
AGRF500-2PTC RESET FUSE 16V 5A RADIAL |
1,640 | 0.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 9.4 A | 100 A | 2.5 s | 14 mOhms | 34 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.614" (15.60mm) | - | 0.199" (5.05mm) |
|

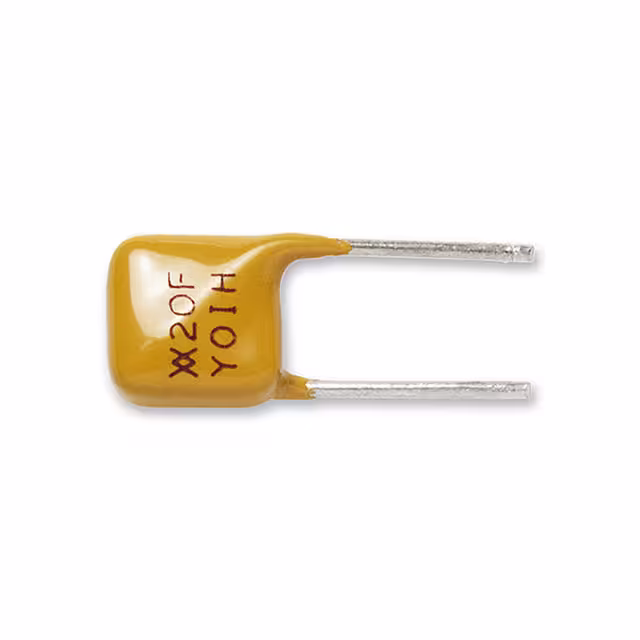

TRF250-120ST-RG-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,904 | 0.82 |
|
- |
Radial, Disc | PolySwitch®, TRF250 | Bag | Obsolete | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

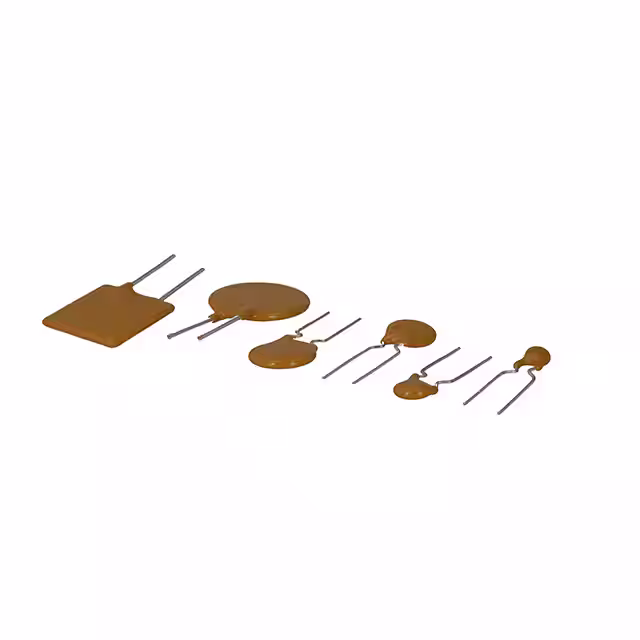

RS60RB-075PTC RESET FUSE 60V 750MA RADIAL |
1,299 | 0.65 |
|
Datasheet |
Radial, Disc | RS60RB | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
MF-NSML190-2PTC RESET FUSE 6V 1.9A 1206 |
3,372 | 0.08 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.9 A | 4.9 A | 50 A | 1 s | 5 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
|
|
MF-NSML200-2PTC RESET FUSE 6V 2A 1206 |
8,591 | 0.43 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.024" (0.60mm) | - |
|
|
MF-NSML450-2PTC RESET FUSE 6V 4.5A 1206 |
6,839 | 0.37 |
|
- |
1206 (3216 Metric), Concave | Multifuse®, MF-NSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.047" (1.20mm) | - |
|
|
MICROSMD500LR-2PTC RESET FUSE 6V 5A 1210 |
2,662 | 0.80 |
|
- |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 2 mOhms | 7 mOhms | - | -40°C ~ 80°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
VLP270FPTC RESET FUSE 16V 2.7A STRAP |
42,972 | 0.91 |
|
Datasheet |
Strap | PolySwitch®, VLP | Bulk | Active | Polymeric | 16V | 2.7 A | 6.5 A | 60 A | 5 s | 12 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.201" W (22.00mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
|
AGRF800S-1PTC RESET FUSE 16V 8A RADIAL |
9,994 | 1.05 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bulk | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 5.5 s | 17.5 mOhms | 18.1 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|

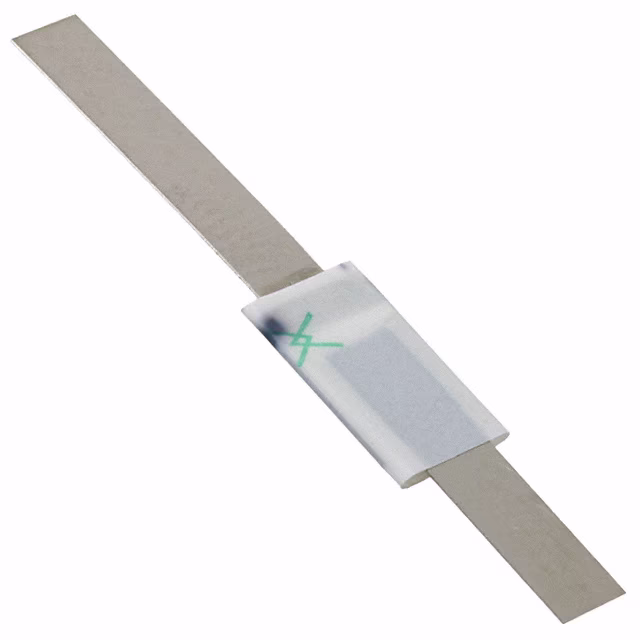

VLP210XLFPTC RESET FUSE 16V 2.1A STRAP |
9,655 | 0.95 |
|
- |
Strap | PolySwitch®, VLP | Bulk | Obsolete | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.648" L x 0.280" W (16.45mm x 7.10mm) | - | 0.032" (0.80mm) | - |
