Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-64936NLXFRMR T1/CEPT/ISDN-PRI 1CT:1 |
4,957 | 5.28 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PE-64937NLXFRMR T1/CEPT/ISDN-PRI 1:1.36 |
1,235 | 3.06 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1.36 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-64943NLXFRMR T1/CEPT/ISDN-PRI 1CT:2CT |
2,302 | 3.06 |
|
- |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
POE012-EP13033SPOE TRANSFORMER, 12W, EP13, 133U |
2,809 | 1.87 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
PA0769NLPULSE XFMR 89.2UH |
2,136 | 3.07 |
|
Datasheet |
- | Tube | Active | - | 89.2µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
VP9014RM HFMDL 1G 1 PORT POE 90W |
1,256 | 3.07 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
TG01-FC30N1LFTRISO MOD FBR 2CH 30UH 16P SMD T/R |
2,873 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 30µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
TG01-FC15N1LFTRISO MOD FBR 2CH 15UH 16P SMD T/R |
1,597 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 15µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | - | - | - |
|
|
TG24-S001NCRLTRISO MOD T1 DUAL 1C:1.36C X-TEMP |
2,368 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | 1.5mH | - | 1CT:1.36CT | Surface Mount | 0.675" L x 0.455" W (17.15mm x 11.56mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
H1102TPULSE XFMR 1:1 TX 1:1 RX |
2,047 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
23Z356SMQNLTRANSFORMER 10BASE-T LAN 16SOIC |
2,131 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

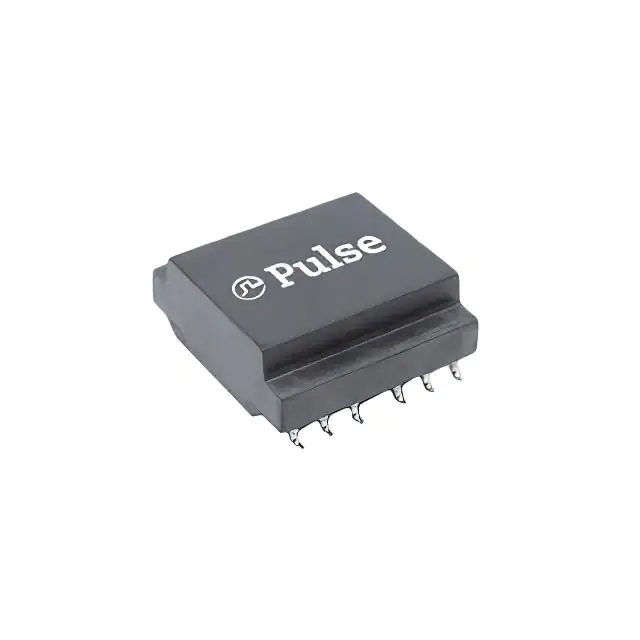

BX6158NLTTRANSFORMER 20UH 1:1:1 3KV SMT |
3,515 | 3.08 |
|
Datasheet |
BX615xNL | Tape & Reel (TR) | Active | - | 20µH | - | 1:1:1 | Surface Mount | 0.445" L x 0.411" W (11.31mm x 10.43mm) | 0.287" (7.30mm) | -40°C ~ 125°C | - | - |
|
|
H1199NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,184 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
PE-68023NLTXFRMR LAN ISOL 1CT:2CT 10B-T SMD |
3,375 | 3.16 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
TGR01-3406V6LFISO MOD T3 1:1 X-TEMP 3KV 6P SMD |
1,322 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | 0°C ~ 70°C | - | - |
|
|
TGR04-3406V6LFISO MOD T3 1C:1C REINF 3KV 6P SM |
3,486 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 40µH | - | 1CT:1CT | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | 0°C ~ 70°C | - | - |
|

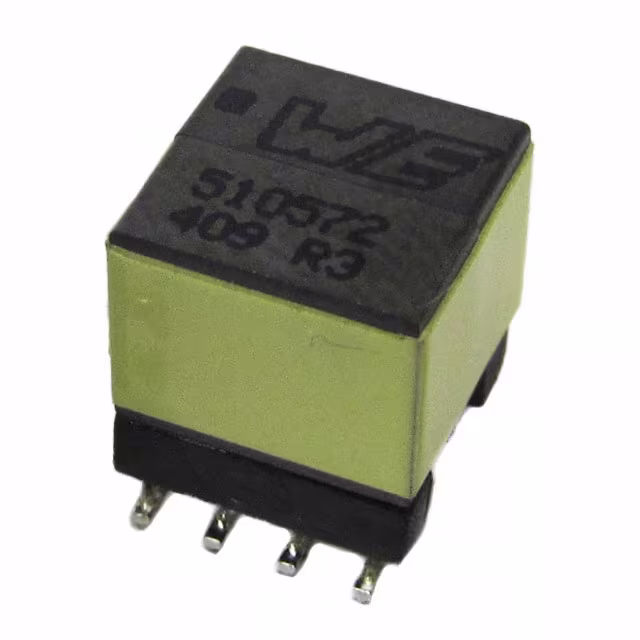

750510572WE-DSL TRANSFORMER |
4,466 | 2.13 |
|
Datasheet |
MID-DSLBCM | Tape & Reel (TR) | Active | VDSL | 430µH | - | 1:1, 1.4:1, 1.4:1 | Surface Mount | 0.310" L x 0.330" W (7.87mm x 8.38mm) | 0.380" (9.65mm) | -40°C ~ 85°C | - | - |
|

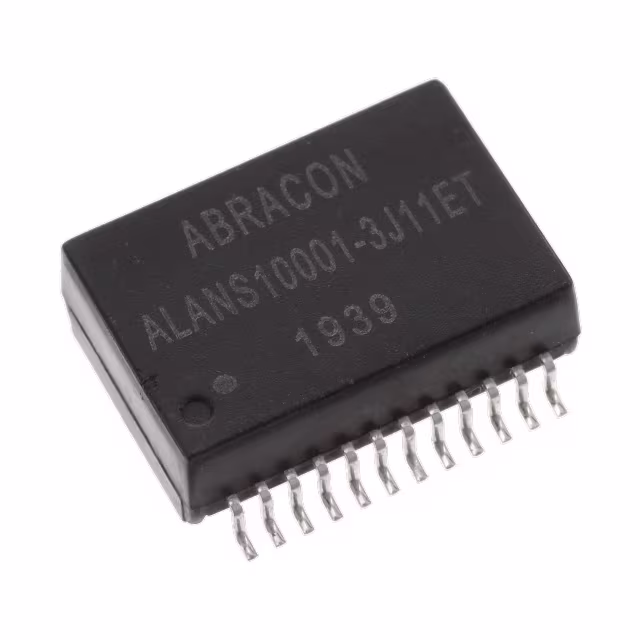

ALANS10001-3J11ETLAN SGL 1000B XFMR&CMC 24PIN |
2,871 | 2.08 |
|
Datasheet |
ALANS10001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|

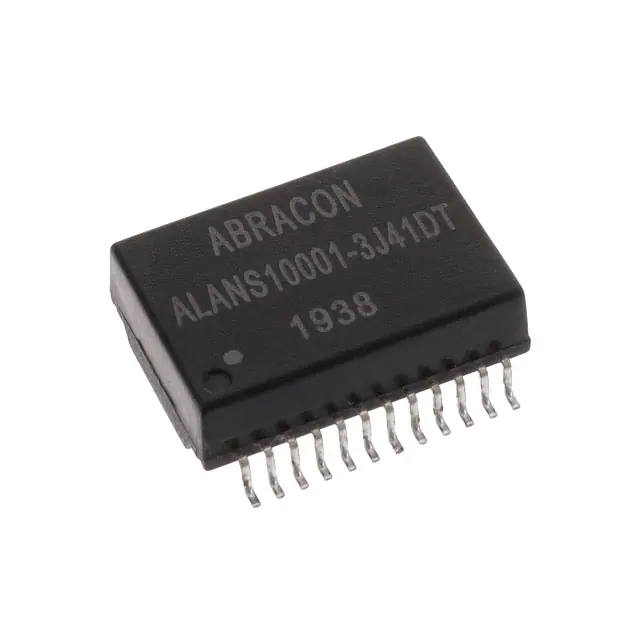

ALANS10001-3J41DTLAN SGL 1000B XFMR&CMC&AUTO 24PI |
3,959 | 2.50 |
|
Datasheet |
ALANS10001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.254" (6.45mm) | -40°C ~ 85°C | - | - |
|

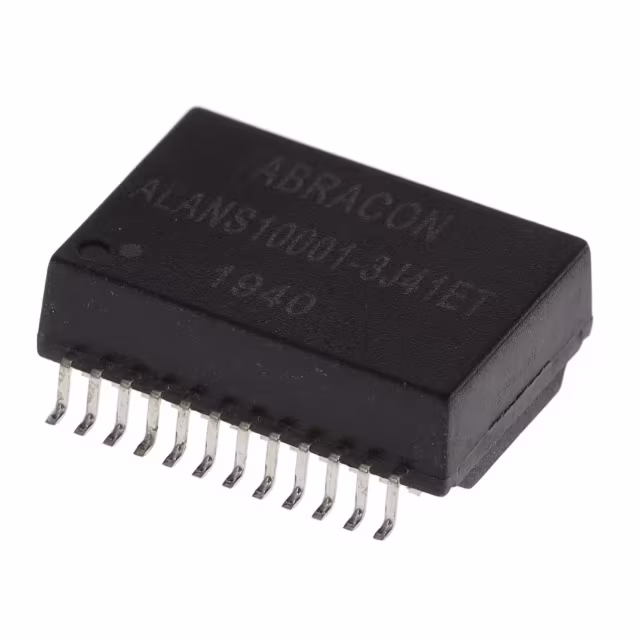

ALANS10001-3J41ETLAN SGL 1000B XFMR&CMC&AUTO 24PI |
2,183 | 2.17 |
|
Datasheet |
ALANS10001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
