Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGRSP-GHN2V8LFISO MOD G.HN 1:2:2C 4KV SMD |
3,881 | 0.00 |
|
- |
- | Tube | Active | General Purpose | 12.7µH | - | 1:2:2CT | Surface Mount | 0.590" L x 0.475" W (14.99mm x 12.07mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HX1188TPULSE XFMR 1:1 TX 1:1 RX |
3,080 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
HXE2009HLTRANSF ESS BMS 1500V 4.3KV |
2,760 | 0.00 |
|
Datasheet |
HXE20xxHL | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.733" L x 0.492" W (18.63mm x 12.50mm) | 0.344" (8.74mm) | -40°C ~ 125°C | - | - |
|
|
HXE2013HLTRANSF ESS BMS 1500V 5.0KV |
3,560 | 0.00 |
|
Datasheet |
HXE20xxHL | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.733" L x 0.492" W (18.63mm x 12.50mm) | 0.344" (8.74mm) | -40°C ~ 125°C | - | - |
|
|
HXE2017HLTRANSF ESS BMS 1500V 6.0KV |
4,519 | 0.00 |
|
Datasheet |
HXE20xxHL | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.733" L x 0.492" W (18.63mm x 12.50mm) | 0.344" (8.74mm) | -40°C ~ 125°C | - | - |
|
|
TG110-ESV01N6RLISO MOD 10/100 SHOCK/VIB X-TEMP |
2,914 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
TLA-6T103LFXFRMR FOR QS6611 CHIP SET 16SOP |
4,016 | 0.00 |
|
Datasheet |
TLA | Tape & Reel (TR) | Obsolete | LAN | 350µH | - | 1CT:1CT | Surface Mount | 1.012" L x 0.366" W (25.70mm x 9.30mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|
PA0769NLTPULSE XFMR 89.2UH |
2,338 | 3.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 89.2µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA1477NLTPULSE XFMR 38.3UH |
2,643 | 3.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 38.3µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA2114NLPULSE XFMR 164UH |
1,202 | 3.33 |
|
Datasheet |
- | Tray | Active | - | 164µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2114NLTPULSE XFMR 164UH |
1,080 | 3.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 164µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
ITNB-0239-D202ITNB PULSE TRANSFORMER THT 0.17A |
4,797 | 3.00 |
|
Datasheet |
IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.8mH | 350VµS | 2:1 | Through Hole | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.535" (13.60mm) | -25°C ~ 100°C | - | - |
|
|
TG1G-S031NYLFISO MOD 1G 24P SMD |
3,744 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S001NZLFTRISO MOD 1G 24P SMD T/R |
3,331 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG74-1505NZLFISO MOD T1 DUAL 1C:2C X-TEMP 24P |
4,421 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG1G-S035NYLFTRISO MOD 1G 24P SMD T/R |
3,113 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

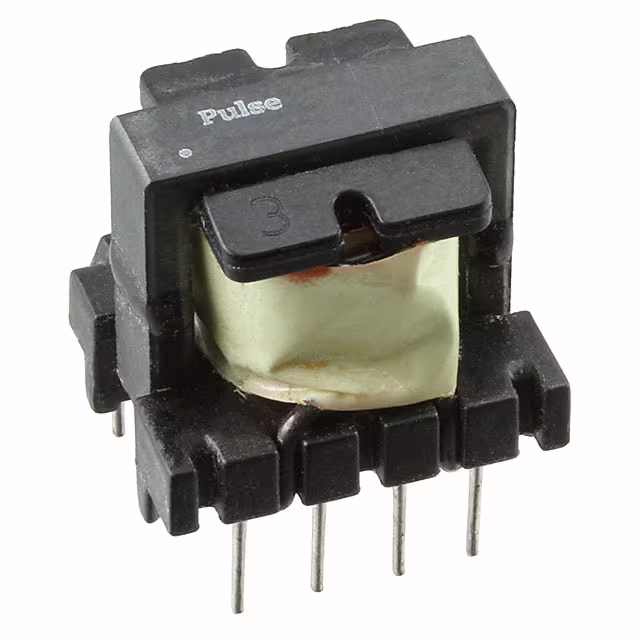

PA2531NLPULSE XFMR 4.5UH |
1,302 | 3.37 |
|
Datasheet |
- | Tray | Active | - | 4.5µH | - | - | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.709" (18.00mm) | -40°C ~ 130°C | - | - |
|
|
PA2053NLTPULSE XFMR 292UH |
4,171 | 3.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 292µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
H1138NLTXFRMR MODULE 1PORT 1:1 10/100 |
3,949 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S001NZRLISO MOD 1G 24P SMD |
2,235 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
