Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG1G-E035NYLFISO MOD 1G X-TEMP 24P SMD |
3,489 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-S012NZRLISO MOD 1G POE 0.35A 24P SMD |
2,747 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S053P2RLISO MOD 10/100 LOWPRFL 16P SMD |
2,266 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
S558-10GB-22TRANSFORMER PULSE |
2,092 | 4.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | - | 0.290" (7.37mm) | - | - | - |
|
|
S558-5500-16-FPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,660 | 3.60 |
|
Datasheet |
- | Bulk | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.522" L x 0.600" W (13.26mm x 15.24mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG63-1505NZLFTRISO MOD T1 DUAL 1C:1.15 1C:2C |
2,026 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG38-1505NZLFTRISO MOD T1 DUAL 1C:1.15C X-TEMP |
1,149 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG27-S004NZLFTRISO MOD T1 DUAL 1C:1.36C 1C:2C |
2,668 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.36CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG42-1505NZLFTRISO MOD T1 DUAL 1C:1.41C X-TEMP |
4,893 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.41CT Transmitter, 1CT:1.41CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG26-1505NZLFTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,460 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG08-1505NZLFTRISO MOD T1 DUAL 1C:2C X-TEMP |
1,623 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG63-S002NZLFTRISO MOD T1 1C:2C 1:1.15 X-TEMP |
4,737 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
H0009NLTMODULE MAGNETIC LAN 1:1 10/100 |
1,815 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
|
S553-5999-D6-FPULSE TRANSFORMER 85UH |
1,866 | 3.64 |
|
Datasheet |
- | Bulk | Active | LAN | 85µH | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
750510348VDSL XFRM WE-DSL IKANOS BOARD |
2,886 | 3.31 |
|
Datasheet |
MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 700µH | - | 1.1:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.430" (10.92mm) | -40°C ~ 85°C | - | - |
|

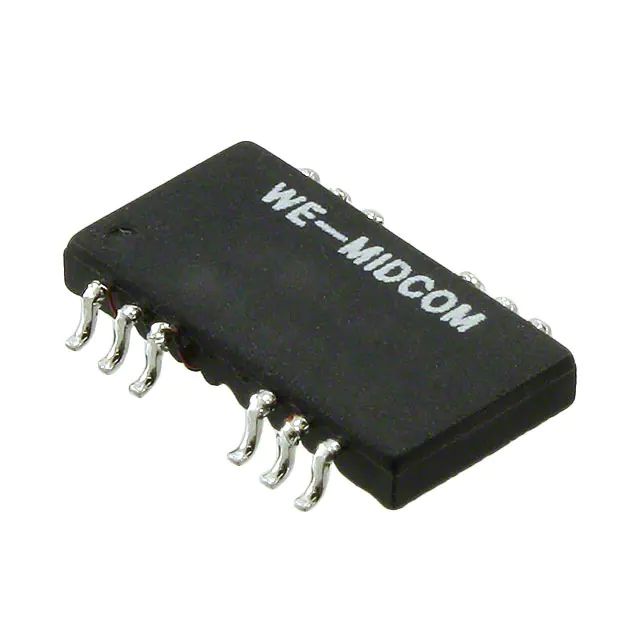

749020100TRANSFORMER LAN 10/100/1000 SMD |
3,834 | 6.91 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.505" L x 0.264" W (12.83mm x 6.70mm) | 0.085" (2.16mm) | - | - | - |
|
|
TG110-BP01NULFTRISO MOD 10/100 BACKPLN 32P SMD T |
1,509 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 350µH | - | - | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
T60403D4097X0604097X060 |
3,044 | 0.00 |
|
Datasheet |
- | Box | Active | General Purpose | 8mH | 260VµS | 1:1.2:1.2 | Through Hole | 0.654" L x 0.583" W (16.60mm x 14.80mm) | 0.531" (13.50mm) | - | - | - |
|
|
TG2G-S13NYNLFTRSO MOD 2.5G POE 0.35A MINI 24P S |
1,693 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.300" W (14.22mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
PA0751NLPULSE XFMR 110UH |
2,334 | 3.58 |
|
Datasheet |
- | Tube | Active | - | 110µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
