Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

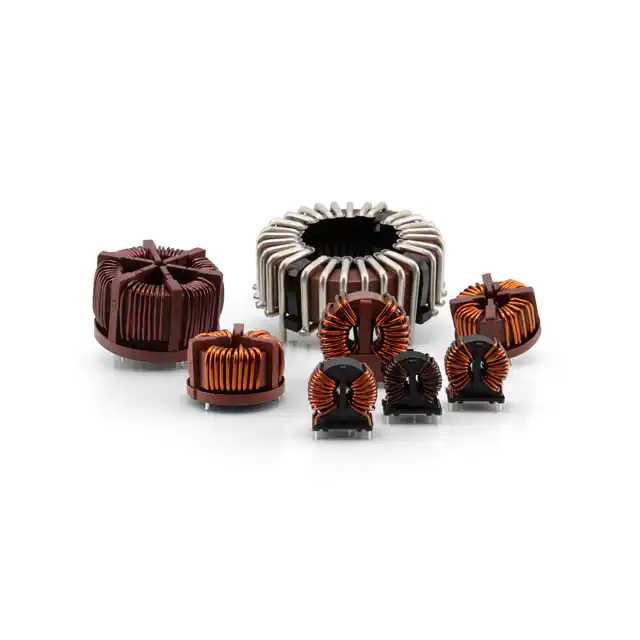

T60403F4099X011GATE DRIVE TRANSFORMER PTH 1:1:1 |
4,358 | 8.25 |
|
Datasheet |
- | Box | Active | Gate Drive | 950µH | 85VµS | 1:1:1 | Through Hole | 0.654" L x 0.583" W (16.60mm x 14.80mm) | 0.531" (13.50mm) | -40°C ~ 85°C | - | - |
|
TG2G-S13NYNLFSO MOD 2.5G POE 0.35A MINI 24P S |
1,912 | 0.00 |
|
- |
- | Tube | Active | LAN 2.5/5G Base-T | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.300" W (14.22mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
T60403F4099X0094099X009 |
3,489 | 0.00 |
|
- |
- | Box | Active | Gate Drive | 2.5mH | 150VµS | 1:1:1/1 | Through Hole | 0.654" L x 0.582" W (16.60mm x 14.80mm) | 0.531" (13.50mm) | -40°C ~ 85°C | - | - |
|
|
T60403F4099X0104099X010 |
2,707 | 0.00 |
|
Datasheet |
- | Box | Active | General Purpose | - | 130VµS | 1:1:1:1 | Through Hole | 0.654" L x 0.583" W (16.60mm x 14.80mm) | 0.531" (13.50mm) | -40°C ~ 100°C | - | - |
|
|
T60403F4097X0704097X070 |
2,070 | 0.00 |
|
Datasheet |
- | Box | Active | Gate Drive | 1.215mH | 150VµS | 1.5:1 | Through Hole | 0.654" L x 0.583" W (16.60mm x 14.80mm) | 0.571" (14.50mm) | -40°C ~ 85°C | - | - |
|
|
T60403F4097X0624097X062 |
1,227 | 0.00 |
|
- |
- | Box | Active | Gate Drive | 60µH | 16VµS | 1:1.65/1.65 | Through Hole | 0.654" L x 0.582" W (16.60mm x 14.80mm) | 0.531" (13.50mm) | -40°C ~ 105°C | - | - |
|
|
TG1G-S031NYLFTRISO MOD 1G 24P SMD T/R |
2,928 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
T3011NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD |
1,960 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
S558-5999-03-FPULSE XFMR 1CT:1CT 420UH 550UH |
4,015 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 420µH | - | 1CT:1CT | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | - | - | - |
|
|
TG74-1505NZLFTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
1,197 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG111-HP3NZLFISO MOD 1G POE 0.6A 24P SMD |
4,940 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-E012NZLFISO MOD 1G X-TEMP 24P SMD |
4,109 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
HX1323NLTPULSE XFMR 1:1 350UH |
4,725 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
PA1558NLPULSE XFMR 11.5UH |
2,300 | 3.48 |
|
Datasheet |
- | Tray | Active | - | 11.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TG110-BP01NULFISO MOD 10/100 BACKPLN 32P SMD |
4,324 | 0.00 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | - | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-S031NYRLISO MOD 1G 24P SMD |
1,721 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S001NZRLTRISO MOD 1G 24P SMD T/R |
2,633 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG74-1505NZRLISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,003 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG1G-S035NYRLTRISO MOD 1G 24P SMD T/R |
2,115 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
VP6014RS4M HFMDL 1G 1 PORT POE 60W |
4,567 | 3.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
