Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG111-E12NYNLFISO MOD 1G POE 0.35A X-TEMP 24P |
3,192 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.560" L x 0.300" W (14.22mm x 7.62mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
BM6155NLTRANSFORMER 28UH 1:1:1 3KV SMT |
1,389 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 28µH | - | 1:1:1 | Surface Mount | 0.417" L x 0.357" W (10.60mm x 9.08mm) | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
|
|
TG110-S101N6LFTRISO MOD 10/100 16P SMD T/R |
4,369 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PA1835NLTPULSE XFMR 4.5UH |
4,681 | 3.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
PE-65870TPULSE XFMR 1 CT:1.15CT TX/RX |
1,296 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | - | - | 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T1090TPULSE XFMR 1CT:2CT TX 1CT:2CT RX |
3,439 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
TX1089TPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,308 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
TG74-0456N1RLISO MOD T1 1:1 1:2C X-TEMP 16P S |
2,222 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T3/E3 (Dual) | 45µH, 35µH | - | 1:1, 1:2CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
TG05-2004NARLISO MOD 64KB 1:2C 6P SMD |
1,187 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT | Surface Mount | 0.380" L x 0.350" W (9.65mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG110-ESV01N6LFISO MOD 10/100 SHOCK/VIB X-TEMP |
2,271 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG110-S101N6RLISO MOD 10/100 16P SMD |
2,795 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.280" W (14.73mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG2G-S12NZLFSO MOD 2.5G POE 0.35A 24P SMD |
2,163 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
PE-68786NLTRANSFORMER TELECOM DUAL T1/E2 |
1,428 | 3.20 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1.41CT, 1CT:1.41CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-68786NLTXFRMR 1CT:1.41CT/1CT:1.41CT SMD |
3,654 | 3.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1.41CT, 1CT:1.41CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

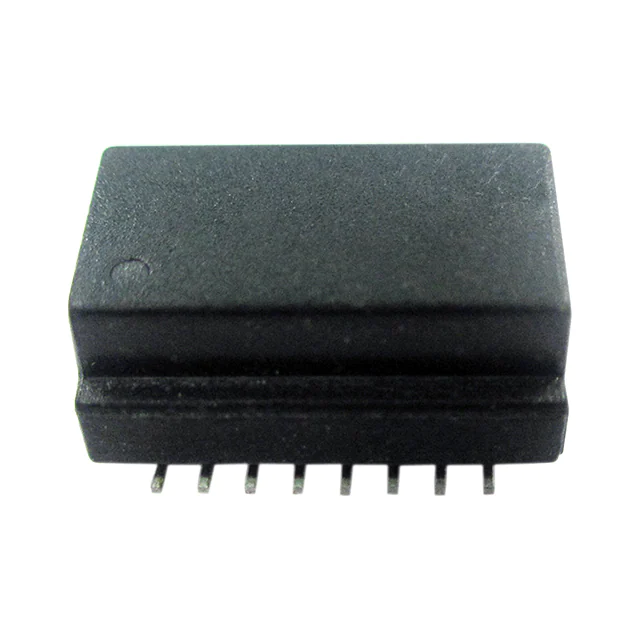

ALAN-505PULSE XFMR 1CT:1CT 350UH |
4,986 | 3.31 |
|
Datasheet |
ALAN-505 | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | 0°C ~ 70°C | - | - |
|
ALAN-2201PULSE XFMR 1CT:1CT 350UH |
4,970 | 3.31 |
|
Datasheet |
ALAN-2201 | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
|
|
TGR01-3406V6LFTRISO MOD T3 1:1 X-TEMP 3KV 6P SMD |
4,890 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | 0°C ~ 70°C | - | - |
|
|
TG22-3506NDRLTRISO MOD 10/100 1C:1C 16P SMD T/R |
4,543 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.370" W (25.40mm x 9.40mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
TGR04-3406V6LFTRISO MOD T3 1C:1C REINF 3KV 6P SM |
3,044 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 40µH | - | 1CT:1CT | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | 0°C ~ 70°C | - | - |
|
|
H1100NLTMDL SIN 100D 2:1 SMT TR |
4,593 | 3.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
