Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG1G-S002NZRLISO MOD 1G 24P SMD |
2,914 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

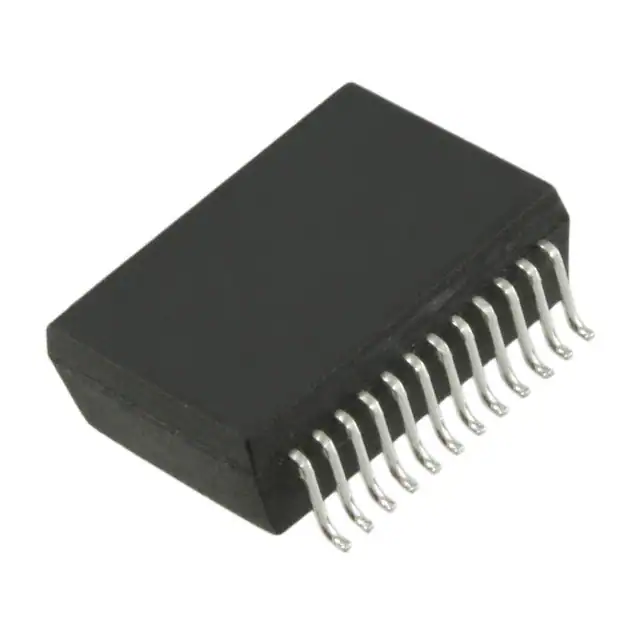

749020013TRANSFORMER 1:1 350UH |
3,923 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.705" L x 0.480" W (17.91mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
H0019NLTMODULE MAGNETIC LAN 1:1 10/100 |
1,874 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|
ALANS10001-4J11ETLAN SGL 1000B XFMR&CMC 24PIN |
4,600 | 2.02 |
|
Datasheet |
ALANS10001-4 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
T60403A4021X0864021X086 |
4,380 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
QVP6014RMMDL 5G 1 PORT POE 60W |
3,100 | 3.78 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
PA1692NLTPULSE XFMR 73UH |
1,361 | 3.79 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 73µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA2047NLPULSE XFMR 7.2UH |
4,504 | 3.64 |
|
Datasheet |
- | Tray | Active | - | 7.2µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TG1G-E035NYRLTRISO MOD 1G X-TEMP 24P SMD T/R |
1,437 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG23-1505NZRLISO MOD T1 DUAL 1:2.42C X-TEMP S |
4,674 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | 500nH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.700" L x 0.625" W (17.78mm x 15.88mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG91-1505NZRLISO MOD T1 DUAL 1C:2.4C/1C:1C |
2,060 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG111-S112NYLFISO MID 1G POE 0.35A 24P SMD |
3,276 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG110-RP06NJLFISO MOD 10/00 DUAL POE 0.35A 24P |
1,203 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG111-RP39NJRLISO MOD 1G POE 0.35A 24P SMD |
3,188 | 0.00 |
|
- |
- | Tube | Not For New Designs | General Purpose | 350µH | - | 1CT:1CT | Surface Mount | 0.545" L x 0.480" W (13.84mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG110-RP01NZRLTRISO MOD 10/00 DUAL POE 0.35A |
3,332 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
T1SB01RTMDL 10G 1 PORT 4PAIR POE 60W |
2,096 | 3.82 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 120µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 90°C | - | - |
|
|
TG01-1505NURLISO MOD T1 8CH 32P SMD |
3,486 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Quad) | 1.5mH | - | 1:1 | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
T1SB01LN2MDL 10G SINGLE PORT N/A |
2,141 | 3.82 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 90°C | - | - |
|
|
T1SB01RVMDL 10G 1 PORT 4PAIR POE 90W |
3,246 | 3.82 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 120µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 105°C | - | - |
|
|
TG111-RP39NYRLISO MOD 1G POE 0.35A 24P SMD |
4,809 | 0.00 |
|
- |
- | Tube | Not For New Designs | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.540" L x 0.600" W (13.72mm x 15.24mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
