Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITNF-0239-D202ITNF PULSE TRANSFORMER THT 0.17A |
1,590 | 3.22 |
|
Datasheet |
ITNF | Bulk | Active | Isolation and Data Interface (Encapsulated) | 1.6mH | - | 1:1:1 | Through Hole | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.535" (13.60mm) | -25°C ~ 100°C | - | - |
|

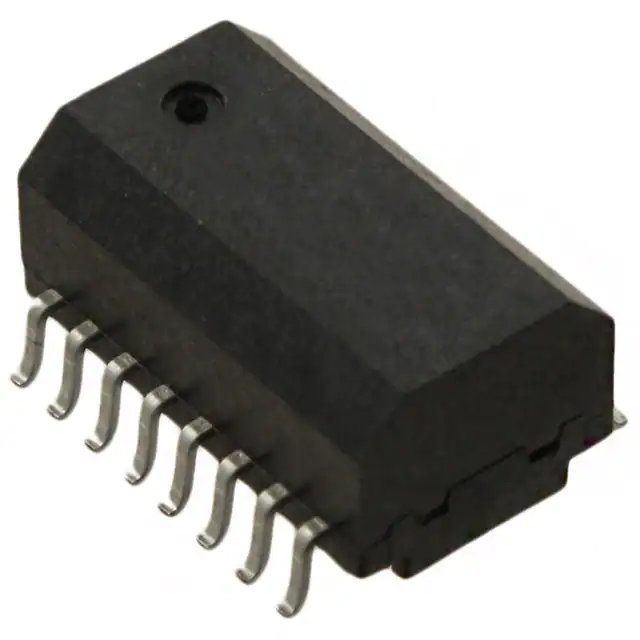

TLA-6T133WLF-TTRANSFORMER LAN 10/100 TX |
3,951 | 0.00 |
|
Datasheet |
TLA | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | -40°C ~ 85°C | - | - |
|
|
ITRA-0235-D103ITRA PULSE TRANSFORMER THT 0.1A |
1,984 | 3.22 |
|
Datasheet |
ITRA | Bulk | Active | Isolation and Data Interface (Encapsulated) | 2.8mH | - | 1:1 | Through Hole | 0.512" L x 0.598" W (13.00mm x 15.20mm) | 0.417" (10.60mm) | -25°C ~ 100°C | - | - |
|
|
TG63-1505NZRLISO MOD T1 DUAL 1C:1.15 1C:2C |
1,068 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG26-1505NZRLISO MOD T1 DUAL 1C:2C X-TEMP 24P |
2,389 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG38-1505NZRLISO MOD T1 DUAL 1C:1.15C X-TEMP |
3,740 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG27-S004NZRLISO MOD T1 DUAL 1C:1.36C 1C:2C |
2,535 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.36CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG42-1505NZRLISO MOD T1 DUAL 1C:1.41C X-TEMP |
4,455 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.41CT Transmitter, 1CT:1.41CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG08-1505NZRLISO MOD T1 DUAL 1C:2C X-TEMP 24P |
1,669 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG63-S002NZRLISO MOD T1 1C:2C 1:1.15 X-TEMP 1 |
1,981 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG1G-S032NYLFISO MOD 1G 24P SMD |
3,897 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-68881NLTXFRMR 1CT:2.3CT/1CT:2CT SMD |
4,546 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.3CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
PE-68882NLTXFRMR 1CT:1.15CT/1CT:1CT SMD |
2,037 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Dual) | 1.6mH, 1.6mH | - | 1CT:1.15CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
TG111-HP3NZLFTRISO MOD 1G POE 0.6A 24P SMD T/R |
3,548 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
PA2053NLPULSE XFMR 292UH |
2,631 | 3.55 |
|
Datasheet |
- | Tray | Active | - | 292µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TG1G-S002NZLFISO MOD 1G 24P SMD |
1,512 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S031NYRLTRISO MOD 1G 24P SMD T/R |
2,667 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG74-1505NZRLTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,801 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
H1012TPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,002 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TG111-HRPE41NYRLISO MOD 1G POE 1A X-TEMP 24P SMD |
1,609 | 0.00 |
|
- |
- | Tube | Not For New Designs | General Purpose | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 55°C | - | - |
