Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

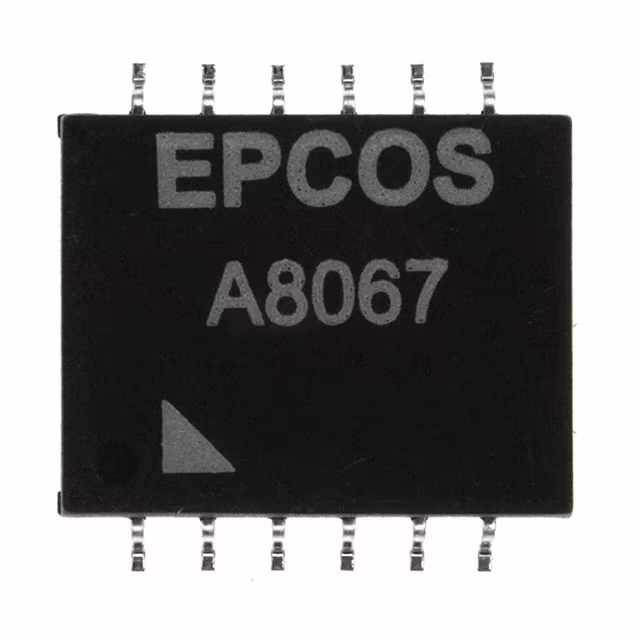

B78476A8067A003PULSE XFMR 1CT:1CT 350UH |
1,038 | 2.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.461" W (14.81mm x 11.70mm) | 0.203" (5.15mm) | 0°C ~ 70°C | - | - |
|
TG1G-E035NYLFTRISO MOD 1G X-TEMP 24P SMD T/R |
3,362 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
AVP2014RS1MDL SMD 2.5G SINGLE PORT N/A |
4,700 | 3.63 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
PA2047NLTPULSE XFMR 7.2UH |
4,413 | 3.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 7.2µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TG23-1505NZLFISO MOD T1 DUAL 1:2.42C X-TEMP S |
2,967 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.5mH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG91-1505NZLFISO MOD T1 DUAL 1C:2.4C/1C:1C |
4,595 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | - | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG111-HP3NZRLISO MOD 1G POE 0.6A 24P SMD |
1,074 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PA1692NLPULSE XFMR 73UH |
2,587 | 3.48 |
|
Datasheet |
- | Tray | Active | - | 73µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
TG1G-S012NZRLTRISO MOD 1G POE 0.35A 24P SMD T/R |
4,715 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG110-BP01NURLISO MOD 10/100 BACKPLN 32P SMD |
2,812 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | General Purpose | 350µH | - | - | Surface Mount | 1.000" L x 0.300" W (25.40mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
QVP9014RS4MMDL 5G 1 PORT POE 90W |
2,915 | 3.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 110°C | - | - |
|
|
T60403F5046X100*5046X100 |
1,140 | 0.00 |
|
- |
- | Box | Active | Gate Drive | 1.4mH | 80VµS | 1:1.2:1.2 | Through Hole | 0.791" L x 0.630" W (20.10mm x 16.00mm) | 0.472" (12.00mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-E035NYRLISO MOD 1G X-TEMP 24P SMD |
3,954 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
ITRF-0235-D101ITRF PULSE TRANSFORMER THT 0.1A |
3,353 | 3.32 |
|
Datasheet |
IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.1mH | 150VµS | 1:1:1 | Through Hole | 0.512" L x 0.598" W (13.00mm x 15.20mm) | 0.417" (10.60mm) | -25°C ~ 100°C | - | - |
|
|
TG110-RP01NZRLISO MOD 10/00 DUAL POE 0.35A 24P |
3,903 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | 1CT:1CT | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

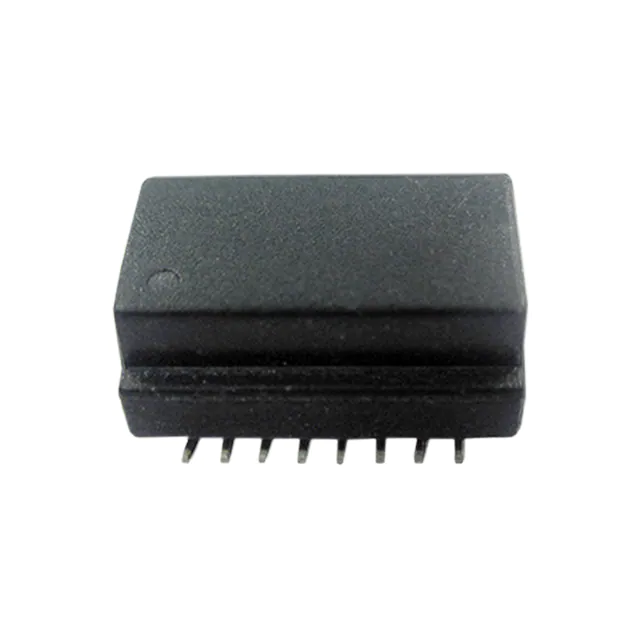

ALAN-2202PULSE XFMR 1CT:1CT 350UH |
4,456 | 3.87 |
|
Datasheet |
ALAN-2202 | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
|
|
AGS2014RSMD 2.5G DUAL PORT N/A |
1,572 | 3.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG1G-S032NYLFTRISO MOD 1G 24P SMD T/R |
1,490 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.540" W (15.24mm x 13.72mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
TG63-1505NZRLTRISO MOD T1 DUAL 1C:1.15 1C:2C |
1,738 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG26-1505NZRLTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,220 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
