Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG1G-S212NV6LFTRISO MOD 1G POE 0.35A DUAL 48P SM |
4,654 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|

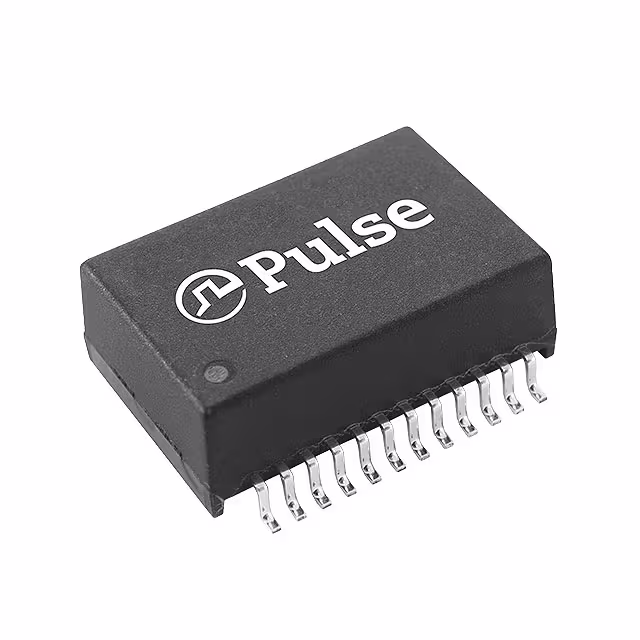

HU4009NLTMDL, SIN 2.5G, 1:1, SMT |
4,783 | 6.28 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.715" L x 0.630" W (18.16mm x 16.01mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
|
GS9015RM LFMDL 1G DUAL PORT 4PAIR POE 90W |
4,952 | 6.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-S202NV6LFISO MOD 1G DUAL 48P SMD |
1,414 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TG110-RPE14NVRLTRISO MOD 10/100 QUAD POE 0.35A |
3,214 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
TG111-E212NWRLTRISO MOD 1G DUAL POE 0.35A X-TEMP |
2,826 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | Isolation and Data Interface (Encapsulated) | 350µH | - | - | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
T1231NLTXFRMR T1/E1/CEPT/ESDN-PRI 1:2.4 |
3,489 | 6.29 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG5G-HPE10NZ5LFISO MOD 5G POE 1A X-TEMP 24P SMD |
3,970 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
S558-10GB-15TRANSFORMER PULSE |
4,383 | 6.92 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | - | 0.290" (7.37mm) | - | - | - |
|
IT155XFRMR PULSE 1:1 SINGLE 5MH 0.1A |
1,004 | 5.95 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 5mH | - | 1:1 | Through Hole | 1.063" L x 0.886" W (27.00mm x 22.50mm) | - | -25°C ~ 70°C | - | - |
|
S558-5999-AF-FMODULE XFRMR LAN 10/100B-TX SMD |
2,872 | 4.09 |
|
- |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-S232NVLFTRISO MOD 1G DUAL 48P SMD T/R |
2,350 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.600" W (27.69mm x 15.24mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
TG111-HP3NV6LFTRISO MOD 1G DUAL POE 0.6A 48P SMD |
2,132 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
HU4006NLTMDL, SIN 2.5G, 1:1, SMT |
2,611 | 6.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.540" L x 0.600" W (13.72mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
T1114NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
1,658 | 6.38 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TX1473NLXFRMR OCTAL 1:2/1:1 1.2MH SMD |
3,460 | 6.38 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1471NLTXFRMR OCTAL 1:1 1.2MH SMD |
3,326 | 6.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
TX1475NLTXFRMR OCTAL 1:2/1:1 1.2MH SMD |
1,252 | 6.38 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
HX7260NLTMDL SIN 10GPP 1:1 SM TR |
3,279 | 6.39 |
|
- |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|
|
HX7260NLMDL SIN 10GPP 1:1 GEN2 SM |
3,642 | 6.39 |
|
- |
- | Tube | Active | LAN 10G Base-T | - | - | - | Surface Mount | - | - | -40°C ~ 85°C | - | - |
