Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX1332NLXFMR SIN 100D 1:1 4KV SMT T |
1,804 | 6.01 |
|
Datasheet |
- | Tube | Active | LAN 100 Base-T | - | - | - | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|
|
HX1332NLTXFMR SIN 100D 1:1 4KV SMT T |
4,410 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 100 Base-T | - | - | - | Surface Mount | - | - | -40°C ~ 85°C | - | - |
|
|
TG1G-S201NV6LFISO MOD 1G DUAL 48P SMD |
3,640 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S222NXRLISO MOD 10/100 DUAL 2C:1C 40P SM |
3,969 | 0.00 |
|
- |
- | Tube | Not For New Designs | LAN 10/100 Base-T | 350µH | - | 2CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG111-S212NWLFTRISO MOD 1G DUAL POE 0.35A 50P SM |
3,926 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | - | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-RPE33NV6LFISO MOD 1G DUAL POE 0.35A X-TEMP |
2,724 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|

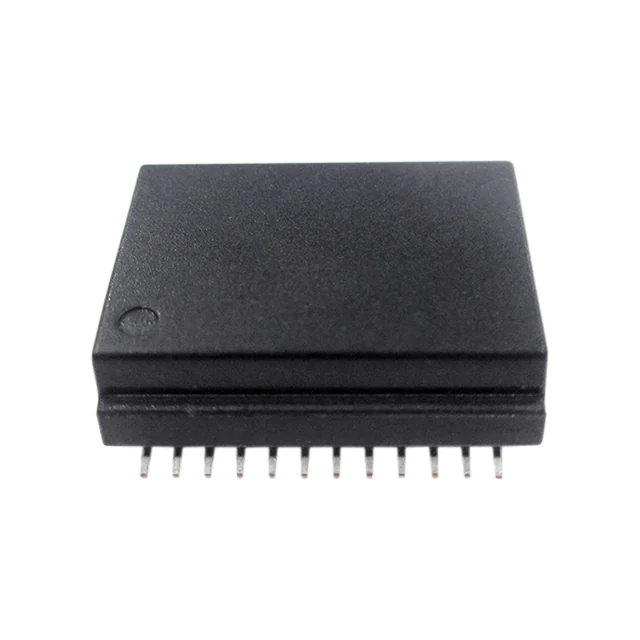

ALAN-2302PULSE XFMR 1CT:1CT 350UH |
4,841 | 5.49 |
|
Datasheet |
ALAN-2302 | Strip | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
|
|
HX6621NLTMDL SIN 1GPP 1:1 SMT TR |
3,034 | 10.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
H1270NLMODULE XFRMR DUAL ETHER LAN 24P |
3,648 | 9.19 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.515" L x 0.500" W (13.08mm x 12.70mm) | 0.155" (3.93mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S035NXRLTRISO MOD 10/100 DUAL 40P SMD T/R |
4,136 | 0.00 |
|
- |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG2G-HPE10NZ5LFTRISO MOD 2.5G POE 1A X-TEMP 24P S |
4,740 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
|
QGS6014RMMDL 5G DUAL PORT 4PAIR POE 60W |
2,292 | 5.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | -40°C ~ 85°C | - | - |
|
|
QGS6014RMDL 5G DUAL PORT 4PAIR POE 60W |
4,241 | 5.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
QGS2014RMDL 5G DUAL PORT N/A |
1,328 | 5.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
H7137NLT10GBASE-T DISCRETE 5CH |
4,920 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
H7037NLT10GBASE-T DISCRETE TERANETIC/PLX |
3,614 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S231NVLFISO MOD 1G DUAL 48P SMD |
2,312 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.600" W (27.69mm x 15.24mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
HX1305NLXFRMR MODULE 2PORT 1:1 10/100 |
3,716 | 5.74 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|
|
HX1305NLTXFRMR MODULE 2PORT 1:1 10/100 |
2,647 | 5.74 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-S201NV6LFTRISO MOD 1G DUAL 48P SMD T/R |
1,086 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
