Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG05-1505NURLISO MOD T1 8CH 1:2 X-TEMP 32P SM |
1,168 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Octal) | 1.5mH | - | 1:2 | Surface Mount | 1.000" L x 0.430" W (25.40mm x 10.92mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
_R5001NL(T)_iNRCORE_Product-Image.jpg)
|
R5001NLTXFRMR ETHERNET MOD IND 1000B-T |
3,338 | 5.67 |
|
- |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.700" L x 0.490" W (17.78mm x 12.45mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
HX6106NLGIGABIT POE+ TRANSFORMER/CMC |
4,186 | 6.10 |
|
- |
- | Bulk | Active | - | - | - | - | - | 0.715" L x 0.511" W (18.16mm x 12.98mm) | 0.410" (10.41mm) | - | - | - |
|
1007CPULSE XFMR 1:1:1 7.4MH |
1,918 | 6.11 |
|
Datasheet |
1000 | Tube | Not For New Designs | General Purpose | 7.4mH | 310VµS | 1:1:1 | Through Hole | 0.593" L x 0.593" W (15.06mm x 15.06mm) | 0.640" (16.25mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S231NVRLTRISO MOD 1G DUAL 48P SMD T/R |
4,030 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.600" W (27.69mm x 15.24mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
T7015NLTXFRMR 64KBPS 1:2CT/1:2CT 20MH |
1,396 | 6.13 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
TG05-1505NURLTRISO MOD T1 8CH 1:2 X-TEMP 32P SM |
1,892 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Octal) | 1.5mH | - | 1:2 | Surface Mount | 1.000" L x 0.430" W (25.40mm x 10.92mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
TG10G-E12NZ5LFTRISO MOD 10G X-TEMP 24P SMD T/R |
4,273 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
|
HX5009NLTMODULE SINGLE GIGABIT 1 PORT |
2,691 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
TG111-RPE41NV6RLISO MOD 1G DUAL POE 0.35A 48P SM |
3,633 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|
|
TG110-RPE14NVRLISO MOD 10/100 QUAD POE 0.35A 48 |
1,095 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.090" L x 0.740" W (27.69mm x 18.80mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
ISNA-0235-D103ISNA PULSE TRANSFORMER SMD 0.1A |
1,575 | 2.74 |
|
Datasheet |
IS | Tape & Reel (TR) | Active | SCR and Triac Trigger (Encapsulated) | 2.8mH | 200VµS | 1:1 | Surface Mount | 0.512" L x 0.748" W (13.00mm x 19.00mm) | 0.433" (11.00mm) | -25°C ~ 100°C | - | - |
|
|
TG1G-S212NV6LFISO MOD 1G POE 0.35A DUAL 48P SM |
3,593 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TG111-E212NWRLISO MOD 1G DUAL POE 0.35A X-TEMP |
4,237 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | - | 350µH | - | 1CT:1CT | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

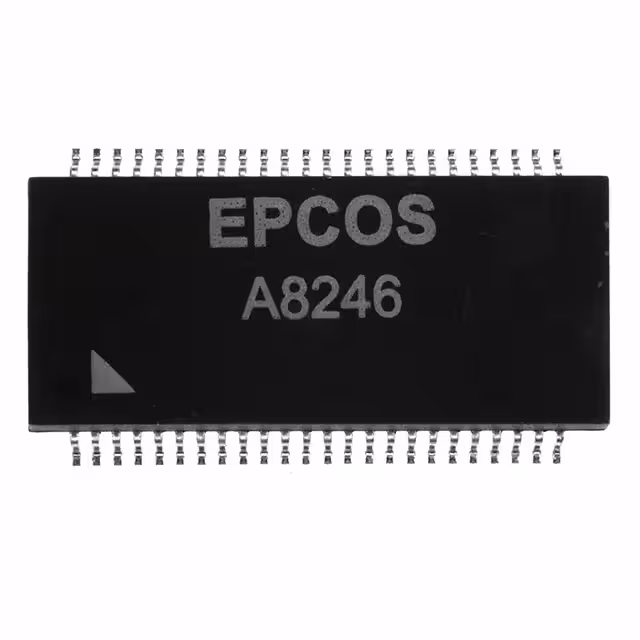

B78476A8246A003PULSE XFMR 1CT:1CT 350UH |
1,409 | 4.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|

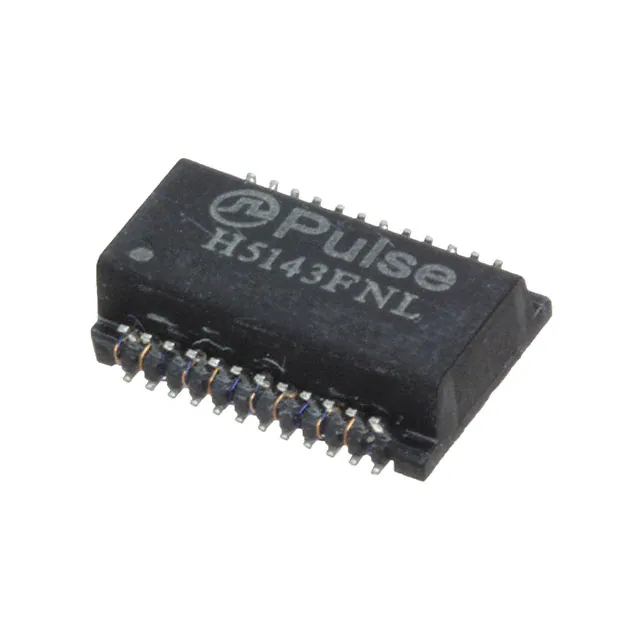

H5143FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,332 | 6.21 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S232NVLFISO MOD 1G DUAL 48P SMD |
1,436 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.090" L x 0.600" W (27.69mm x 15.24mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
TG111-HP3NV6LFISO MOD 1G DUAL POE 0.6A 48P SMD |
2,183 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TG111-RPE41NV6RLTRISO MOD 1G DUAL POE 0.35A 48P SM |
1,609 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|
|
TG10G-HP10NZ5LFISO MOD 10G POE 1A 24P SMD |
4,496 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.722" L x 0.487" W (18.34mm x 12.37mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
