Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM13126PEL10/100 BASE TX LAN POE +85 C, IE |
4,572 | 2.17 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|

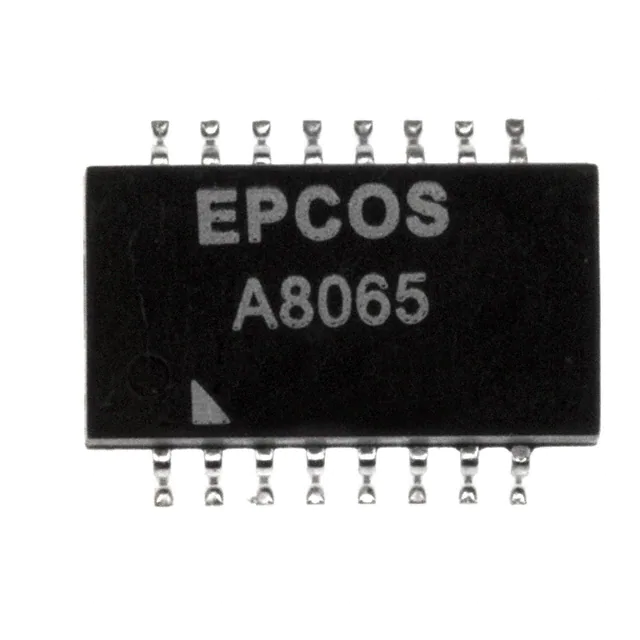

B78476A8065A003PULSE XFMR 1CT:1CT 350UH |
53,346 | 2.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.220" (5.60mm) | -40°C ~ 85°C | - | - |
|
PA2001NLTPULSE XFMR 1:1 403UH |
1,671 | 2.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 403µH | 12VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|

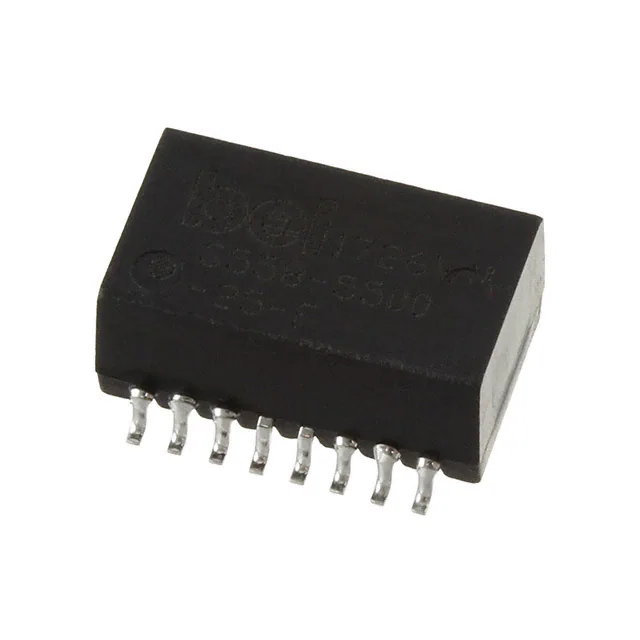

S558-5500-25-FMODULE XFRMR LAN 10/100 POE SMD |
1,700 | 2.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
S558-5999-U7-FMODULE XFRMR LAN 10/100B-TX SMD |
25,037 | 2.58 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-T5-FMODULE XFRMR LAN 10/100B-TX SMD |
21,533 | 2.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-T7-FMODULE XFRMR LAN 10/100B-TX SMD |
3,361 | 2.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
PH9384.034NLTXFMR GATE-DR 3T:4CT SMT NPB |
1,065 | 2.80 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
|
PE-68386NLTPULSE XFMR 1:1 785UH |
2,036 | 2.86 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|

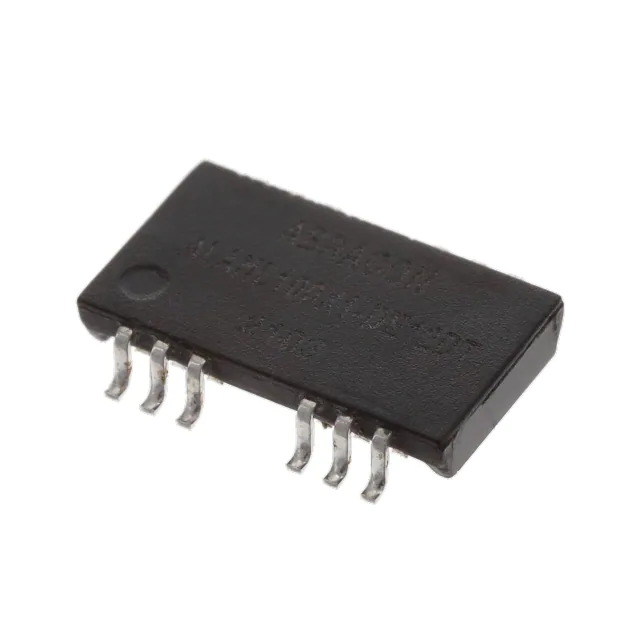

ALANL100X1-DE12DTXFRMR LAN 1CT:1CT 350UH |
2,390 | 4.83 |
|
Datasheet |
ALANL100X1-D | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.16mm) | -40°C ~ 85°C | - | - |
|
PA2002NLTPULSE XFMR 1:1:1 1.8MH |
5,897 | 2.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.8mH | 60VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
|
PE-68386NLPULSE XFMR 1:1 785UH |
1,415 | 2.86 |
|
Datasheet |
- | Tube | Active | - | 785µH | 9.7VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|

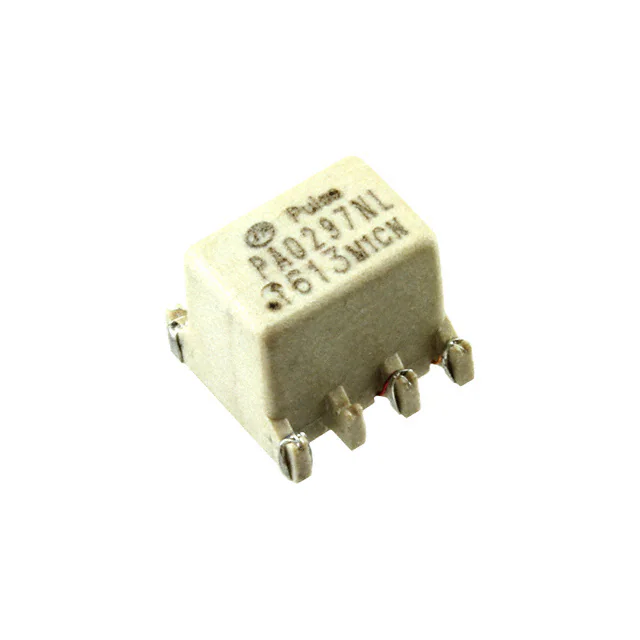

PA0297NLTPULSE XFMR 2:1:1 1200UH |
680 | 2.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.2mH | 27.2VµS | 2:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
SM51589PELPULSE XFMR 1CT:1CT 350UH |
7,643 | 3.22 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
IL-11-0002IL1 PULSE TRANSFORMER THT 0.25A |
321 | 3.34 |
|
Datasheet |
IL | Bulk | Active | Isolation and Data Interface (Encapsulated) | 2.5mH | - | 1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|

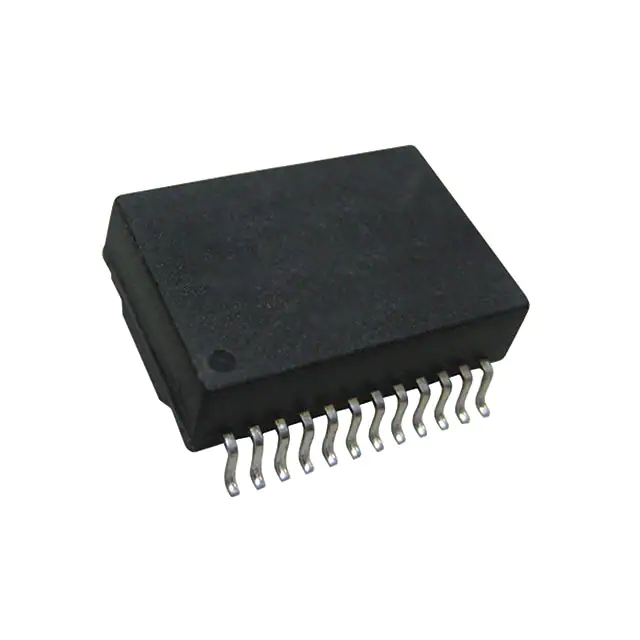

SM51625ELXFRMR LAN POE+ 1.2A 24SMD |
1,214 | 3.11 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN | 10µH | - | 1:1 | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.246" (6.25mm) | -40°C ~ 85°C | - | - |
|
|
IL-10-0001IL5 PULSE TRANSFORMER THT 0.1A |
4,182 | 3.48 |
|
Datasheet |
IL | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 2.5mH | 250VµS | 1:1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|

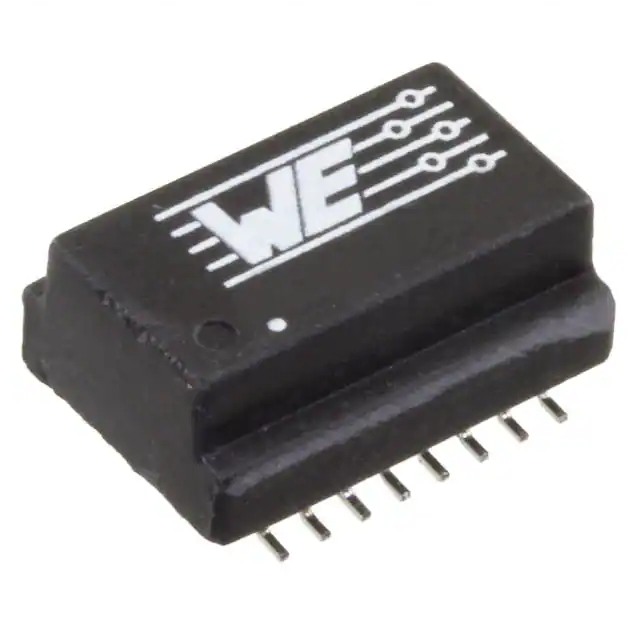

749013011ATRANS WE-LAN 10/100 POE SMD |
817 | 3.93 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | -40°C ~ 105°C | - | - |
|

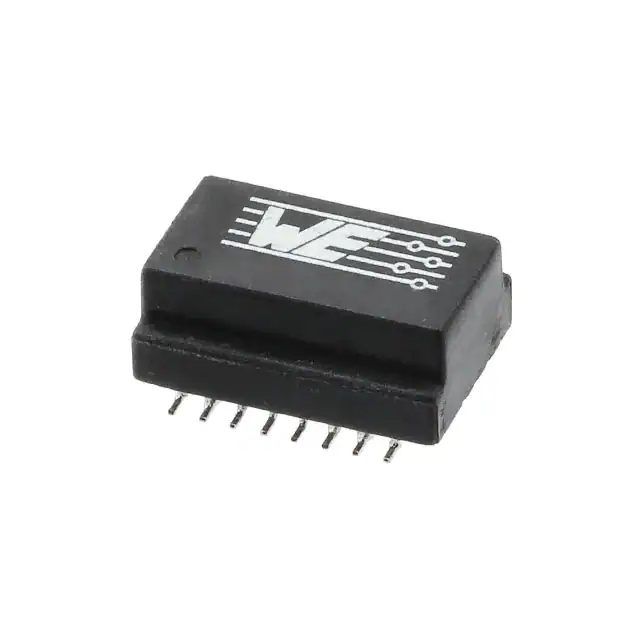

749020111AWE-LAN 10/100/1000 BASE-T SMT TR |
4,729 | 3.96 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | - | 0.650" L x 0.354" W (16.50mm x 9.00mm) | 0.093" (2.35mm) | 0°C ~ 70°C | - | - |
|
|
7490100111ATRANSFORMER LAN 10/100 SMD |
3,206 | 3.99 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.250" (6.35mm) | -40°C ~ 105°C | - | - |
