Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

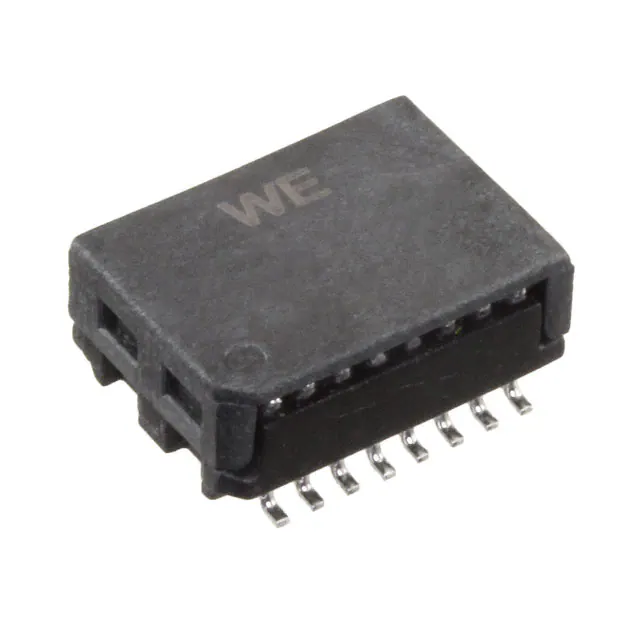

749012011010/100 BASE-T SMD TRANSFORMER 1 |
2,892 | 5.12 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 120µH | - | 1:1 | Surface Mount | 0.500" L x 0.365" W (12.70mm x 9.27mm) | 0.228" (5.80mm) | -40°C ~ 85°C | - | - |
|

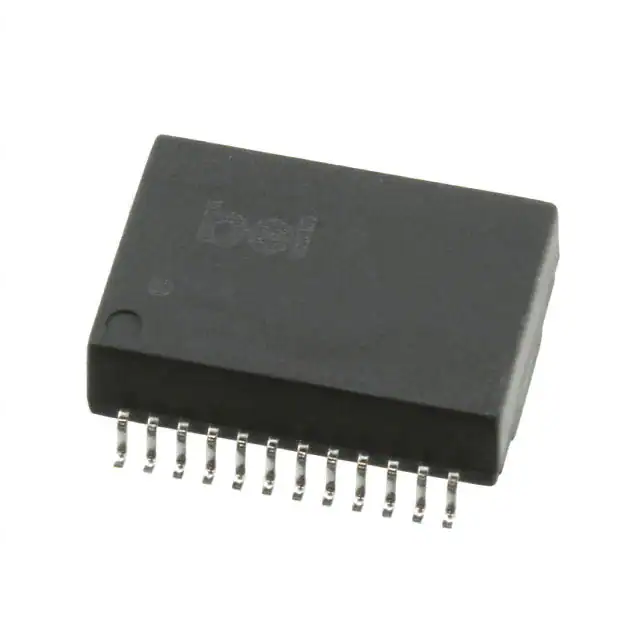

S558-5500-JDXFRMR LAN 2.5G 60W POE SMD |
1,111 | 2.67 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.690" L x 0.600" W (17.53mm x 15.24mm) | 0.225" (5.71mm) | 0°C ~ 70°C | - | - |
|

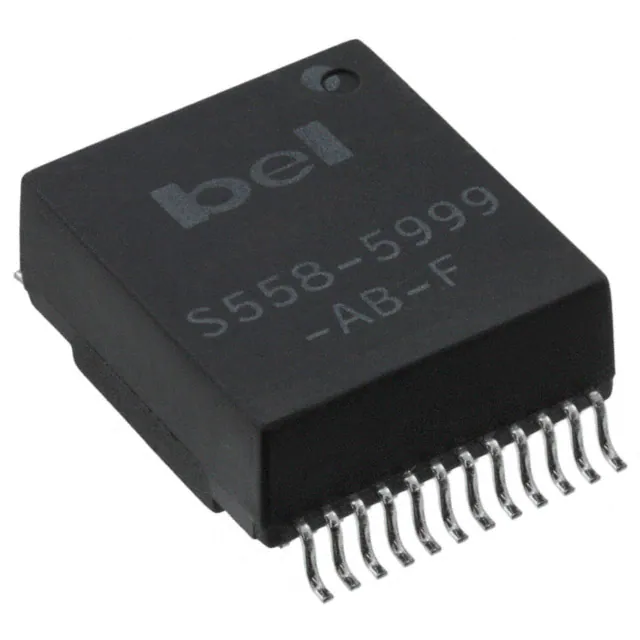

S558-5999-AB-FXFRMR MOD LAN GIGABIT EXTEMP 24P |
265 | 4.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.522" L x 0.600" W (13.26mm x 15.24mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
ILR-11-0001ILR1 PULSE TRANSFORMER THT 1A |
2,172 | 4.62 |
|
Datasheet |
ILR | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 2.5mH | 300VµS | 1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
SM91071AL-EXFRMR PULSE 10 BASE-T |
5,193 | 4.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 125°C | - | - |
|

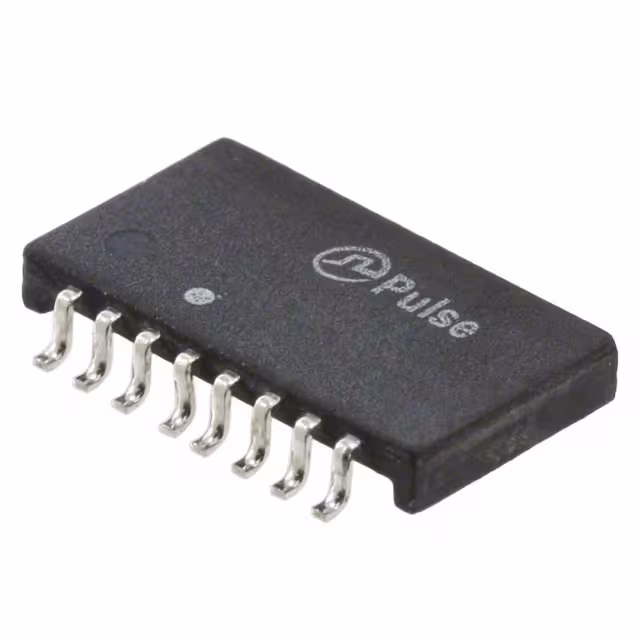

HX2326NLTMODULE 10/100B-T POE SMD |
2,586 | 5.08 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
1002CTRANSFORMER PULSE 1:1:1 200VUS |
608 | 4.75 |
|
Datasheet |
1000 | Bulk | Active | - | 3mH | 200VµS | 1:1:1 | Through Hole | 0.593" L x 0.593" W (15.06mm x 15.06mm) | 0.640" (16.25mm) | 0°C ~ 70°C | - | - |
|

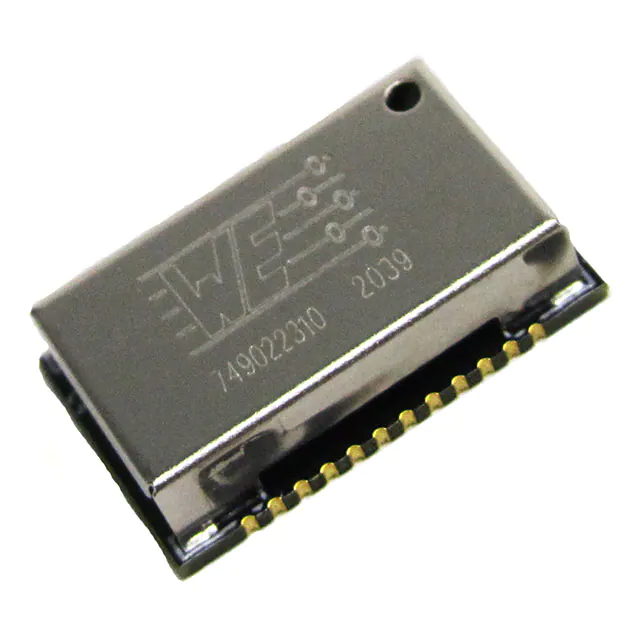

749022310WE-LAN AQ 10/100/1000 BASE-T SMT |
114 | 5.28 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 150µH | - | 1:1 | Surface Mount | 0.650" L x 0.406" W (16.50mm x 10.30mm) | 0.161" (4.10mm) | -40°C ~ 85°C | - | - |
|

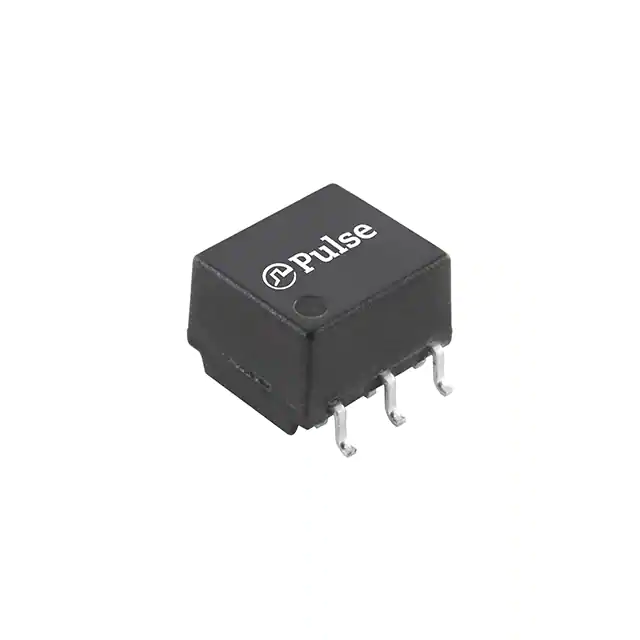

HM2101NLTXFMR CMC MODULE AECQ BATT MNGT |
3,668 | 5.08 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
HXB5007HLTMOD SIN 1GP 1:1 EXT. HF SMD |
265 | 0.00 |
|
Datasheet |
HXB | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.594" L x 0.394" W (15.10mm x 10.00mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
HX1198NLTXFRMR MAGNETIC 1PORT 1:1 10/100 |
6,935 | 5.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

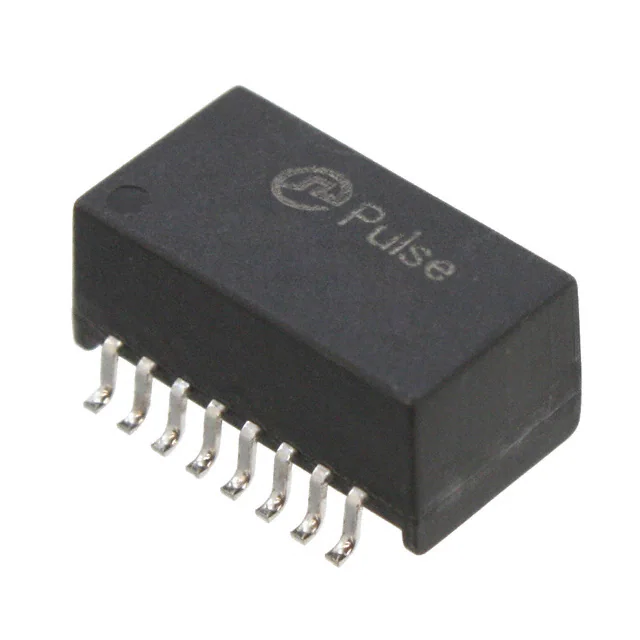

H2019NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
1,388 | 7.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|

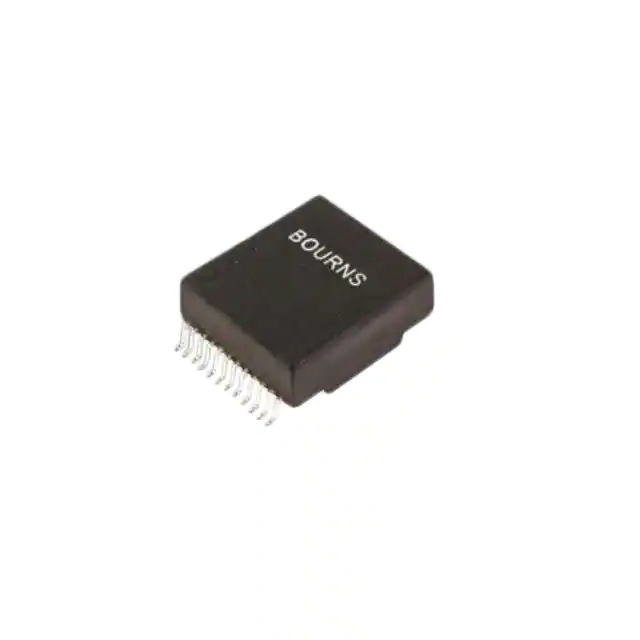

PT61022XELPULSE XFMR 1CT:1CT 350UH |
2,153 | 6.11 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.534" L x 0.600" W (13.56mm x 15.24mm) | 0.228" (5.79mm) | -40°C ~ 85°C | - | - |
|

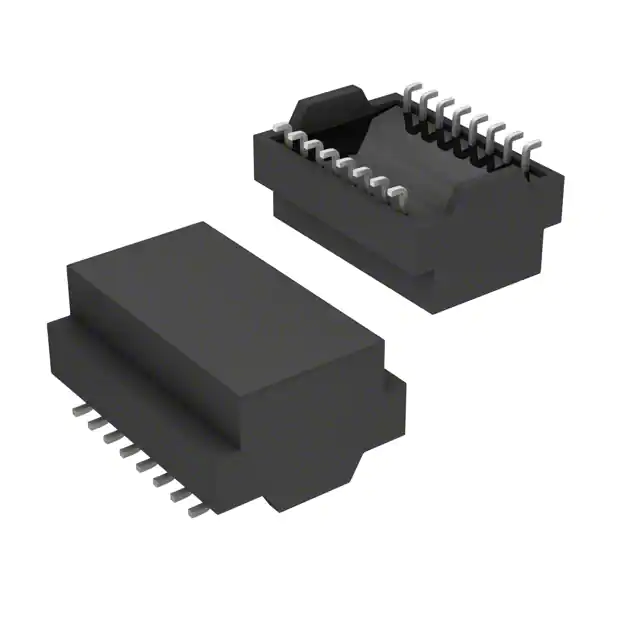

HX2326FNLTPULSE XFMR 1CT:1CT TX/RX |
2,699 | 5.53 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|

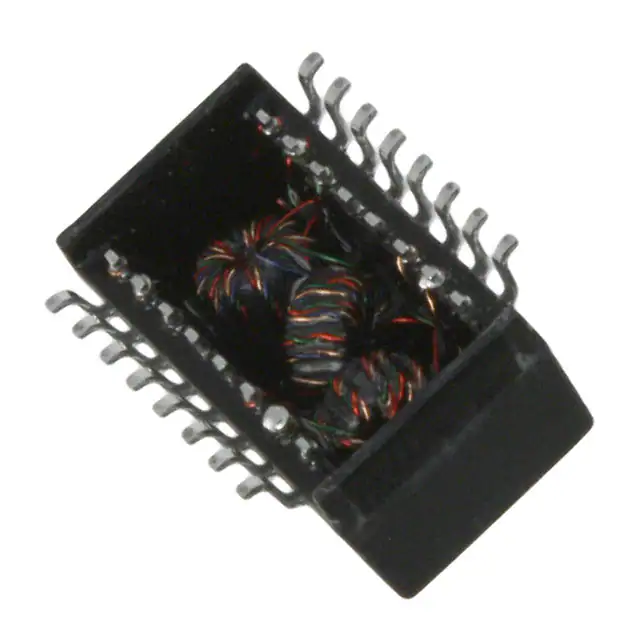

HX2019NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
1,599 | 6.68 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
B78416A2232A003SMT TRANSFORMER FOR ULTRASONIC S |
2,130 | 5.13 |
|
Datasheet |
B7416A | Tape & Reel (TR) | Active | - | 3mH | - | - | Surface Mount | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.280" (7.10mm) | - | - | - |
|
|
HM2103NLTXFMR CMC MODULE AECQ BATT MNGT |
3,269 | 5.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
HX1198NLMODULE XFRMR SGL ETHR LAN 16SOIC |
686 | 5.74 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

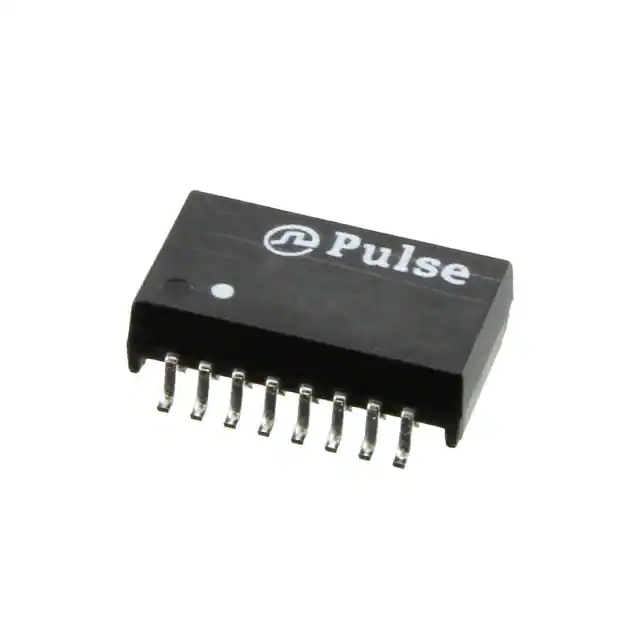

HX1098NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,106 | 5.74 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.158" (4.01mm) | -40°C ~ 85°C | - | - |
|

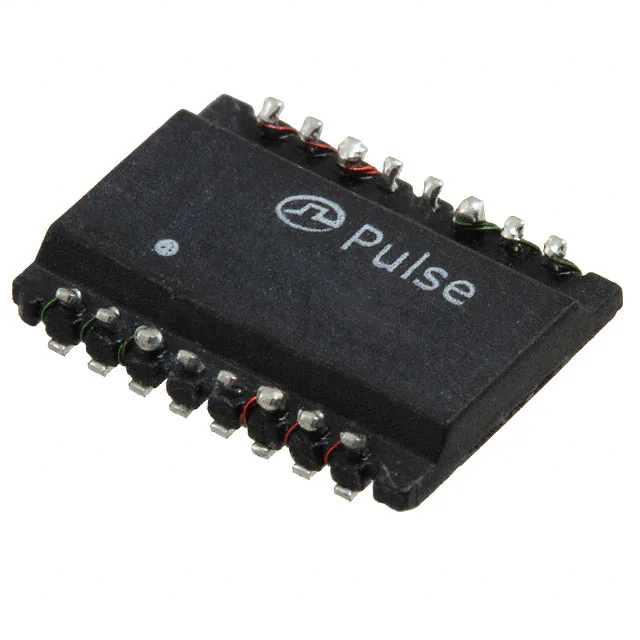

H0013FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,854 | 5.05 |
|
Datasheet |
- | Tube | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.488" L x 0.365" W (12.40mm x 9.27mm) | 0.073" (1.85mm) | 0°C ~ 70°C | - | - |
