Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

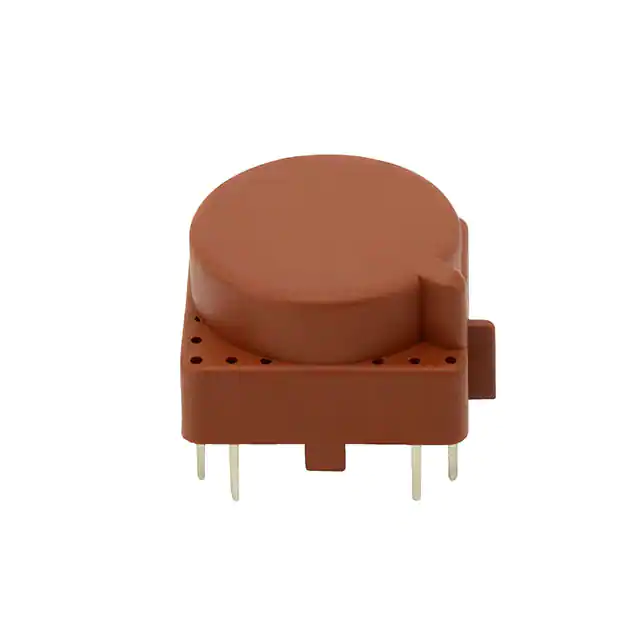

T60403D4097X055GATE DRIVE TRANSFORMER PTH 1:1:1 |
7,543 | 6.54 |
|
Datasheet |
- | Box | Active | - | 6.5mH | 200VµS | 1:1:1 | Through Hole | 0.654" L x 0.583" W (16.60mm x 14.80mm) | 0.532" (13.50mm) | -40°C ~ 85°C | - | - |
|

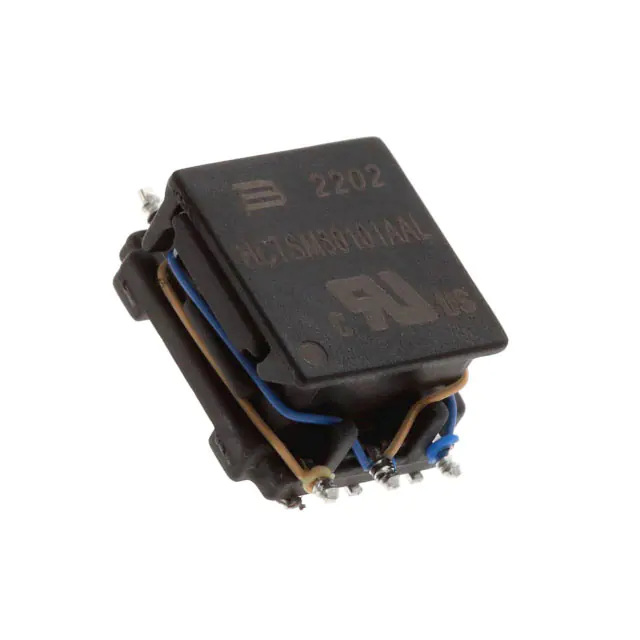

HCTSM80101AAL-EXFMR 3.3-5V/3.3-15V,350MA PK TR |
1,733 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Active | - | 250µH | 11.0VµS | 1:1 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
7490140117CXFMR LAN 10/100 BASE-T 1:1 350UH |
520 | 5.97 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.224" (5.70mm) | -40°C ~ 105°C | - | - |
|

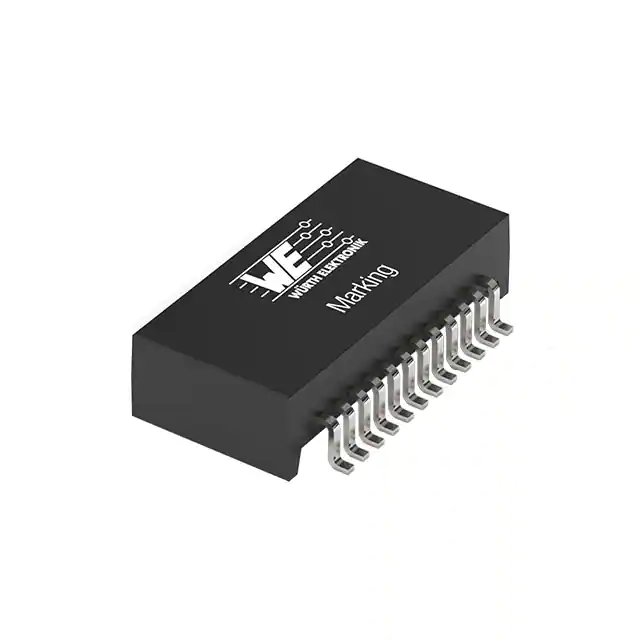

749020023AXFRMR LAN 1000 BASE-T 1:1 350UH |
325 | 5.97 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.167" (4.25mm) | -40°C ~ 85°C | - | - |
|

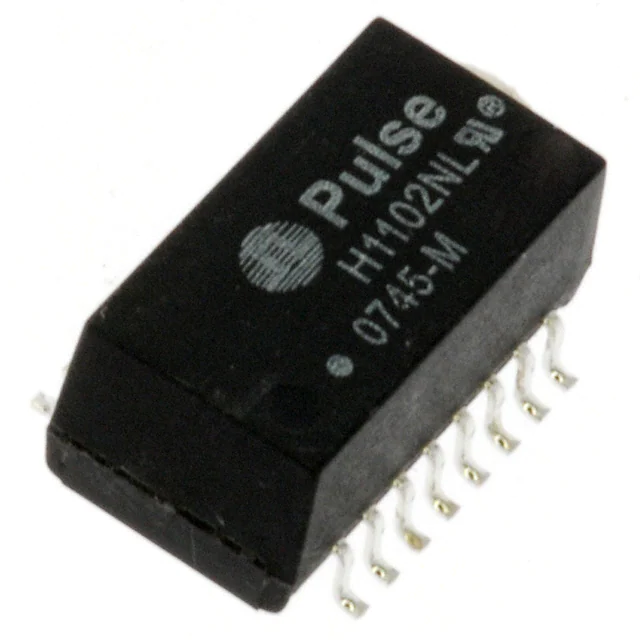

H1102NLMODULE XFRMR SGL ETHR LAN 16SOIC |
8,676 | 5.31 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

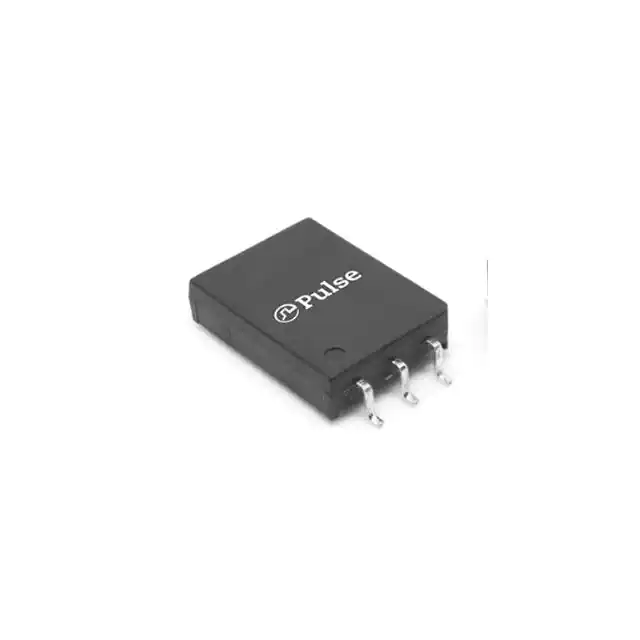

HM2113ZNLTXFMR CMC MODULE AECQ BATT MNGT |
1,937 | 5.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.354" L x 0.478" W (9.00mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
H1102FNLTPULSE XFMR LAN 350UH SMD |
9,076 | 5.43 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

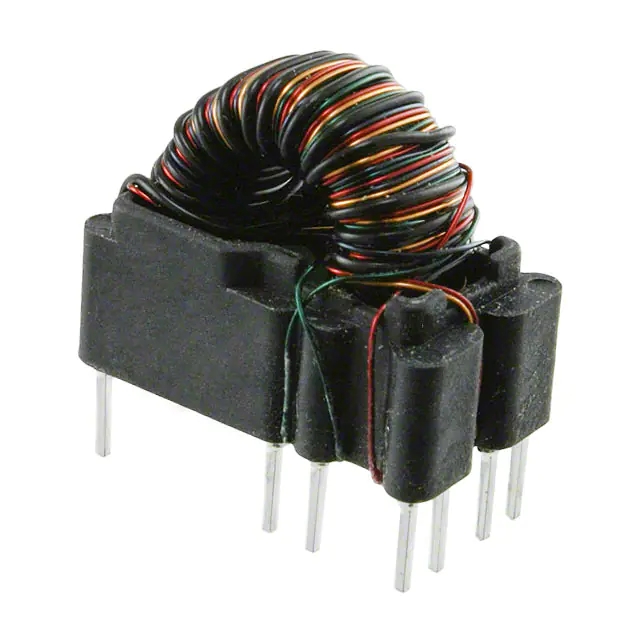

P0585NLPULSE XFMR 1:1:1 450UH |
800 | 5.44 |
|
Datasheet |
- | Tube | Active | - | 450µH | 95VµS | 1:1:1:1:1 | Through Hole | 0.810" L x 0.480" W (20.57mm x 12.19mm) | 0.750" (19.05mm) | -40°C ~ 125°C | - | - |
|
|

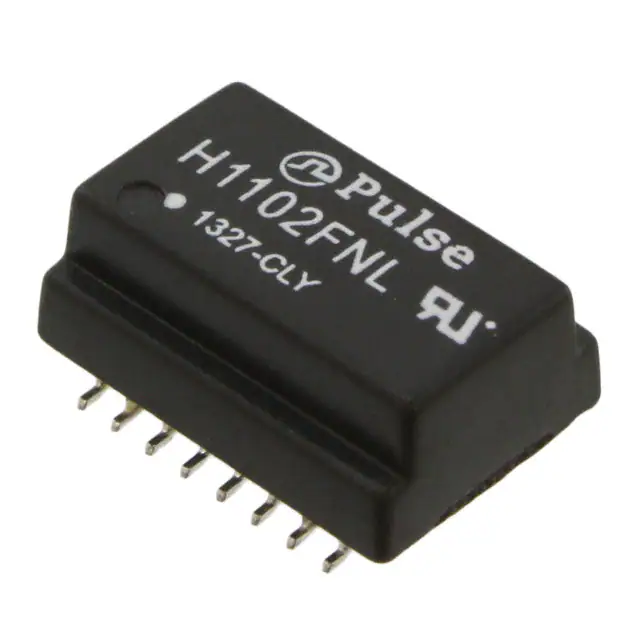

H1102FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
730 | 5.43 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
H2019FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,193 | 7.66 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
AGST5009BMDL SMD 2.5G SINGLE PORT N/A |
2,943 | 3.20 |
|
Datasheet |
AGST5009xx | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | - | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | 0°C ~ 70°C | - | - |
|
|
HX2019FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,389 | 7.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|

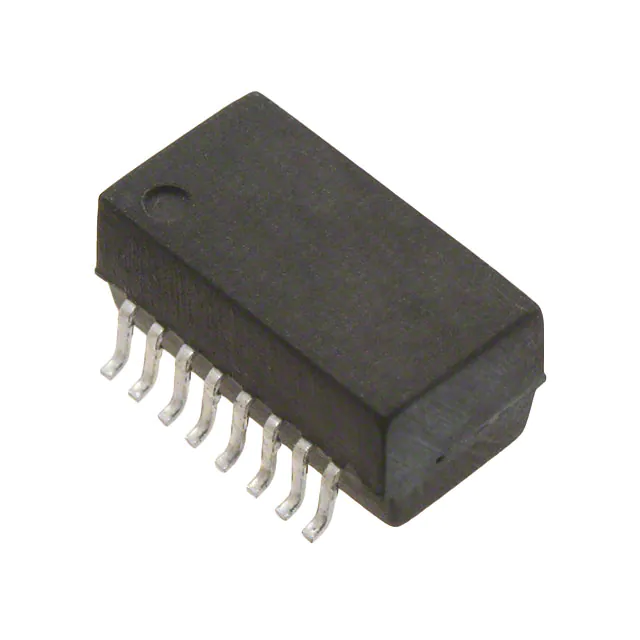

T1094NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH |
111 | 5.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

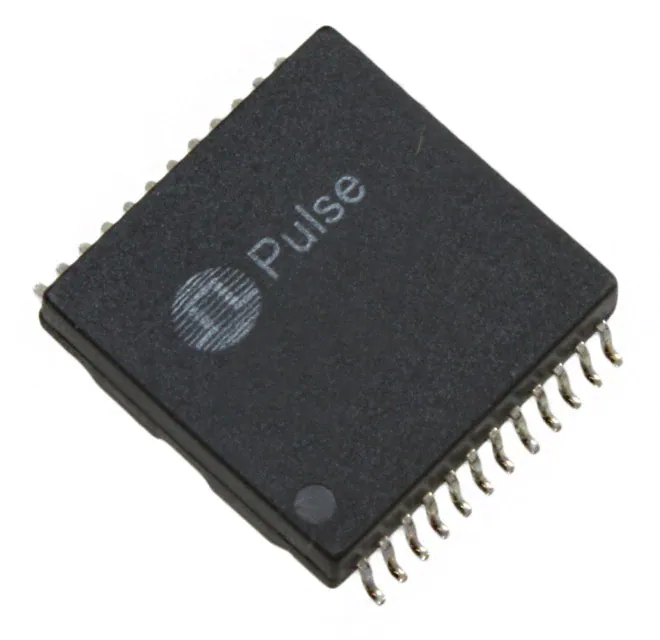

HX1294NLMODULE XFRMR LAN 10/100 SMD |
5,703 | 7.83 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538" L x 0.599" W (13.67mm x 15.21mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|

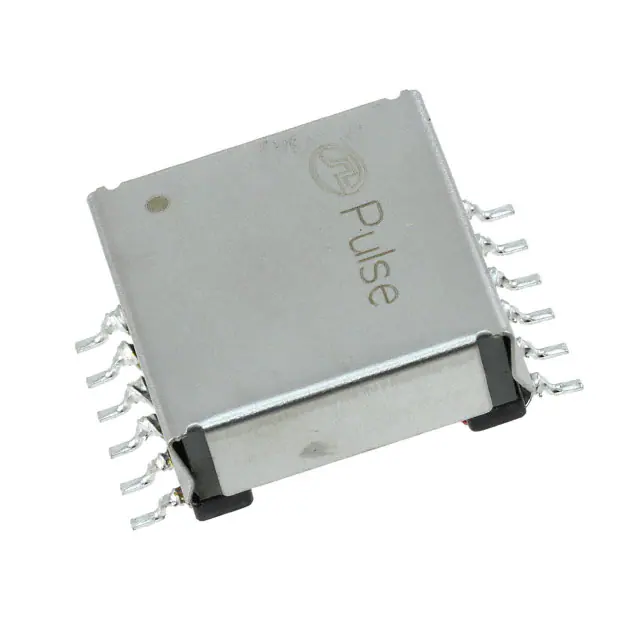

PA1736NLTPULSE XFMR 20.5UH |
278 | 5.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 20.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|

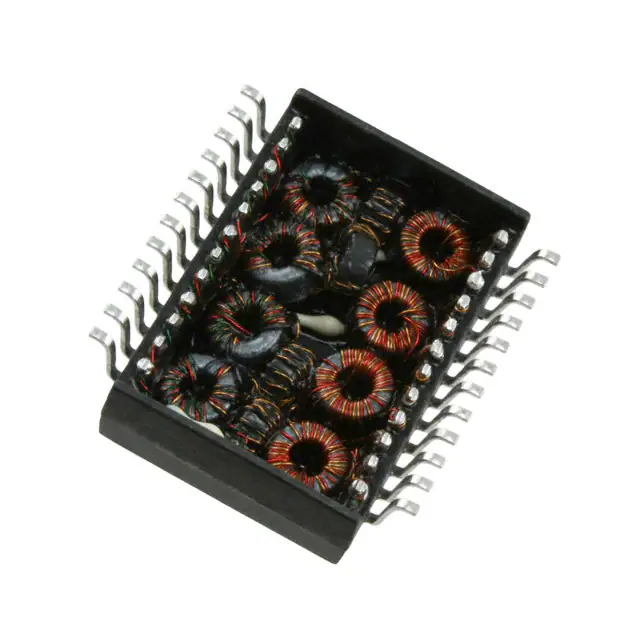

H6062NLTXFRMR MODUL GIGABT 1PORT POE 1:1 |
927 | 7.38 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

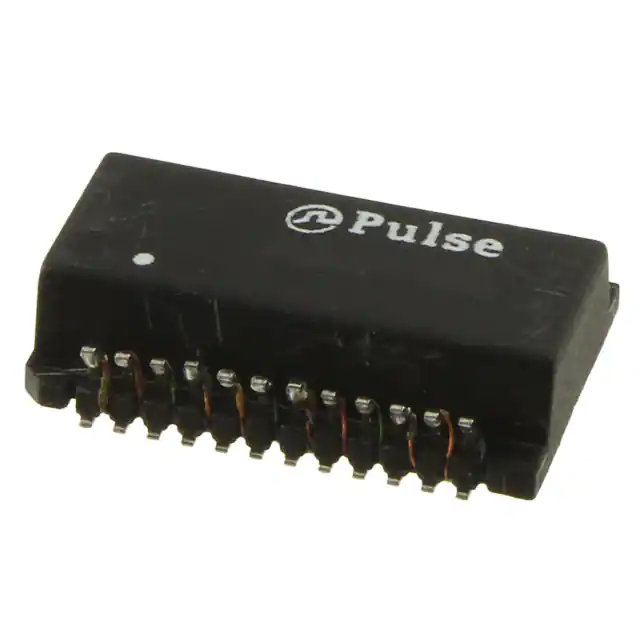

H5084FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
84,975 | 5.65 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
HX1098NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
6,159 | 5.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.158" (4.01mm) | -40°C ~ 85°C | - | - |
|

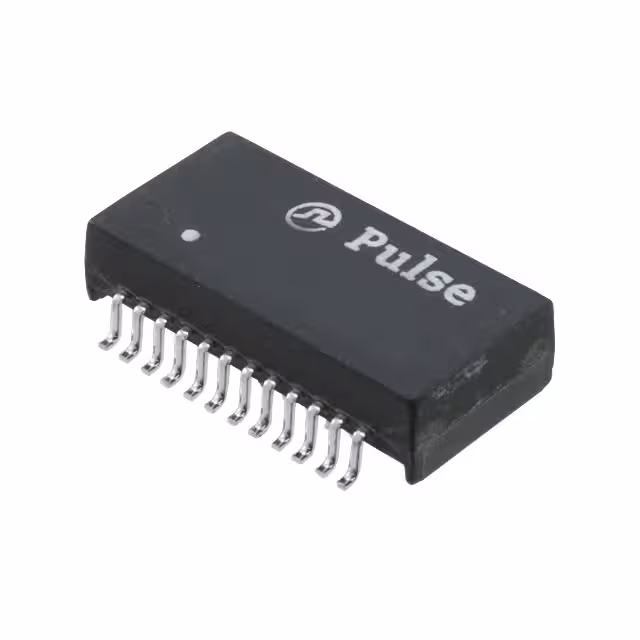

H5084NLTMODULE MAGNETIC 1PORT 1000BASE-T |
376 | 5.65 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
HX1188NLMODULE XFRMR SGL ETHR LAN 16SOIC |
2,490 | 5.68 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
