Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

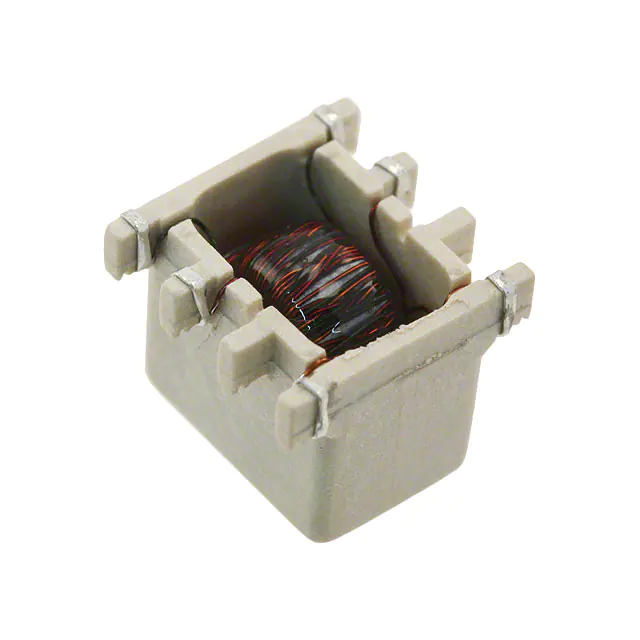

P0544NLTPULSE XFMR 1:1:1 3.3MH |
2,472 | 3.51 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

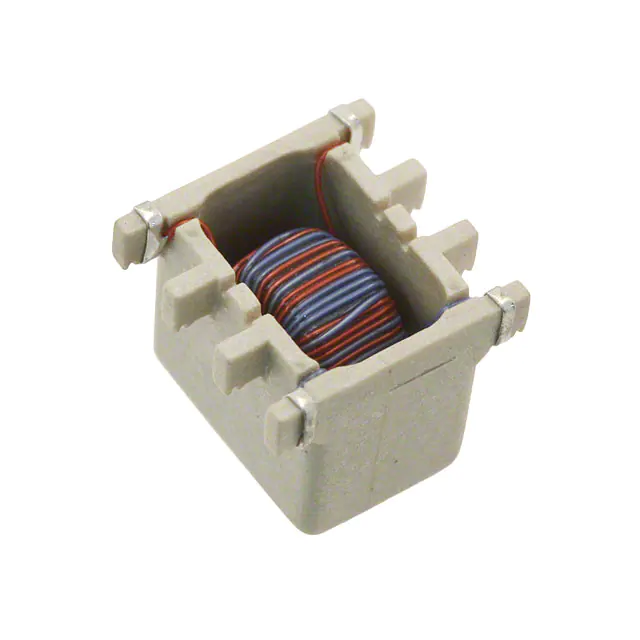

PA0184NLTPULSE XFMR 1:1 1.2MH |
2,942 | 3.57 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.2mH | 27.2VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

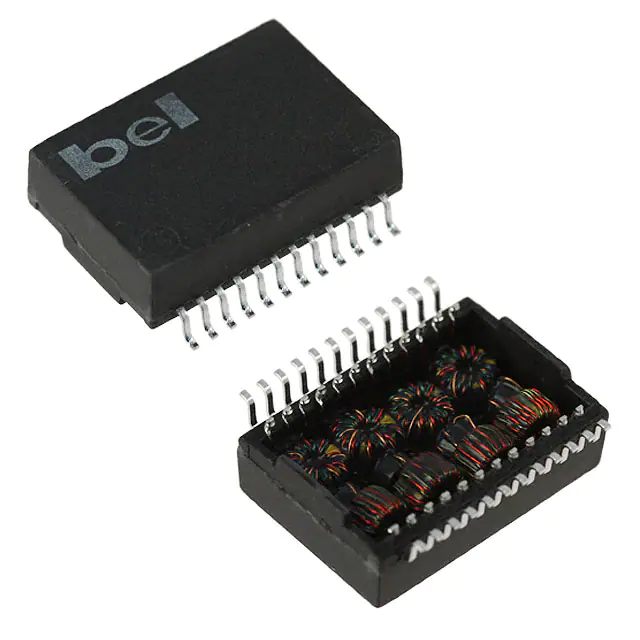

S558-5999-M8-FMODULE XFRMR LAN GIGABIT 24P SMD |
3,799 | 3.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

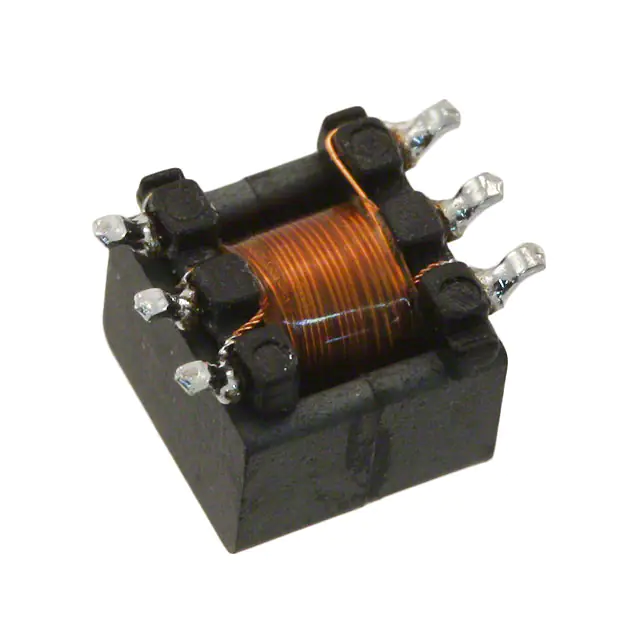

B82804A0354A110PULSE XFMR 1:1 350UH |
11,597 | 4.52 |
|
Datasheet |
EP5 | Tape & Reel (TR) | Active | Gate Drive | 350µH | 25.8VµS | 1:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|
|
B82804A0264A210PULSE XFMR 1:1:1 264UH |
11,258 | 4.52 |
|
Datasheet |
EP5 | Tape & Reel (TR) | Active | Gate Drive | 264µH | 22.4VµS | 1:1:1 | Surface Mount | 0.264" L x 0.240" W (6.70mm x 6.10mm) | 0.213" (5.40mm) | -40°C ~ 125°C | - | - |
|

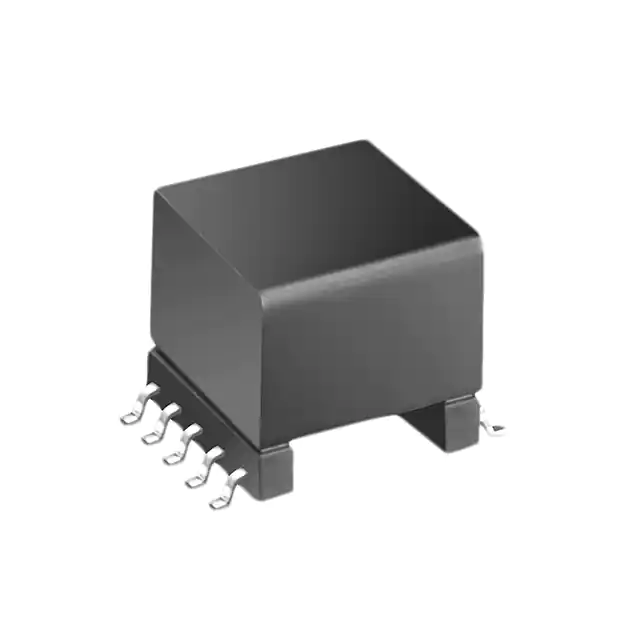

PA1284NLTXFRMR 12V 7W 155UH POE EP10 SMD |
406 | 4.09 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.682:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

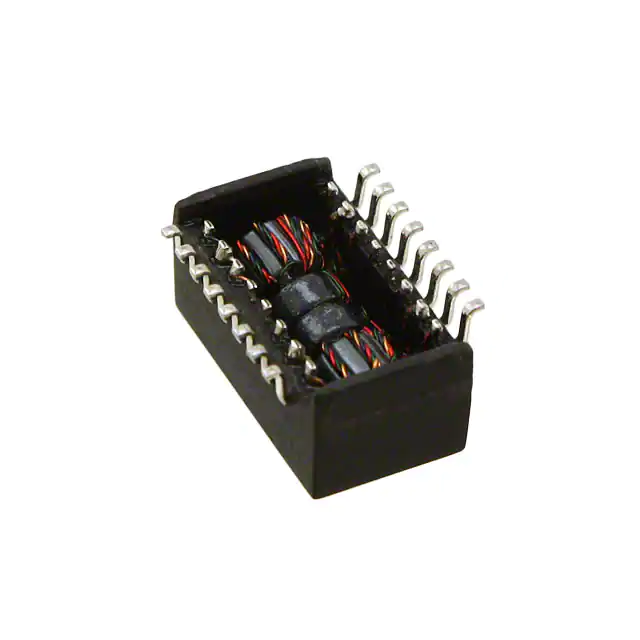

HX1188NLTXFRMR MAGNETIC 1PORT 1:1 10/100 |
3,634 | 5.68 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
1001CTRANSFORMER PULSE 1:1 200VUS |
6,566 | 4.31 |
|
Datasheet |
1000 | Tube | Active | - | 3mH | 200VµS | 1:1 | Through Hole | 0.593" L x 0.593" W (15.06mm x 15.06mm) | 0.640" (16.25mm) | 0°C ~ 70°C | - | - |
|
HX1188FNLTXFRMR MAGNETIC 1PORT 1:1 10/100 |
11,595 | 5.68 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|
SM91502ALEBMS XFORMER 1-CH 1000V AECQ +125 |
7,777 | 4.30 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | - | 150µH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|

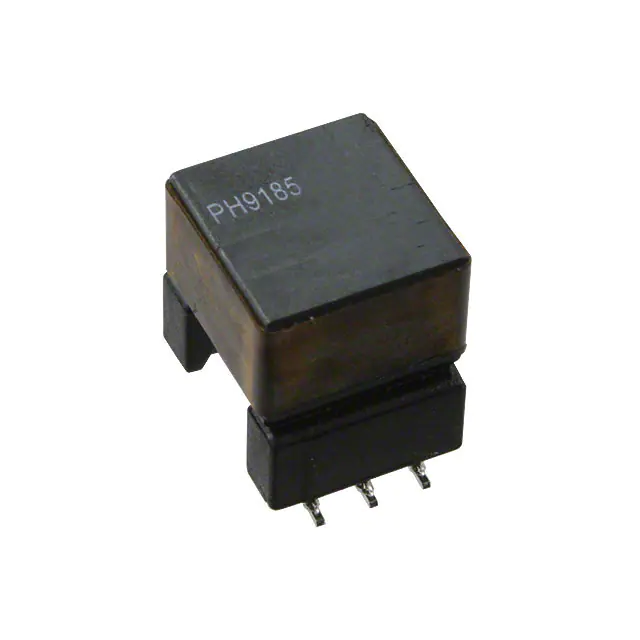

PH9185.011NLTRANSFORMER 750UH 1:1 SMD |
4,759 | 4.55 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PH9185.012NLTTRANSFORMER 450UH 1:2 SMD |
3,227 | 4.55 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

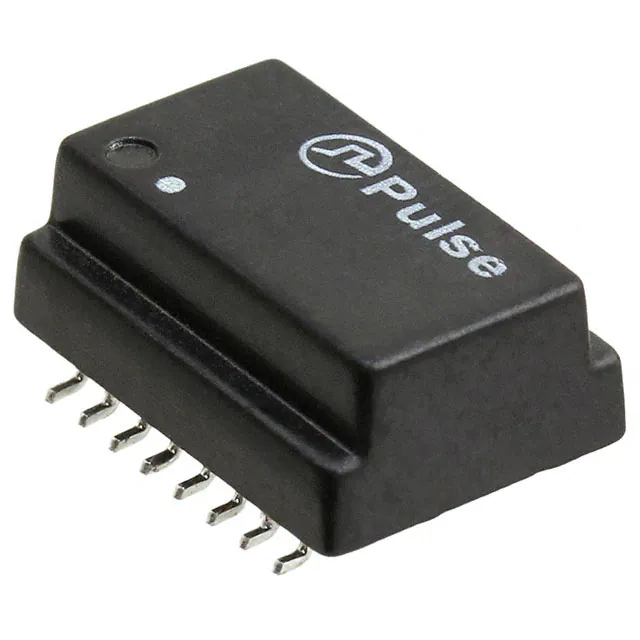

HX1198FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,211 | 5.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
|
PH9185.034NLTTRANSFORMER 750UH 3:4 SMD |
1,344 | 4.55 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PH9185.013NLTTRANSFORMER 200UH 1:3 SMD |
910 | 4.55 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
76253/35ENCXFRMR 3.3V IN/5V OUT MAX253 EN |
2,012 | 4.47 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1:2.24 | Through Hole | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.502" (12.75mm) | -40°C ~ 85°C | - | - |
|
|
76253/55ENCXFRMR 5V IN/OUT MAX253 EN |
129 | 4.47 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 250µH | - | 1:1.33 | Through Hole | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.502" (12.75mm) | -40°C ~ 85°C | - | - |
|

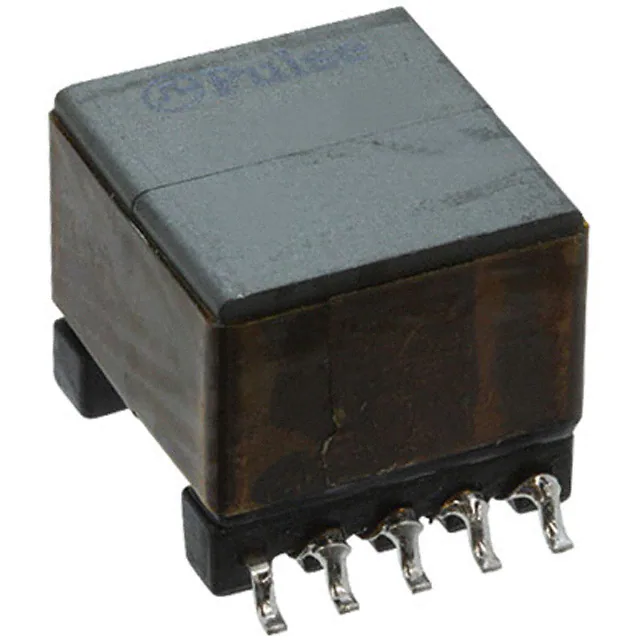

PA1137NLTXFRMR 5V 13.5W 127UH POE EP13 |
903 | 4.69 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 127µH | - | 1:0.125:0.208 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|
SM91072AL-EXFMR LAN 10/100 BASE-T 1:1 350UH |
5,010 | 4.72 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|

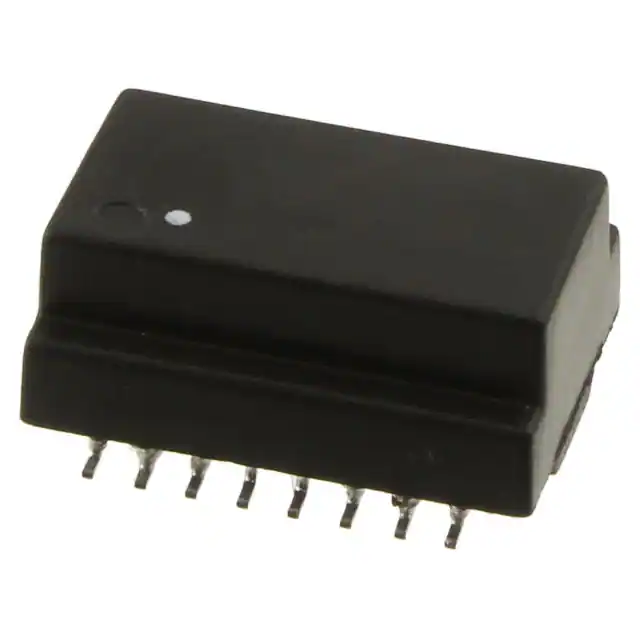

HX1260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,580 | 5.49 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
