Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1200NLMODULE TRANSFRMR DUAL LAN 10/100 |
2,660 | 0.00 |
|
Datasheet |
- | Tray | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H0009NLMODULE PC CARD SNGL LAN 16PCMCIA |
2,179 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H0019NLMODULE PC CARD SNGL LAN 16PCMCIA |
1,914 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|
H0022NLMODULE PC CARD SNGL LAN 12PCMCIA |
2,034 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.465" L x 0.340" W (11.81mm x 8.63mm) | 0.085" (2.16mm) | 0°C ~ 70°C | - | - |
|
|
H1060NLMODULE XFRMR QUAD ETHR LAN40SOIC |
3,427 | 0.00 |
|
Datasheet |
- | Bulk | Active | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1174NLMODULE XFRMR DUAL ETHER LAN 24P |
2,036 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.512" L x 0.500" W (13.08mm x 12.70mm) | 0.155" (3.93mm) | 0°C ~ 70°C | - | - |
|
H2005ANLMODULE XFRMR VOIP DL LAN 24-SOIC |
2,898 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.510" L x 0.600" W (12.95mm x 15.24mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
|
H2008NLMODULE XFRMR VOIP DL LAN 24-SOIC |
3,381 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
H5012NLMODULE DL GIGABIT ETHER LAN 48P |
3,215 | 0.00 |
|
Datasheet |
- | Bulk | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
PA1672NLPULSE XFMR 1:4 7.75UH |
4,930 | 0.00 |
|
Datasheet |
- | - | Obsolete | - | 7.75µH | - | 1:4 | Surface Mount | 0.930" L x 0.860" W (23.62mm x 21.84mm) | 0.450" (11.43mm) | -40°C ~ 130°C | - | - |
|

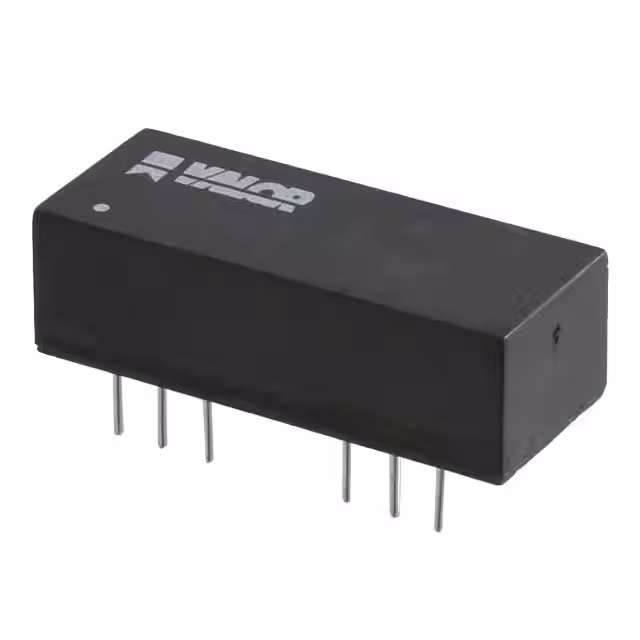

FL1012NLMODULE FILTER SNGL LAN 16PIN TH |
2,008 | 0.00 |
|
- |
- | Tube | Obsolete | LAN | - | - | 1CT:1CT | Through Hole | 0.995" L x 0.395" W (25.28mmx 10.03mm) | 0.338" (8.59mm) | - | - | - |
|

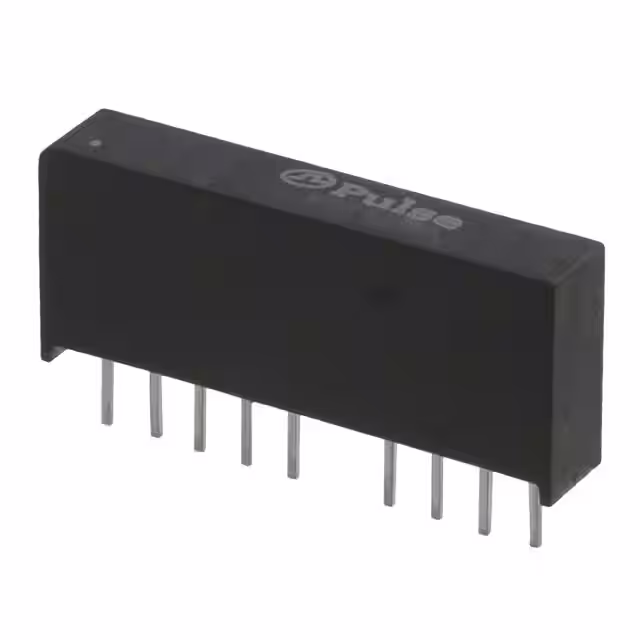

PE-68017SNLMODULE FILTER SNGL LAN 10-SIL |
2,248 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Through Hole | 1.000" L x 0.210" W (25.40mm x 5.33mm) | 0.450" (11.43mm) | - | - | - |
|
H1140NLMODULE XFRMR ETHERNET LAN 40SOIC |
4,220 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
PE-65870NLTRANSFORMER TELECOM DUAL T1/E1 |
1,353 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-68062LNLMODULE XFRMR/CHOKE QUAD 40-SOIC |
1,105 | 0.00 |
|
- |
- | Tube | Obsolete | - | - | - | 1CT:1.41CT | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
T1091NLTRANSFORMER TELECOM DUAL T1/E2 |
4,466 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX5007NLMODULE SINGLE GIGABIT LAN 24SOIC |
2,017 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

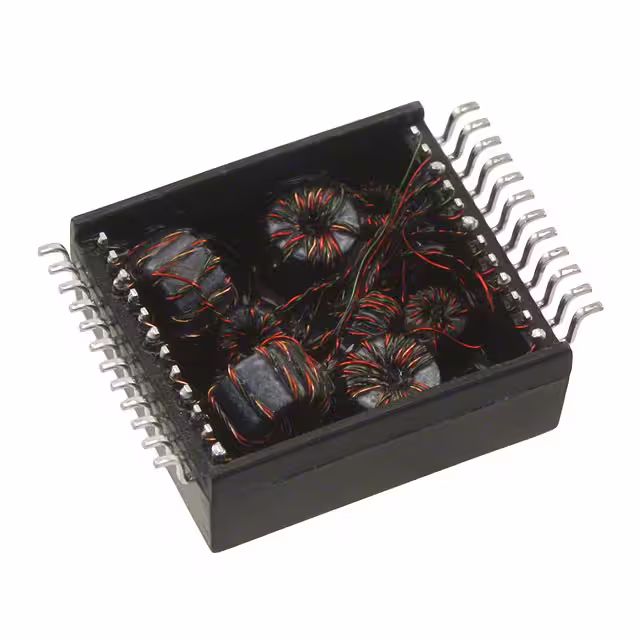

HX5009NLMODULE XFORMR GIGABIT SINGLE LAN |
3,687 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
TX02-4400JIIC INTERFACE TRANSFORMER 8SMD GW |
3,383 | 0.00 |
|
- |
TX02-4400 | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 3:1 | Surface Mount | 0.378" L x 0.250" W (9.78mm x 6.35mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
|
|
TX02-4400PIIC INTERFACE TRANSFORMER 8-DIP |
4,856 | 0.00 |
|
- |
TX02-4400 | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 3:1 | Through Hole | 0.378" L x 0.255" W (9.59mm x 6.48mm) | 0.180" (4.57mm) | -55°C ~ 125°C | - | - |
