Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

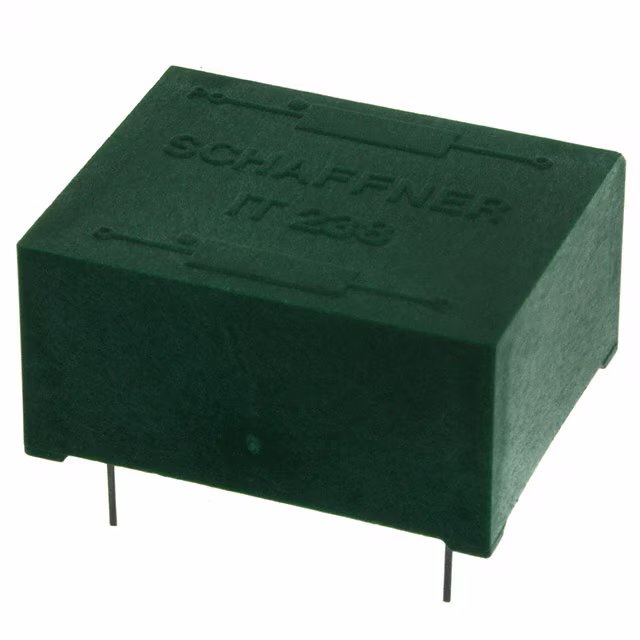

IT238TRANSFORMER PULSE |
1,133 | 0.00 |
|
Datasheet |
IT | Tray | Obsolete | Data/Voice Coupling | 3mH | - | 1:1 | Through Hole | - | - | -25°C ~ 70°C | - | - |
|

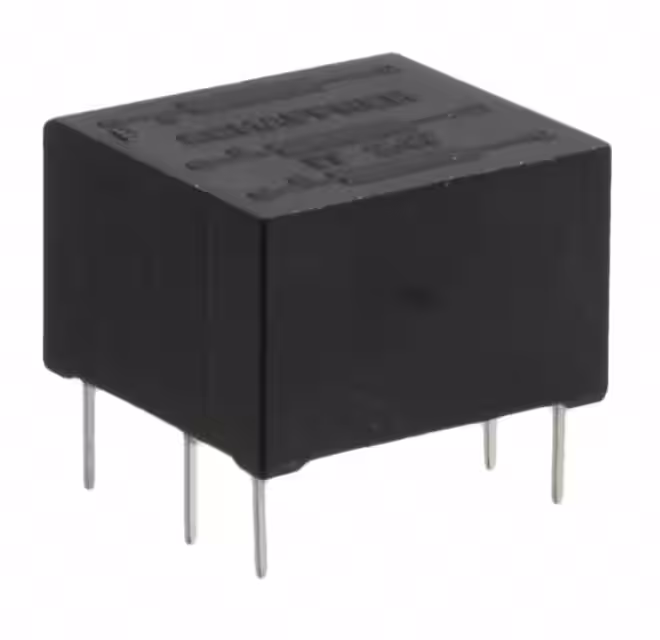

IT247TRANSFORMER PULSE |
2,095 | 0.00 |
|
Datasheet |
IT | Tray | Obsolete | Data/Voice Coupling | 7mH | - | 2:1:1 | Through Hole | - | - | -25°C ~ 70°C | - | - |
|
S553-6500-C4-FMODULE XFRMR LAN T1/E1 OCTAL SMD |
2,076 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.5mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.045" L x 0.300" W (26.54mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
S558-5999-BA-FMODULE XFRMR GIGABIT MINIPCI SMD |
3,099 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
|
|
S560-6600-KM-FMODULE XFRMR LAN SHDSL ISOL SMD |
4,264 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SHDSL | 3mH | - | 4.5:1 | Surface Mount | 0.540" L x 0.585" W (13.72mm x 14.86mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
BX4107NLTTRANSFORMER 1.33:1 |
3,025 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | 1.33:1 | Surface Mount | 0.413" L x 0.276" W (10.50mm x 7.00mm) | 0.433" (11.00mm) | -40°C ~ 85°C | - | - |
|
|
PA3123NLXFMR CM-FLYBACK 3.5W REINF |
1,332 | 0.00 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
HX5180NLMODULE TRANSFRMR QUAD LAN 10/100 |
4,586 | 0.00 |
|
- |
- | Bag | Obsolete | - | - | - | - | - | 0.697" L x 0.480" W (17.65mm x 12.20mm) | 0.185" (4.70mm) | - | - | - |
|

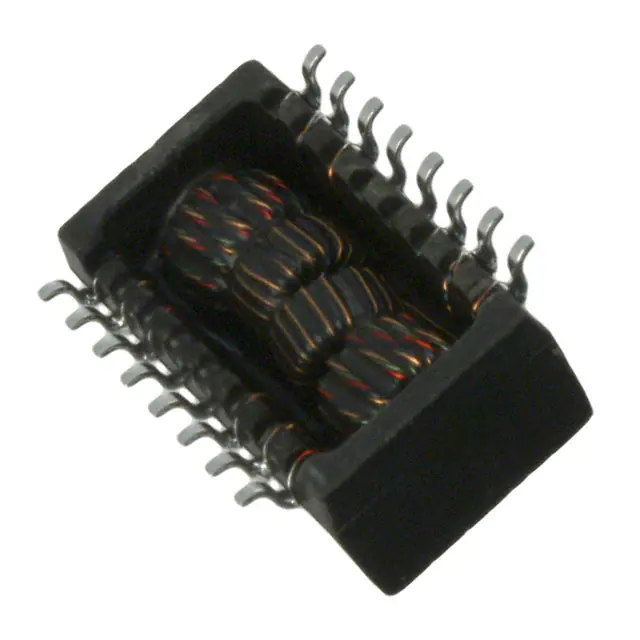

S558-5999-K9-FXFRMR MODULE LAN 10/100BT 16P SM |
1,933 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 2CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
S558-5999-Z6-FXFRMR MODULE LAN 10/100BT 16P SM |
2,909 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
PE-68992NLXFRMR ISDN S-INTERFACE 1CS:2CT |
3,748 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 22mH | - | 1CS:2CT | Through Hole | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.500" (12.70mm) | 0°C ~ 70°C | - | - |
|
|
T5015NLMODULE ISDN-S 1CT:2 30MH T/H |
1,013 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 30mH | - | 1CT:2 | Through Hole | 1.145" L x 0.418" W (29.08mm x 10.62mm) | 0.590" (14.99mm) | 0°C ~ 70°C | - | - |
|
|
PE-65567NLXFRMR 1:1.15CT/1:2CT 1.5/1.2MH |
4,822 | 0.00 |
|
- |
- | Tube | Obsolete | T1/E1 (Dual) | 1.2mH, 1.5mH | - | 1:1.15CT, 1:2CT | Through Hole | 0.800" L x 0.386" W (20.32mm x 9.80mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
T5012NLMODULE ISDN-S 1CT:2CT 30MH T/H |
4,069 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 30mH | - | 1CT:2CT | Through Hole | 1.145" L x 0.418" W (29.08mm x 10.62mm) | 0.590" (14.99mm) | 0°C ~ 70°C | - | - |
|
|
T5011NLMODULE ISDN-S 1CT:1CT 30MH T/H |
4,882 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 30mH | - | 1CT:1CT | Through Hole | 1.145" L x 0.418" W (29.08mm x 10.62mm) | 0.590" (14.99mm) | 0°C ~ 70°C | - | - |
|

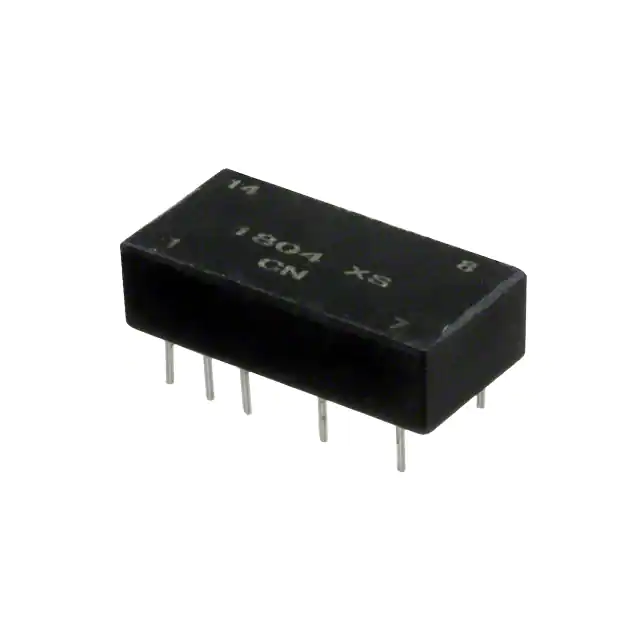

PE-65565NLXFRMR 1:1.15CT/1:2CT 1.5/1.2MH |
3,204 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.5mH | - | 1:1.15CT, 1:2CT | Through Hole | 0.800" L x 0.386" W (20.32mm x 9.80mm) | 0.290" (7.37mm) | 0°C ~ 70°C | - | - |
|
|
PE-65498NLXFRMR ISDN S-INTERFACE 1:2.5 T/H |
4,372 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2.5 | Through Hole | 0.920" L x 0.560" W (23.37mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
PE-65495NLXFRMR ISDN S-INTERFACE 1:2 T/H |
3,251 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2 | Through Hole | 0.920" L x 0.560" W (23.37mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
PE-64950NLXFRMR 1CT:1CT/1CT:3CT:1 T/H |
2,138 | 0.00 |
|
- |
- | Tube | Obsolete | T1/E1 (Dual) | 1.2mH, 600µH | - | 1CT:1CT, 1CT:3CT:1 | Through Hole | 1.000" L x 0.386" W (25.40mm x 9.80mm) | 0.290" (7.37mm) | - | - | - |
|

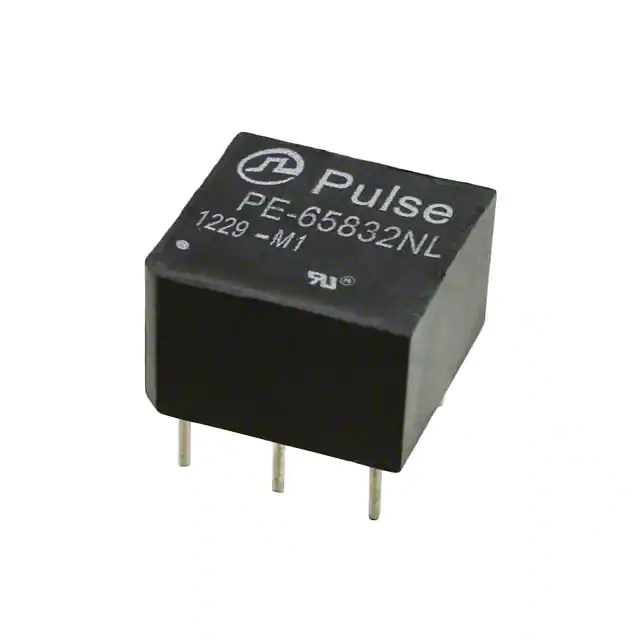

PE-65832NLXFRMR 1:1.36CT 1.20MH T/H |
3,938 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1.36CT | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
