Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-68836NLXFRMR 1:1/1.26 / 1:1/1.26 SMD |
1,192 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.5mH, 1.5mH | - | 1:1/1.26, 1:1/1.26 | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
PE-68864NLXFRMR 1CT:2CT/1:1 1.2/1.2MH SMD |
3,455 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1:1 | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
PE-68882NLXFRMR 1CT:1.15CT/1CT:1CT SMD |
4,700 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1.6mH, 1.6mH | - | 1CT:1.15CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

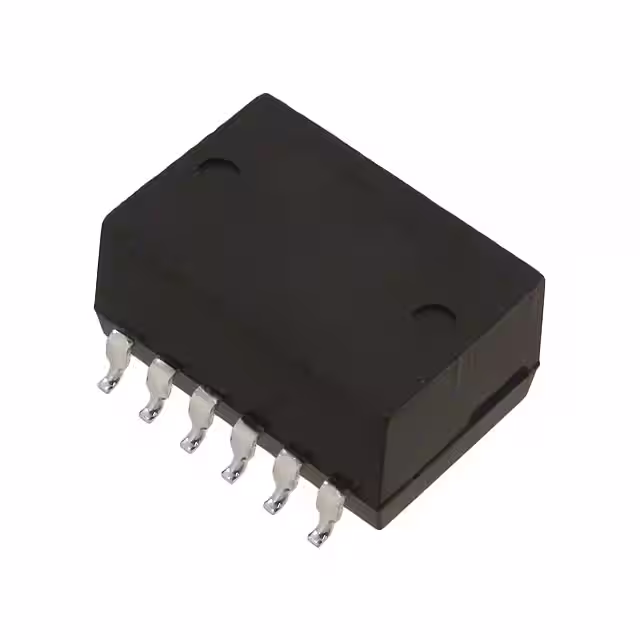

PE-68826NLXFRMR 1:1/1.26 / 1:2CT 1.2/1.2MH |
4,138 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1:1/1.26, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
TX1192NLMODULE 1CT:2.42CT 1.2MH SMD |
1,588 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1.2mH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
TX3047NLXFRMR OCTAL 1:1 100UH SMD |
2,528 | 0.00 |
|
- |
- | Tube | Obsolete | T3/E3 (Octal) | 100µH | - | 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
E2457NLXFRMR ISOL 10BASE-T 1:1.41 SMD |
2,875 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 140µH, 140µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | - | - | - |
|
|
T5005NLXFRM ISDN-S 1:2.5/1:2.5 22MH SMD |
1,794 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2.5, 1:2.5 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
|
BX2577LNLXFRMR ADSL FOR GLOBESPAN CPE CHP |
3,344 | 0.00 |
|
- |
- | Tray | Active | ADSL | 701µH | - | 1:4 Transmitter, 1:2 Receiver | Surface Mount | 0.537" L x 0.622" W (13.65mm x 15.80mm) | 0.492" (12.50mm) | -40°C ~ 85°C | - | - |
|
|
ST6200QNLXFRMR 1:1 SONET/SDH E4/STM-1 SMD |
2,340 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 28µH | - | 1:1 | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
B4064NLXFRMR FOR METALINK VDSL CHIPSET |
4,667 | 0.00 |
|
Datasheet |
- | Tray | Active | VDSL | 1.134mH | - | 1:3.6 Transmitter, 2:3.6 Receiver | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
T3012NLTXFRMR T3/DS3/E3/STS-1 1:2CT SMD |
3,317 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
B6105NLTTRANSFORMER HOME PHONE NETWORKNG |
1,582 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Data/Voice Coupling | 177µH | - | 1.33:1 | Surface Mount | 0.210" L x 0.330" W (5.33mm x 8.38mm) | 0.157" (3.99mm) | -40°C ~ 85°C | - | - |
|

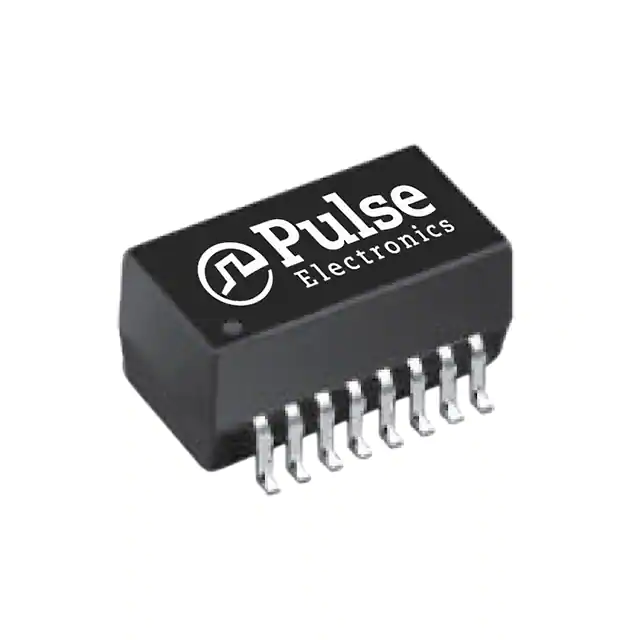

PE-65870NLTXFRMR 1CT:1.15CT/1CT:1.15CT SMD |
4,961 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1.15CT, 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
T1021NLTXFRMR 2CT:1/1.26 / 2CT:1/1.26 |
3,059 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.5mH, 1.5mH | - | 2CT:1/1.26, 2CT:1/1.26 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TX3051NLTXFRMR 6PORT 1:1 60UH SMD |
3,411 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Twelve) | 60µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
|
H1060NLTXFRMR MODULE 4PORT 1:1 10/100 |
2,881 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
H1062NLTXFRMR MODULE 4PORT 1:1 10/100 |
3,170 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-68864NLTXFRMR 1CT:2CT/1:1 1.2/1.2MH SMD |
2,208 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1:1 | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
PE-68862NLTXFRMR 1CT:2CT/1:1.36CT 1.2/1.2MH |
4,530 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1:1.36CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
