Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2669NLPULSE XFMR 17.3UH |
740 | 2.42 |
|
Datasheet |
- | Tray | Active | - | 17.3µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
750082111TRANS ANALOG MODEM PCB |
164 | 2.85 |
|
Datasheet |
WE-AMT, MID-AMT | Tray | Active | - | - | - | 1:1 | Through Hole | 0.945" L x 0.906" W (24.00mm x 23.00mm) | 0.490" (12.45mm) | -40°C ~ 85°C | - | - |
|
|
HB5609NLMOD DUAL 1GD 1:1 HF 36P |
1,120 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
HB5608NLMOD DUAL 1GD 1:1 HF 36P |
1,120 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
HB5605NLMOD DUAL 1GD 1:1 HF 48P |
864 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
HB5606NLMOD DUAL 1GD 1:1 HF 48P |
864 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|
|
RL-9500-765GATE DRIVE XFMR 1:1:1 765UH TH |
600 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 765µH | 108VµS | 1:1:1 | Through Hole | 0.800" L x 0.450" W (20.32mm x 11.43mm) | 0.710" (18.03mm) | -40°C ~ 130°C | - | - |
|
|
TG110-RPE5N5LFTRISO MOD 10/100 POE 0.35A X-TEMP |
675 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PA1309NLTPULSE XFMR 16.4UH |
445 | 2.59 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 16.4µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2456NLPULSE XFMR 24UH |
313 | 2.50 |
|
Datasheet |
- | Tray | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|

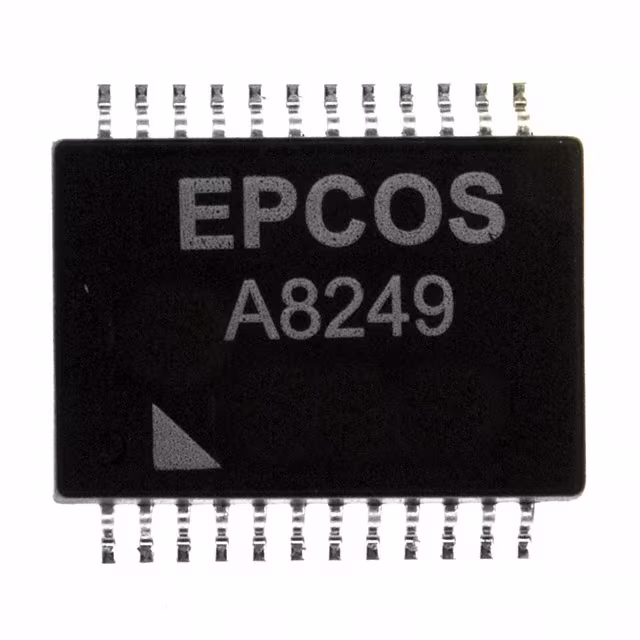

B78476A8249A003PULSE XFMR 1CT:1CT 350UH |
153 | 2.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.693" L x 0.476" W (17.60mm x 12.10mm) | 0.238" (6.05mm) | 0°C ~ 70°C | - | - |
|
|
PA1577NLPULSE XFMR 230.4UH |
480 | 3.37 |
|
Datasheet |
- | Tray | Active | - | 230.4µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
B78541A2467A003TRANSFORMER |
524 | 0.00 |
|
Datasheet |
B78541A | Tape & Reel (TR) | Active | Gate Drive | 50µH | - | 1:1.08 | Surface Mount | - | 0.365" (9.27mm) | -40°C ~ 150°C | - | - |
|
|
PMT9085.047NLTXFMR GATE DRIVE 4CT:7CT SM NPB |
500 | 0.00 |
|
Datasheet |
PMT9085.xxxNLT | Tape & Reel (TR) | Active | Gate Drive | 650µH | 48VµS | 4CT:7CT | Surface Mount | - | 0.260" (6.60mm) | -40°C ~ 125°C | - | - |
|
|
PMT9085.311NLTXFMR GATE DRIVE 3CT:11CT SM NPB |
500 | 0.00 |
|
Datasheet |
PMT9085.xxxNLT | Tape & Reel (TR) | Active | Gate Drive | 200µH | 27VµS | 3CT:11CT | Surface Mount | - | 0.260" (6.60mm) | -40°C ~ 125°C | - | - |
|
|
PMT9085.038NLTXFMR GATE DRIVE 3CT:8CT SM NPB |
500 | 0.00 |
|
Datasheet |
PMT9085.xxxNLT | Tape & Reel (TR) | Active | Gate Drive | 200µH | 27VµS | 3CT:8CT | Surface Mount | - | 0.260" (6.60mm) | -40°C ~ 125°C | - | - |
|
|
PMT9085.089NLTXFMR GATE DRIVE 8CT:9CT SM NPB |
500 | 0.00 |
|
Datasheet |
PMT9085.xxxNLT | Tape & Reel (TR) | Active | Gate Drive | 650µH | 48VµS | 8CT:9CT | Surface Mount | - | 0.260" (6.60mm) | -40°C ~ 125°C | - | - |
|
|
PMT9085.015NLTXFMR GATE DRIVE 1CT:5CT SM NPB |
493 | 0.00 |
|
Datasheet |
PMT9085.xxxNLT | Tape & Reel (TR) | Active | Gate Drive | 160µH | 24VµS | 1CT:5CT | Surface Mount | - | 0.260" (6.60mm) | -40°C ~ 125°C | - | - |
|
|
PMT9085.027NLTXFMR GATE DRIVE 2CT:7CT SM NPB |
490 | 0.00 |
|
Datasheet |
PMT9085.xxxNLT | Tape & Reel (TR) | Active | Gate Drive | 160µH | 24VµS | 2CT:7CT | Surface Mount | - | 0.260" (6.60mm) | -40°C ~ 125°C | - | - |
|
|
PMT9085.012NLTXFMR GATE DRIVE 1CT:2CT SM NPB |
488 | 0.00 |
|
Datasheet |
PMT9085.xxxNLT | Tape & Reel (TR) | Active | Gate Drive | 560µH | 45VµS | 1CT:2CT | Surface Mount | - | 0.260" (6.60mm) | -40°C ~ 125°C | - | - |
