Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS21C HFMDL SMD 10/100 SINGLE PORT N/A |
384 | 2.11 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1CT, 1:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | 0°C ~ 70°C | - | - |
|
PA1136NLPULSE XFMR 126.7UH |
840 | 2.19 |
|
Datasheet |
- | Tray | Active | - | 126.7µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 125°C | - | - |
|
|
HXB5603NLMOD SIN 1GD 1:1 EXT HF 18P |
2,169 | 0.00 |
|
Datasheet |
HXB | Tube | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.661" L x 0.335" W (16.80mm x 8.50mm) | 0.457" (11.60mm) | -40°C ~ 85°C | - | - |
|
PM2190.043NLTXFMR PWR .1260 UH EP7 SM NPB |
361 | 2.21 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.26mH | 89VµS | 4CT:3CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
PM2190.013NLTXFMR PWR .200 UH EP7 SM NPB |
315 | 2.21 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | 36VµS | 1CT:3CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
PA1133NLPULSE XFMR 253.4UH |
241 | 2.21 |
|
Datasheet |
- | Tray | Active | - | 253.4µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PM2190.038NLTXFMR PWR .310 UH EP7 SM NPB |
208 | 2.21 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 310µH | 44VµS | 3CT:8CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
PM2190.021NLTXFMR PWR .1880 UH EP7 SM NPB |
900 | 2.21 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.8mH | 100VµS | 2CT:1CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
HB3601NLMOD DUAL 100D 1:1 HF 20P |
1,800 | 0.00 |
|
Datasheet |
HB3 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.000" L x 0.394" W (25.40mm x 10.00mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
|
LAN5VSOS24121C2MOD TRANS LAN 10GB-T 1 PORT |
790 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1CT:1CT | Surface Mount | 0.535" L x 0.472" W (13.60mm x 12.00mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
HB3004HLTMOD SIN 100D 1:1 HF SMD |
590 | 0.00 |
|
Datasheet |
HB3 | Tape & Reel (TR) | Active | LAN 100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | - | - | - |
|
|
PM2190.083NLTXFMR PWR .2350 UH EP7 SM NPB |
446 | 2.19 |
|
Datasheet |
PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 2.35mH | 110VµS | 8CT:3CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
TG110-RP55N5LFTRISO MOD 10/100 POE 0.35A SMD |
700 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | - | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
LAN2VSOPD48351C2MOD TRANS LAN 1000B-T 2P POE |
385 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.295" (7.50mm) | -40°C ~ 85°C | - | - |
|
|
PA1283NLPULSE XFMR 155UH |
359 | 2.15 |
|
Datasheet |
- | Tray | Active | - | 155µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

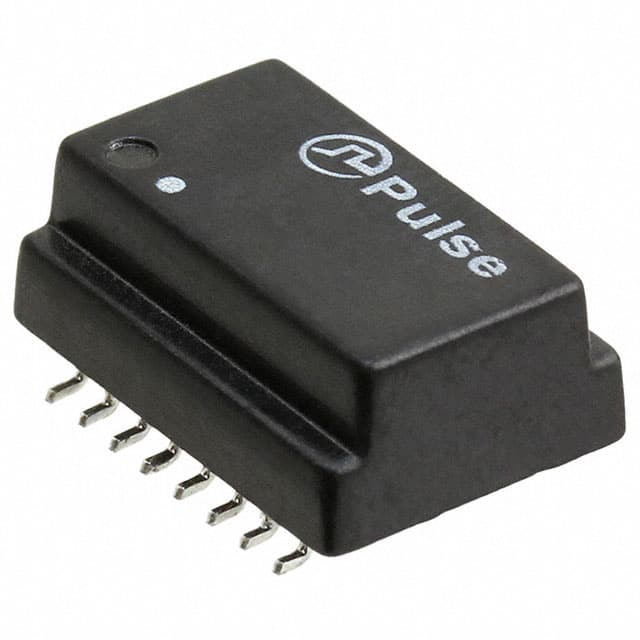

H1197FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
597 | 2.94 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
ITRA-0239-D502ITRA PULSE TRANSFORMER THT 0.5A |
133 | 3.39 |
|
Datasheet |
ITRA | Bulk | Active | Isolation and Data Interface (Encapsulated) | 2.2mH | - | 1:1 | Through Hole | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.535" (13.60mm) | -25°C ~ 100°C | - | - |
|

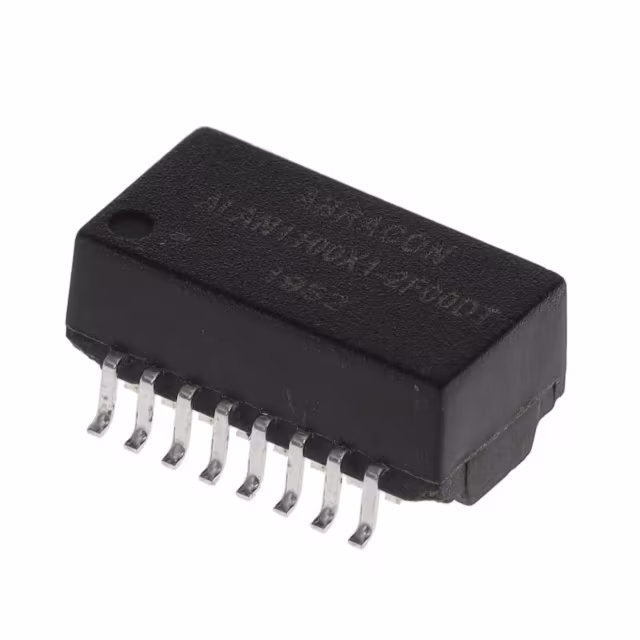

ALAN1100X1-2F00DTXFRMR LAN 1CT:1CT 350UH |
696 | 6.20 |
|
Datasheet |
ALAN1100X1 | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
HB6601NLMOD DUAL 1GP 1:1 EXT HF 48P |
864 | 0.00 |
|
Datasheet |
HB6 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.106" L x 0.437" W (28.10mm x 11.10mm) | 0.433" (11.00mm) | 0°C ~ 70°C | - | - |
|

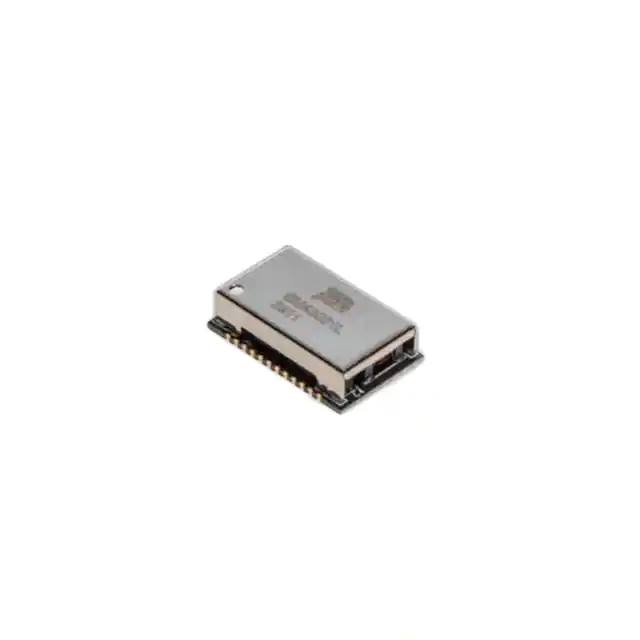

SM43P01ELLAN TRANSFORMER |
368 | 4.39 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.650" L x 0.406" W (16.50mm x 10.30mm) | 0.161" (4.10mm) | 0°C ~ 85°C | - | - |
