Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM91806AL-ETRANSF PLANAR BMS 4.3KVDC |
311 | 0.00 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.685" L x 0.335" W (17.40mm x 8.50mm) | 0.217" (5.50mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
|
LAN5VSOPS24121C3MOD TRANS LAN 10GB-T 1P POE |
472 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.268" (6.80mm) | -40°C ~ 125°C | - | - |
|
|
PA3948.004NLPULSE XFMR 32UH 40UH |
2,175 | 1.88 |
|
Datasheet |
- | Tray | Active | - | 32µH, 40µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
LAN3VSOPD48151C2MOD TRANS LAN 2.5GB-T 2P POE |
280 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 1.171" L x 0.317" W (29.75mm x 8.05mm) | 0.461" (11.70mm) | -40°C ~ 85°C | - | - |
|

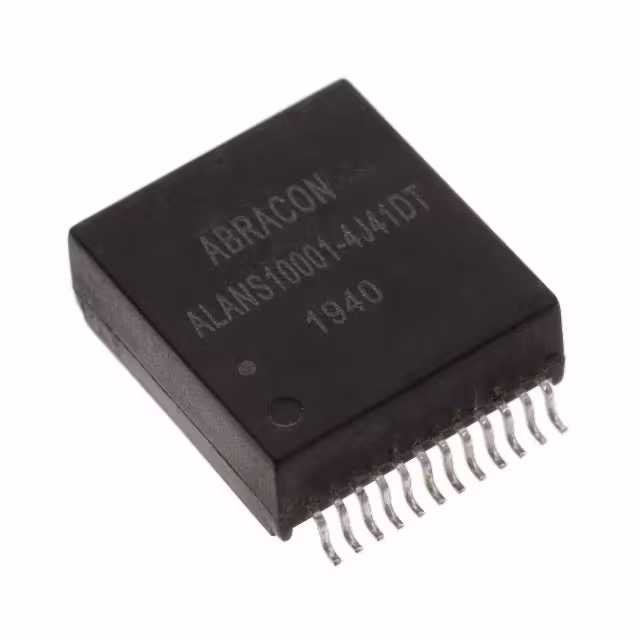

ALANS10001-4J41DTLAN SGL 1000B XFMR&CMC&AUTO 24PI |
2,778 | 4.35 |
|
Datasheet |
ALANS10001-4 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
PM2185.012NLXFMR GATE DRIVE SIDE CAR NPB |
593 | 1.58 |
|
Datasheet |
PM2185.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 1:2CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
|
TM6080ANLLAN XFMR 1G BASE-T DUAL (POE+) |
350 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.102" L x 0.469" W (28.00mm x 11.90mm) | 0.276" (7.00mm) | -40°C ~ 85°C | - | - |
|
|
C2267NLXFMR FC DUAL 1:1 15UH OH S |
360 | 2.76 |
|
Datasheet |
- | Tray | Active | - | 15µH | - | 1:1 | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
LTA1VS16A-351-RTRANSF ETHERNET LAN 350UH |
1,205 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.10mm) | 0.252" (6.40mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
|
PA2466NLTPULSE XFMR 37UH |
400 | 2.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PM2155.027NLTXFMR PUSH-PULL SIDE CAR S NPB |
300 | 2.10 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 2.6mH | 98VµS | 2CT:7CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
TG110-E050N5LFTRISO MOD 10/100 X-TEMP 16P SMD |
3,310 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG110-E055N5LFTRISO MOD 10/100 X-TEMP 16P SMD |
2,650 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
PH9572.211ANLTGDT, FUNCTIONAL, EP7, SMT |
884 | 2.30 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 2:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
PM2155.012NLTXFMR PUSH-PULL SIDE CAR S NPB |
848 | 2.10 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 2.6mH | 98VµS | 1CT:2CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
PM2155.015NLTXFMR PUSH-PULL SIDE CAR S NPB |
811 | 2.10 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.35mH | 70VµS | 1CT:5CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
23Z81SMNLTPULSE XFMR 1:1:1 85UH |
750 | 2.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 85µH | 2.5VµS | 1:1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
|
TS8121AM HFMDL 10/100 SINGLE PORT POE+ 30W |
388 | 2.06 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
PA1309NLPULSE XFMR 16.4UH |
328 | 2.09 |
|
Datasheet |
- | Tray | Active | - | 16.4µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PM2155.013NLTXFMR PUSH-PULL SIDE CAR S NPB |
876 | 2.10 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 2.6mH | 98VµS | 1CT:3CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
