Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HB5602NLMOD SIN 1GD 1:1 HF 24P |
1,668 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.616" L x 0.433" W (15.65mm x 11.00mm) | 0.441" (11.20mm) | 0°C ~ 70°C | - | - |
|
|
LAN4VSOS24151C2MOD TRANS LAN 5GB-T 1 PORT |
490 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 5G Base-T | 150µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.244" (6.20mm) | -40°C ~ 85°C | - | - |
|
|
TMU24C04LAN XFMR 2.5G BASE-T |
399 | 0.00 |
|
- |
Exos | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.693" L x 0.480" W (17.60mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|

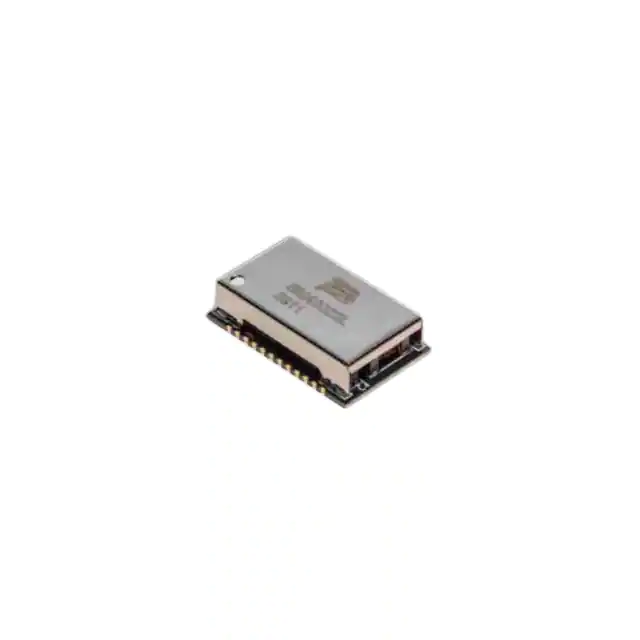

SM42002ELLAN TRANSFORMER |
508 | 2.57 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 230µH | - | - | Surface Mount | 0.690" L x 0.575" W (17.53mm x 14.60mm) | 0.177" (4.50mm) | 0°C ~ 85°C | - | - |
|

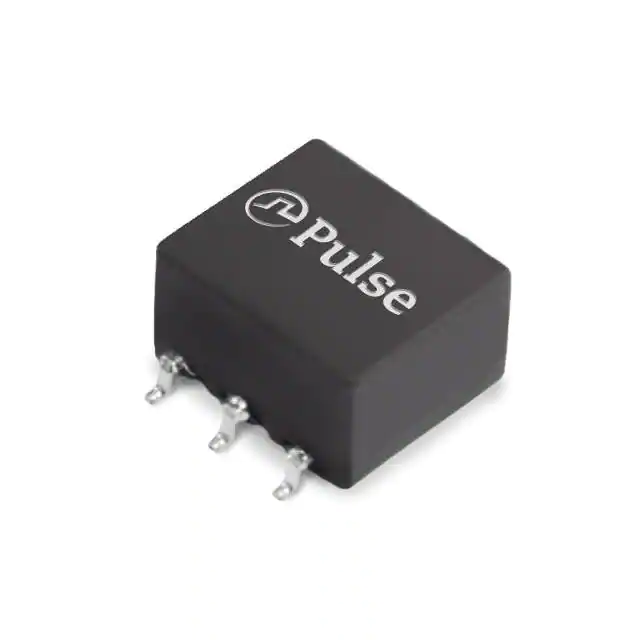

PM2180.012NLXFMR GATE-DR 1CT:2CT SM NPB |
595 | 1.39 |
|
Datasheet |
PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1:2CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
PM2180.011NLXFMR GATE-DR 1CT:1CT SM NPB |
1,356 | 1.39 |
|
Datasheet |
PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1:1CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
TMU24C01QLAN XFMR 2.5G BASE-T POE++ |
238 | 0.00 |
|
- |
Exos | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.693" L x 0.480" W (17.60mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
HB5604NLMOD SIN 1GD 1:1 HF 18P |
2,169 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.661" L x 0.335" W (16.80mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
|
PA2004NLTPULSE XFMR 1:1:1 437UH |
1,570 | 1.39 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 437µH | 20VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
|
TG110-S050N2LFTRISO MOD 10/100 16P SMD T/R |
4,765 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
750031160TRANSFORMER 500UH SMD |
569 | 0.00 |
|
Datasheet |
- | Bulk | Active | LAN | 500µH | 9VµS | 1:2.7 | Surface Mount | 0.240" L x 0.345" W (6.10mm x 8.76mm) | 0.250" (6.35mm) | -40°C ~ 125°C | - | - |
|
78601/4JC-RPULSE XFMR 1:1 58UH |
500 | 1.24 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 58µH | 4VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/3JC-RPULSE XFMR 1CT:1 190UH |
475 | 1.24 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 190µH | 6VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/2JC-RPULSE XFMR 1:1:1 380UH |
450 | 1.24 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 380µH | 10VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TG110-S055N2LFTRISO MOD 10/100 16P SMD T/R |
5,000 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
HB5601NLMOD SIN 1GD 1:1 HF 24P |
1,728 | 0.00 |
|
Datasheet |
HB5 | Tube | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.616" L x 0.433" W (15.65mm x 11.00mm) | 0.441" (11.20mm) | 0°C ~ 70°C | - | - |
|
74930130WE-STST SMT SUPER TINY SIGNAL TR |
1,963 | 2.16 |
|
Datasheet |
WE-STST | Tape & Reel (TR) | Active | - | 110µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|
|
20PT1024X LFMDL LAN 10/100BT DIP |
1,704 | 2.11 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HB3602NLMOD DUAL 100D 1:1 HF 20P |
1,800 | 0.00 |
|
Datasheet |
HB3 | Tube | Active | LAN 100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.000" L x 0.394" W (25.40mm x 10.00mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
|
74941503COUPLING TRANSFORMER, TX:RX:PL=1 |
997 | 0.00 |
|
Datasheet |
WE-PLC | Tape & Reel (TR) | Active | General Purpose | 20µH | - | 1:4:3 | Surface Mount | - | 0.291" (7.40mm) | -40°C ~ 125°C | - | - |
