RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

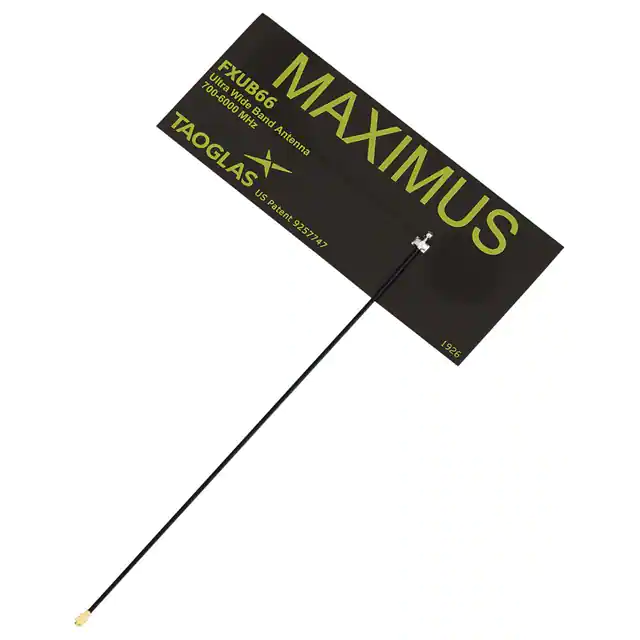

FXUB66.07.0150CRF ANT 3.4GHZ FLAT PATCH U.FL |
196 | 6.02 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 3.4GHz | 700MHz ~ 6GHz | Flat Patch | 1 | 2.2 | -7dB | 5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
H2UE3P1D2G0100LTE/4G FULL BAND 698-960 1710-26 |
18,648 | 5.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 5 | 3 | - | 1.1dBi, 1.4dBi, 3.2dBi, 3.8dBi, 4.2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | 2G, 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

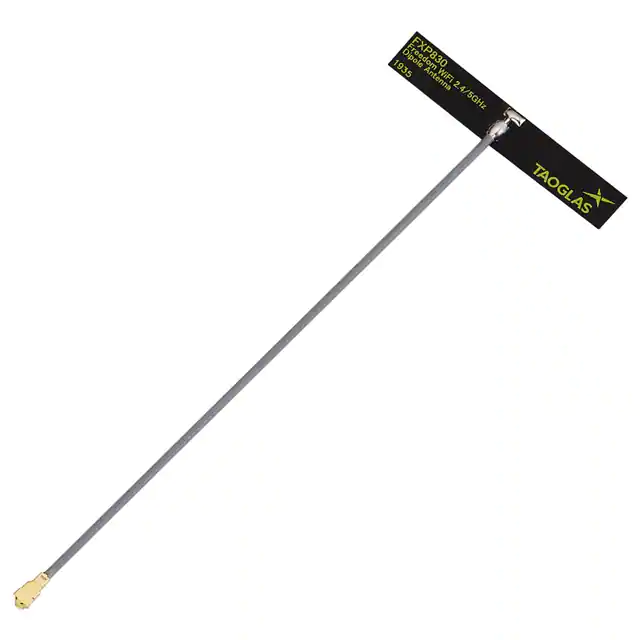

FXP830.07.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
2,889 | 5.80 |
|
Datasheet |
Freedom | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | - | - | 2.6dBi, 5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN |
|

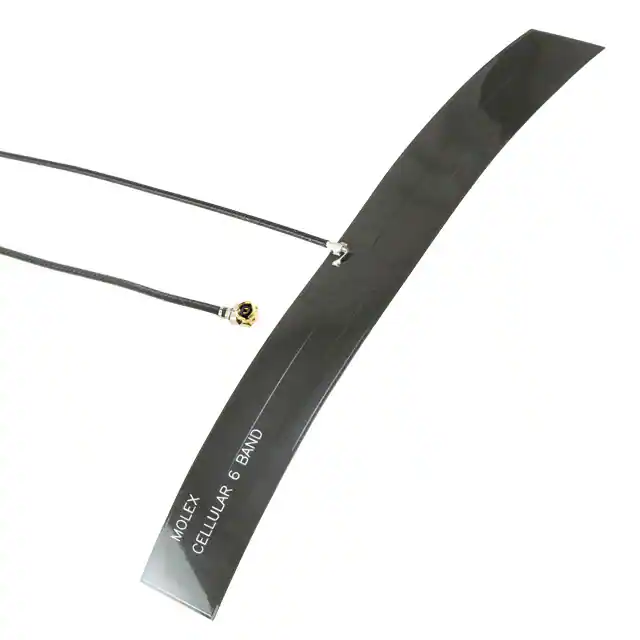

1052630001RF ANT 850/900MHZ FLAT 100MM |
601 | 6.48 |
|
Datasheet |
105263 | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | - | -6.8dB, -7dB, -7.5dB, -10dB, -10.5dB | 2dBi, 2.2dBi, 2.3dBi, 3.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM, LTE, UMTS |
|

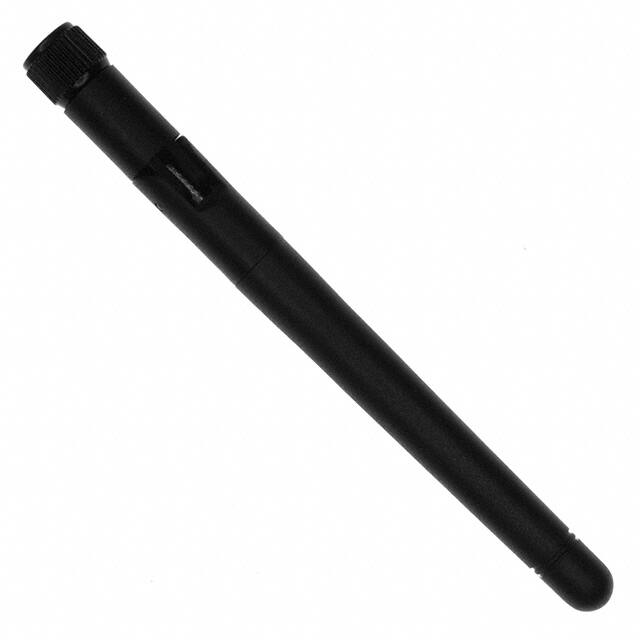

A24-HASM-450RF ANT 2.4GHZ WHIP TILT RP-SMA |
5,319 | 6.66 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | 2 | - | 2.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.500" (114.30mm) | - |
|

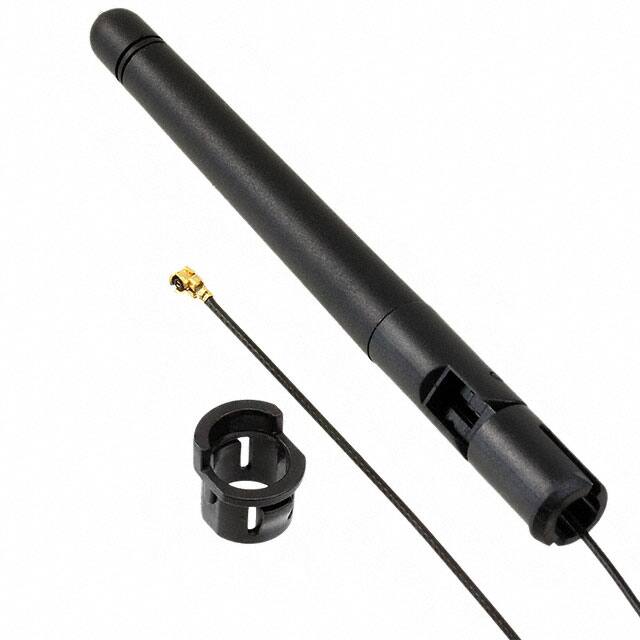

A24-HABUF-P5IRF ANT 2.4GHZ WHIP STR U.FL FEM |
469 | 7.02 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2.1dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.114" (104.50mm) | - |
|
TG.55.81134G/3G/2G MONOPOLE TERMINAL ANTEN |
1,960 | 6.06 |
|
- |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TG.55.8113W5G/4G WHITE TERMINAL MOUNT MONOP |
654 | 6.06 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.795GHz, 2.045GHz, 2.495GHz, 3.4GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.563GHz ~ 1.587GHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | - | - | -0.68dBi, 0.14dBi, -2.14dBi, -1.88dBi, 0.15dBi, 0.58dBi, -0.74dBi, 0.87dBi, -0.59dBi, 1.98dBi, 1.37dBi | 2 W | - | SMA Male | - | - | - | Connector Mount | 6.772" (172.00mm) | DCS, GPS, GSM, LTE, UMTS |
|

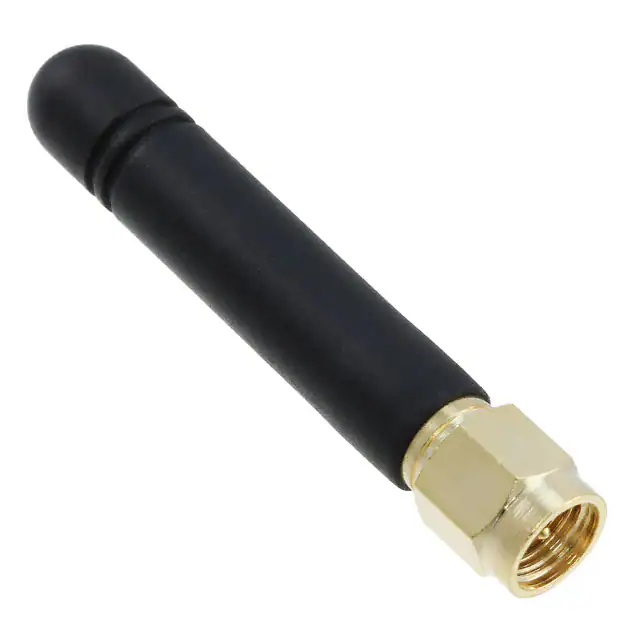

ANT-STUB-433SMRF ANT 433MHZ WHIP STR SMA 48MM |
338 | 5.50 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 2 | -20.1dB | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.894" (48.12mm) | - |
|

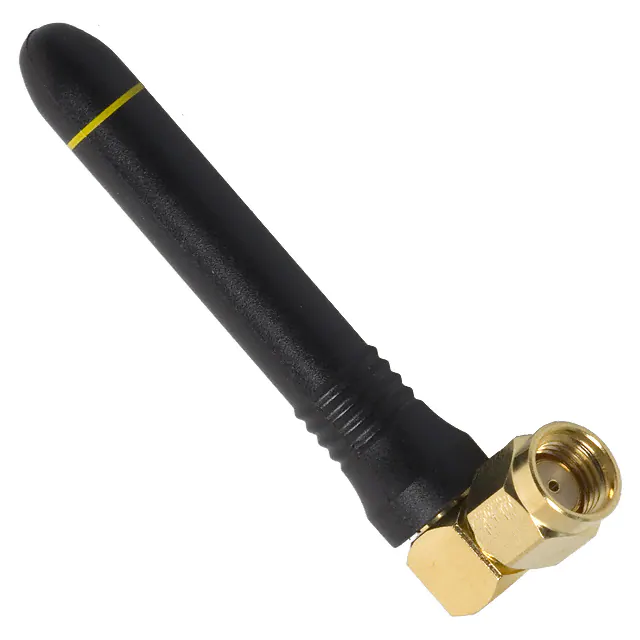

ANT-916-CW-RCSRF ANT 916MHZ WHIP RA RP-SMA MAL |
531 | 7.78 |
|
Datasheet |
RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 886MHz ~ 946MHz | Whip, Right Angle | 1 | 1.9 | - | 3.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
SRFL064-150RF ANT 2.595GHZ FLAT PATCH |
1,645 | 0.00 |
|
Datasheet |
FlexiiANT® | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.955GHz, 2.35GHz, 2.595GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | 1.6, 1.7, 2.2, 2.7, 3.1 | -12dB, -11dB, -8dB, -6dB, -5dB | 1.03dBi, 1.03dBi, 1.71dBi, 3.86dBi, 3.9dBi, 3.88dBi | - | Cable - 150mm | I-PEX, MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 4G, 5G, LTE |
|
SGGP.18.4.A.08RF ANT 1.575/1.602GHZ CER PATCH |
1,083 | 6.34 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | Ceramic Patch | 2 | - | -10dB | 2.86dBi, 3.04dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GPS |
|

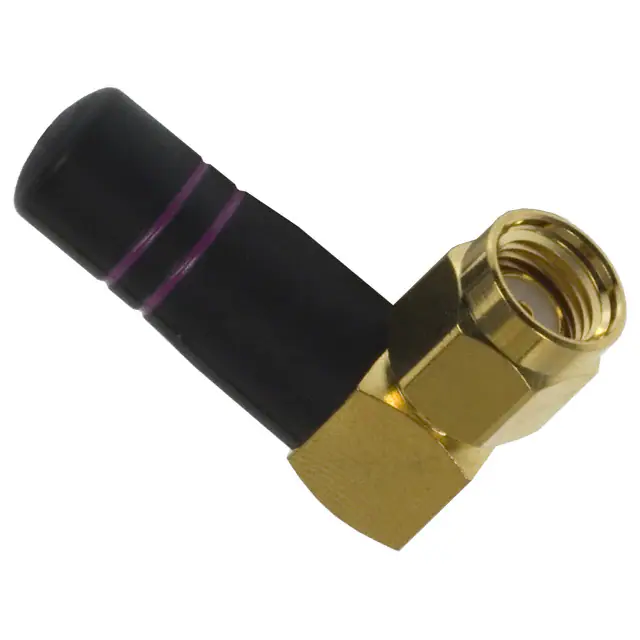

ANT-2.4-CW-RAH-RPSRF ANT 2.4GHZ WHIP RA RP-SMA MAL |
2,513 | 6.69 |
|
Datasheet |
RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

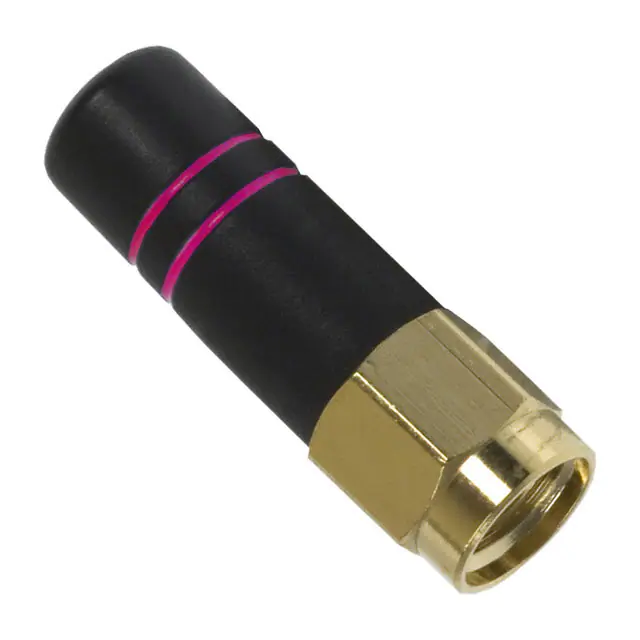

ANT-2.4-CW-RH-RPSRF ANT 2.4GHZ WHIP STR RP-SMA ML |
328 | 6.75 |
|
Datasheet |
RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

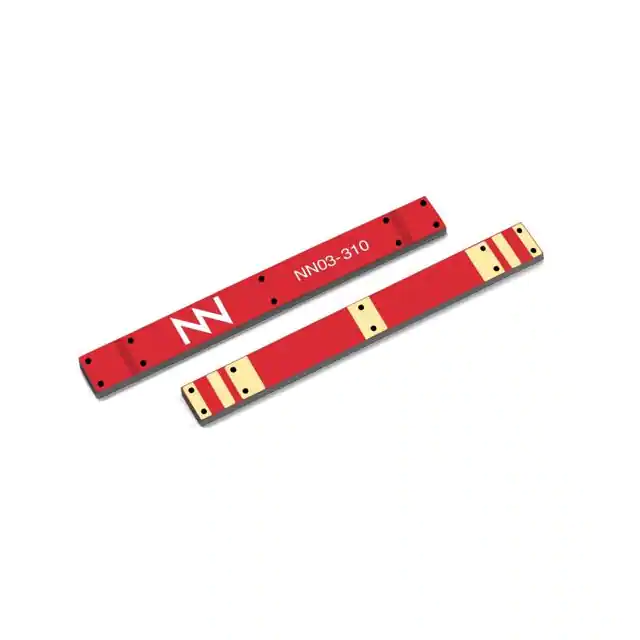

NN03-310TRIO MXTEND MULTIBAND ANTENNA |
24,683 | 4.24 |
|
Datasheet |
TRIO mXTEND™ | Tape & Reel (TR) | Active | Bluetooth, Cellular, Navigation, WiFi | Ultra Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz, 1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.8GHz | 698MHz ~ 3.8GHz | Chip | 12 | 3 | - | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | 2G/3G/4G/5G, Bluetooth, GNSS, ISM, LTE, UWB, Wi-Fi |
|

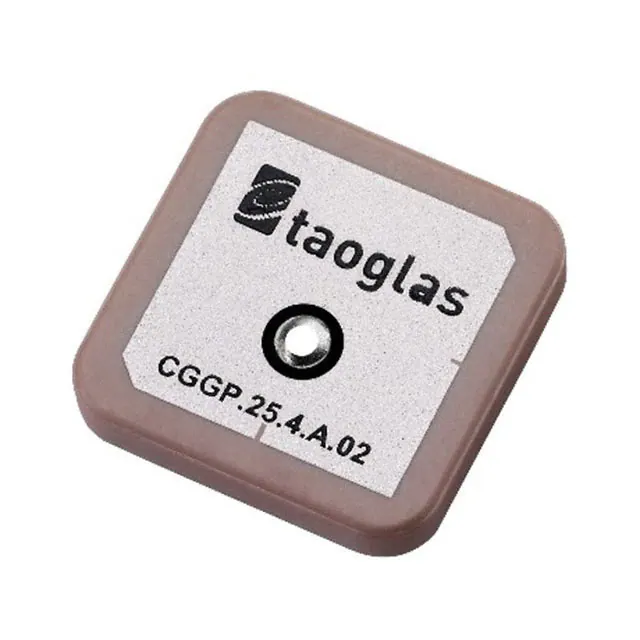

CGGP.25.4.A.02RF ANT 1.6GHZ CER PATCH PIN ADH |
3,119 | 6.79 |
|
- |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.61GHz | Ceramic Patch | 1 | 1.5 | - | 5dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|

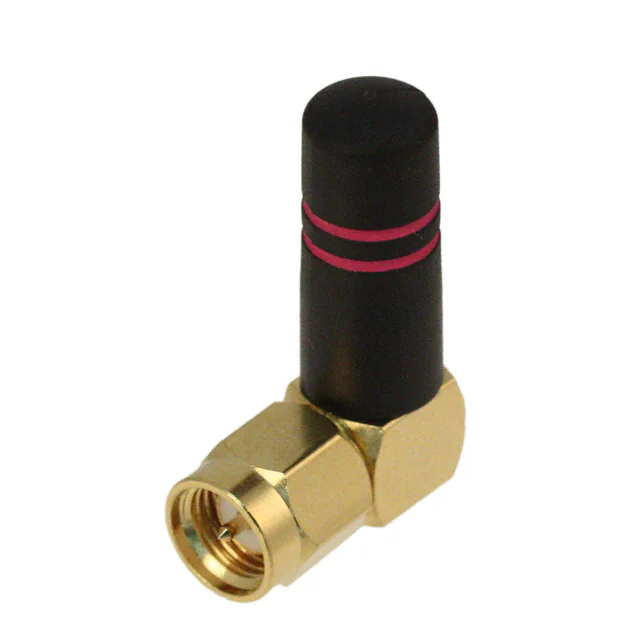

ANT-2.4-CW-RAH-SMARF ANT 2.4GHZ WHIP RA SMA MALE |
1,106 | 6.81 |
|
Datasheet |
RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
UWCCP.01ACCURAUWB UWCCP.01 6-7 GHZ EMBED |
1,288 | 6.60 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 6.49GHz | 6.24GHz ~ 6.74GHz | Chip | 1 | - | -8dB | 6.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | UWB |
|
|
YE0001BAEXTERNAL CELLULAR ANTENNA |
1,046 | 5.62 |
|
Datasheet |
- | Bag | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Blade, Tilt | 1 | 3 | - | 5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 8.701" (221.00mm) | 4G, 5G, LTE |
|

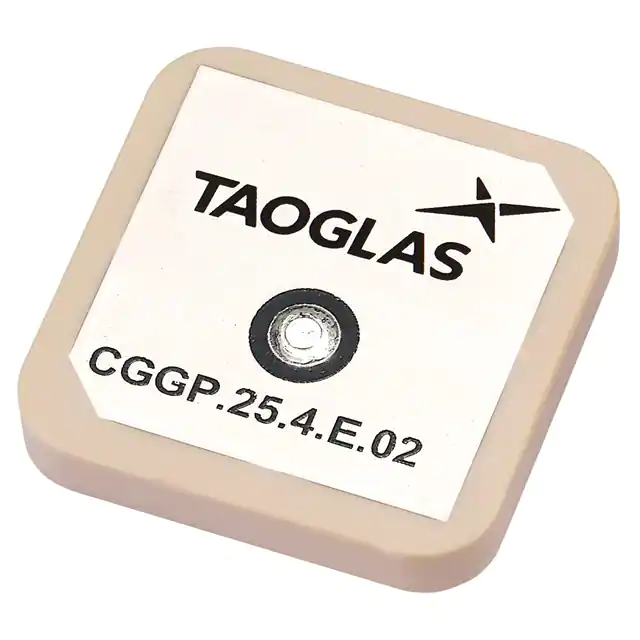

CGGP.25.4.E.02RF ANT 1.575/1.602GHZ CER PATCH |
5,084 | 6.79 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 1.8 | - | 5.46dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
