RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W1010RF ANT 2.4GHZ WHIP TILT SMA 3" |
544 | 4.27 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.274" (108.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

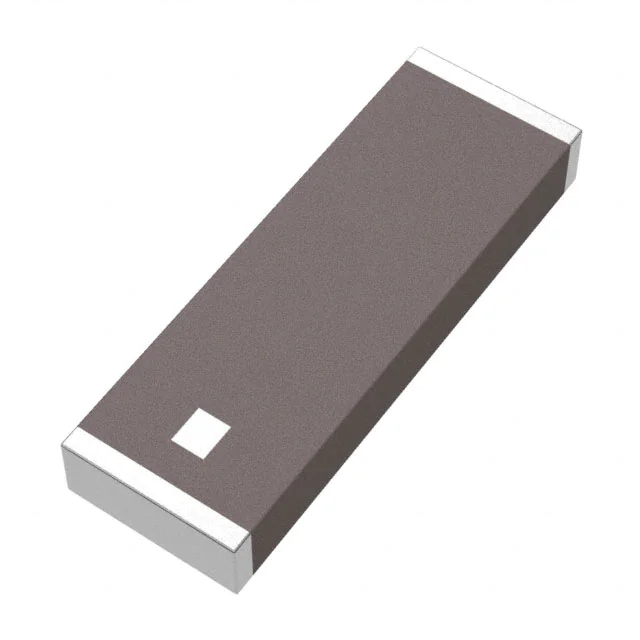

ACAG1204-868-TRF ANT 868MHZ CHIP SOLDER SMD |
3,824 | 6.31 |
|
Datasheet |
ACAG | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 858MHz ~ 878MHz | Chip | 1 | 2 | - | 2.63dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa, Sigfox |
|

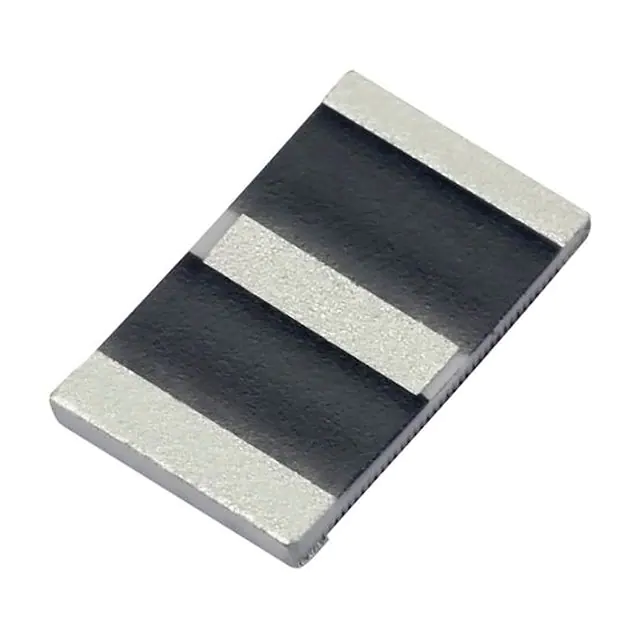

ILA.09RF ANT 915MHZ CHIP SOLDER SMD |
5,023 | 5.34 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | - | -3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM, LoRa, LPWAN, Sigfox |
|
SRFI028-100INCA 433MHZ ANTENNA - 100MM CABL |
695 | 5.90 |
|
Datasheet |
FlexiiANT® | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 432MHz ~ 434MHz | PCB Trace | 1 | 1.6 | -11dB | 2.8dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | ISM |
|

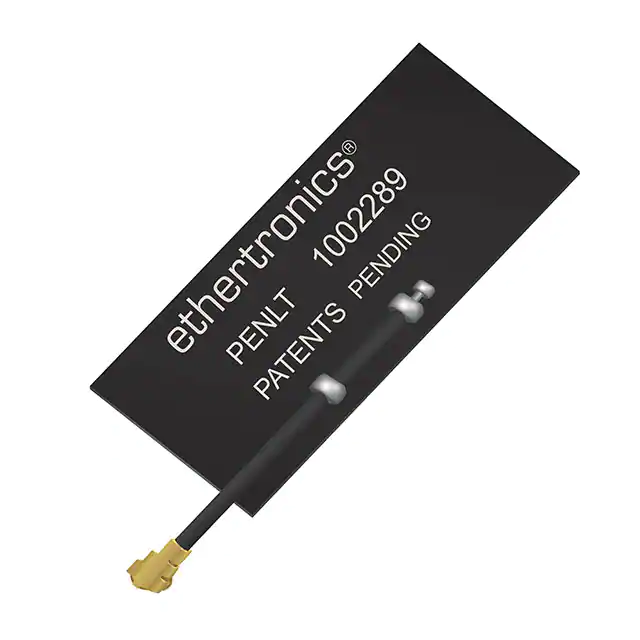

1002289RF ANT 700MHZ/750MHZ FLAT PATCH |
2,822 | 5.03 |
|
Datasheet |
Prestta™ | Bulk | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 8 | 2.5 | - | - | 2 W | Cable - 25mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.049" (1.25mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
ANT-DB1-LCD-RPS2.4/5.8GHZ DIPOLE ANT RP-SMA |
520 | 6.67 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Whip, Tilt | 3 | 1.9 | - | 2.8dBi, 2.92dBi, 4.5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
|
ANT-DB1-LCD-SMA2.4/5.8GHZ DIPOLE ANTENNA SMA |
318 | 6.67 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Whip, Tilt | 3 | 1.9 | - | 2.8dBi, 2.92dBi, 4.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
|
9000440F0-AA12L0150ANTENNA ASSY, GPS 150 D0230 |
1,231 | 0.00 |
|
Datasheet |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.598GHz, 1.606GHz | - | PCB Trace | 4 | 2.3 | - | 2.4dBi, 2.4dBi, 2.5dBi, 2.5dBi | - | - | U.FL | - | - | - | Adhesive | - | Beidou, Galileo, GLONASS, GPS |
|

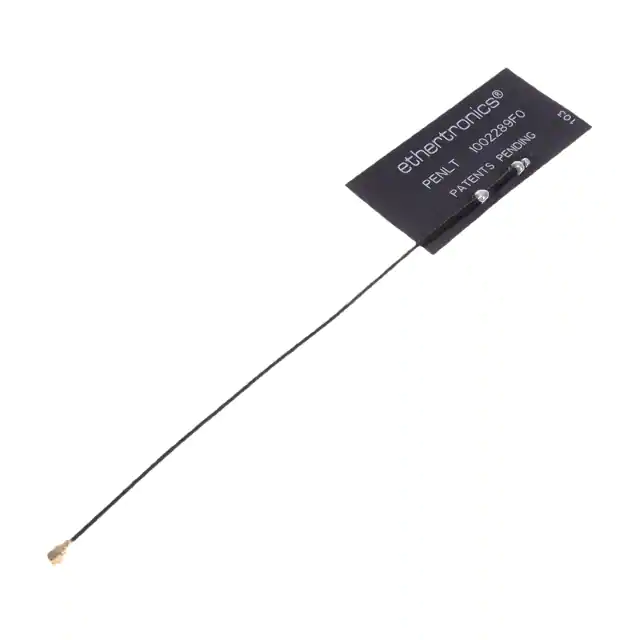

1002289F0-AA10L0100ANTENNA 100MM LTE/CELLULAR WIDE |
1,977 | 3.79 |
|
Datasheet |
Prestta™ | Bulk | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 8 | 2.5 | - | - | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.049" (1.25mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

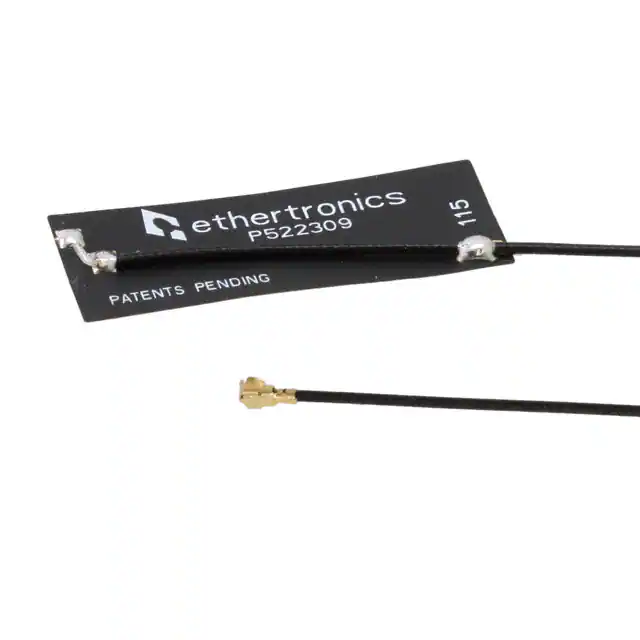

P522309RF ANT 850MHZ/900MHZ FLAT PATCH |
1,546 | 4.49 |
|
Datasheet |
Prestta™ | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 5 | 3 | - | 2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.049" (1.25mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|
|
2203550001EXTERNAL LTE ANTENNA WITH SMA MA |
1,898 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | - | - | - | Whip, Right Angle | - | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 5.106" (129.70mm) | 5G, LTE |
|

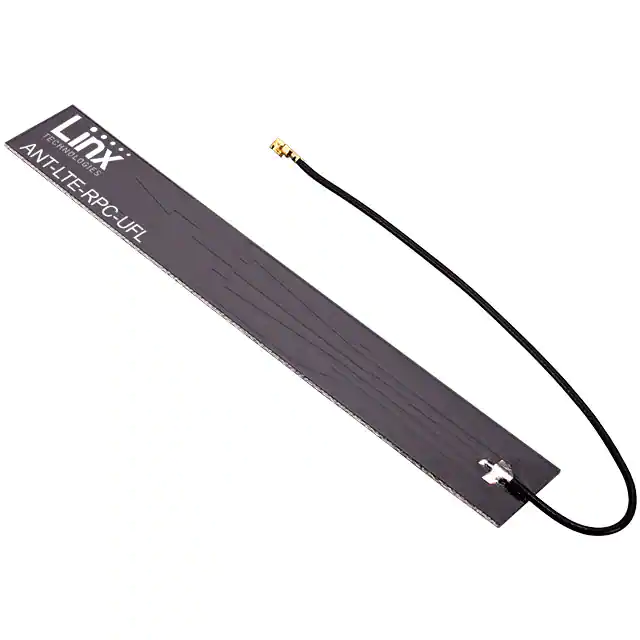

ANT-LTE-RPC-UFLRF ANT LTE RIGID PCB ADHES UFL |
1,371 | 5.95 |
|
Datasheet |
RPC | Bag | Active | Cellular, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz | 600MHz ~ 3.8GHz | PCB Trace | 7 | 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1 | -7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB | 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS |
|

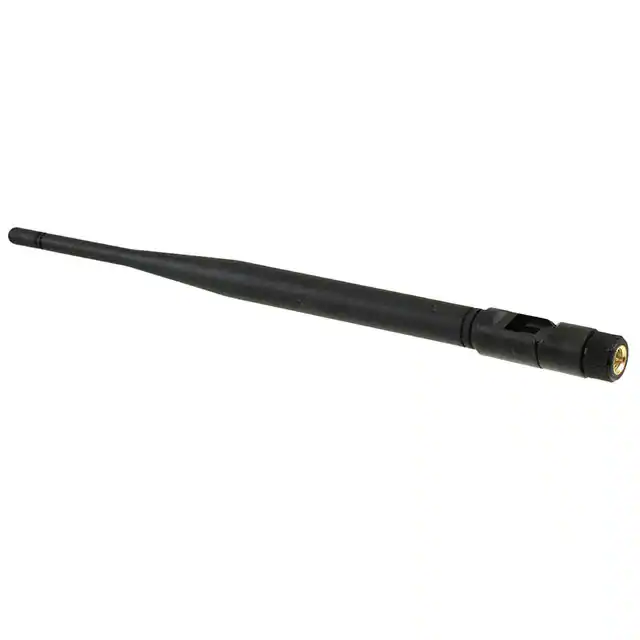

ANT-8WHIP3H-SMARF ANT 868MHZ WHIP TILT SMA MALE |
364 | 5.91 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Tilt | 1 | - | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 8.268" (210.00mm) | - |
|

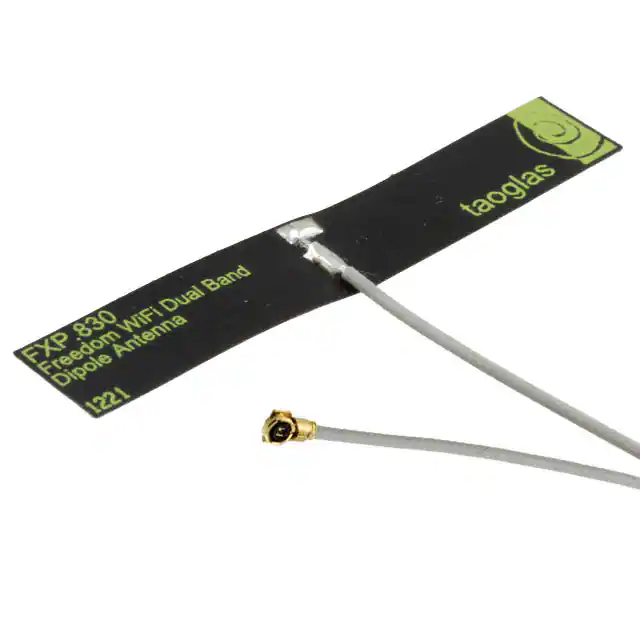

FXP830.24.0100BRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
2,398 | 5.80 |
|
Datasheet |
Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | - | - | 2.6dBi, 5dBi | 2 W | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi |
|

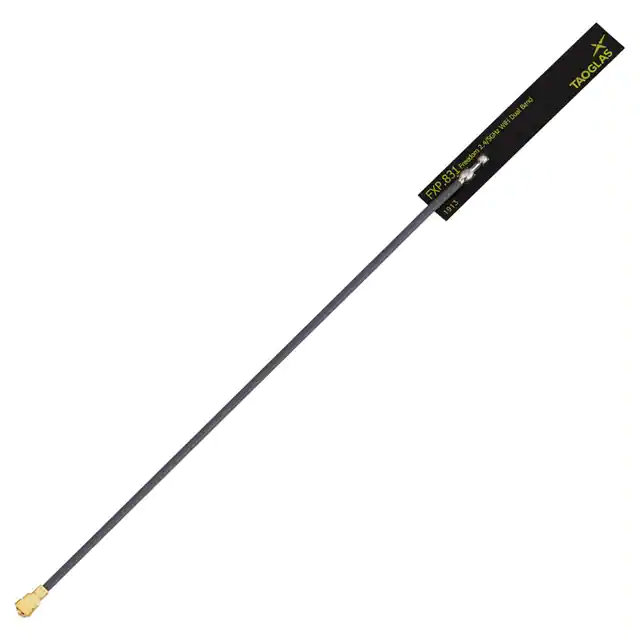

FXP831.07.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,255 | 5.80 |
|
Datasheet |
Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 2.5 | - | 3dBi, 5.5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, DSRC, V2V, Wi-Fi, Zigbee™ |
|
ANT-GNSSCP-SM12L1RF ANT GNSS PATCH L1 12X12 SMD |
743 | 6.96 |
|
Datasheet |
GNSSCP | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.567GHz ~ 1.609GHz | Ceramic Patch | 2 | 7, 6.1 | -2.5dB, -2.9dB | 2.9dBi, 1dBi | 8 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

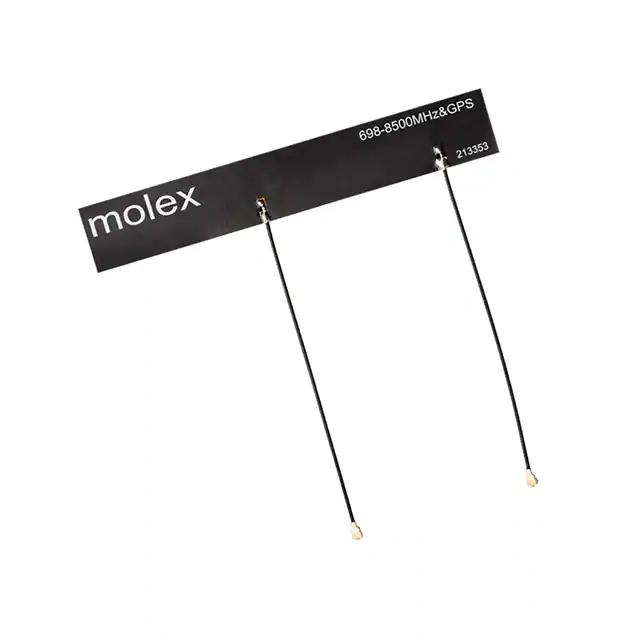

2133530150LTE/GPS COMBO FLEXIBLE ANTENNA 1 |
2,382 | 5.18 |
|
Datasheet |
213353 | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz | Flat Patch | 10 | - | -5dB, -10dB | 2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GPS, LTE, UWB |
|

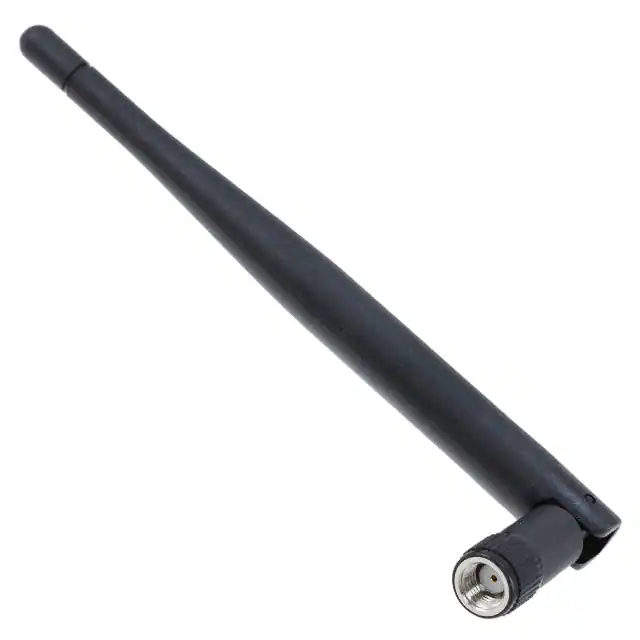

W1027RF ANT 2.4GHZ WHP TILT RP-SMA 5" |
1,319 | 4.92 |
|
Datasheet |
- | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.913" (150.20mm) | WLAN, Zigbee™ |
|

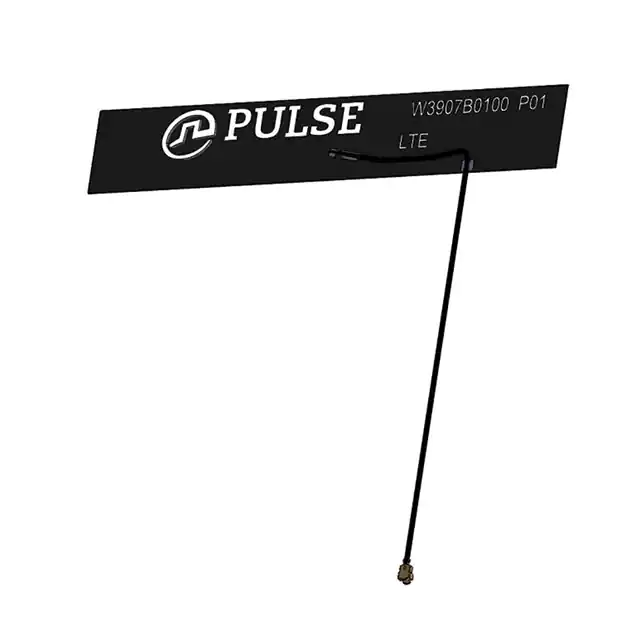

W3907B0100RF ANT 2.15GHZ FLAT PATCH CAB |
1,685 | 4.97 |
|
Datasheet |
GEMINI | Bulk | Active | Cellular | Wide Band | 2.15GHz | 698MHz ~ 3.6GHz | Flat Patch | 6 | - | -7.5dB | 4.2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | LTE |
|

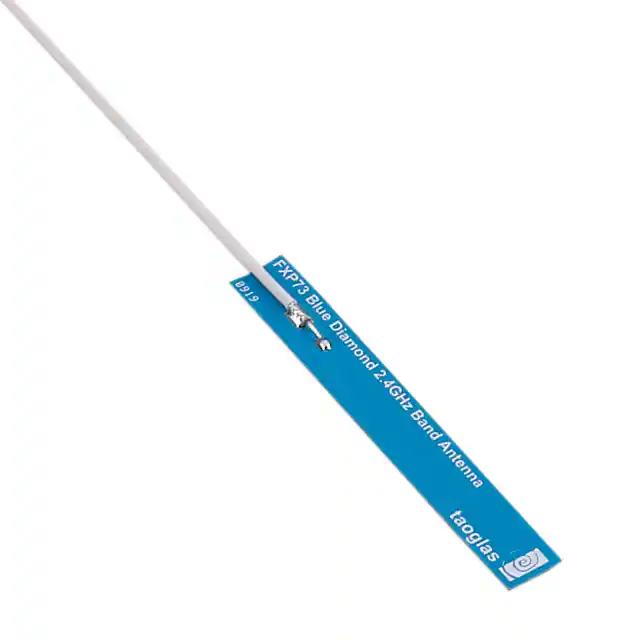

FXP73.09.0100ARF ANT 2.4GHZ FLAT PATCH CAB ADH |
8,593 | 6.14 |
|
Datasheet |
Blue Diamond | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | -10dB | 2.5dBi | 5 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
