RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAF94402RF ANT 2.4GHZ WHIP TILT IPEX |
2,194 | 3.91 |
|
Datasheet |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Base Mount | 4.128" (104.85mm) | - |
|
|
ST0543-00-N01-BRF ANTENNA EMBEDDED DUAL BAND GN |
2,800 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.176GHz, 1.227GHz, 1.278GHz, 1.575GHz | - | Chip | 4 | - | -9.5dB, -6dB, -3.5dB | 1.8dBi, 1.9dBi, 0.5dBi, 2.1dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Galileo, GLONASS, GNSS, GPS, IoT, QZSS |
|
ANT-W63-FPC-SH150M4ANT WIFI6 FPC 25X20 150MM MHF4 |
2,418 | 3.00 |
|
Datasheet |
ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 150mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
SR4G031-100RF ANT 1.584GHZ FLAT PATCH |
2,689 | 0.00 |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Flat Patch | 1 | 1.7 | -11dB | 3.8dBi | - | Cable - 100mm | I-PEX, MHF | - | - | - | Adhesive | 0.063" (1.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

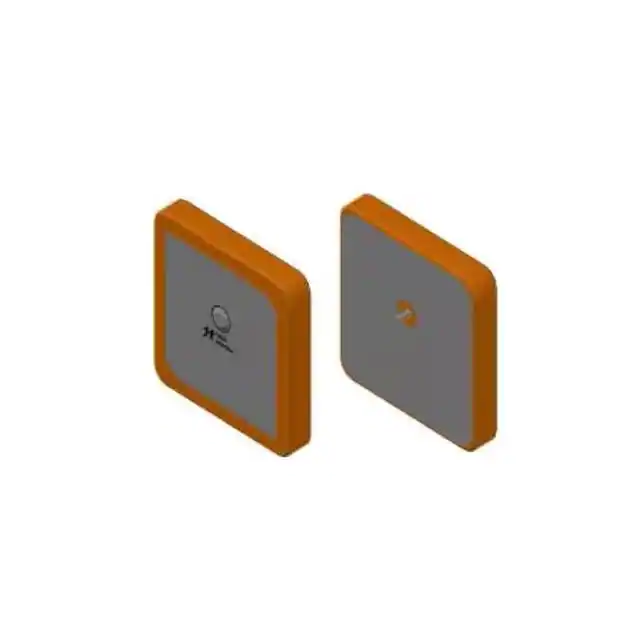

JTT915S25P4X915MHZ PATCH ANTENNA, DIMENSION |
1,193 | 2.94 |
|
Datasheet |
- | Active | - | UHF (300MHz ~ 1GHz) | 903MHz | 900MHz ~ 906MHz | Ceramic Patch | 1 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|

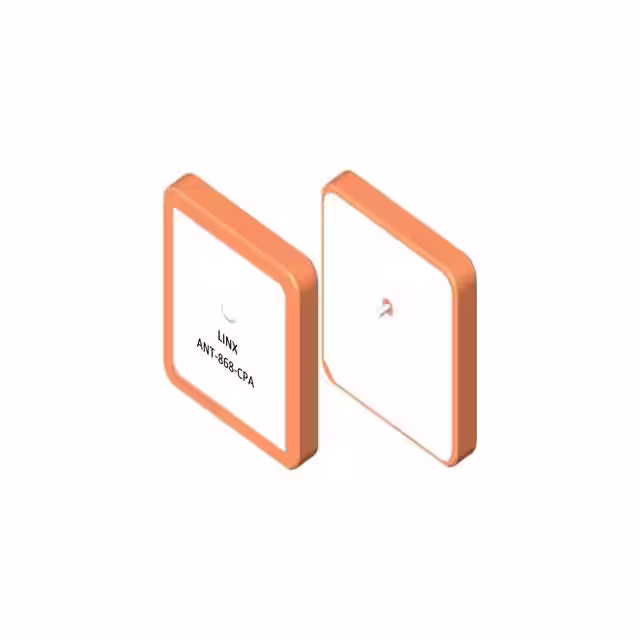

JLT868S25P4X868MHZ PATCH ANTENNA, DIMENSION |
4,900 | 2.94 |
|
Datasheet |
- | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 865MHz ~ 871MHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - | |
|
|
YE0029FAEXTERNAL, 7002700, LTE (4G), MON |
3,921 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Straight | 1 | - | - | - | - | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.465" (88.00mm) | 4G, LTE |
|
SRFL026-200RF ANT 748/892MHZ FLAT CAB 200MM |
3,905 | 3.12 |
|
Datasheet |
Mitis | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 3.1 | -10dB | 3.5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
|
SRFL061-100LUTOSA LTE ANTENNA+100MM CABLE |
2,762 | 0.00 |
|
Datasheet |
FlexiiANT® | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.47GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.42GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 2.9, 3.1, 1.6, 1.7, 2.1, 1.5, 2, 2.4 | - | -4.2dBi, -3.2dBi, -2.3dBi, -2.2dBi, -2.1dBi, -1.8dBi, -1.9dBi, -2.2dBi | - | Cable - 100mm | I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 5G |
|
|
TQ0156AA0000RF ANT 1582MHZ CERAMIC PATCH PIN |
1,094 | 0.00 |
|
- |
- | Active | - | - | 1.582GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
L000607-03LPWA FPC ANT, VDP, MHF-TYPE, 150 |
4,186 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 2.7 | - | 0dBi | 10 W | Cable - 149.352mm | MHF1 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000604-06ISM FPC ANT, HDP, MHF4L-TYPE, 15 |
4,647 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.4 | - | 0dBi | 10 W | Cable - 149.352mm | MHF4 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000605-03ISM FPC ANT, VDP, MHF-TYPE, 150M |
1,680 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.9 | - | 0dBi | 10 W | Cable - 149.352mm | MHF1 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000606-06LPWA FPC ANT, HDP, MHF4L-TYPE, 1 |
1,459 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 2.9 | - | 0dBi | 10 W | Cable - 149.352mm | MHF4 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|

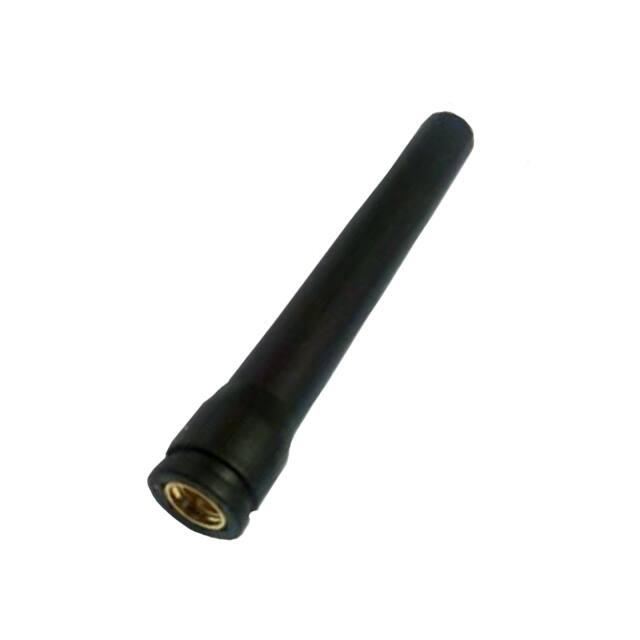

APAMS-119RF ANT 900MHZ/1.8GHZ WHIP STR |
1,256 | 3.35 |
|
Datasheet |
APAMS | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Whip, Straight | 2 | 4 | - | 2.15dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.071" (78.00mm) | GSM |
|
ANT-2.4-FPC-SF150UFANT 2.4 FPC 25X20 150 CBL UFL |
4,901 | 2.82 |
|
Datasheet |
ANT-2.4-FPC-SF | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | - | 3.9dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-GNFPC-SHL1200UFRF ANT GNSS FPC L1 200MM UFL |
3,740 | 0.00 |
|
- |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 200mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
SRFI028-150INCA 433MHZ ANTENNA - 150MM CABL |
2,997 | 3.16 |
|
Datasheet |
FlexiiANT® | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 432MHz ~ 434MHz | PCB Trace | 1 | 1.6 | -11dB | 2.8dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | ISM |
|
|
W3312G0200ANTENNA ISM 868/915MHZ W/ COAX F |
2,767 | 2.83 |
|
- |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | PCB Trace | 1 | - | -8dB | 0.8dBi | - | Cable - 200mm | SMA Male | - | - | - | Adhesive | 2.953" (75.00mm) | ISM |
|
ANT-2.4-FPC-SH50M4ANT 2.4 FPC 25X20 50 CBL MHF4 |
3,842 | 2.84 |
|
Datasheet |
ANT-2.4-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 4dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
