RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-2.4-FPC-SF50M4ANT 2.4 FPC 25X20 50 CBL MHF4 |
1,911 | 2.84 |
|
Datasheet |
ANT-2.4-FPC-SF | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | - | 3.9dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT-W63-FPC-SH200M4ANT WIFI6 FPC 25X20 200MM MHF4 |
1,027 | 3.04 |
|
Datasheet |
ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 200mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
WTL2449CQ1-FRSMMRF ANT 2.4GHZ/5.4GHZ WHIP STR |
2,405 | 0.00 |
|
- |
- | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Whip, Straight | 2 | 2 | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.780" (96.00mm) | - |
|
M830310-10KRF ANT 2.4GHZ CHIP SOLDER SMD |
3,946 | 0.83 |
|
Datasheet |
Savvi™ | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.39dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
CPCAK0000-12RF ANT 2450MHZ PRINT CHIP SMD |
3,512 | 0.00 |
|
- |
- | Active | - | - | 2.45GHz | - | Chip | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CPCAK0000-14RF ANT 2450MHZ PRINT CHIP SMD |
4,726 | 0.00 |
|
- |
- | Active | - | - | 2.4GHz | - | Chip | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
RFPCA111815IMMB901RF ANT PCB IPEX MALE 15CM LTE |
4,092 | 3.40 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz, 3.55GHz, 5.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 4 | 2, 3 | -10dB, -6dB | 3.32dBi, 6.04dBi, 5.36dBi, 4.39dBi | 1 W | Cable - 150mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | LTE |
|
|
RFDPA131000SBRB801REVERSE SMA PLUG |
1,284 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TQ0122AA0000RF ANT 1558MHZ CERAMIC PATCH PIN |
1,143 | 0.00 |
|
- |
- | Active | - | - | 1.558GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TQ0123AA0000RF ANT 1568MHZ CERAMIC PATCH PIN |
4,866 | 0.00 |
|
- |
- | Active | - | - | 1.568GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ANT-2.4-FPC-SH200UFANT 2.4 FPC 25X20 200 CBL UFL |
3,899 | 2.89 |
|
Datasheet |
ANT-2.4-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 4dBi | 2 W | Cable - 200mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-2.4-FPC-SF200UFANT 2.4 FPC 25X20 200 CBL UFL |
3,900 | 2.89 |
|
Datasheet |
ANT-2.4-FPC-SF | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | - | 3.9dBi | 2 W | Cable - 200mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
SRFL029-150RF ANT 748/892MHZ FLAT CAB 150MM |
2,800 | 3.09 |
|
Datasheet |
Moseni | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 1.7 | -8dB | 3.8dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
|
ANT-GNFPC-SHL1150M4RF ANT GNSS FPC L1 150MM MHF4 |
1,304 | 0.00 |
|
- |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 150mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

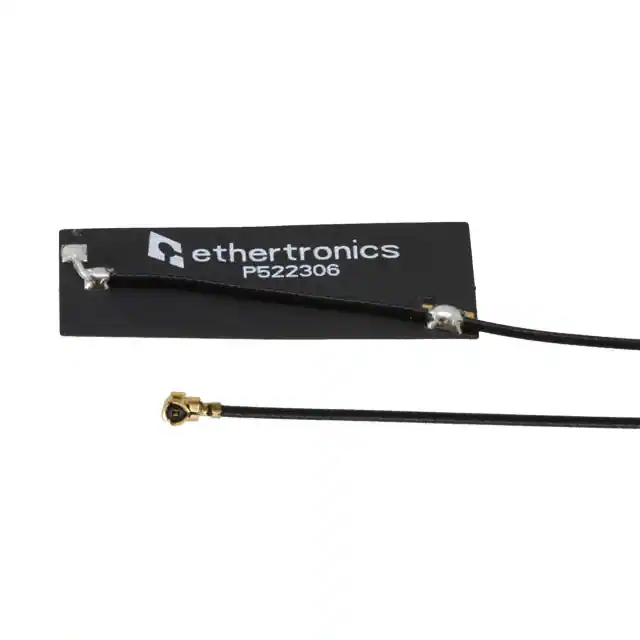

P522306RF ANT 850MHZ/900MHZ FLAT PATCH |
1,120 | 2.98 |
|
Datasheet |
Prestta™ | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 5 | 3 | - | 2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.049" (1.25mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|

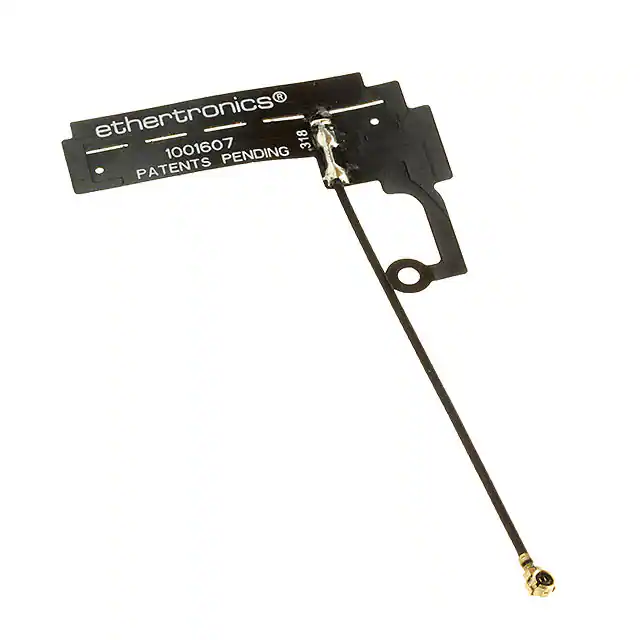

1001607RF ANT 850/900MHZ PCB TRACE 66MM |
4,686 | 2.98 |
|
Datasheet |
Prestta™ | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | 3 | - | - | 2 W | - | - | - | - | - | Adhesive | 0.049" (1.25mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|
|
L000605-06ISM FPC ANT, VDP, MHF4L-TYPE, 15 |
3,072 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.9 | - | 0dBi | 10 W | Cable - 149.352mm | MHF4 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000607-06LPWA FPC ANT, VDP, MHF4L-TYPE, 1 |
4,301 | 0.00 |
|
Datasheet |
FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 458.5MHz | 450MHz ~ 467MHz | Flat Patch | 1 | 2.29 | - | -0.29dBi | 10 W | Cable - 149.86mm | MHF4L | - | - | - | Adhesive | 0.079" (2.00mm) | General Purpose |
|
|
RFFPA591110IMAB302PCB ANTENNA |
3,292 | 0.00 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
0600-00056RF ANT 2.4GHZ PCB TRACE IPEX ADH |
2,557 | 5.79 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 2.2dBi | 1 W | - | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.236" (6.00mm) | - |
