RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-GNFPC-SHL1200M4RF ANT GNSS FPC L1 200MM MHF4 |
2,093 | 0.00 |
|
- |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
21233001502.4/5GHZ MIMO 4X4 FLEXIBLE ANTEN |
2,076 | 3.58 |
|
Datasheet |
212330 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -4dB, -5dB, -10dB | 3.6dBi, 4.5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
TQ0126AA0000RF ANT 1604MHZ CERAMIC PATCH PIN |
3,104 | 0.00 |
|
- |
- | Active | - | - | 1.604GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TQ0124AA0000RF ANT 1652MHZ CERAMIC PATCH PIN |
4,290 | 0.00 |
|
- |
- | Active | - | - | 1.652GHz | - | Ceramic Patch | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ANT-W63-FPC-SAH150M4ANT WIFI6/6E FPC SQR 150MM MHF4 |
3,139 | 3.78 |
|
Datasheet |
ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 150mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
MAF94006RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
1,826 | 0.00 |
|
Datasheet |
WTC | Bulk | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Whip, Tilt | 2 | - | - | 2.5dBi, 5.2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Snap-In | 4.900" (124.46mm) | Bluetooth, WLAN |
|

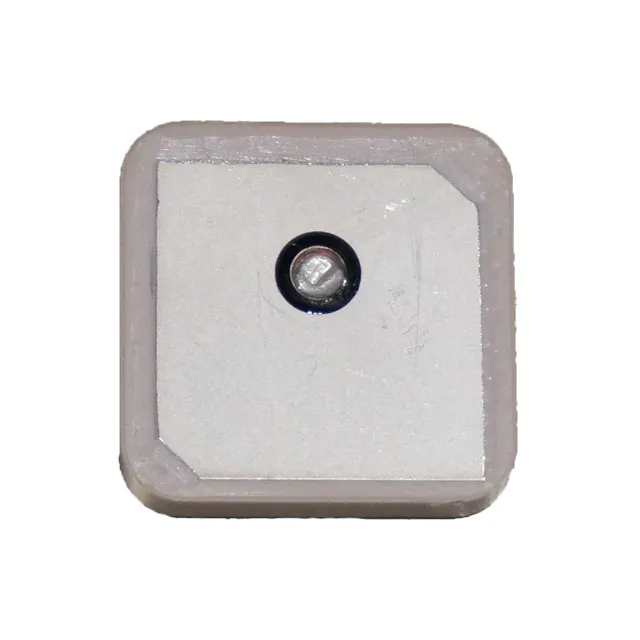

APRA2504F00ZRF ANT GPS+IRIDIUM CER PATCH |
2,713 | 4.38 |
|
Datasheet |
APRA | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6175GHz | 1.574GHz ~ 1.576GHz, 1.61GHz ~ 1.625GHz | Ceramic Patch | 2 | 3 | - | 2dBi, 3dBi | - | - | Solder | - | Automotive | AEC-Q200 | Adhesive, Through Hole | 0.157" (4.00mm) | GPS |
|

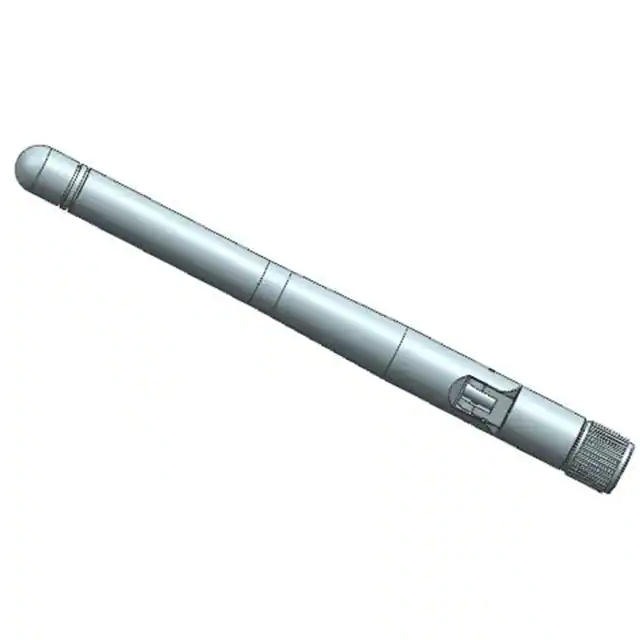

2144141001ISM/DSRC ANTENNA_HINGED_W_M |
3,086 | 6.54 |
|
Datasheet |
214414 | Tray | Obsolete | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
|
2144141011ISM/DSRC ANTENNA_HINGED_W_F |
2,293 | 6.54 |
|
Datasheet |
214414 | Tray | Obsolete | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
|
W320725X25X4MMGPS/GLONASS/BEIDOU PIN |
1,206 | 3.13 |
|
Datasheet |
Ceramic Patch | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz,1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 3 | - | -4dB | 1dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
ANT-GNFPC-SHL150UFRF ANT GNSS FPC L1 50MM UFL |
2,153 | 0.00 |
|
Datasheet |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 50mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
YFGC040WWAINT,GPS&GNSS,CERAMIC,-,NA,1559-1 |
2,146 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W3907BD0350ANTENNA TE DIVERSITY |
3,274 | 3.16 |
|
Datasheet |
Gemini | Box | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 1dBi, 1.1dBi, 1.4dBi, 2.2dBi, 2dBi, 1.4dBi | 3 W | Cable - 350mm | I-PEX MHF4 | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|

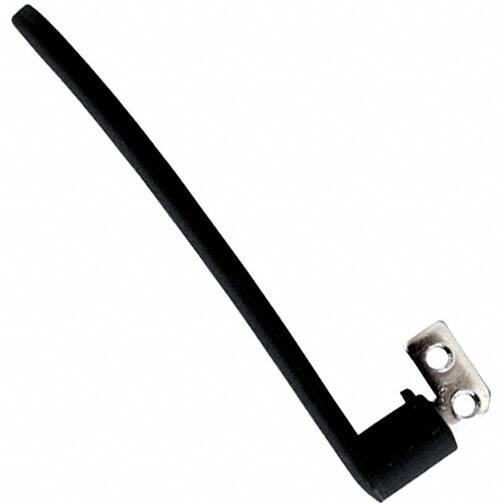

ANT-916-PMBRF ANT 916MHZ WHIP RA SCREW-MT |
4,931 | 0.00 |
|
Datasheet |
PMB | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 916MHz | 902MHz ~ 928MHz | Whip, Right Angle | 1 | 2 | - | - | - | - | Screw-Mount | - | - | - | Panel Mount | 3.543" (90.00mm) | - |
|

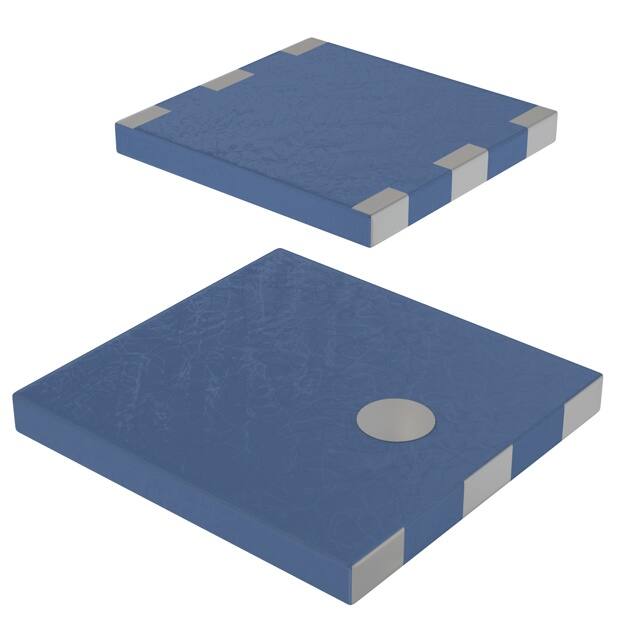

CAN4311117002521KANTENNA 802.11A/B DUAL BAND SMD |
1,835 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.25GHz | Chip | 2 | 2.5 | - | 0dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
|
1513472-7ANTENNA, BLUETOOTH / WI-FI / WLA |
1,383 | 3.65 |
|
Datasheet |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.5125GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 590mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
0470110002CATALINA ANTENNA EU VERSION |
4,410 | 0.00 |
|
- |
47011 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TQ0196AW0000RF ANT 7370MHZ CERAMIC CHIP SMD |
4,902 | 0.00 |
|
Datasheet |
- | Active | - | - | 7.37GHz | - | Chip | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
1462340150RF ANT 829MHZ/2.1GHZ FLAT PATCH |
2,279 | 4.30 |
|
Datasheet |
146234 | Tray | Obsolete | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.7dBi, 2.65dBi, 4.8dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
1-1513472-3ANTENNA WITH CABLE ASSEM |
3,688 | 4.26 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
