RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1005190F0-AS70L0050ANTENNA ASSY, UWB68 F0 0050 SMA |
2,606 | 4.49 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
|
1005190F0-AS70L0025ANTENNA ASSY, UWB68 F0 0025 SMA |
4,967 | 2.82 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 25mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|

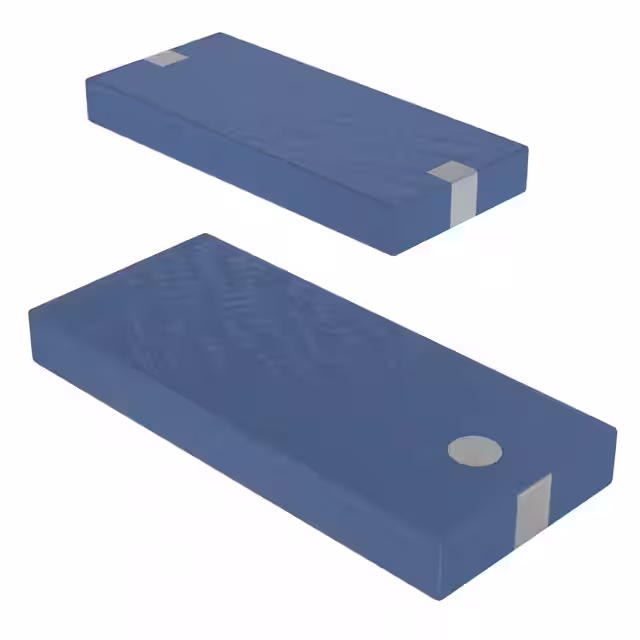

CAN4311115002451KANTENNA 802.11B LNG BLUTOOTH SMD |
4,018 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 0dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
A10340HANT 824-960MHZ GSM/WCDMA |
4,191 | 4.20 |
|
Datasheet |
Calvus | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | 3.1 | -6dB | 1.7dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GSM, UMTS |
|
IWX-241BSAXBANT 2.4 WHIP SMA PLUG MALE |
3,898 | 0.00 |
|
Datasheet |
241 | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | -14dB | 2.5dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 4.252" (108.00mm) | Bluetooth, ISM, WiFi, ZigBee | |
|
|
ANT-GNFPC-SHL150M4RF ANT GNSS FPC L1 50MM MHF4 |
1,917 | 0.00 |
|
Datasheet |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

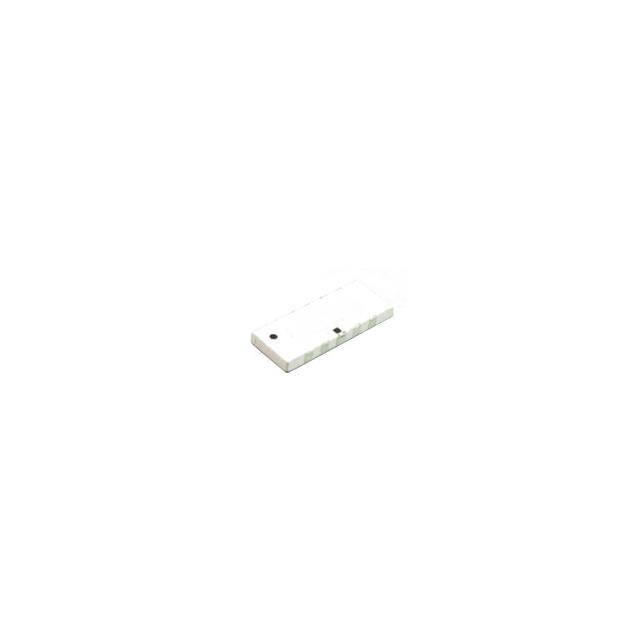

TSA3NA4L2G45NS0D1TRF ANT 2.4GHZ/5.4GHZ CHIP SLD |
4,895 | 3.45 |
|
- |
TSA3 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | WLAN |
|
|
ZRF-V092MP3B-W012ANT 5G PCB 120MM CABLE MHF1 PLUG |
1,722 | 0.00 |
|
Datasheet |
V092 | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 8 | 3.0, 2.1, 1.9, 1.9, 1.8, 2.9 | -6.0, -9.0, -10.2, -10.2, -10.9, -6.3 | 3.1, 4.0, 2.6, 4.3, 4.0, 5.1 | 1 W | Cable - 120mm | MHF, U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | 2G, 3G, 4G, 5G, LTE | |
|
|
1-1513472-2UAM CABLE ASMBLY 80 MM CABLE BLA |
4,927 | 3.64 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EBM-GHAG245FBRF ANT 2.5GHZ CHIP SOLDER SMD |
2,467 | 0.00 |
|
- |
EBM | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.5GHz | - | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | - | - |
|
|
W24-RMSA-MRF ANT 2.4GHZ WHIP RA SMA MALE |
4,557 | 3.31 |
|
- |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.5 | -17dB | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 2.598" (66.00mm) | WLAN |
|

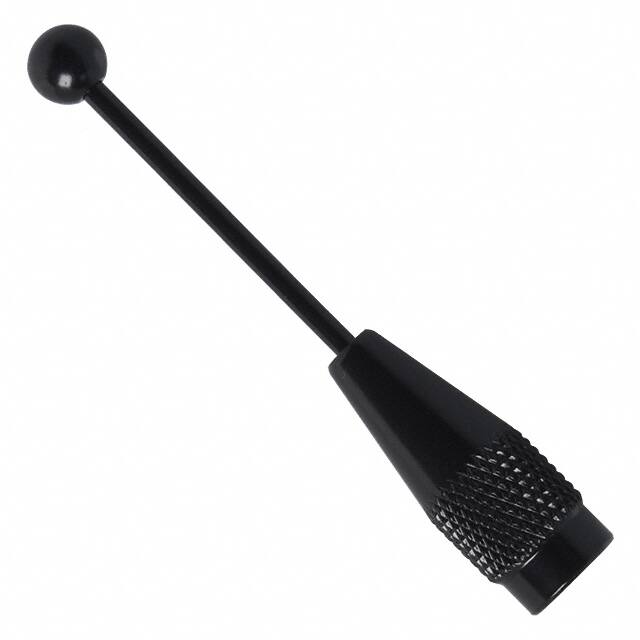

ANT-ELE-S01-010RF ANT 892MHZ/1.85GHZ WHIP STR |
2,382 | 4.45 |
|
Datasheet |
MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5 | - | -3.9dBi, -1.5dBi | - | - | M5 | - | - | - | Magnetic | 2.382" (60.50mm) | - |
|
ANT-W63RPC1-200RF ANT WIFI 6GHZ FLEX ADHE 200MM |
1,239 | 3.30 |
|
Datasheet |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 200mm | Solder | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
|
1005190F0-AS70L0075ANTENNA ASSY, UWB68 F0 0075 SMA |
2,050 | 2.90 |
|
Datasheet |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 75mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
ANT-2.4-FPC-LV50UFANT 2.4 FPC 45X7 50MM CBL UFL |
1,535 | 3.35 |
|
Datasheet |
ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 50mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT-2.4-FPC-LH50UFANT 2.4 FPC 45X7 50MM CBL UFL |
4,523 | 3.35 |
|
Datasheet |
ANT-2.4-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 6.1dBi | 2 W | Cable - 50mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
W3538E0300ANTENNA CABLE FEE NPB |
1,011 | 3.35 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 892MHz, 1.94GHz, 2.045GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | PCB Trace | 3 | - | -6dB | 2.8dBi, 4.5dBi, 4dBi | - | Cable - 300mm | MMCX Male | - | - | - | Adhesive | 0.028" (0.70mm) | GSM, WCDMA |
|

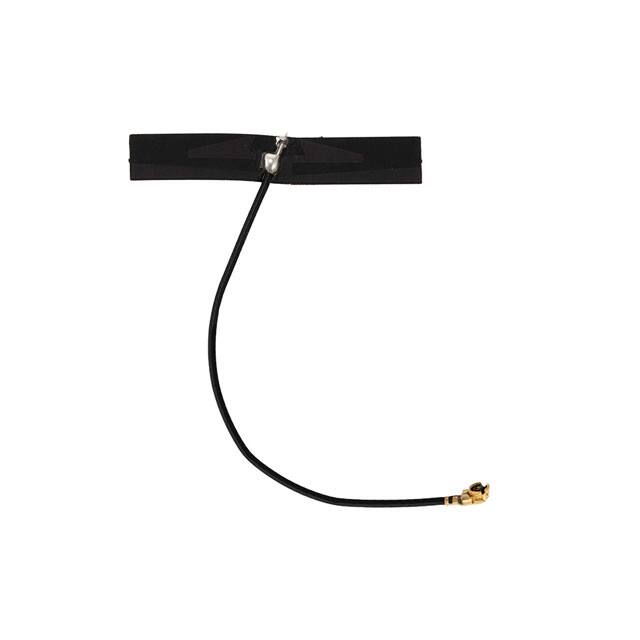

PE512034.5DBI PCB ANT 2400-5900MHZ UMCX |
2,796 | 8.29 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2.5 | - | 2.5dBi, 4.5dBi | 5 W | Cable - 100mm | U.FL (UMCX), I-PEX | - | - | - | Surface Mount | 0.006" (0.16mm) | WLAN |
|
|
650-10072-01 REVB2FLEXIBLE PASSIVE 1558-1610 MHZ A |
1,175 | 0.00 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TWX-282BSA3BANT WIFI 6E WHIP SMA PLUG MALE |
2,488 | 0.00 |
|
Datasheet |
282 | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 1.4, 1.5, 2.7 | -15.6dB, -14dB, -6.8dB | 2dBi, 3dBi, 3.3dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
