RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YG0021AAPATCH GNSS L1&B1&G1 ACTIVE 18X18 |
1,186 | 0.00 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.56GHz ~ 1.605GHz | Ceramic Patch | 1 | 2 | - | 2.5dBic | - | LNA | I-PEX | - | - | - | Surface Mount | 0.349" (8.86mm) | GNSS |
|

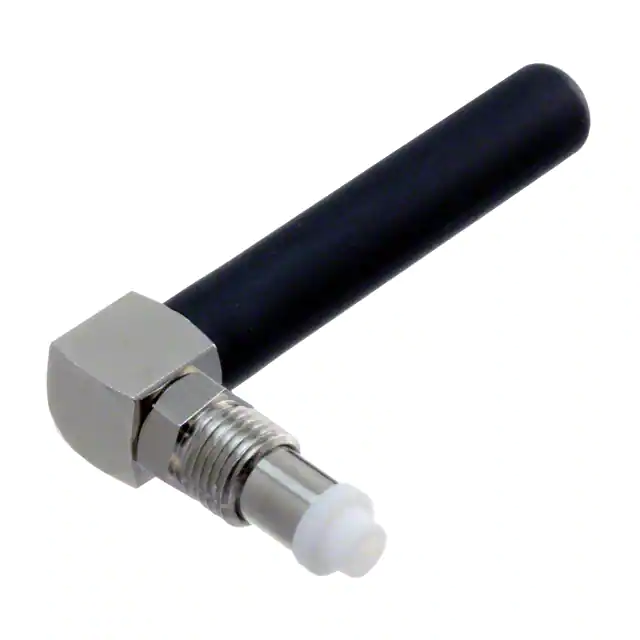

W1903ANT EXT STICK 824-960/1710-2170 |
267 | 9.89 |
|
Datasheet |
External Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | - | - | 0dBi | 2 W | - | FME Female | - | - | - | Connector Mount | 1.969" (50.00mm) | 2G, 3G, 4G |
|
S131CL-6-PX-2450SRF ANT 2.4GHZ WHIP/TILT CONN 6" |
615 | 16.52 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | Cable - 152mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.425" (87.00mm) | - |
|
|
2246667-1DUAL BAND PUCK ANTENNA ASSY, 1.3 |
3,274 | 12.61 |
|
Datasheet |
- | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3.5 | -5dB | 1.2dBi, 4.7dBi | 10 W | Cable - 136.5mm | MHF | - | - | - | Panel Mount | 0.240" (6.10mm) | Wi-Fi |
|
|
2118308-24G WORLD BAND, METASPAN, PCB, W/ |
228 | 7.96 |
|
Datasheet |
- | Bag | Active | 802.15.4, Cellular, General ISM | Wide Band | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 8 | 3 | - | 3.9dBi | - | Cable - 120mm | MHF4L | - | - | - | Adhesive | 0.052" (1.32mm) | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ |
|
PC29.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
156 | 11.91 |
|
Datasheet |
TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 1.58, 1.78, 1.51, 1.38, 1.37 | -13dB, -11dB, -14dB, -16dB, -16dB | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | CDMA, GSM, UMTS |
|

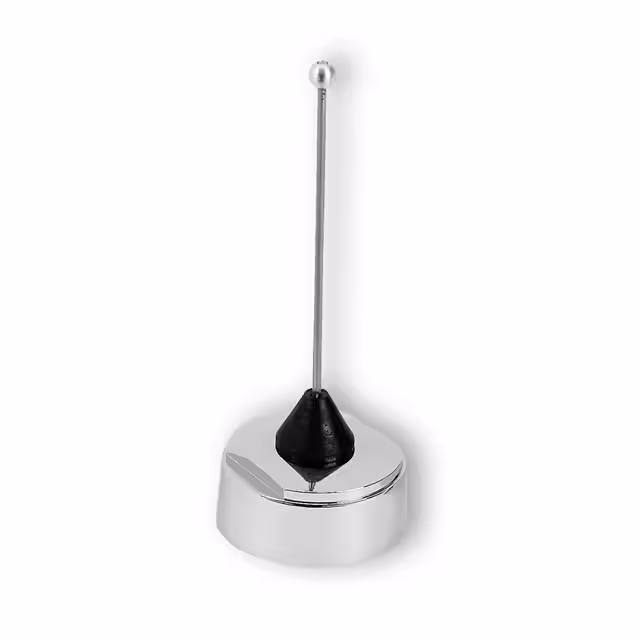

NMOQW700STAINLESS BASE / WHIP, 0 DB / 2 |
124 | 17.27 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 773MHz | 740MHz ~ 806MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 3.000" (76.20mm) | - |
|
APAMP-124RF ANT 1.575GHZ DOME SMA ML MAG |
3,901 | 11.50 |
|
Datasheet |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.610" (15.50mm) | GPS |
|

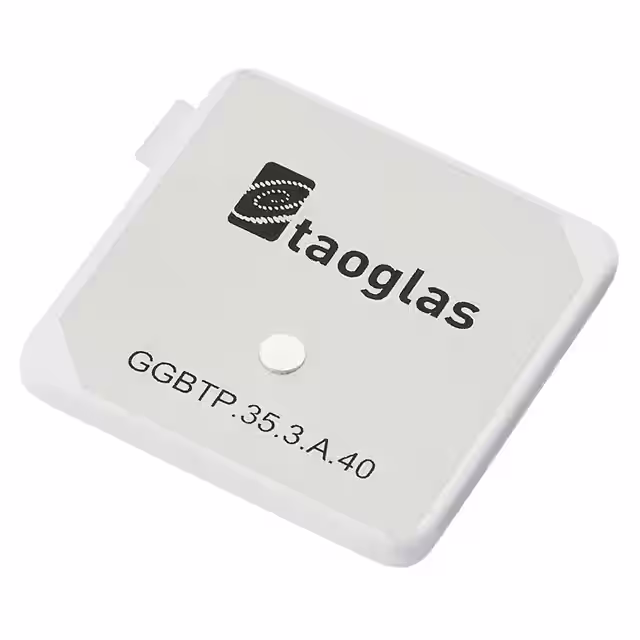

GGBTP.35.3.A.40TERRABLAST GGBTP.35.3.A.40 GPS L |
113 | 12.56 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | 4.12dBi, 4.03dBi, 4.33dBi | - | - | Pin | - | - | - | Adhesive | 0.146" (3.72mm) | Beidou, Galileo, GLONASS, GPS |
|

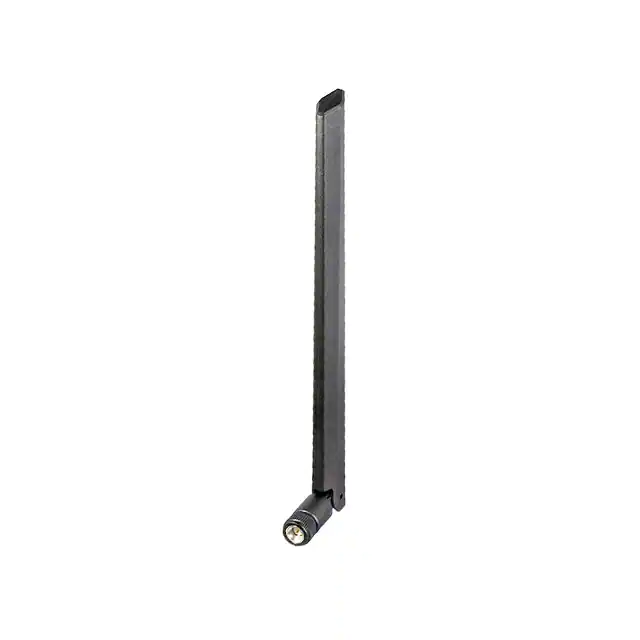

ANT-5GMWS1-SMARF ANT 3.3GHZ-5.0GHZ 5G TILT SMA |
813 | 14.81 |
|
Datasheet |
SMA | Bulk | Active | Cellular, Navigation | Wide Band | 3.625GHz, 3.95GHz, 4.965GHz | 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Whip, Tilt | 3 | 1.3, 3.3, 3.4 | - | 5.9dBi, 5.4dBi, 2.3dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | 5G, GPRS, LTE |
|

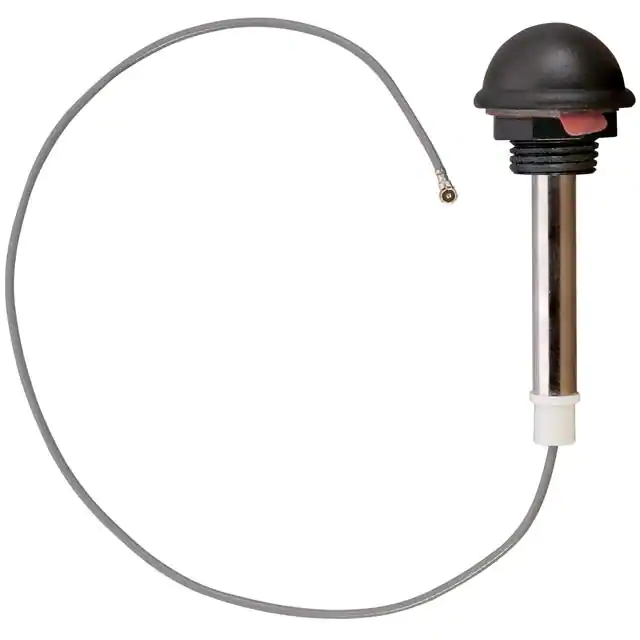

ANT-DB1-WRT-MHF4-100RF ANT 2.4/5GHZ WRT MHF4 -100 |
483 | 14.02 |
|
Datasheet |
WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 100mm | MHF4 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-916-MHW-RPS-LRF ANT 916MHZ WHIP CTR CAB 180" |
779 | 17.08 |
|
Datasheet |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 916MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 4.6m | RP-SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

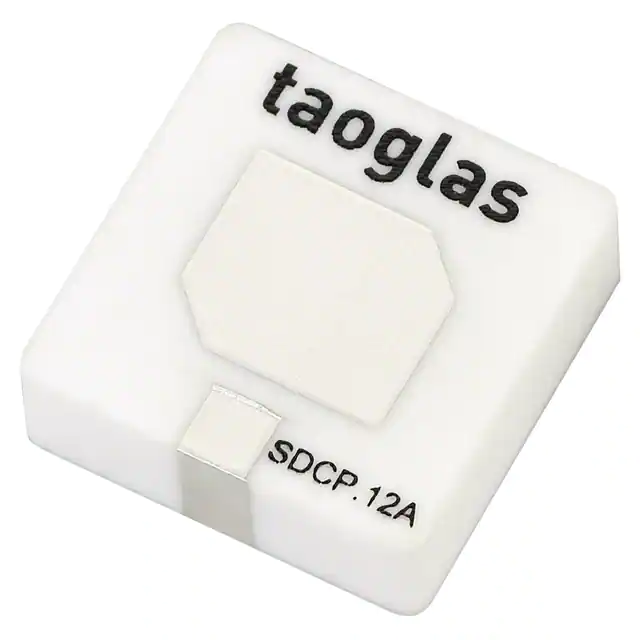

SDCP.5900.12.4.A.405.9GHZ DSRC SMD PATCH ANTENNA 12 |
305 | 13.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 5.888GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | 2 | - | 4.64dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | DSRC |
|
GSA.8830.A.201111GSA.8830 3G/2G CELLULAR ADHESIVE |
177 | 14.32 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Flat Bar | 5 | - | -8dB, -9dB, -10dB | -0.23dBi, 0.77dBi, 0.67dBi, 0.98dBi, 0.73dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.181" (4.60mm) | 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|
ANT-W63-WRT-MHF4RF ANT 2.4/5/6GHZ DOME PNL MT MH |
985 | 17.60 |
|
Datasheet |
WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | MHF4 | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

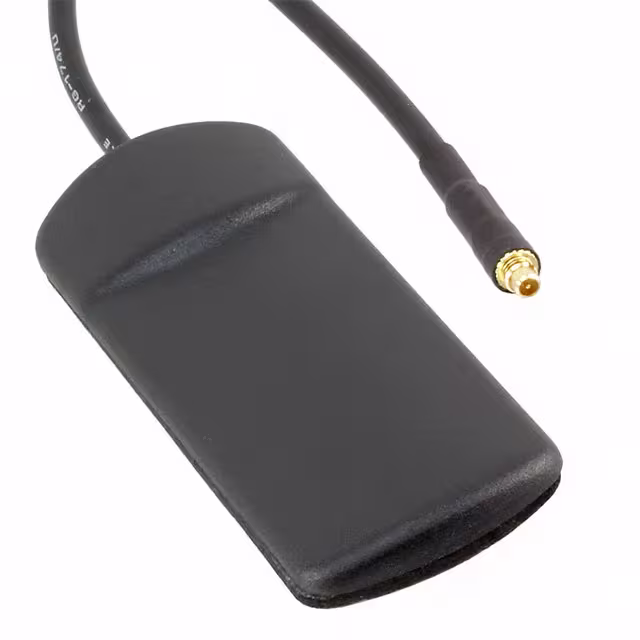

ALPHA3A/0.2M/MMCXM/S/S/26RF ANT 850MHZ/868MHZ BLADE MMCX |
112 | 13.93 |
|
Datasheet |
ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|
|
YG0065AAMAG ACTIVE GNSS L1 3M FAKRA C |
958 | 0.00 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | 1.575GHz ~ 1.61GHz | Dome | 1 | 2 | - | 2.8dBi | - | LNA, Filter | Fakra Female | IP66 | - | - | Adhesive | 0.492" (12.50mm) | GNSS, LTE |
|
AP-DIPOLE-W-I-S2-RP-BLANTENNA PLUS DIPOLE ANTENNA |
191 | 14.47 |
|
Datasheet |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.445GHz, 5.35GHz | 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | - | - | 4.03dBi, 4.58dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.980" (202.70mm) | 802.11a/b/g/-c |
|

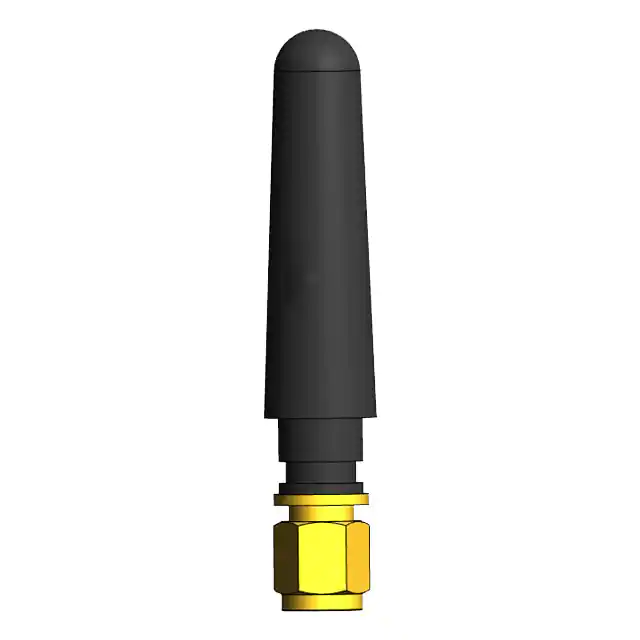

AEACAC053010Z-S433ANTENNA AUTO 433MHZ EXT WHIP |
177 | 16.36 |
|
Datasheet |
AEAC | Bulk | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | ISM, LoRa, Sigfox |
|

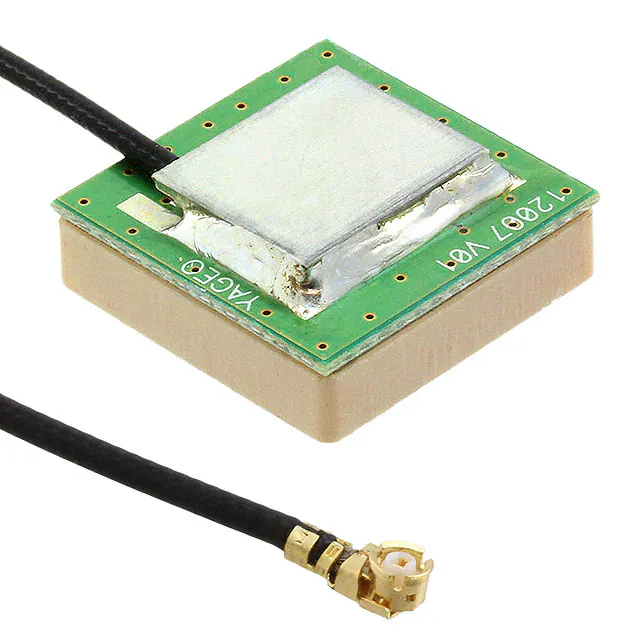

ANT1818JB30B1575ARF ANT 1.575GHZ CER PATCH CAB |
118 | 14.95 |
|
Datasheet |
1818 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.561GHz ~ 1.589GHz | Ceramic Patch | 1 | 2 | - | -2.67dBic | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
