RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DXP.02.ARF DIPLEXER 1.222/1.575GHZ 8SMD |
824 | 13.22 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 1.196GHz ~ 1.248GHz / 1.574GHz ~ 1.576GHz | 27.00dB / 33.00dB | 20.00dB / 28.00dB | 8.0dB / 13.0dB | - | - | Surface Mount |
|
DPX1608LL65R2455ADIPLEXER SMD 2.4G/5G |
18,031 | 0.18 |
|
Datasheet |
1608 | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz | 32.00dB / - | 27.00dB / - | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
DPX1608LL83R2455ADIPLEXER SMD 2.4G/5G |
6,363 | 0.18 |
|
Datasheet |
1608 | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 25.00dB / - | 32.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|

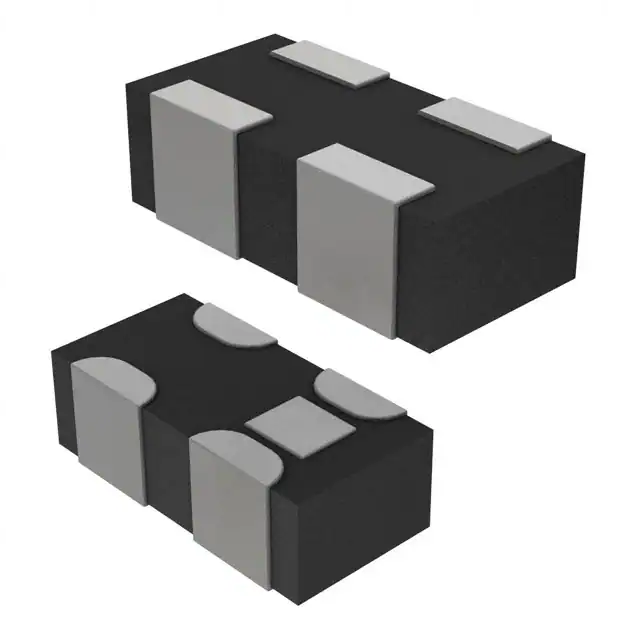

DPX105850DT-6019A1RF DIPLEXER 2.45GHZ/5.5GHZ 0402 |
9,180 | 0.27 |
|
Datasheet |
DPX | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 21.00dB / - | 14.00dB / - | - | - | - | Surface Mount |
|
DPX165850DT-8086A2MULTILAYER DIPLEXER FOR LTE |
6,620 | 0.34 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 2.69GHz / 3.3GHz ~ 5.85GHz | 20.00dB / 23.80db | 18.00dB / 23.40db | - | - | - | Surface Mount |
|
DPX105850DT-6018A1MULTILAYER DIPLEXER FOR 2400 - 2 |
34,995 | 0.28 |
|
Datasheet |
DPX | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 17.00dB / 33.00dB | 25.00dB / 32.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX105950DT-6012A2MULTILAYER DIPLEXER FOR LTE/5GHZ |
10,350 | 0.28 |
|
Datasheet |
- | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 23.00dB / 29.00dB | 32.00dB / 41.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

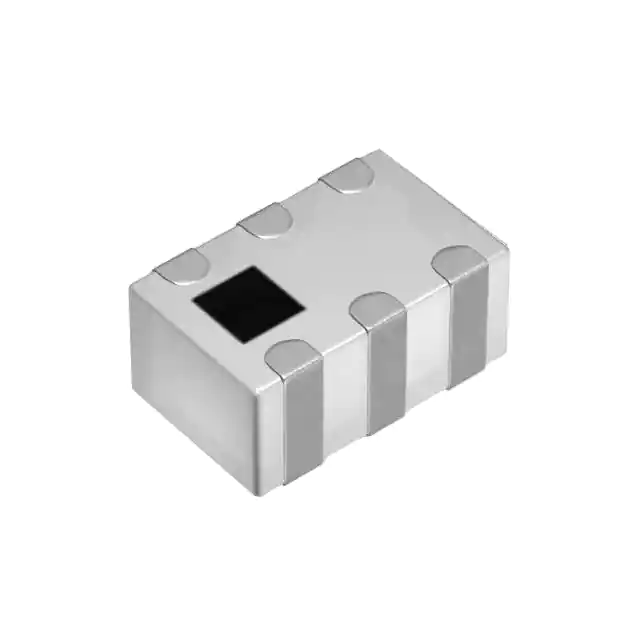

DPX202690DT-4084A5MULTILAYER DPX FOR UMTS/LTE/5G |
4,607 | 0.32 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.71GHz ~ 2.2GHz / 2.496GHz ~ 3.8GHz | 12.00dB / 22.30dB | 15.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX205850DT-4054B5MULTILAYER DPX FOR WLAN/GPS/5G |
3,733 | 0.32 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 2.17GHz / 2.4GHz ~ 5.85GHz | 25.00dB / 36.00dB | 12.00dB / 23.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX255000DT-5089A1MULTILAYER DIPLEXER FOR LTE |
26,896 | 0.49 |
|
Datasheet |
- | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.4479GHz ~ 2.69GHz / 3.3GHz ~ 5GHz | 25.00dB / 29.90dB | 30.00dB / 42.00dB | 10.0dB / 12.0dB | - | - | Surface Mount |
|
DPX162500DT-8028A1RF DIPLEXER 1.575/2.45GHZ 0603 |
20,497 | 0.34 |
|
Datasheet |
DPX | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 1.572GHz ~ 1.578GHz / 2.4GHz ~ 2.5GHz | 13.00dB / 22.40dB | 22.00dB / 36.60dB | 14.0dB / 14.0dB | - | - | Surface Mount |
|

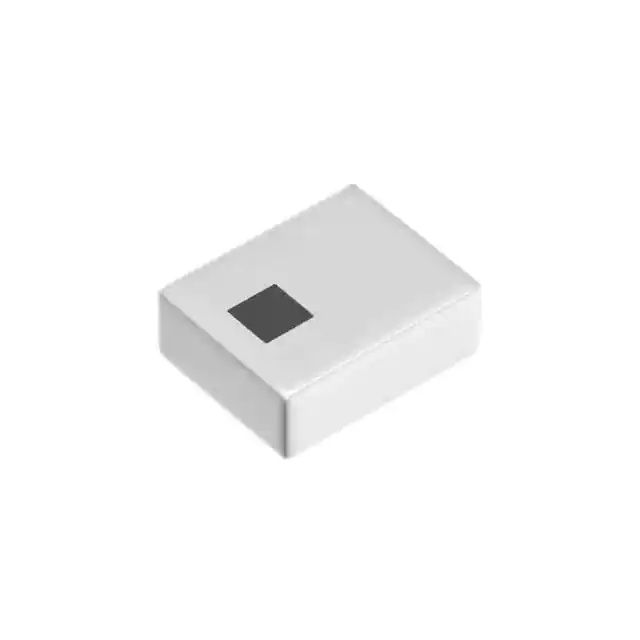

DPX255925DT-5045F3MULTILAYER DIPLEXER FOR LTE |
14,252 | 0.49 |
|
Datasheet |
- | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz | 28.00dB / 32.00dB | 30.00dB / 33.00dB | - | - | - | Surface Mount |
|
DPX165850DT-8085D3MULTILAYER DIPLEXER FOR 2.4/5GHZ |
7,612 | 0.34 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 2.69GHz / 5.15GHz ~ 5.85GHz | 35.00dB / 41.00dB | 40.00dB / 43.00dB | - | - | - | Surface Mount |
|
DPX252690DT-5072A1MULTILAYER DIPLEXER FOR LTE |
2,514 | 0.49 |
|
Datasheet |
- | 1008 (2520 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 960MHz / 1.452GHz ~ 2.69GHz | 30.00dB / 39.00dB | 28.00dB / 38.00dB | 16.0dB / 15.0dB | - | - | Surface Mount |
|

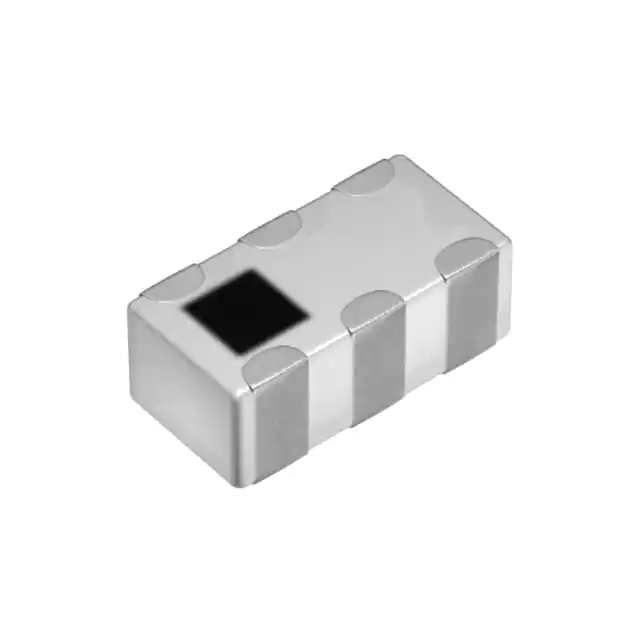

DPX165950DT-8145A1MULTILAYER DIPLEXER FOR 2400 - 2 |
7,994 | 0.34 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 30.00dB / 37.00dB | 15.00dB / 19.00dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|

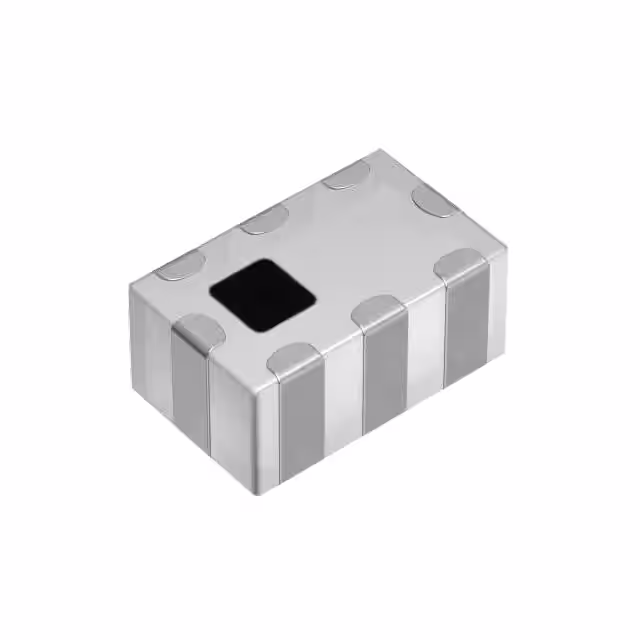

TPX205950MT-7010A4MULTILAYER TPX FOR WLAN/GPS/5G |
2,984 | 0.35 |
|
Datasheet |
TPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Triplexer | 617MHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz | 15.00dB / 23.00dB | 20.00dB / 29.00dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|
|
DPX255925DT-5079B1MULTILAYER DPX FOR GSM/UMTS/5G |
5,911 | 0.35 |
|
Datasheet |
DPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 4.2GHz / 5.15GHz ~ 5.925GHz | 20.00dB / 30.10dB | 35.00dB / 37.80dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|

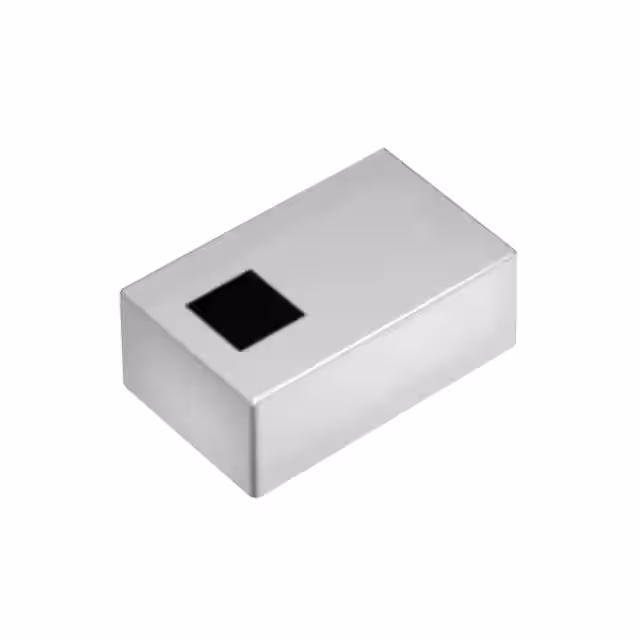

TPX205950MT-7052C1MULTILAYER TPX FOR WLAN/BT/GPS |
3,827 | 0.35 |
|
Datasheet |
TPX | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Triplexer | 1.559GHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz | 25.00dB / 29.00dB | 33.00dB / 41.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

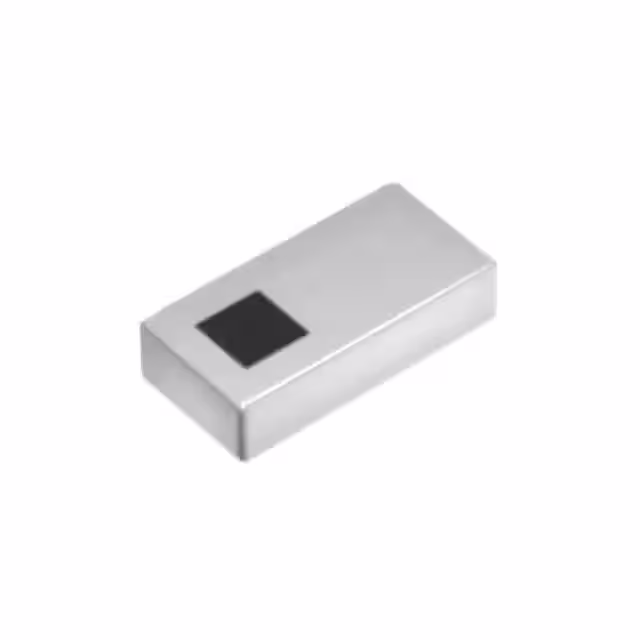

DPX205925DT-4226A2MULTILAYER DIPLEXER FOR LTE |
2,650 | 0.42 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 3.3GHz ~ 3.8GHz / 4.4GHz ~ 5.925GHz | 15.00db / 18.00dB | 15.00dB / 17.70dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

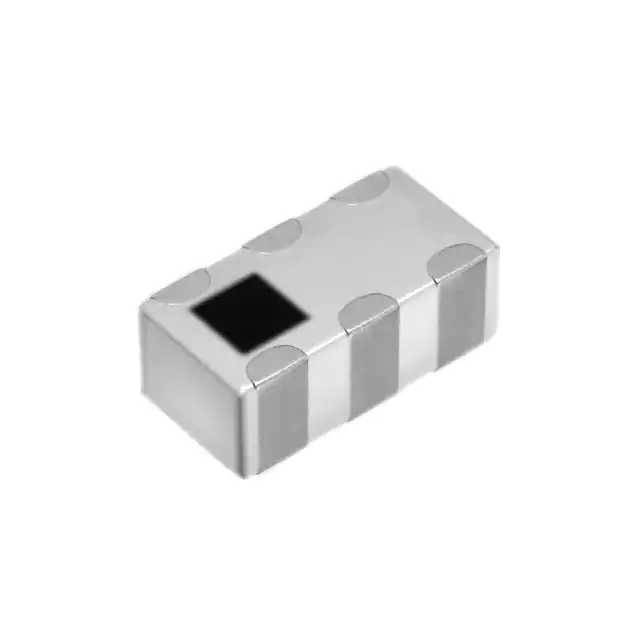

DPX201880DT-4061A2MULTILAYER DIPLEXER FOR LTE |
1,122 | 0.42 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 1.511GHz / 1.71GHz ~ 2.7GHz | 10.00dB / 15.00dB | 10.00dB / 15.00dB | - | - | - | Surface Mount |
