RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPX255000MT-7090A1MULTILAYER TRIPLEXER FOR LB/MB/N |
5,075 | 0.49 |
|
Datasheet |
- | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 617MHz ~ 960MHz / 3.3GHz ~ 5GHz | 25.00dB / 30.40dB | 22.00dB / 24.90dB | 12.0dB / 10.0dB | - | - | Surface Mount |
|

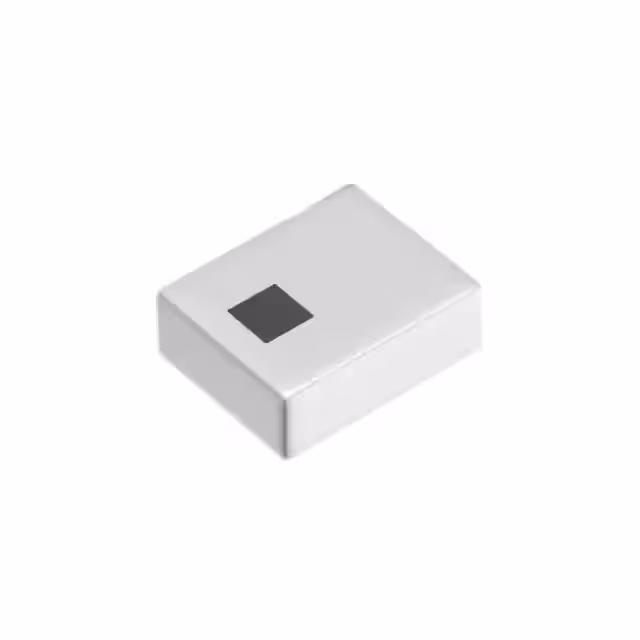

TPX255950MT-7089A1MULTILAYER TRIPLEXER FOR LTE/5GH |
1,690 | 0.49 |
|
Datasheet |
- | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 617MHz ~ 960MHz / 3.3GHz ~ 5.95GHz | 20.00dB / 29.30dB | 20.00dB / 24.60dB | - | - | - | Surface Mount |
|
DPX205850DT-4054B1MULTILAYER DIPLEXER FOR 800 - 21 |
1,238 | 0.54 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 800MHz ~ 2.17GHz / 2.4GHz ~ 5.85GHz | 10.00dB / 36.00dB | 12.00dB / 24.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

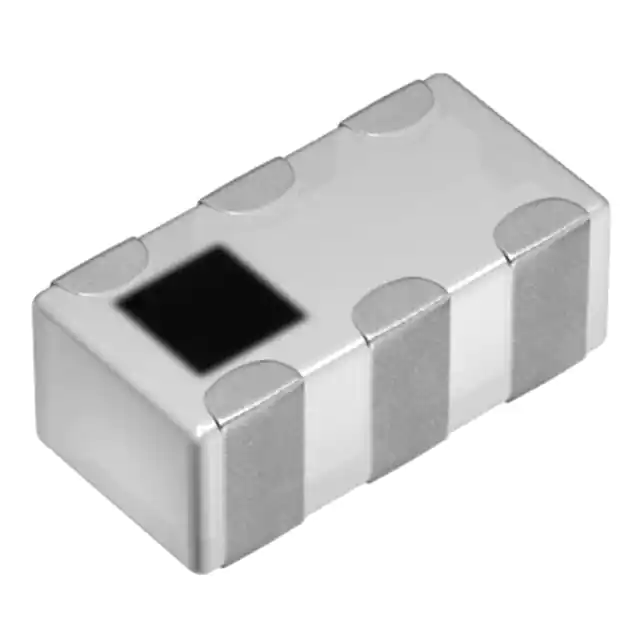

DPX202700DT-4162A1MULTILAYER DIPLEXER FOR 698 - 96 |
37,796 | 0.54 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 960MHz / 1.71GHz ~ 2.7GHz | 30.00dB / 39.10dB | 25.00dB / 29.70dB | 10.03dB / 10.03dB | - | - | Surface Mount |
 PKG.jpg)
|

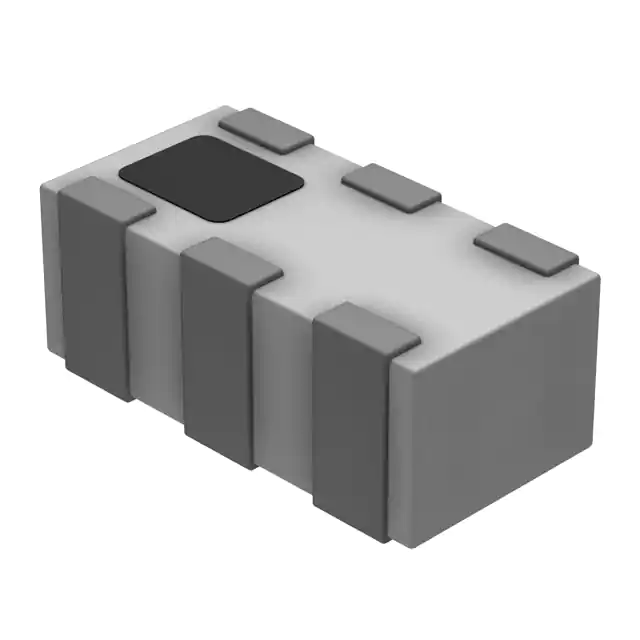

DPX165900DT-8125A1RF DIPLEXER 2.45GHZ/5.5GHZ 0603 |
12,895 | 0.47 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.1GHz ~ 5.9GHz | 18.00dB / 24.00dB | 20.00dB / 33.00dB | 22.0dB / 13.0dB | - | - | Surface Mount |
|
|
1600DP14B2450001TMINI DIPLEX 1.5/2.4/5.4GHZ |
6,695 | 0.00 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.55GHz ~ 1.61GHz / 2.4GHz ~ 6GHz | 12.00dB / - | 20.00dB / - | 9.5dB / 9.5dB | - | - | Surface Mount |
|

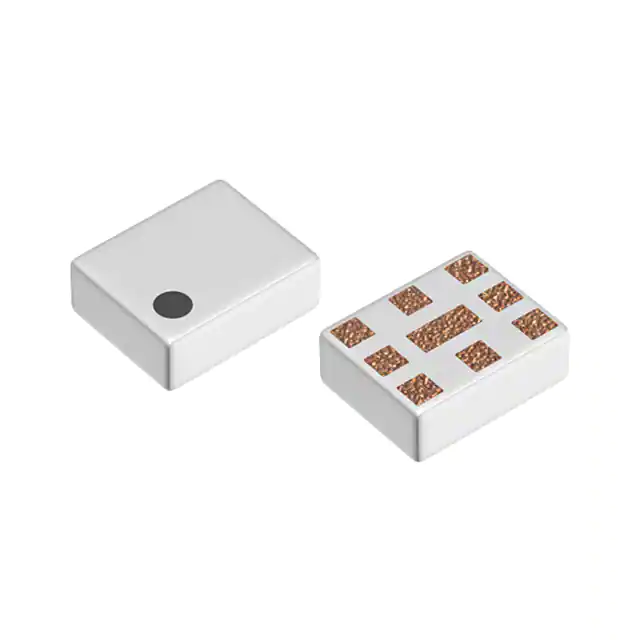

TPX255850MT-7013A3RF TRIPLEXER 1008 9 PC PAD |
3,876 | 0.52 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | - | 13.00dB / 17.00dB | - | - | - | - | Surface Mount |
|

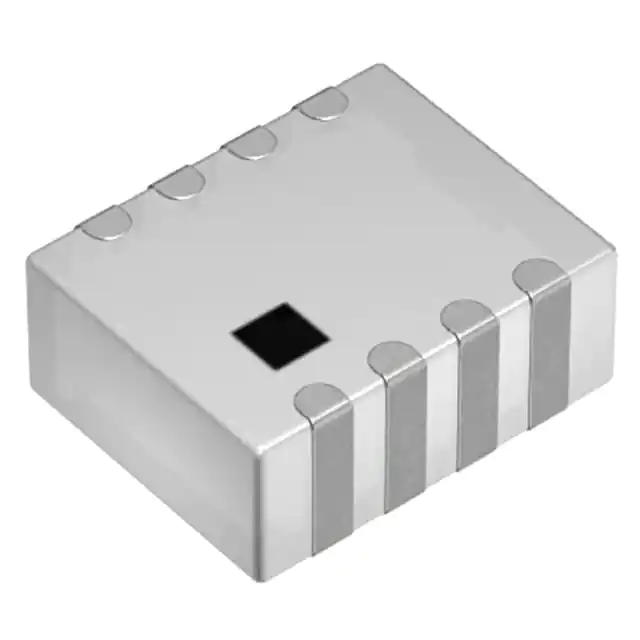

DPX252690DT-5021B1RF DIPLEXER 829MHZ/2.2GHZ 1008 |
7,547 | 0.97 |
|
Datasheet |
DPX | 1008 (2520 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | - | - | - | - | - | Surface Mount |
|
D6DA2G140K2A7-ZRF DUPLEXER 8SMD NO LEAD |
1,756 | 1.11 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz / 5GHz | - | 45.00dB / 55.00dB | - | - | - | Surface Mount |
|
|
2450DP14B6100001TMINIATURE EIA 0603 RF DIPLEXER 2 |
10,119 | 0.00 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.17GHz ~ 7.125GHz | 2.00dB / - | 10.00dB / - | 12.0dB / 10.0dB | - | - | Surface Mount |
|
|
2450DP14A6100001TMINIATURE EIA 0603 RF DIPLEXER 2 |
1,431 | 0.00 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.17GHz ~ 7.125GHz | 2.00dB / - | 10.00dB / - | 12.0dB / 10.0dB | - | - | Surface Mount |
|

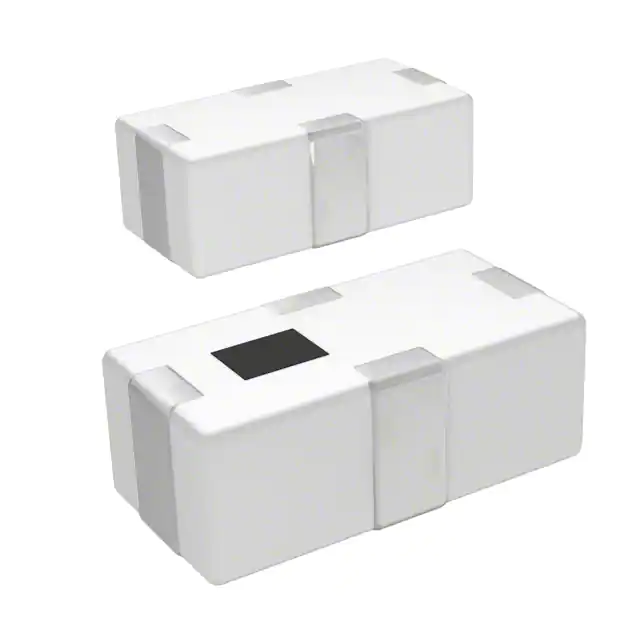

DPX165850DT-8117A1RF DIPLEXER 2.5GHZ/5.85GHZ 0603 |
1,370 | 0.78 |
|
Datasheet |
DPX | 0603 (1608 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.85GHz | 15.00dB / 19.00dB | 20.00dB / 24.00dB | 21.0dB / 20.0dB | - | - | Surface Mount |
|
|
2450DP14A6000001TMINIATURE EIA TRIPPLE BAND RF DI |
3,923 | 0.00 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 7.15GHz | 45.00dB / 50.00dB | 22.00dB / 25.00dB | 9.5dB / 9.5dB | - | - | Surface Mount |
|
DPX165950DT-8126A1RF DIPLEXER 2.45/5.425GHZ 0603 |
6,742 | 0.78 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | 21.5dB / 16.6dB | - | - | Surface Mount |
|
DPX201990DT-4151A2RF DIPLEXER 872.5MZ/1.78GHZ 0805 |
2,659 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 800MHz ~ 945MHz / 1.57GHz ~ 1.99GHz | 25.00dB / 31.00dB | 23.00dB / 28.00dB | - | - | - | Surface Mount |
|
DPX202690DT-4060A1RF DIPLEXER 0805 6 PC PAD |
1,973 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | 20.00dB / 24.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX202170DT-4149A1RF DIPLEXER 892MHZ/1.94GHZ 0805 |
2,131 | 0.98 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz | 15.00dB / 18.00dB | 20.00dB / 23.00dB | 20.0dB / 14.0dB | - | - | Surface Mount |
|
|
DPX202690DT-4049A2RF DIPLEXER 832MHZ/2.2GHZ 0805 |
6,406 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | - | - | 17.9dB / 8.8dB | - | - | Surface Mount |
|

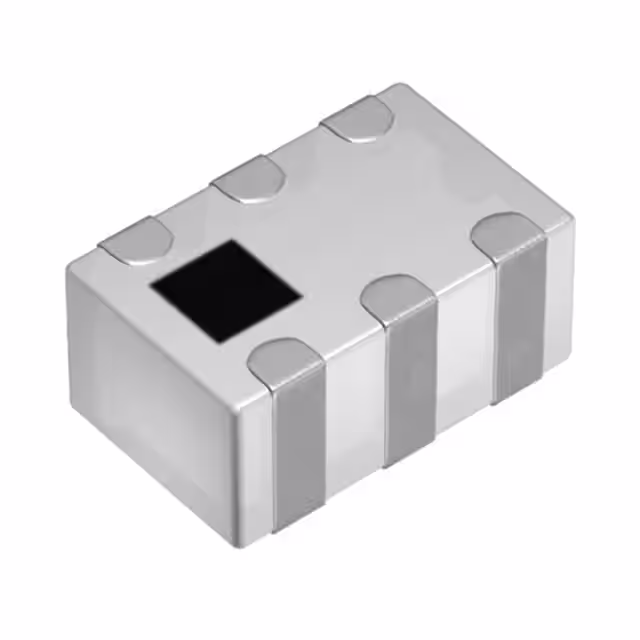

DPX205850DT-4055A1RF DIPLEXER 1345MZ/4.125GHZ 0805 |
4,949 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 700MHz ~ 1.99GHz / 2.4GHz ~ 5.85GHz | 13.00dB / 28.00dB | 15.00dB / 21.00dB | 9.5dB / 9.5dB | - | - | Surface Mount |
|
|
DPX205850DT-4152B2RF DIPLEXER 877MHZ/4.125GHZ 0805 |
4,293 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 174MHz ~ 1.58GHz / 2.4GHz ~ 5.85GHz | 13.00dB / 28.00dB | 9.00dB / 28.00dB | 12.0dB / 28.0dB | - | - | Surface Mount |
